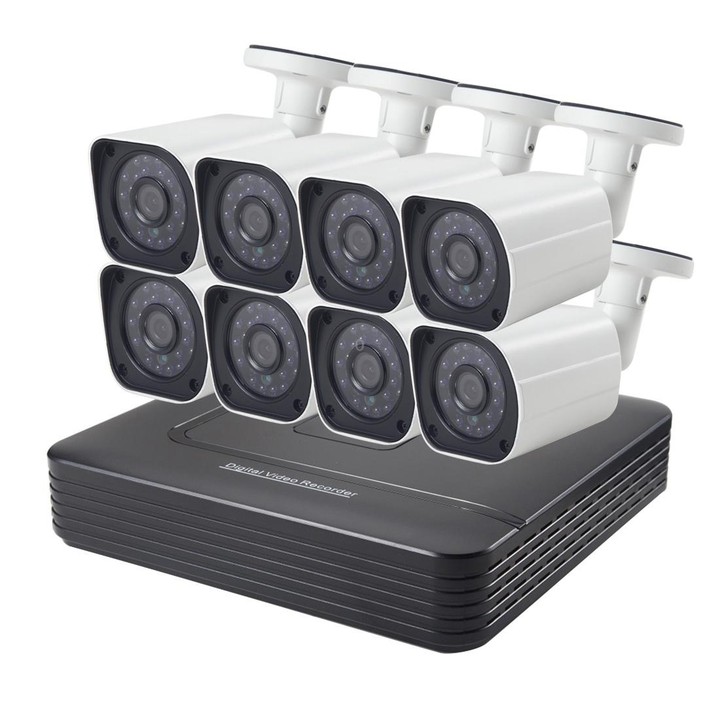

A8B6 8Ch Bullet IP Camera NVR Kit, Support Night Vision / Motion Detection, IR Distance: 15m

Features

1. Support 8CH 1080P 1 HDD NVR.

2. 8 x 2.0MP IP Camera(24 x IR LED, IR distance 15m).

3. High performance H.264 compression technology, processing and flexible.

4. Supports full real-time encoding video, full real-time playback of multi-channel synchronous decoding.

5. Main stream and Sub-stream encoding: Main stream for local storage, ensure image quality; Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.

6. Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL,IP searches etc.) And perfect support (WEB, Client, SDK), easy to achieve interoperability.

7. Support IE, Chrome, Firefox, Safari browsers.

8. With DNS (ARSP),easy to monitor remotely,3322 (Greek network), dyndns, oray (peanut shells), myq-see and other DNS are also provided.

9. With XM cloud service, easy to achieve a variety of network penetrations ,one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate.

10. Support various mobile monitoring (iPhone, Windows Mobile, BlackBerry,Symbian, Android).

11. Got CE & RoHS certification.

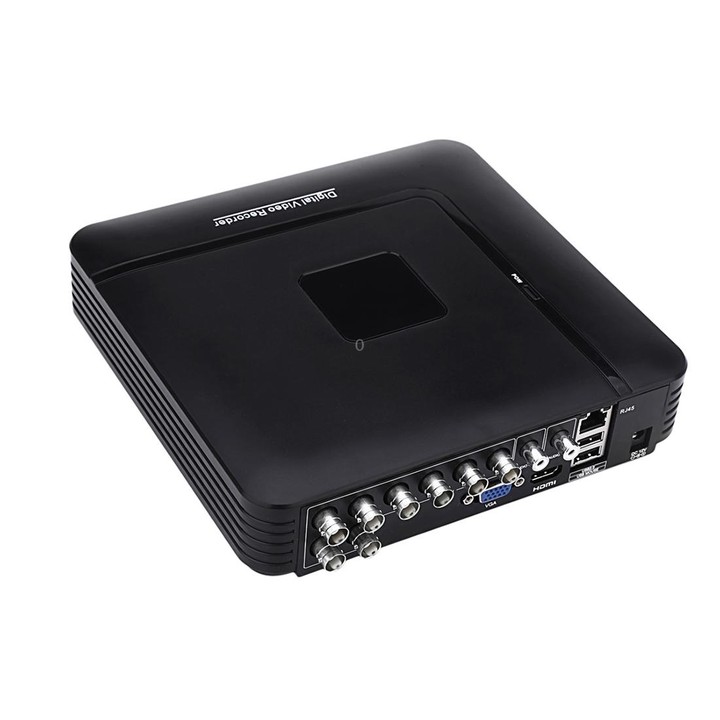

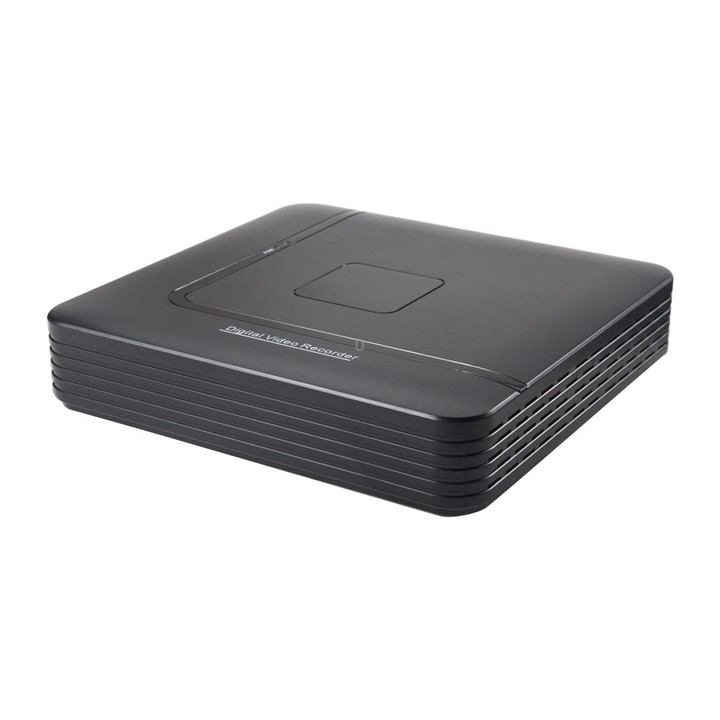

NVR

1. With XM cloud service, easy to achieve a variety of network penetrations, one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate.

2. H.264 compression algorithm, 30% decrease of stream due to advanced space-time filtering technology.

3. Supports full real-time encoding video, full real-time playback of multi-channel synchronous decoding.

4. Main and Sub Stream: Main stream and sub-stream encoding. Main stream for local storage, ensure image quality; Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.

5. Mobile monitor: Supports various mobile monitoring(iPhone, Windows Mobile, BlackBerry,

Symbian, Android).

6. Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL,IP searches etc. And perfect support WEB, Client, SDK), easy to achieve interoperability.

7. With DNS (ARSP),easy to monitor remotely, 3322(Greek network), dyndns, oray (peanut shells), myq-see and other DNS are also provided.

8. Boot screen free replacement, more than twenty languages(Chinese, Dutch, English, French, German, Italian, Hebrew, Kazakh, Farsi, Polish, Portuguese, Russian, Spanish, Thai, Korean, Czech, Turkish, Hungarian, Romanian, Bulgarian), over 10 sets of GUI interface, ten kinds of remote control, which make our products different from others.

9. With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.

10. Monitor quality: VGA, HDMI: HD.

11. Playback quality: AHD-H/ AHD-M.

12. Encode ability: 8*1080N/8* AHD-H@12fps.

13. Decode ability: 8*1080N/4* AHD-H@12fps.

14. Multi-mode input: analog: analog: 8*AHD-H; 8*1080N; hybrid:N/A; Network only: 8*1080P; 16*960P; 4*3M; 4*5M.

15. Recording Mode: Support manual, alarm, motion detection, timing.

16. Search mode: Search by time, calendar, event, channel.

17. Motion Detection: Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel).

18. Backup mode: Network, USB hard disk, USB burner, SATA burner.

19. Video input: 8ch BNC.

20. Video output: 1ch VGA,1ch HDMI(not support audio).

21. Audio input: 1ch or 4ch RCA.

22. Audio output: 1ch RCA.

23. SATA HDD Port: Support MAX 6TB HDD

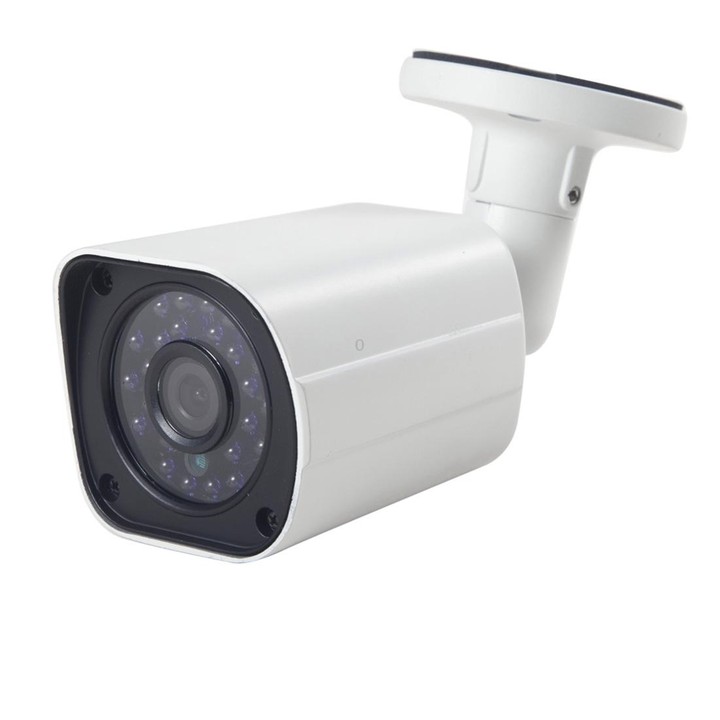

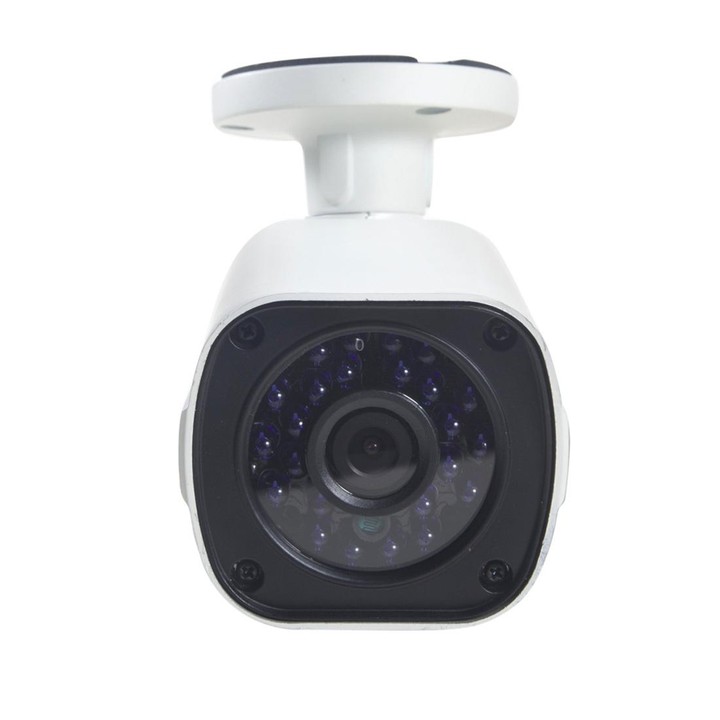

IP Camera

1. Wide power supply design, can work in a wide voltage range.

2. Green products, low current, low power consumption, energy saving.

3. Life waterproof.

4. Video lighting, anti-static dry flex circuit design, effective against high-voltage outdoor lighting, power surges and static electricity.

5. Each product got rigorous aging test. International brands of materials, creating product consistency and stability.

6. High speed, long distance real-time transmission.

7. Support night vision and white balance, equipped with 24 IR LED lights, the maximal IR LED length is 15m.

8. Effective Pixels: 1980x1080.

9. Video Frame Rate: PAL: 25fps@1080P, NTSC: 30fps@1080P.

Specification:

General

Shape

Bullet

Mount Types

Wall bracket

Performance

Motion detection, Night Vision

Power Input

DC 12V/1A (Camera)

Network

Network Interface

RJ45 10/100MB Ethernet interface

Protocol

DDNS, DHCP, PPPOE, FTP, DNS

Web Browser

IE, Google Chrome, Firefox, Safari

SDK

SDK

System / Hardware

Mobile Access

Android, iPhone OS

Image Sensor

CMOS

Pixels

2.0MP

Electronic Shutter

1/50~1/100000s

Media Format

Video Compression Format

H.264

Audio Compression Format

G711-A

Night Vision

Infrared Distance

15m

IR LED

24

NVR

System

Operating system: Embedded LINUX OS

Recording

Recording mode: Manual recording, motion detection recording, time recording, alarm recording

Video interface

Video output: 1ch VGA and 1ch HDMI

Network

RJ45 10M/100M self-adaptive LAN port

USB Port

2 x USB 2.0 ports

Operation temperature

0 to 55 Degree Celsius

Operation humidity

10-90 percent

Power

DC 12V 2.0A

Physical Environment

Operate Temperature

0 to 55 Degree Celsius

Working Humidity

10 to 90 percent

Package Include

Package Contents

8 x Cameras

1 x USB Mouse

1 x NVR

1 x CD

1 x User Manual

9 x Power Adapters (US, UK, EU, AU Optional))

8 x Screw Sets
