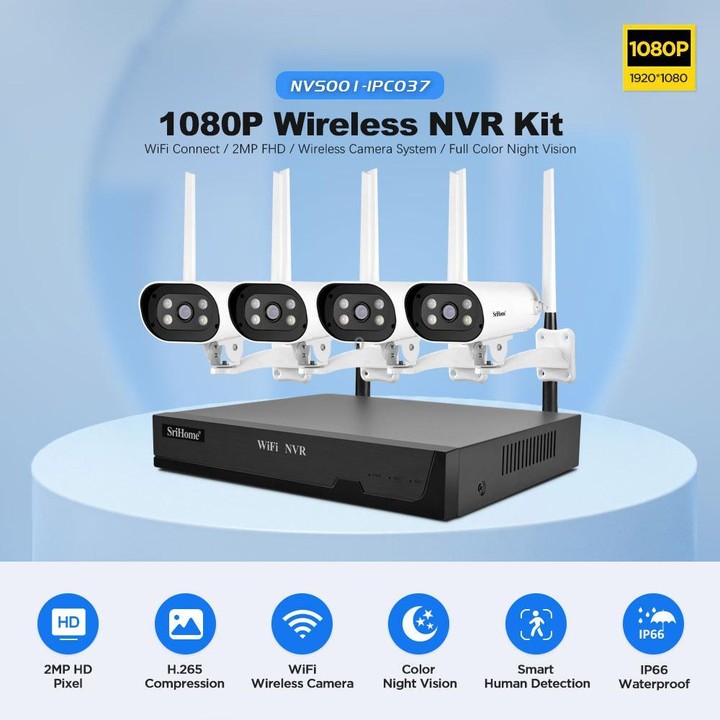

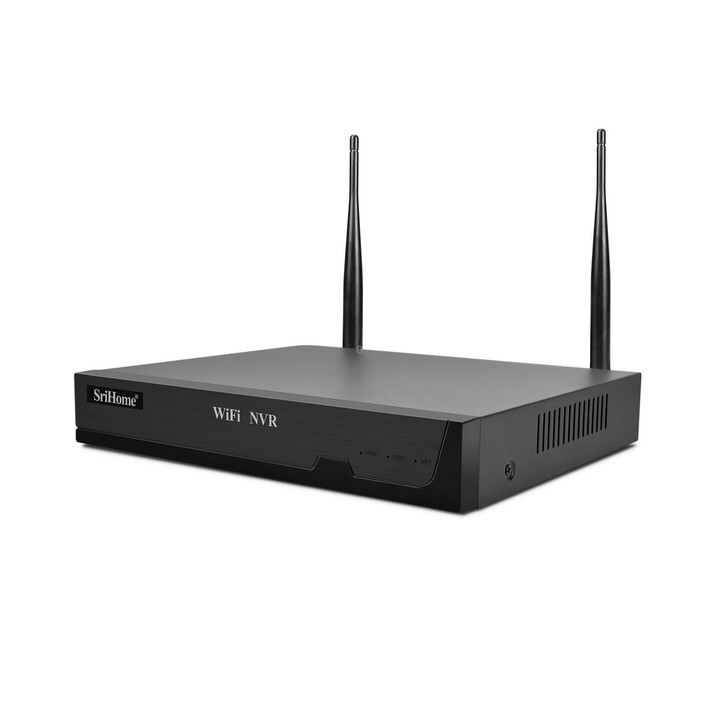

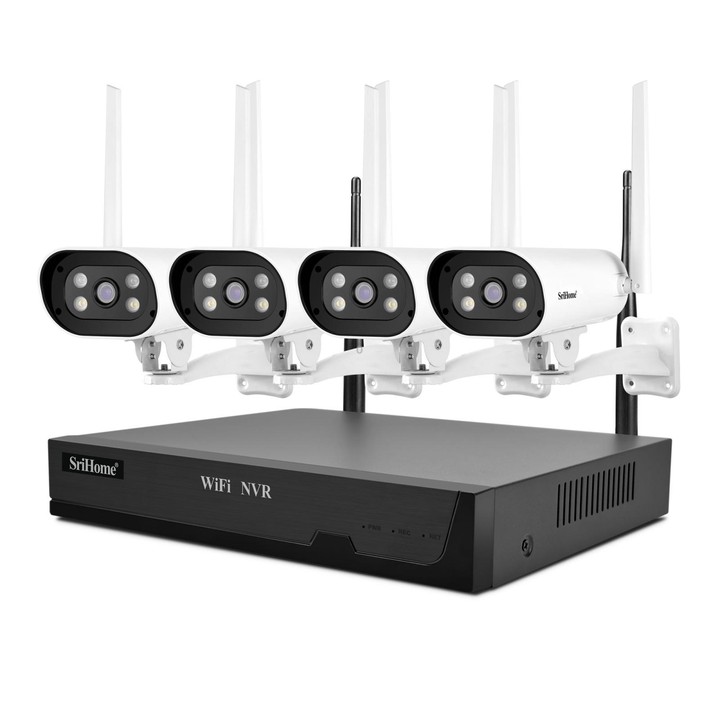

SriHome NVS001-IPC037 2MP HD 4-CH NVR WiFi IP Camera Kit(UK Plug)

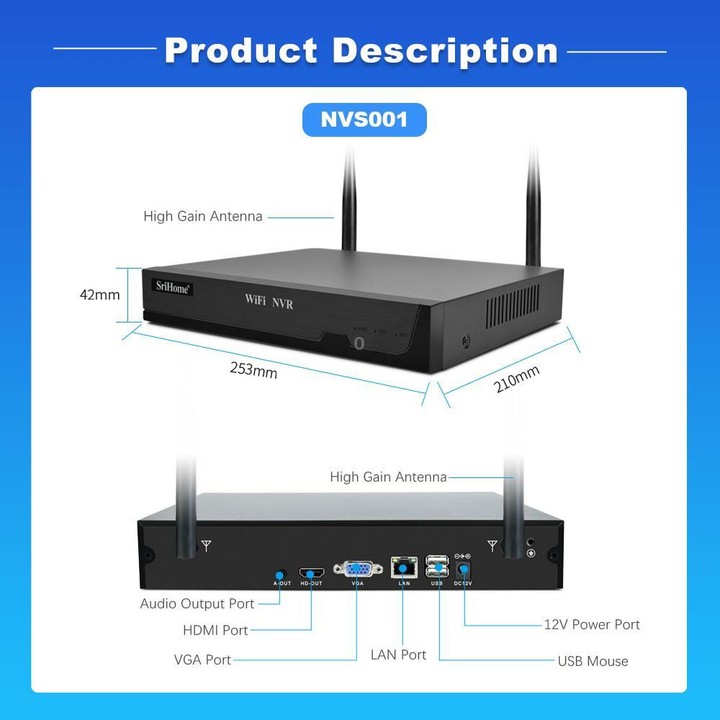

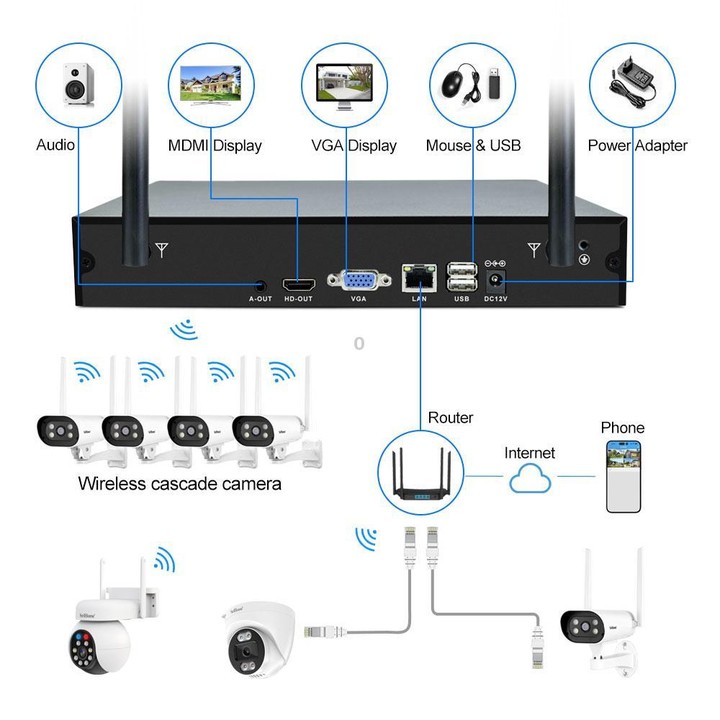

1. Video Input: 4 channels

2. Video Output: 1 HDMI, 1 VGA

3. Compression Format: H.265/H.264/Smart264

4. Encoding Capacity: 8 channels of 2-megapixel video at 25 frames per second

5. Decoding Capacity: 1 channel of 5-megapixel video at 25 frames per second (main stream), 8 channels of D1 at 25 frames per second (auxiliary stream)

6. Decoding Format: H.265, H.264

7. Audio: Supports two-way audio

8. Audio Output: HDMI and 1 AUX audio output

9. Decoding Format: G.711U, AAC

10. Hard Drive Port: 1 x SATA

11. Hard Drive Capacity: Maximum 16TB

12. Recording Mode: Scheduled Recording, Alarm Recording

13. Playback Mode: Regular Playback, App Playback

14. Backup Mode: Regular Backup

15. WiFi: 2.4G, supports only Srihome standard cameras

16. WAN Port: RJ45 wired connection

17. Network Services: Supports DHCP, DNS, DDNS, NTP, UPNP, etc.

18. Alarm Modes: Motion Detection Alarm, Human Detection Alarm

19. Alarm Alerts: App Push, Alarm Whistle

20. Network Port: RJ45 Network Port

21. USB Port: 2 x USB 2.0

22. Main Processor: Multi-core high-speed processor

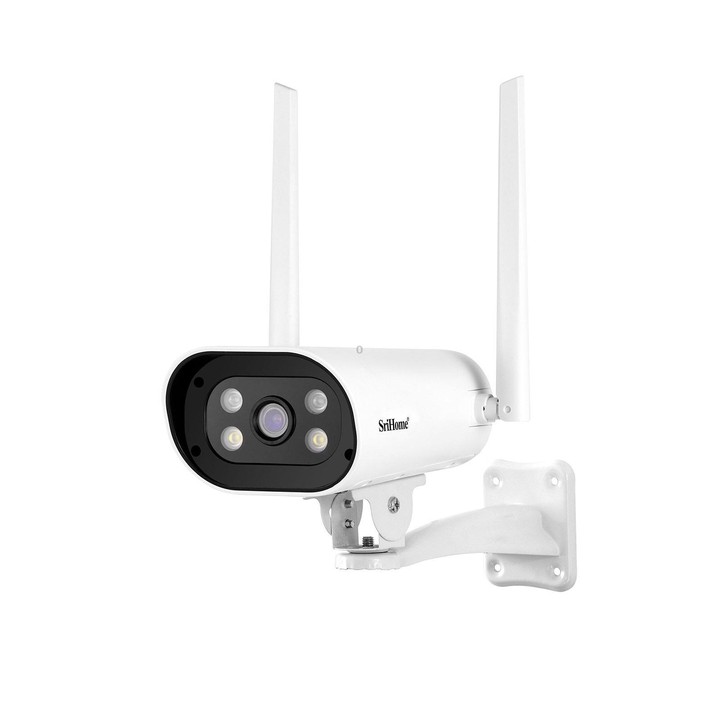

23. Sensor: 1/2.7-inch, 2MP HD color CMOS sensor

24. Compression Format: H.264

25. Lens Specifications: Focal Length: 4mm

26. Viewing Angle: D: 98 degrees, H: 80 degrees, V: 58 degrees

27. Resolution: 1080P (1920x1080), VGA (640x360)

28. Frame rate: 15 FPS

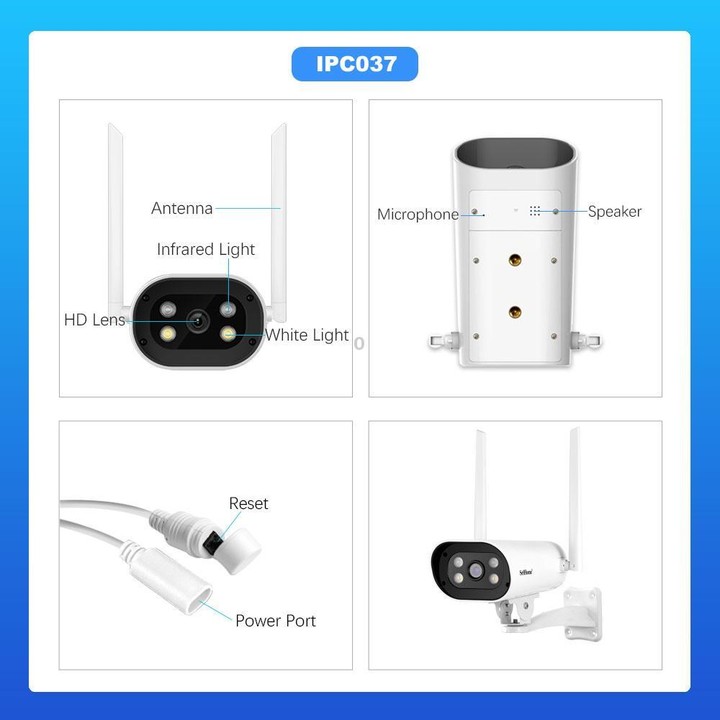

29. IR cutoff: Built-in IR cutoff, ensuring stable color cast both indoors and outdoors

30. Audio: Built-in microphone and speaker, supports two-way audio

31. Protocol: G711

32. Alarm mode: Default black-and-white night vision. When an alarm is detected, the white light turns on and switches to full-color night vision.

33. White light mode: Turns on full-color night vision with adjustable brightness. The on-time can be customized via the app. Default time: 5:00 PM to 8:00 AM.

34. Infrared Mode: Disables white light and switches to standard night vision.

35. Alarm Mode: Motion detection, human presence.

36. Customizable Alarm Zones: Supports customizable motion detection zones for improved alarm accuracy.

37. Wireless: 2.4G (only connected to SriHome WiFi NVR)

Functions:

1. 1080P HD camera, supports 8-channel simultaneous viewing.

2. NVR supports up to 8 5MP wireless cameras.

3. Supports up to 16TB hard drive storage and playback.

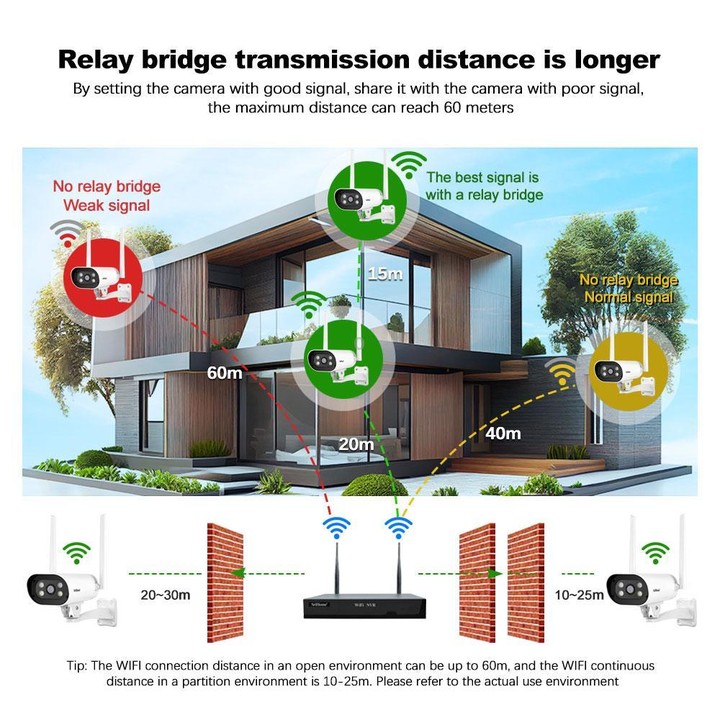

4. Supports wireless bridge mode with a WiFi range of up to 60 meters.

5. Supports H.265 compression format, with approximately 50 days of storage per 1TB.

6. Supports two-way voice intercom, infrared dual-light, and full-color night vision.

7. AI Intelligence: Supports human tracking and siren alarms.

8. Supports mobile remote monitoring, intercom, and playback.

9. Waterproof IP66, suitable for indoor and outdoor use.
