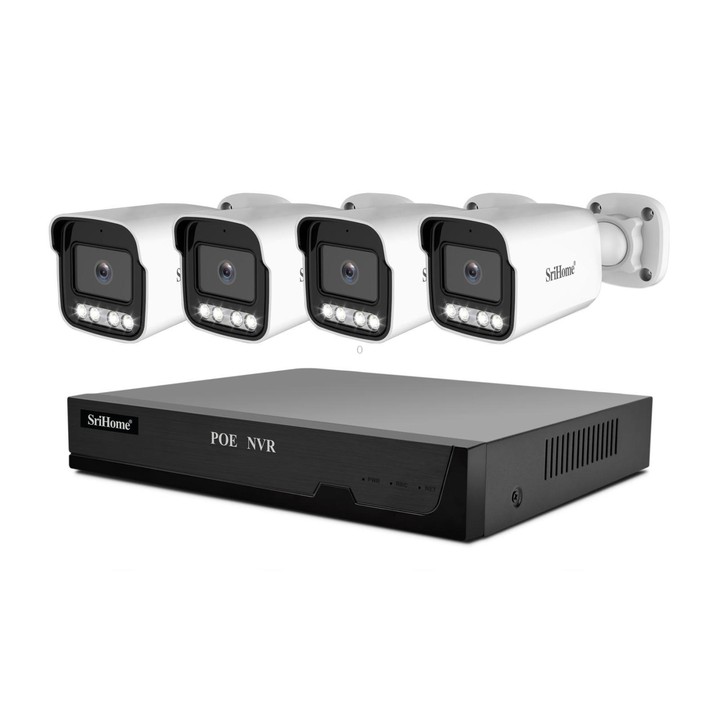

SriHome NVS005-POE065 5MP HD 4-CH POE Camera Network Video Recorder Kit(AU Plug)

1. HD 5MP PoE camera with preview, storage, and playback support.

2. Built-in microphone and speaker with two-way audio support.

3. Three night vision modes: infrared dual-light, full-color night vision, and human tracking.

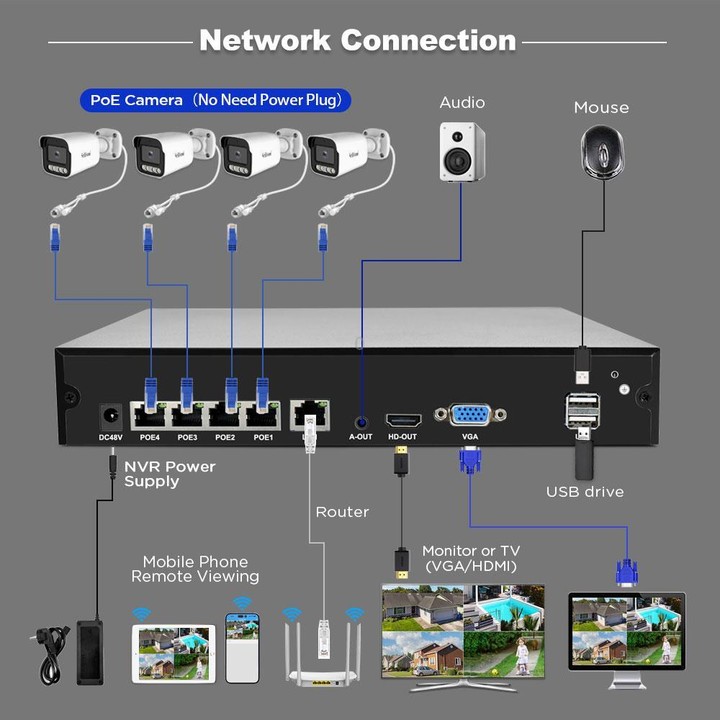

4. Supports up to 16TB hard drive storage, with 1TB storing about 20 days.

5. Supports 4-channel PoE power output with a maximum power supply distance of 150 meters.

6. Supports H.264/H.265 encoding with adaptive front-end access.

7. AI intelligence: supports human alarm, motion detection alarm, alarm siren

8. Supports mobile phone remote monitoring, intercom, and playback.

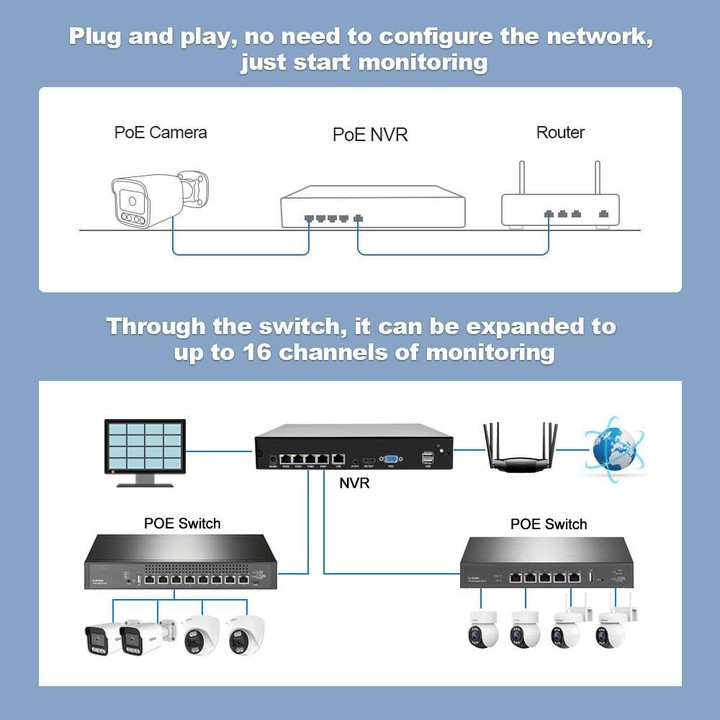

9. Utilizes the SriNPT protocol, requiring no IP configuration for plug-and-play operation.

10. Expandable to up to 16 channels of simultaneous monitoring.

NVS005 Specifications

Video Output: HDMI, VGA

Compression/Decoding Format: H.264/H.265

Video Decoding: 1x5M/25fps (Main Stream), 16xD1/25fps (Common Stream)

Audio Output: HDMI, AUX

Audio Decoding Format: G.711U, AAC

Hard disk Interface: 1 x SATA, SSD & HDD

Hard disk Capacity: Max. 16TB (not included)

Video Recording: All-day recording, scheduled recording, alarm recording

Video Backup: USB backup and hard disk backup

Network: RJ45 wired connection

Network Services: Supports DHCP, DNS, DDNS, NTP, UPNP, etc.

Alarm Methods: Motion detection alarm, human detection alarm, human tracking

Alarm reminder: App push

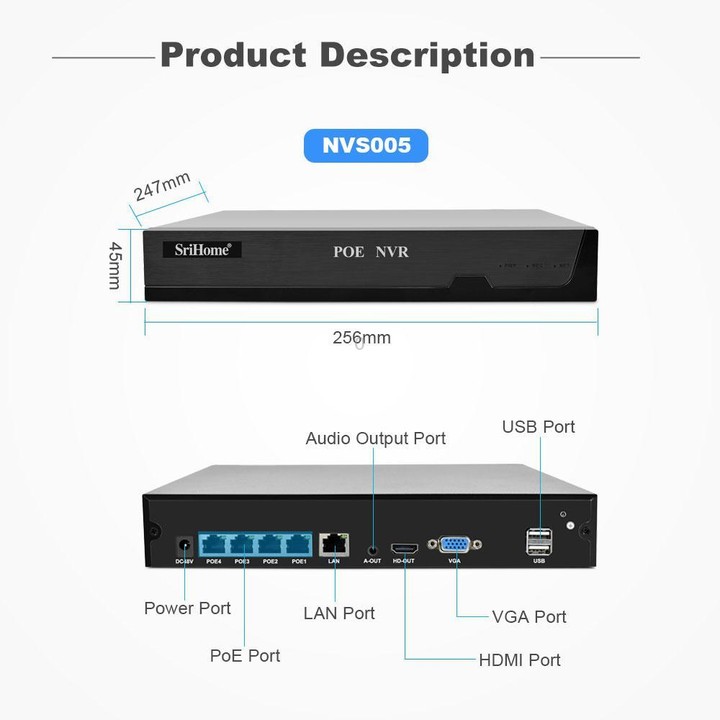

I/O Interfaces: 1000M RJ45 x 1, 2 USB 2.0 x 2, HDMI x 1, VGA x 1, AUX audio x 1, DC 52V/48V 2.3A x 1

App: Support SriHome APP, IOS and Android remote access

POE065 Camera Specifications

Main Processor: Multi-core high-speed processor

Sensor: 1/3 inch, 5MP HD color CMOS sensor

Compression format: H.265

Lens focal length: 4mm

Viewing angle: Horizontal 80 degrees, Vertical 58 degrees, Diagonal 98 degrees

Video resolution: 5MP (2560x1920P), VGA (640x360), 15fps

Audio: Built-in speaker, can speak to the IPC through the NVR host or mobile APP. Built-in microphone, can picks up sound and transmits it to NVR host and mobile phone APP

Night Vision Modes:

Alarm Mode - The default is black and white night vision. When an alarm is detected, the white light is turned on.

White Light Mode - Turn on, full color night vision, support custom working time and adjustable brightness (default is 88)

Infrared Mode - White light is turned off and switched to normal night vision (black and white night vision)

Network port: RJ45

Waterproof: IP66

Dimensions: 80x80x150mm

Net weight: 230g

Specification:
