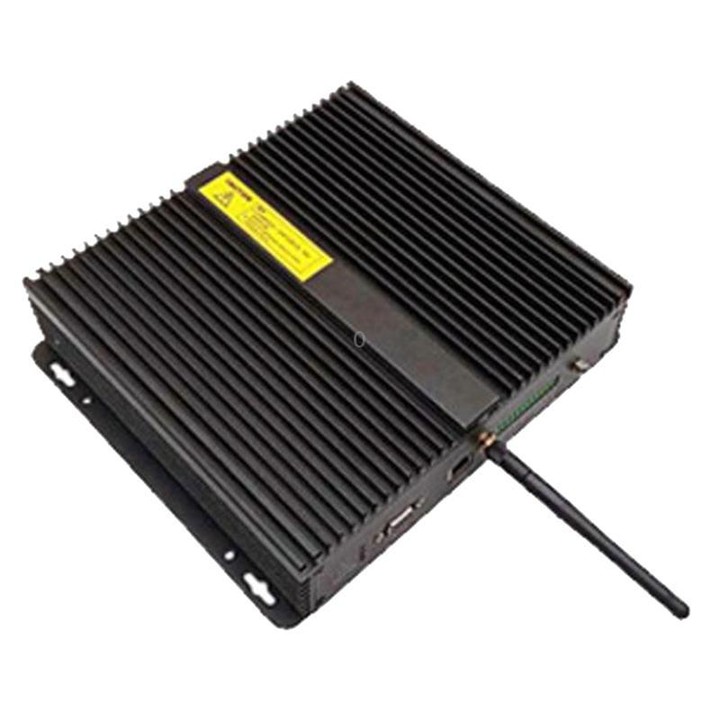

8-Channel UHF Split-Type RFID Reader / Writer with WiFi Aantenna, Ethernet / Serial Port, Warehouse Management & Industrial Elec

Features

1. All-aluminum housing design for excellent heat dissipation and industrial-grade protection;

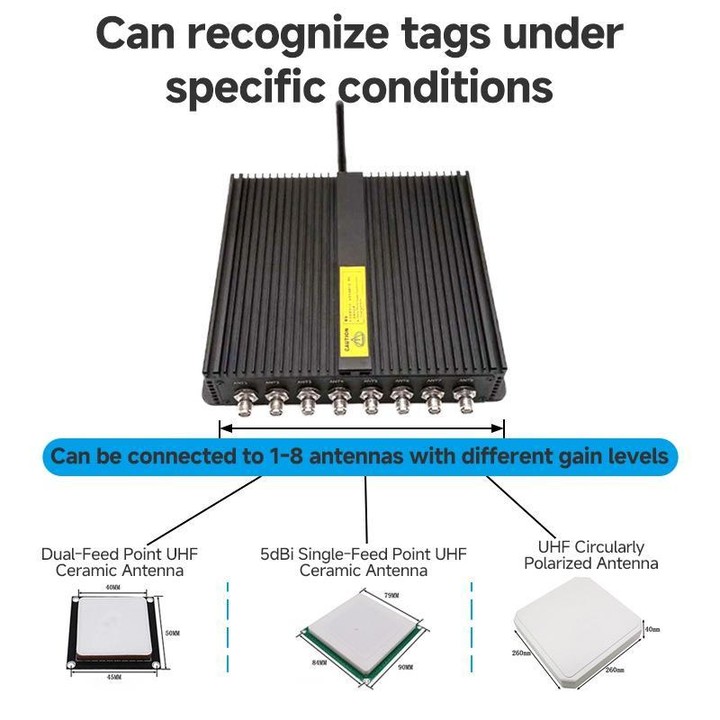

2. Supports up to eight external antennas, with flexible antenna size and feeder length;

3. Compatible with multiple international and domestic protocol standards;

4. Broad-spectrum frequency hopping mode for superior anti-interference capabilities;

5. Industrial-grade design, 24/7 operation;

6. Read and write designated tags;

7. Supports development in multiple languages, including VC, VB, and C#;

8. Applications: Vehicle management, asset management, personnel management, production line management, logistics and traceability management, anti-counterfeiting tracking management, mine management, unmanned retail, and location management

Specifications

1. Model: FF-783B

2. Chipset: Impinj E710

3. Operating Frequency: Standard ISM 902-928MHz and ISM 865-868MHz (optional)

4. Operating Mode: Wide Spectrum Frequency Hopping Scheme (FHSS)

5. RF Power: 0-33dBm, software-adjustable

6. Card Reading Speed: Software-configured, average single-card reading speed of less than 6ms per 64 bits; 500 tags/second for multiple tags

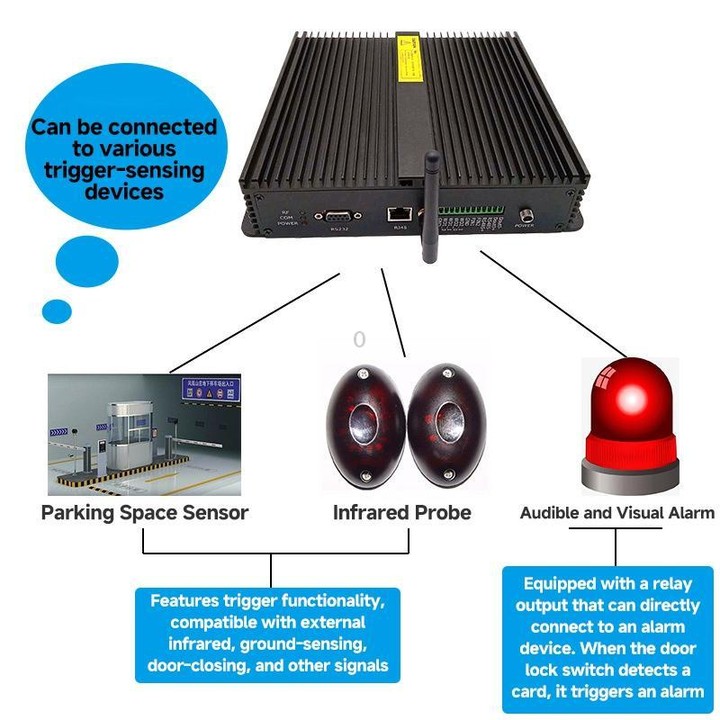

7. Card Reading Mode: Software-configured automatic reading, external trigger-controlled reading, and command-based reading

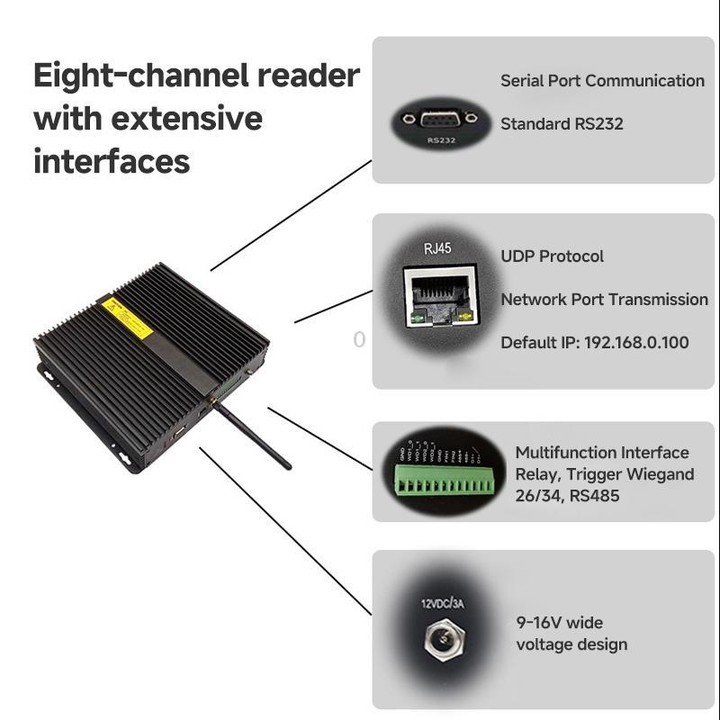

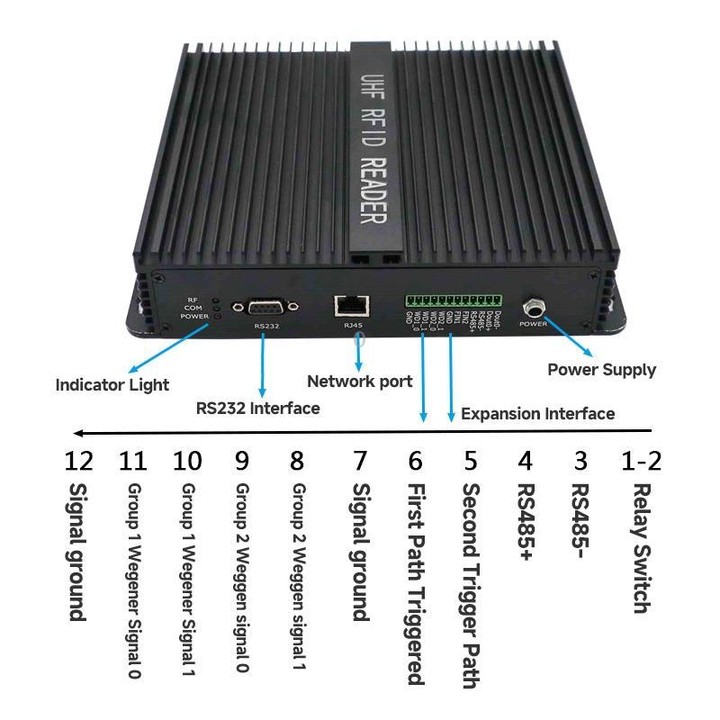

8. Data Interfaces: WiFi, RS232, RS485, RJ45, Wiegand 26/34, two triggers, two relay outputs

9. Card Reading Range: Greater than 25m (depending on antenna and tag)

10. Card Reading Indicator: Buzzer and LED

11. Power Supply: DC+12V (with power adapter), supports voltage range 9-16V

12. Supported Protocols: ISO18000-6B, ISO18000-6C (EPC GEN2)

13. Dimensions: 235 x 200 x 53mm

14. Net Weight: 3kg
