Features
1. Impinj E710 Core: Built with the latest Impinj E710 RFID module for superior sensitivity, fast tag reading, and stable signal transmission.

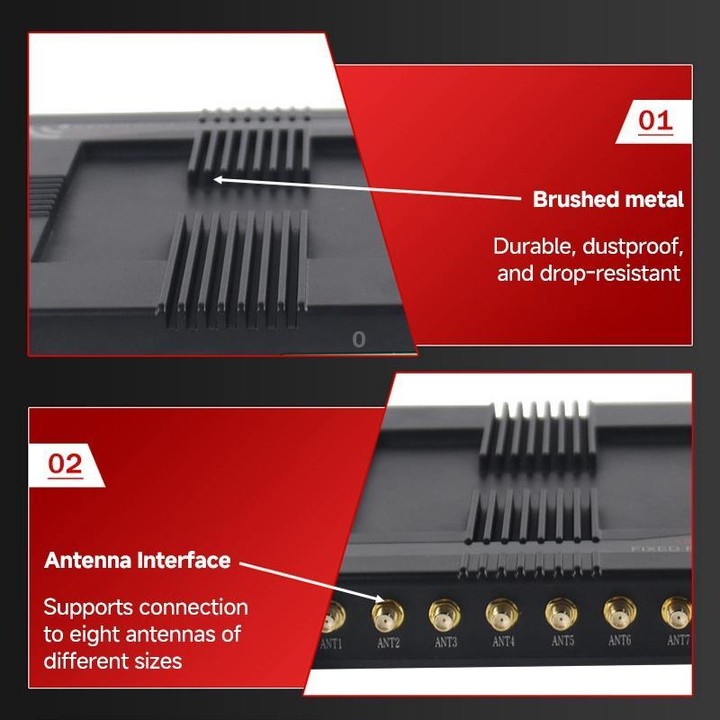

2. Multi-Channel Design: Supports multiple antenna connections to expand coverage and improve reading efficiency across large areas.
3. Fixed Installation: Ideal for gateways, production lines, and warehouse entrances, providing continuous and reliable long-range RFID reading.
4. High-Speed & Long-Range: Capable of quickly identifying a large number of tags at long distances, ensuring smooth data capture in high-density environments.

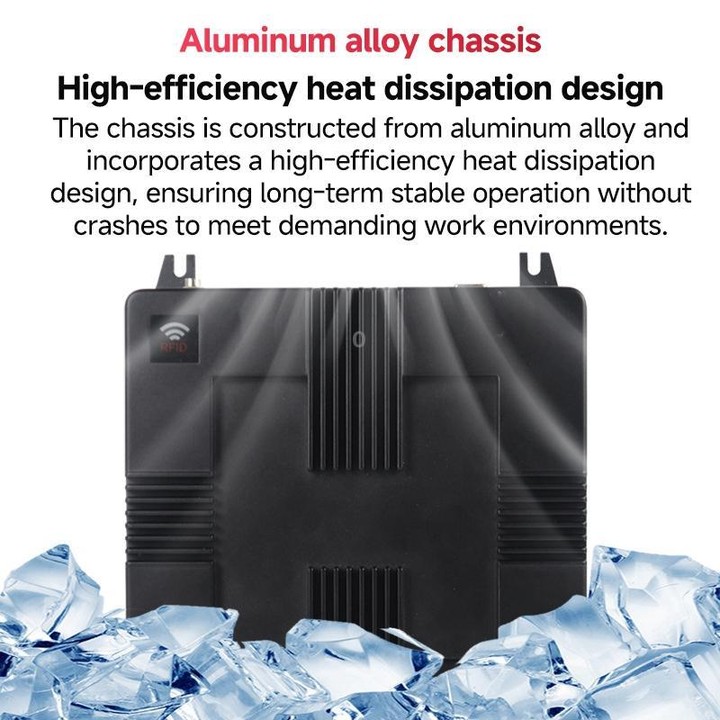

5. Industrial-Grade Reliability: Rugged construction with excellent heat dissipation and anti-interference features for 24/7 operation in demanding settings.

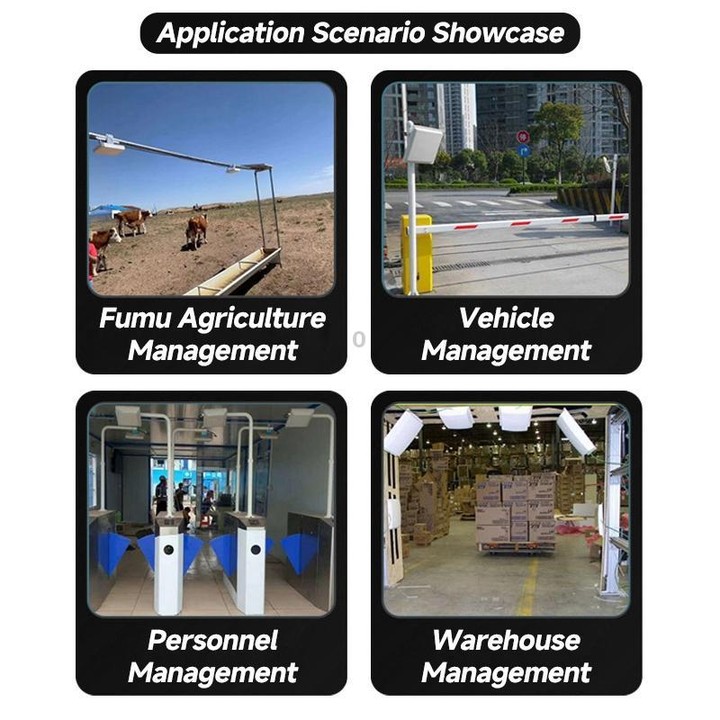

6. Wide Application: Perfect for warehouse inventory management, logistics tracking, smart retail, parking systems, and automated production control.
Specifications
1. Product Model: FF-787
2. Supported Protocols: ISO18000-6C
3. Operating Frequency: 902-928 MHz; 865-868 MHz, Global Bands, Software-Configurable
4. Operating Mode: Wide Spectrum Frequency Hopping Sweep (FHSS)
5. RF Power: 0-33 dBm, Software-Adjustable
6. Card Reading Speed: Software-Configurable, Less than 6 ms per 64-bit card for a single card, Greater than 500 cards/second for multiple tags
7. Card Reading Distance: Greater than 20 meters, Antenna and Tag Dependent
8. Card Reading Indicator: Buzzer and LED

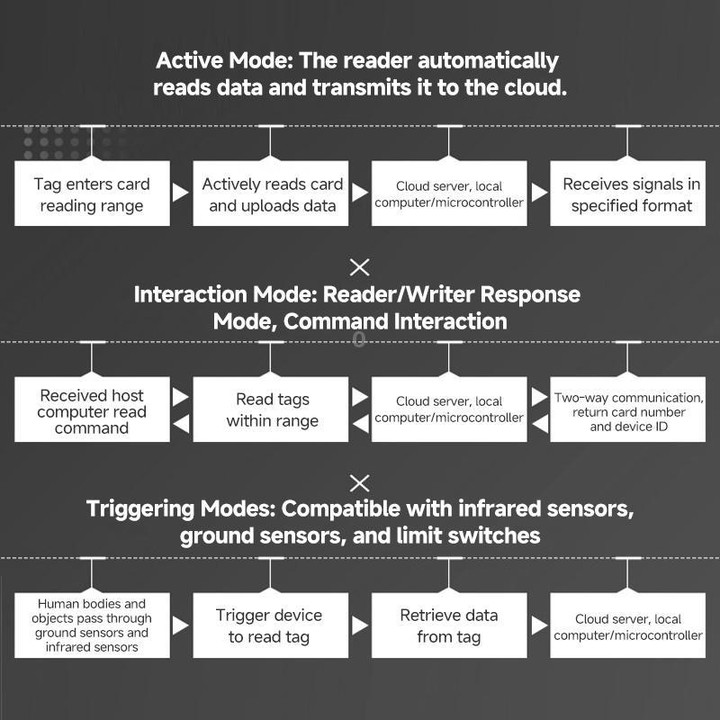

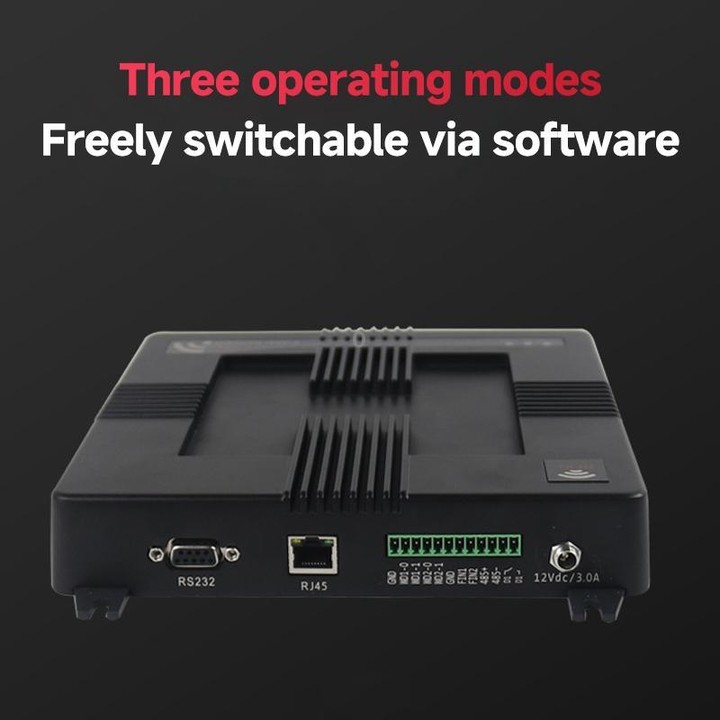

9. Card Reading Modes: Timed automatic reading, external trigger-controlled reading, command-based interactive reading
10. Chip: Impinj E710
11. Operating Temperature: -20 degree C to +80 degree C

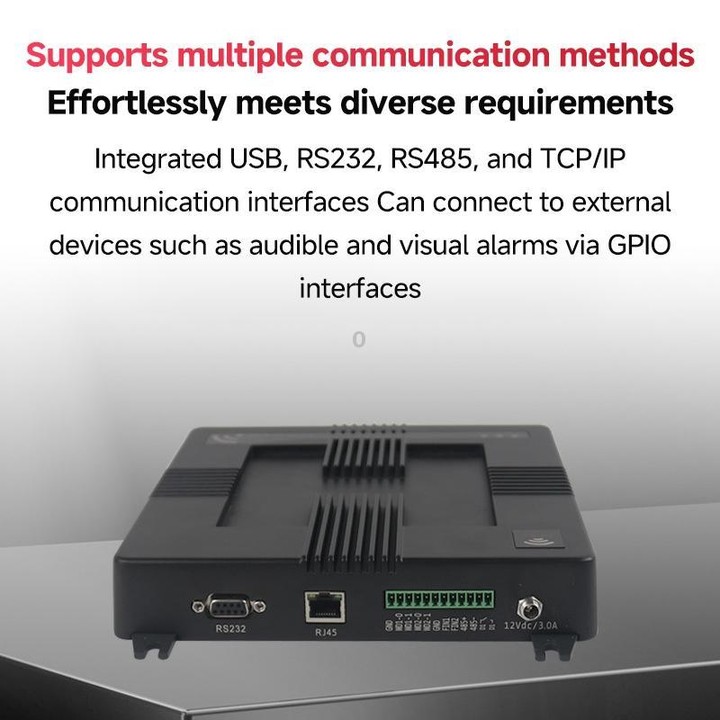

12. Data Port: Ethernet RJ45, Serial port: RS232
13. Power supply: DC+12V 3A DC power supply, includes a power adapter, supports 9-16V
14. Dimensions: 195mm x 240mm
