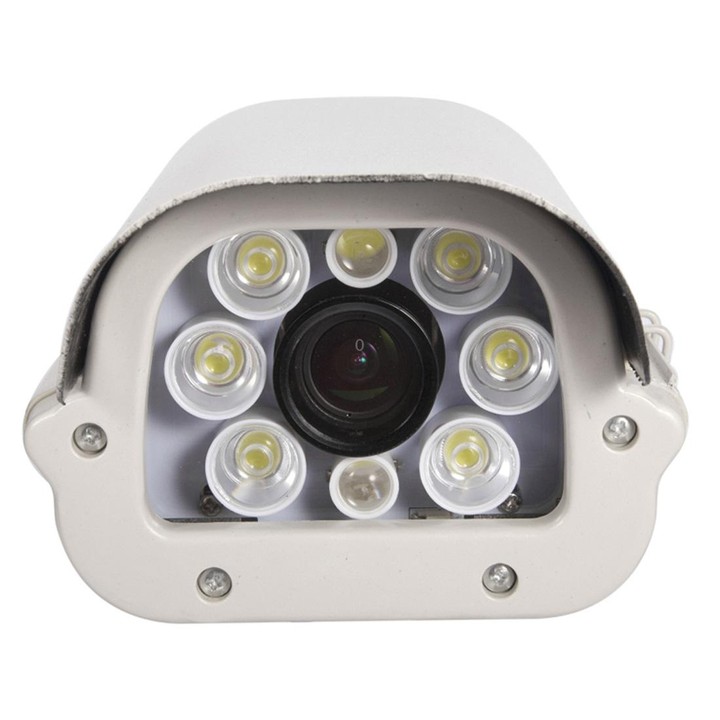

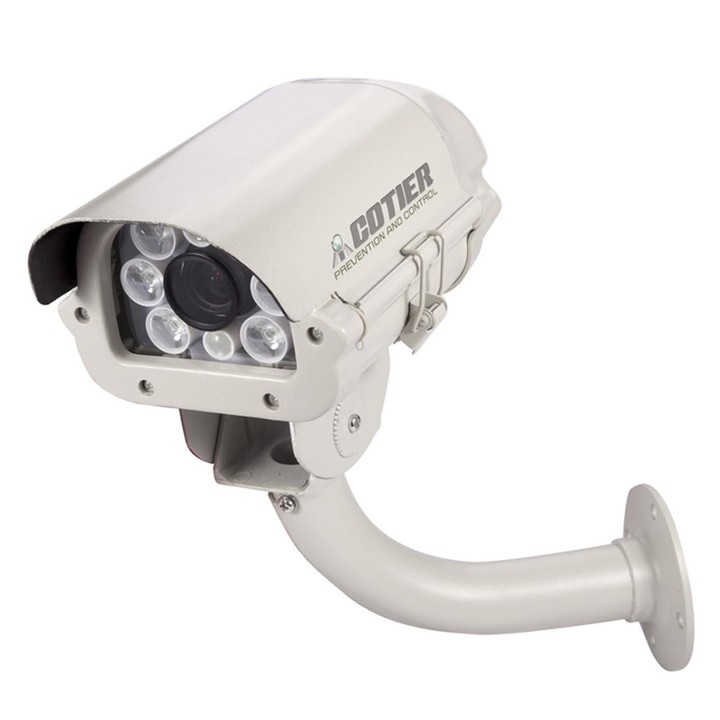

TV-821H2/IP-LP H.264 HD 1080P IR 8x LED Waterproof Bullet IP Camera, Motion Detection / Privacy Mask and 30m IR Night Vision, Wa

Features

1. 1/2.5 inch Megapixel CMOS Sensor, high resolution 2MP

2. Manual focus 4-9mm, 4mm-8mm. 3.0 Megapixels lens optional, IR distance 30m

3. Support IR CUT dual OLP Switching, monitored day and night to achieve. Minimum illumination up 0 LUX (IR ON)

4. High performance H.264 compression technology, processing and flexible, high compression ratio 30FPS (1920*1080P 30FPS). Real time transmission up to 30FPS

5. Dual stream network transmission, for a variety of network environments

6. Support Optional: Two-way audio supported

7. 1080P (High resolution 2MP), 2MP: 1920*1080, 720P: 1280*720

8. Illumination up 0 LUX (IR ON)

9. Support IR CUT dual OLP Switching, monitored day and night to achieve

10. Support mobile phone monitoring (compatible iPhone / Android) P2P

11. Onvif 2.1 compliant, support for multiple NVR

12. DC 12V/1A

13. Support Optional: 1 USB port (optional WIFI/3G)

14. DC 12V or Power over Ethernet (Support Optional: IEEE 802.3af)

Specification

1. Model: TV-821H2/IP-LP

2. System structure:

- Embedded RTOS design (HI3518), dual-core 32-bit DSP

- Pure hardware compression, watchdog, 16M FLASH, 128M DDR3

3. Sensor: 2 Megapixel 1/2.5 inch CMOS, color 1.0 lux F1.2, black and white 0.01 lux F1.2, support day and night switch

4. Manual focus4-9mm, 4mm-8mm 3.0 Megapixels lens optional

5. Video processing: H.264 video coding; support dual-stream

6. AVI format; support adjustable stream 0.1M~6Mpbs

7. IR distance: 8 x LED Array, IR distance 30m

8. 2.0 Megapixel 30 frame(full-time), support to adjust 1~30 frame rate

9. Video output:

- Main stream: 1920x1080, 1280x960

- Sub stream: 640x360, 480x270, 320x180

10. Network interface:

- 1 x RJ45 Ethernet interface, 10/100M self-adaptation and can resist 6kv static electricity

- Support the network protocols which is RTSP / FTP/ PPPOE/ DHCP/ DDNS / NTP/ UPnP etc

11. Business functions:

- Support WEB configuration, real-time video transmission, motion detection and IO alarm linkage end storage, front storage playback/ download

- Motion detection and IO alarm center remind and screen pop-up linkage, unified client remote monitoring software (UC2) and VM3000 platform etc. system, phone monitoring (iPhone, Android), through service "through clouds" and provide complete development kit SDK

12. Power supply: DC12V/1A, Power: 5W

Specification:

General

Model

TV-821H2/IP-LP

Shape

Bullet

Power Depletion

5W

Power Supply

DC 12V 1.0A

Performance

Motion detection, Night Vision, Dual-stream, Privacy Masking, Two Way Audio

Interface

RJ45, DC Jack

Network

Network Interface

RJ45 10/100MB Ethernet interface

Protocol

DDNS, NTP, UPNP, DHCP, PPPOE, FTP, RTSP

System / Hardware

Image Sensor

CMOS

Sensor Size

1/2.5 inch Progressive Scan

Pixels

2.0MP

Lens Focusing

4-9mm, 4mm-8mm

Minimum Illumination

Color: 1.0Lux/F1.2, B/W: 0.01Lux/F1.2

Media Format

Video Bit rate

0.1M~6Mpbs

Main Stream

1280 x 960, 1280 x 1080

Sub Stream

640 x 360, 480 x 270, 320 x 180

Video Format

AVI

Night Vision

Infrared Distance

30m

Configuration

8 infrared LEDs

Physical Environment

Environment

Outdoor, Indoor

Ingress Protection

IP67

Package Include

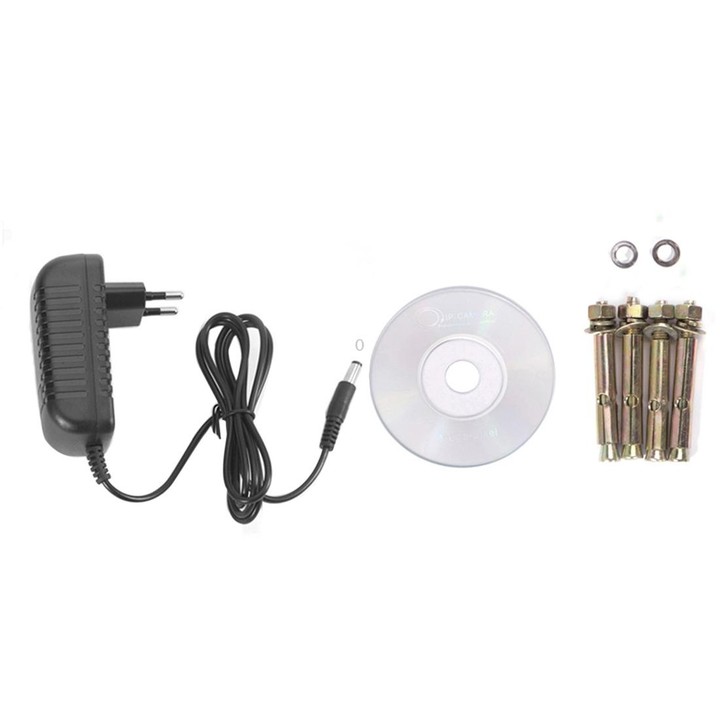

Package Contents

1 x Camera

1 x Mounting Accessories

1 x Power Adapter (US, UK, EU, AU Optional)

1 x CD
