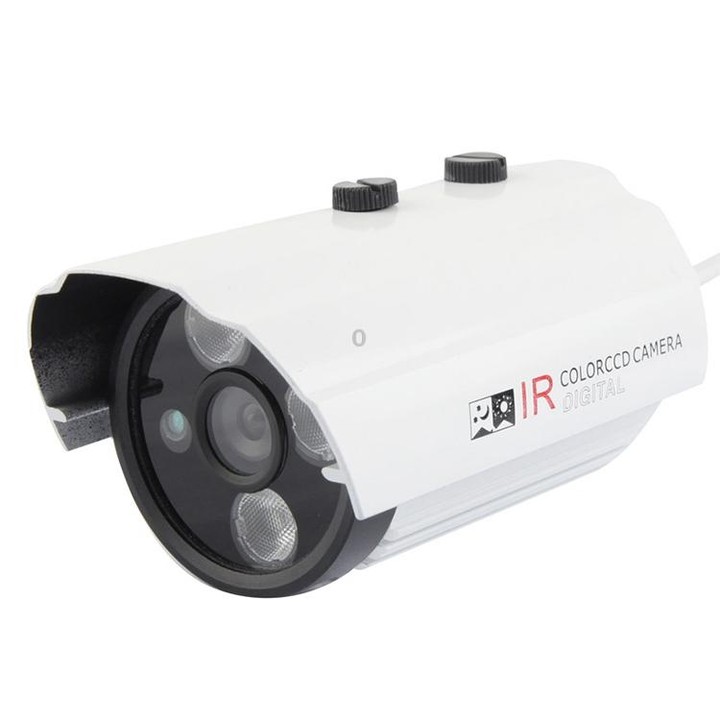

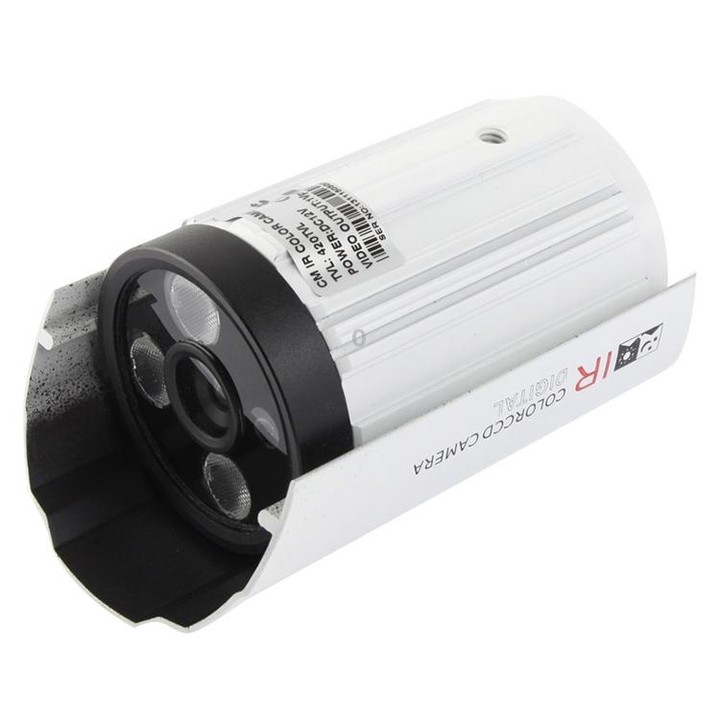

CMOS 420TVL 6mm Lens Metal Material Array LED Color Infrared Camera with 3 LED, IR Distance: 20m

Video:

1. Imaging Sensor: CMOS

2. Scanning System: 2:1 Interlace

3. Total Pixel: PAL: 752H x 582V, NTSC: 768H x 492V

4. Horizontal Resolution: 420TVL

5. Illumination: 0lux with IR ON

6. S/N Ration: Above and equal 52dB

7. Video Output: 1.0Vp-p/75 ohm

8. Correction: 0.45

9. Frequency: H: 15.736KHz, V: 15.625KHz, V: HZ

10. Sync. System: Internal Synchronization

11. Day & Night: Auto Color to B/W

12. Electronic Shutter Speed: 1/50-1/10,000s

13. Cable Length: 40cm

Operational:

1. White Balance: ATW

2. BLC: AUTO

3. AGC: Auto/Manual

Lens:

1. 3 LED

2. IR Distance: 20m

3. Lens Type: 6mm Fixed Lens (Standard)

4. Mount Type: CS

5. Adjust the angle: Horizontal 90 degrees

Electrical:

1. Power Supply: DC12V+/-5%

2. Power Consumption: Less and equal 6W

Environmental:

1. Work Consumption: Less and equal 85%RH

2. Operation Temperature: -15-80 degree

Physical:

1. Case Material: Metal

2. Camera Dimensions: Size: 85mm x 55mm

3. Net Weight: 271g

Specification:

General

Shape

Bullet

Power Supply

DC 12V

System / Hardware

Image Sensor

CMOS

Lens

6.0mm

Electronic Shutter

1 / 50-1 / 10,000s

SNR

>=52dB

Day/Night

Auto Color to B/W

Minimum Illumination

0LUX

White Balance

Auto

Gain Control

Manual, Automatic

Backlight Balance

Auto

Media Format

Horizontal Resolution

420TVL

Video Output

1.0Vp-p/75 ohm

Night Vision

Infrared Distance

20m

Configuration

3 array LEDs

Physical Environment

Environment

Outdoor, Indoor

Dimensions

Size

85mm x 55mm

Weight

271g

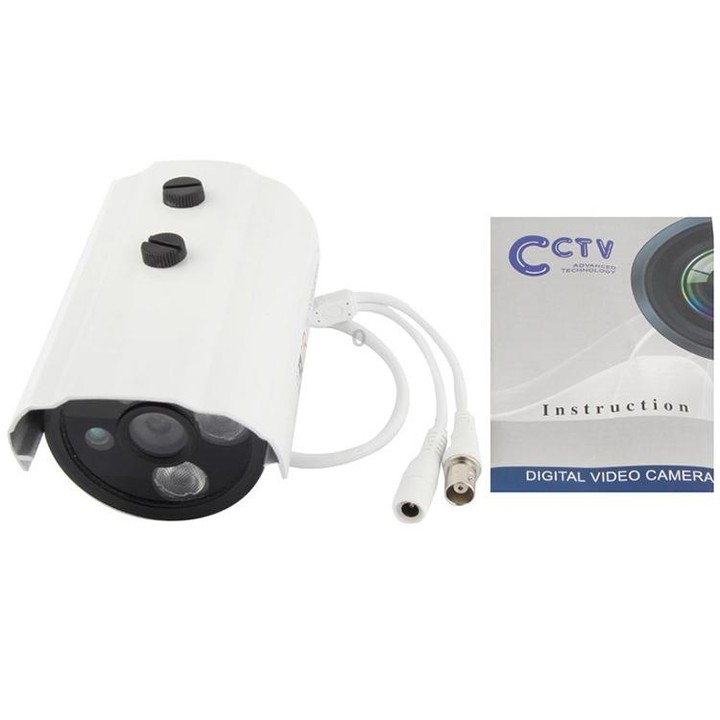

Package Include

Package Contents

1 x Camera

1 x Mounting Accessories

1 x User Manual
