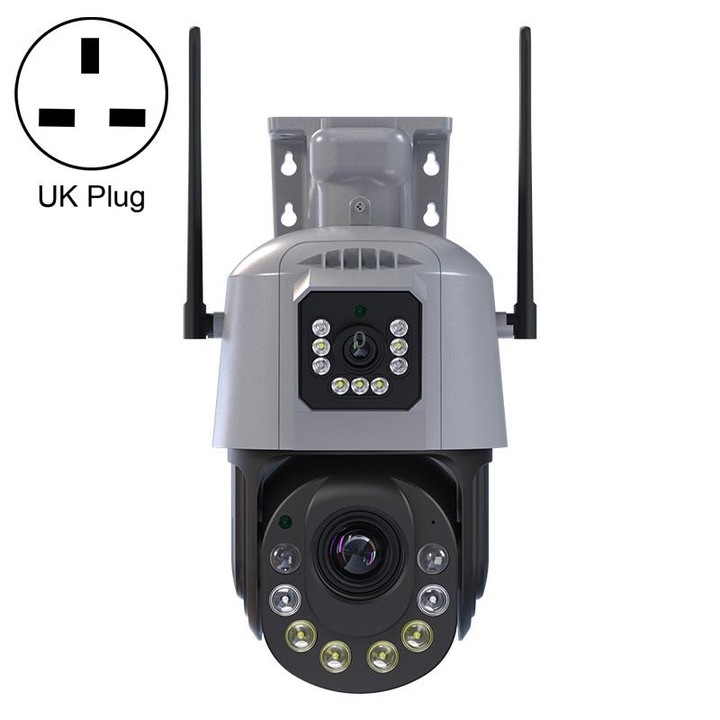

QX109 Dual Lens Smart HD Dome WiFi Camera(UK Plug)

Features

1. 4.5-inch zoom dome camera, using metal front cover + ABS upper cover, lightweight and easy to install

2. Use high-power dual laser night vision lights, full-color night vision 60 meters, infrared night vision 120 meters

3. Support mobile phone remote image capture and remote video playback

4. Supports 16 preset point cruises, supports two-point scanning, guard watching, and power-off memory

5. Supports AI humanoid detection, full color day and night dual light, clearly visible when shooting at night

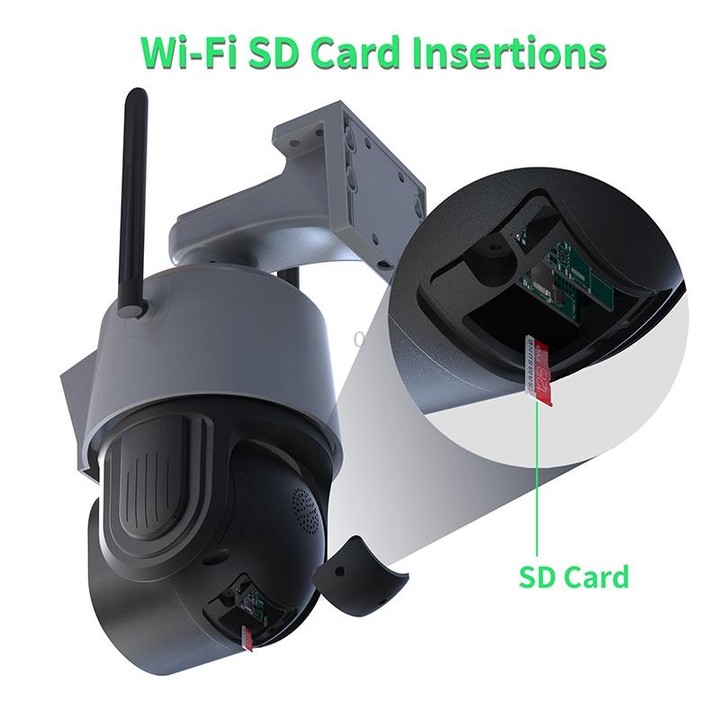

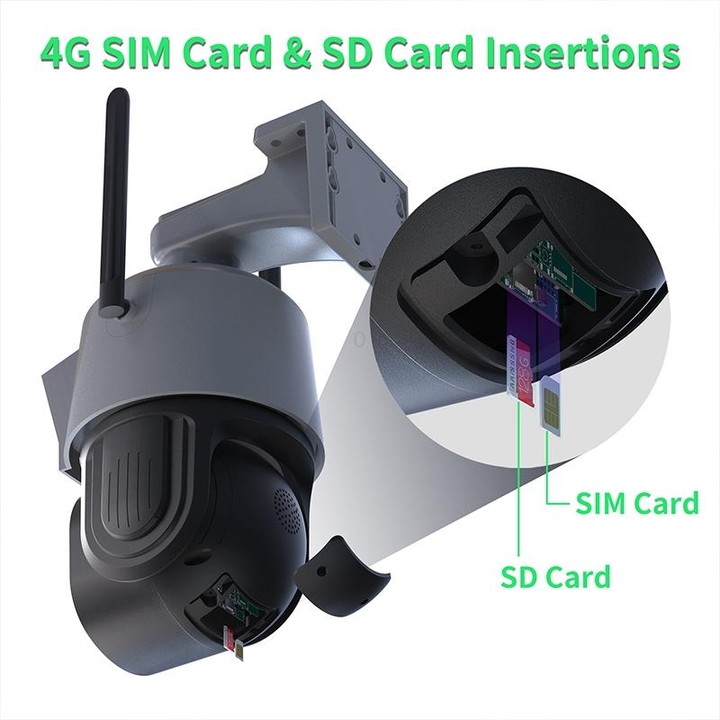

6. Built-in TF card storage, up to 128G, supports cloud storage

7. Built-in speaker and microphone, support two-way voice intercom, clear sound quality

Parameters

1. Main control: dual-core 32-bit DSP (XM650V200), pure hard compression, monitor

2. Sensor: 2 3 million 1/2.8 SC300AI high performance CMOS sensors

3. Minimum illumination:

Color: 0.01Lux @(F1.2,AGC ON),0 Lux with IR

Black and white: 0.001 Lux @(F1.2,AGC ON),0 Lux with IR

4. Video format: H.265AI

5. Resolution:

Main resolution: 2304 x 2592

Sub-resolution: 800 x 896

6. PTZ:

Level: 0-350 degrees

Vertical: 0-90 degrees

Rotation speed: 0-20 degrees/S

7. Support protocols: support NETIP protocol, support onvif protocol

8. Network interface: 10M/100M adaptive Ethernet port

9. Storage interface: local TF card (maximum support 256G)

10. Wireless standards: IEEE802.11b, 802.11g, 802.11n

11. Frequency range: 2.4 GHz-2.4835 GHz

12. Power consumption: 20W

13. Temperature: minus 20 degrees Celsius - 60 degrees Celsius, humidity less than 90% [no condensation]

14. Power supply: DC 12V 2A

Specification:

General

Shape

Dome

Mount Types

Wall bracket, Ceiling Bracket

Power Depletion

20W

Power Supply

DC 12V

Output Voltage

DC 12V

Performance

Motion detection, Night Vision, Alarm detection, Two-way voice intercom

Memory

up to 128GB (not included)

Network

Wireless

IEEE 802.11 a/b/g/n

System / Hardware

Image Sensor

CMOS

Sensor Size

1/2.8 inch Progressive Scan

Pan/Tilt-Horizontal Angle

350 degree

Pan/Tilt-Vertical Angle

90 degree

Minimum Illumination

0.001Lux/F1.2(AGC ON), Night Vision: 0.01Lux/F1.2

Media Format

Video Compression Format

H.265

Frame Rate (FPS)

12fps Night

Physical Environment

Ingress Protection

IP66

Operate Temperature

-20 to 60 Degree Celsius

Working Humidity

Less than 90 percent
