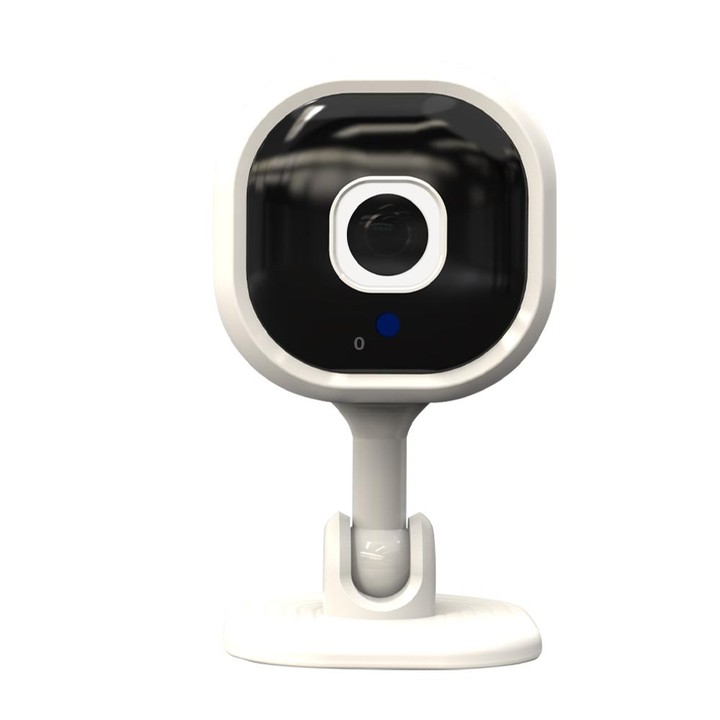

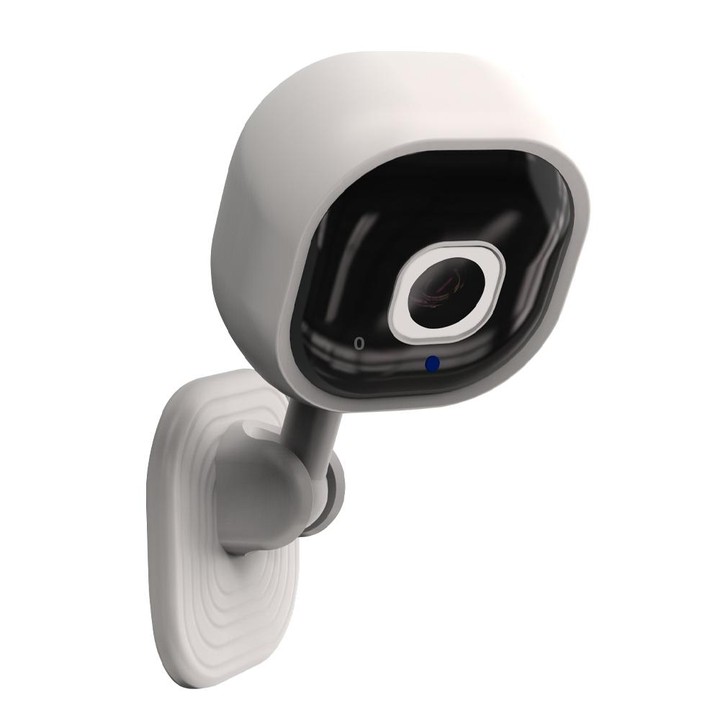

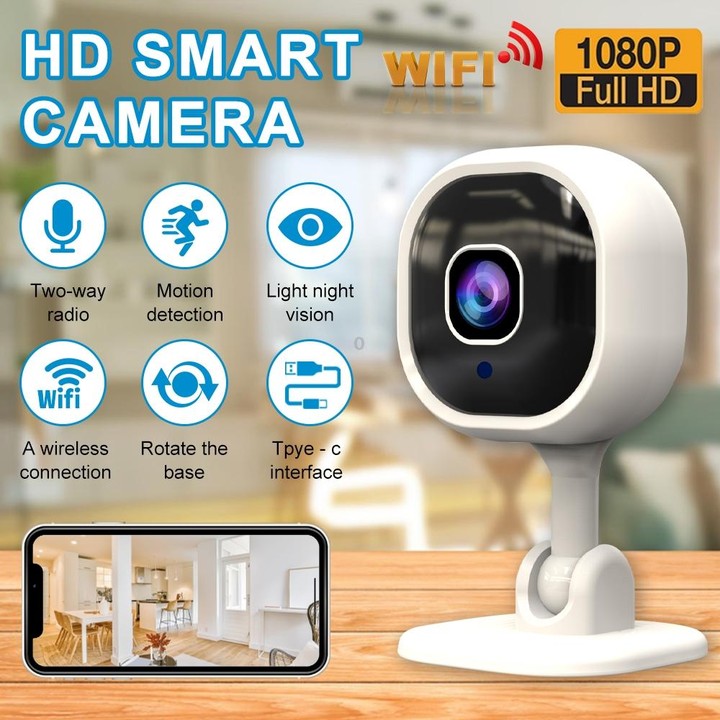

A3 Motion Detection Two-way Audio Night Vision WiFi Camera

1. With its own AP hotspot, it can record video even when the network is disconnected, and it is more convenient for safe transmission.

2. 1080P full HD picture quality, using high-quality lenses, good optical performance, not only the picture effect is clear, but also the imaging effect is more vivid and real.

3. When an abnormal movement of an object is detected in the shooting area, an alarm message will be triggered immediately, sent to the mobile APP, connected to a remote hotspot, and you can view it in real time.

4. Turn on the infrared night vision mode, the irradiation distance can reach 5-10 meters, and the picture is clear at night without light.

5. Built-in microphone, support two-way voice real-time conversation, communicate with family members at any time.

6. Parameters:

- Number of cores: single core

- Memory: 416KB SRAM + 4M PSRAM

-Flash: 4MB

- TF card: support 128GB max

- Operating system: Free RTOS

- Number of simultaneous access users: 4

- Input: built-in microphone

- Main frequency: 384MHz

- Power consumption: 300mAh (infrared on); 150mAh (infrared off)

- Infrared irradiation distance: 3-5 meters

- Working temperature and humidity: -10~50 degrees Celsius, humidity less than 95% (non-condensing)

- Sensor chip: GC0308

- Focal length: 2 meters

- Angle: 90 degrees

- Display resolution: 100w

- Day and night conversion mode: day and night switching

- Digital noise reduction: 2D digital noise reduction

- Video compression standard: MJPEG

- Audio compression standard: G711U

- Audio transmission: recording

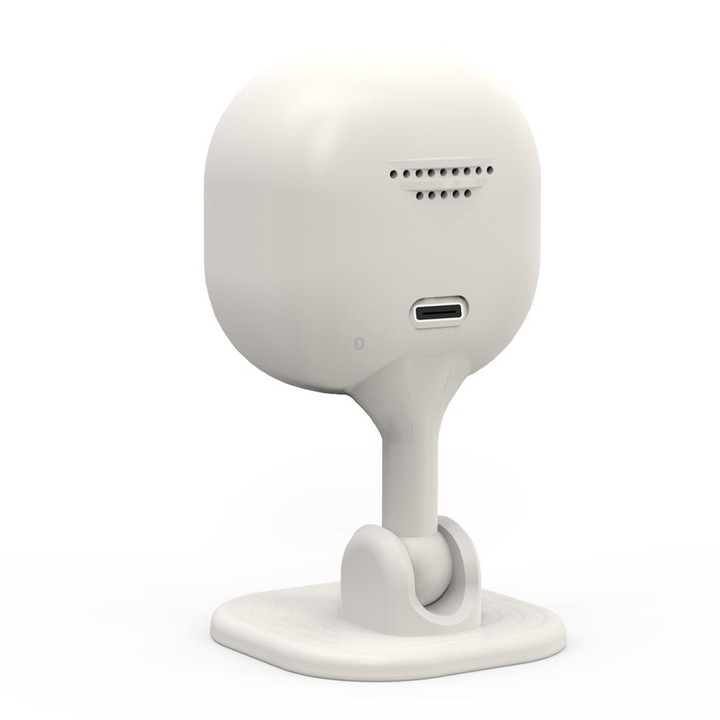

- Power interface: Type-C interface

- Wireless standard: IEEE802.11b/g/n

- Frequency range: 2.4GHz ~ 2.4835GHz

- Channel bandwidth: support 20MHz

- Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

- Hotspot connection distance: 15-20 meters max

Specification:

General

Model

A3

Performance

Motion detection, Night Vision, Two Way Audio

Memory

up to 128GB (not included)

Voice Input

Built-in microphone

View Angle

90 degree

Network

Wireless

WiFi 802.11 b/g/n

WIFI Encryption

WAP-PSK, WAP2-PSK, WPA, WPA2, WEP 64/128

Wireless Distance

15-20m

Online Visitor (Max.)

4

System / Hardware

Operating System

Free RTOS

Focal Distance

2m

Sensor

GC0308

Media Format

Video Compression Format

M-JPEG

Audio Compression Format

G.711U

Physical Environment

Operate Temperature

-10 to 50 Degree Celsius

Working Humidity

Less than 95 percent
