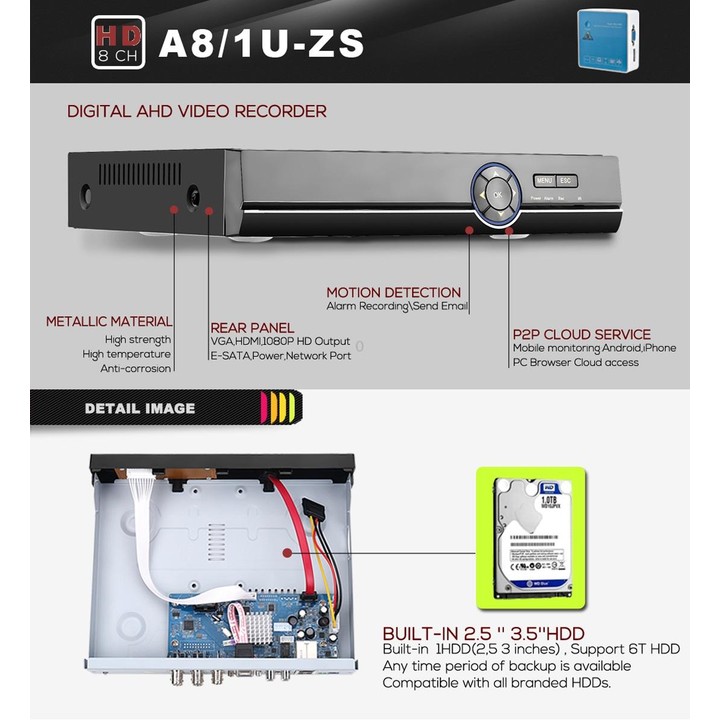

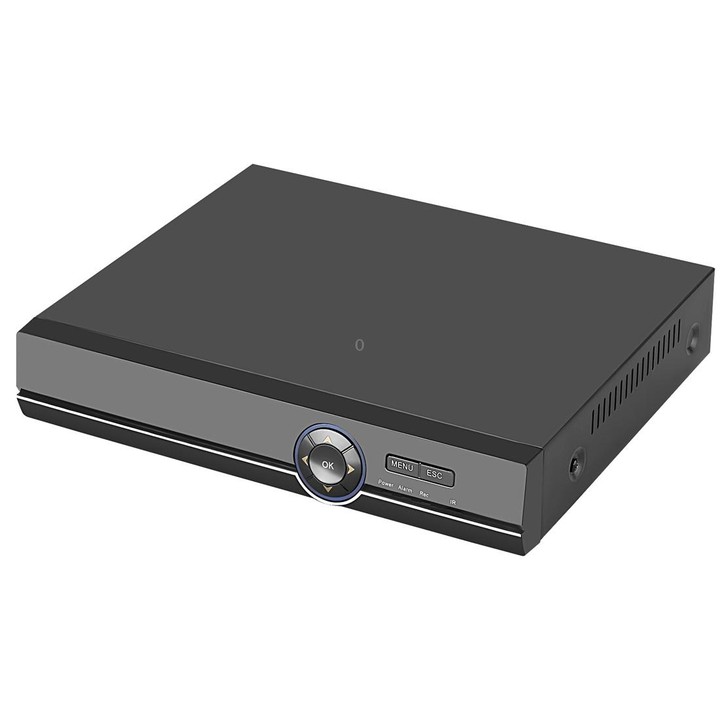

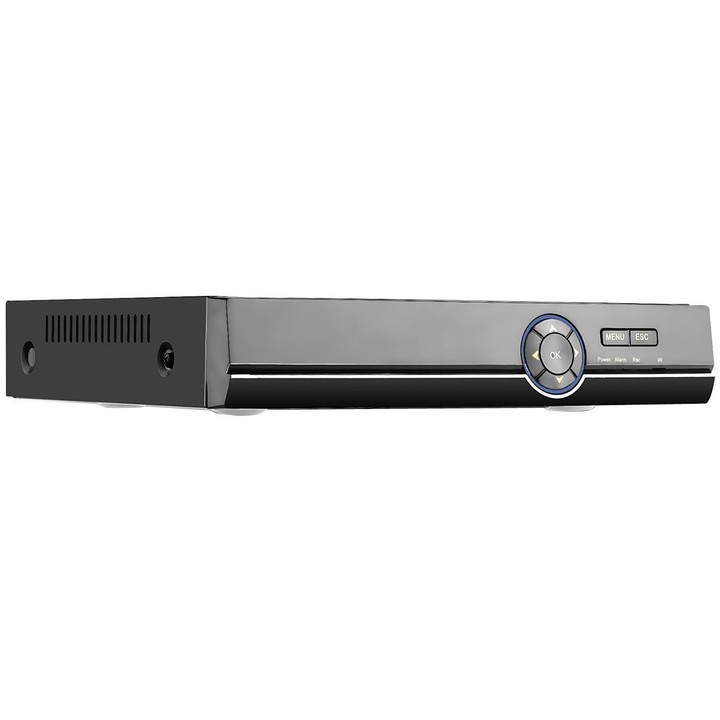

A81U-ZS 5 in 1 8 Channel Dual Stream H.264 1080N AHD DVR, Support AHD / TVI / CVI / CVBS / IP Signal(Black)

1. Support: AHD/TVI/CVI/CVBS/IP five signals

2. Step on the Internet: With cloud service, easy to achieve a variety of network penetrations, one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate.

3. Compression algorithm ideal: H.264 compression algorithm, 30% decrease of stream due to advanced space-time filtering technology.

4. Playback quality: Support full real-time encoding video, full real-time playback of multi-channel synchronous decoding.

5. Main and Sub Stream: Main stream and Sub-stream encoding. Main stream for local storage, ensure image quality; Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.

6. Mobile monitor: Support various mobile monitoring(iPhone, Windows Mobile, BlackBerry, Symbian, Android).

7. Display: VGA HD output simultaneously, support VGA 1080p HD output, lead the technology of HD resolution.

8. Operation interface: Similar to Windows operating style, easy to get started with powerful mouse right-click function.

9. Network: Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL, IP searches etc.) And perfect support (WEB, Client, SDK), easy to achieve interoperability.

10. Browsers: Support IE, Chrome, Firefox, Safari browsers.

11. Remote Access: With DNS (ARSP), easy to monitor remotely, 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other DNS are also provided.

12. Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, which make our products different from others.

13. Others: With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.

14. Encode capability: 8*1080N @25fqs P/ 30fqs.

15. Decode capability: 4*1080N @18fqs P/18fqs.

16. Multi-Input (ONVIF 2.8) Analogue: 8*1080N, Analogue + Network; HD: 4*1080N(AHD-NH)+7*720P(network), Network: 4*720P.

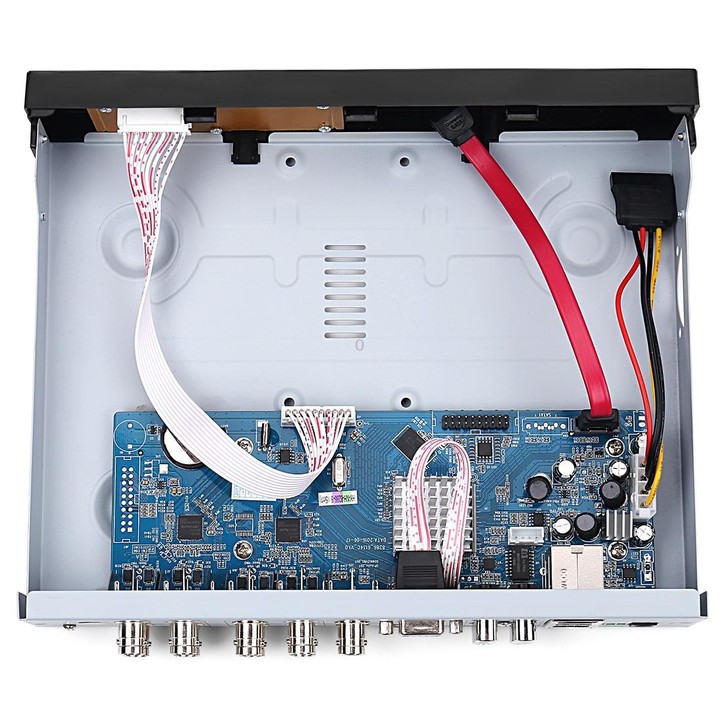

17. CPU Master: GM8286; DDR memory: 1*2G; AD chip: NVP6114A; Flash: W25Q128.

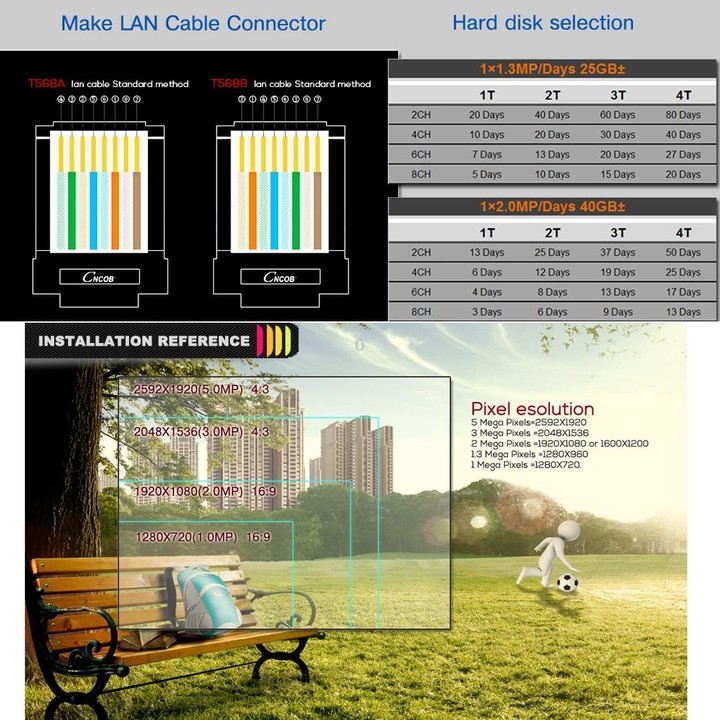

18. Space usage video: 1080N: 25G/day*channel, 720P: 20G/day*channel, 960H: 12-20G/day*channel, audio 691.2M/day*channel.

Specification:

Media Format

Video Compression Format

H.264

Audio Compression Format

G711-A

NVR

NVR Model

A81U-ZS

Dual Stream

Support

Recording

Recording mode: Manual recording, motion detection recording, time recording, alarm recording

Video input

8ch

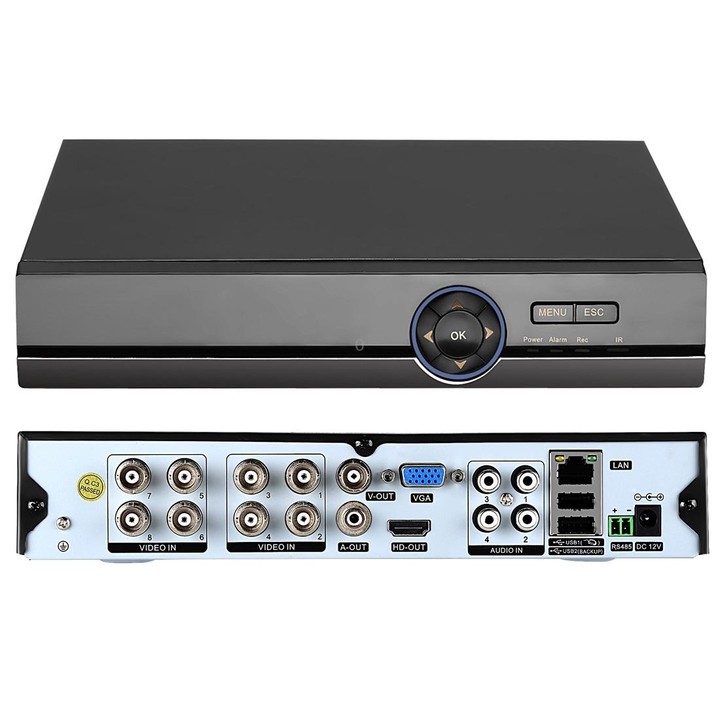

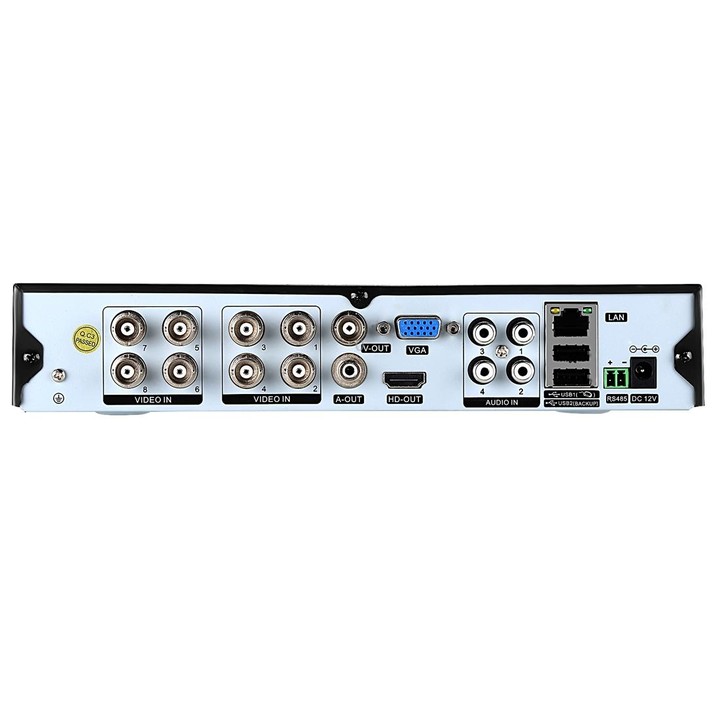

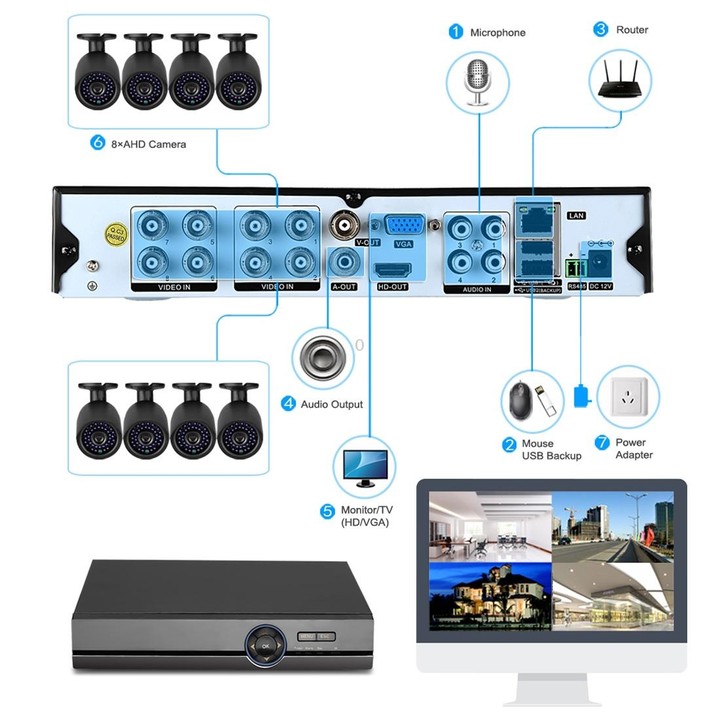

Video interface

Video output: 1ch VGA and 1ch HDMI, BNC Port

Audio Interface

4 x RCA input, 1 x RCA output

HDMI Output Resolution

1920x1080

Network

1*RJ45 10/100 Base-T

USB Port

2 x V2.0

Wireless Port

3G, WiFi

HDD

2 SATA HDDs (not included), Max 6TB / PER

Power

DC 12V 2.0A

Dimensions

Size

25*22*4.5cm

Weight

800g

Package Include

Package Contents

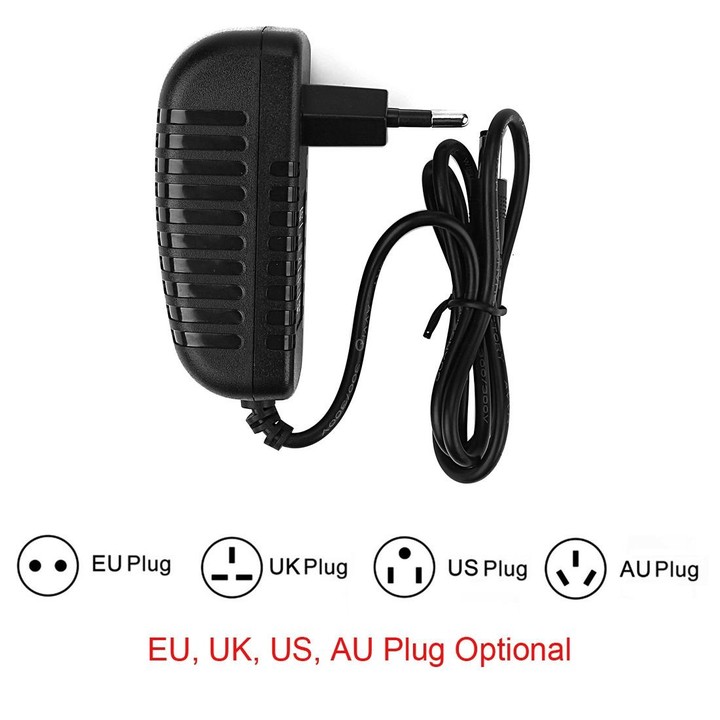

1 x Power Adapter (US, UK, EU, AU Optional)

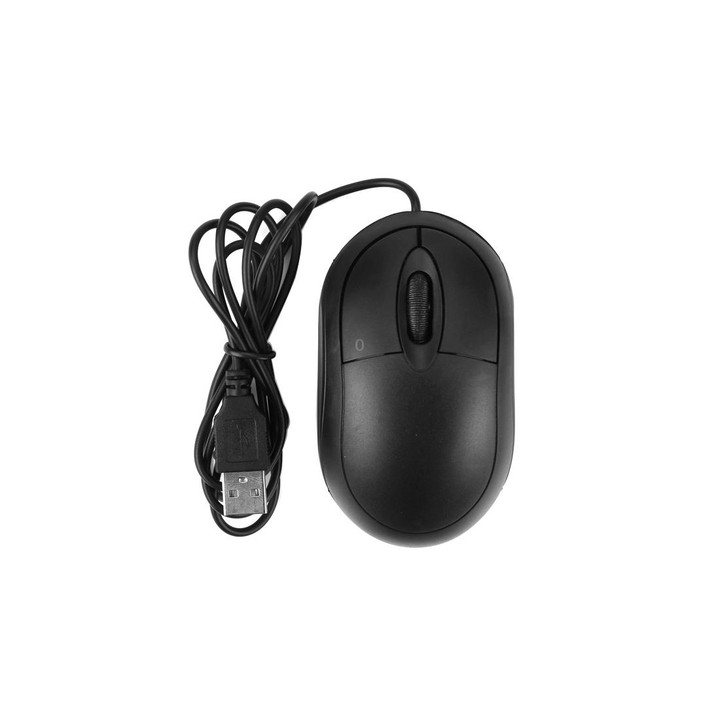

1 x USB Mouse

1 x CD

1 x User Manual

1 x DVR

1 x Mouse

1 x Screws Set
