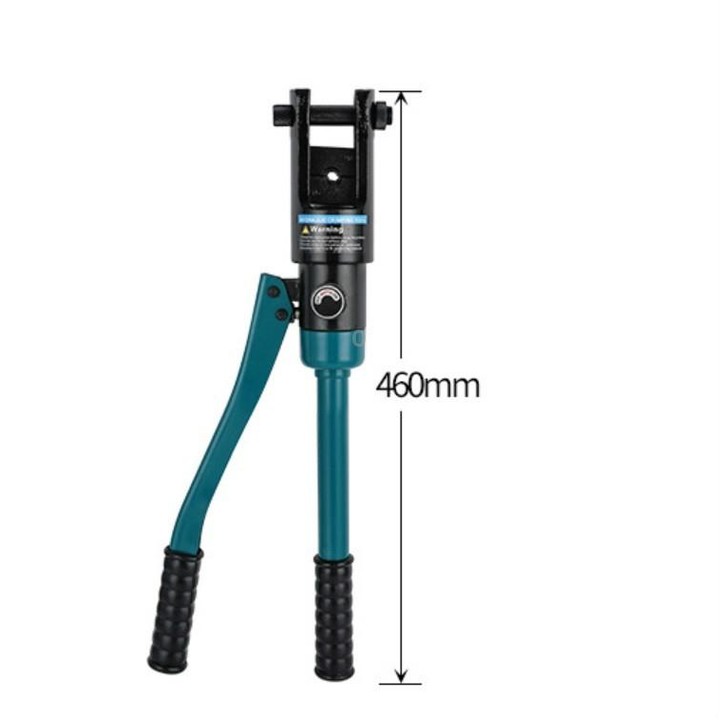

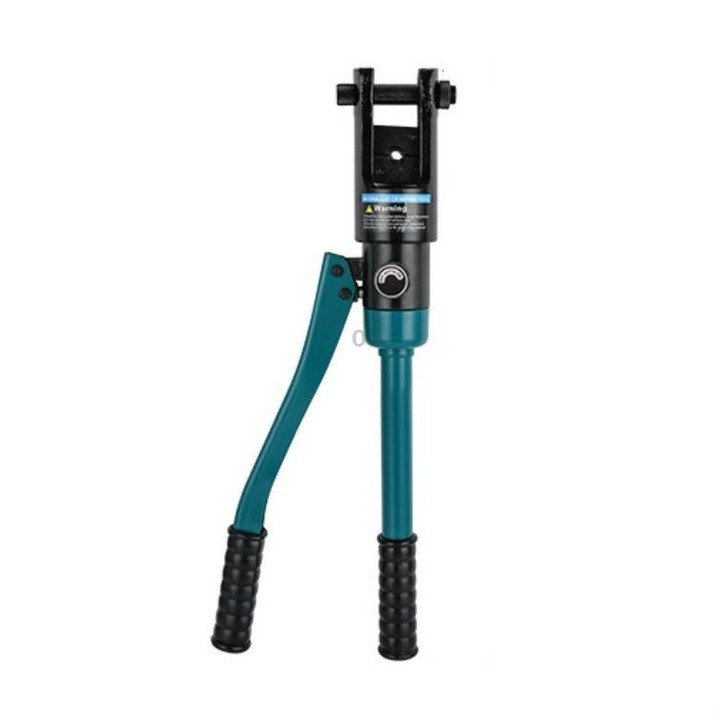

Electrician Overall Manual Hydraulic Pliers Multi-function Crimping Pliers, Model:YQK300(16-300mm)

1. Material: 45# steel

2. Crimping form: hexagonal confining pressure

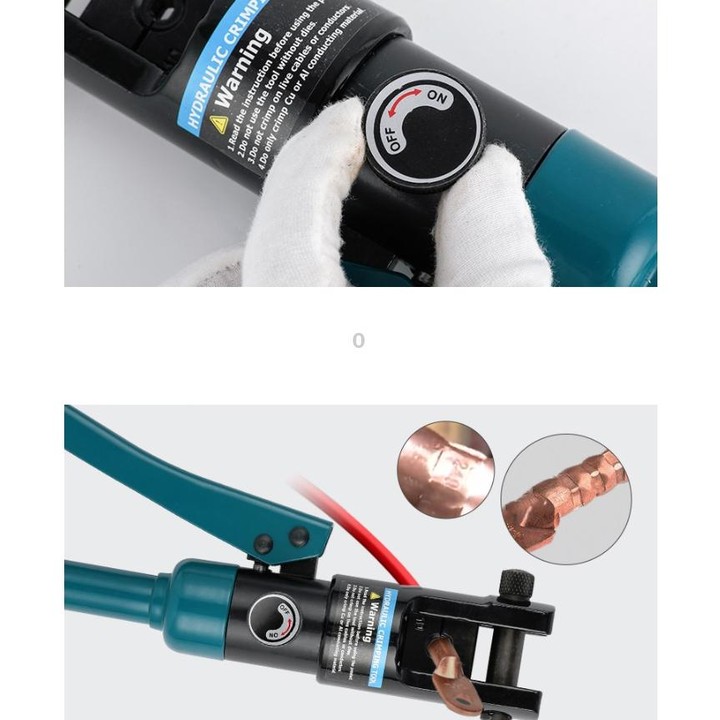

3. Adjustable oil return valve, high-strength clamp head

4. Crimp does not fall off

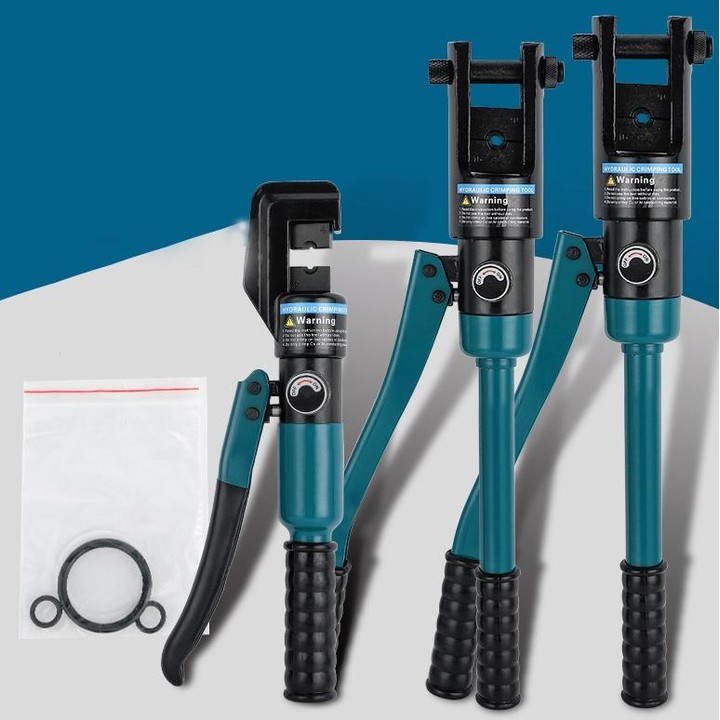

5. YQK-70: output 6T, stroke 10mm, gross weight/net weight 3/1.8KG, crimping range 4~70mm²

6. YQK-120: 8T output, 12mm stroke, gross weight/net weight 4.5/2.85KG, crimping range 10~120mm²

7. YQK-240: output 10T stroke 15mm gross weight/net weight 6.2/3.5KG crimping range 16~240mm²

8. YQK-300: output 10T stroke 17mm gross weight/net weight 7/4KG crimping range 16~300mm²

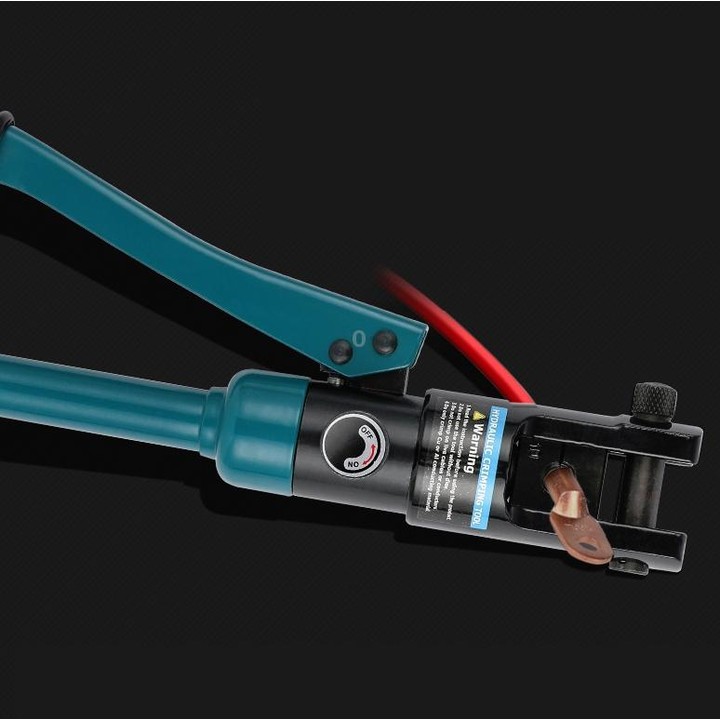

9. Product features: The power cable wires are hydraulically crimped, which has good electrical conductivity and is not easy to fall off and conduct heat; the two-speed oil pump core is more labor-saving for crimping, and the improved and upgraded plunger seal is tight and does not leak oil; the pressure joint part Can rotate 180 degrees freely, can work in a narrow place; rubber-plastic insulation rod can prevent accidental electric shock

Specification:
