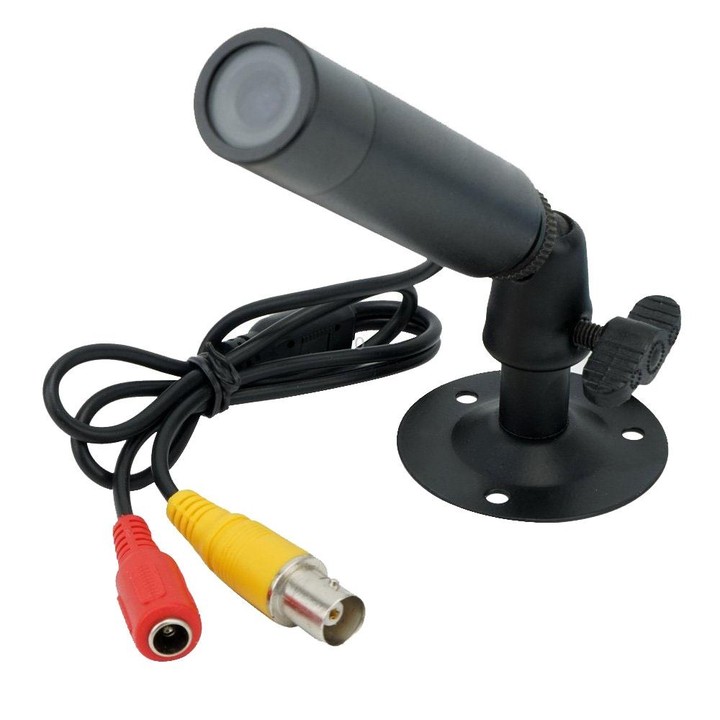

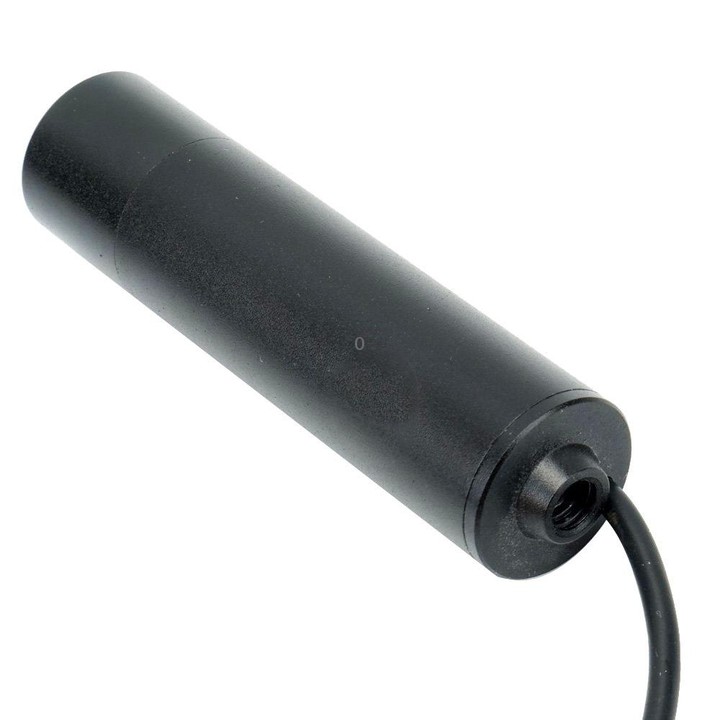

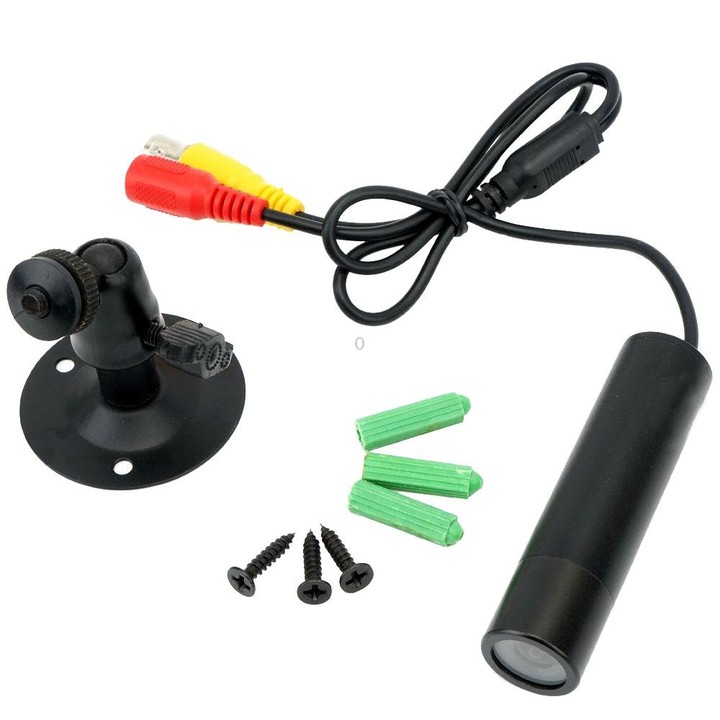

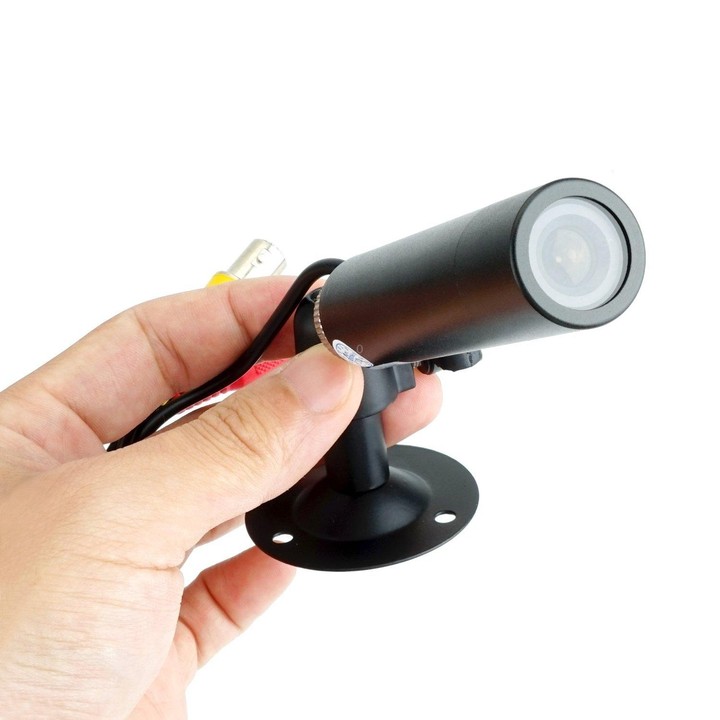

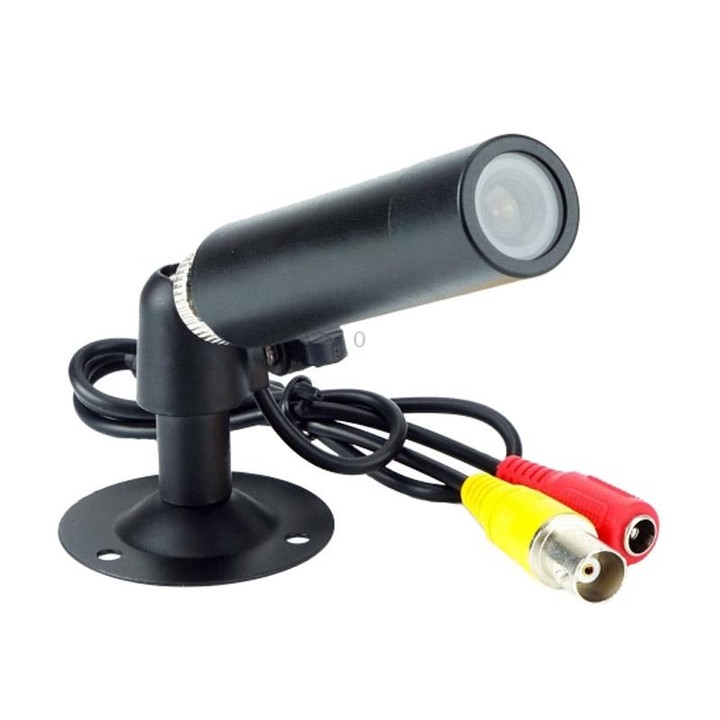

MB18 1000 Line HD Wide-Angle Surveillance Camera, Specification: NTSC

1. Sensor type: 1/3 inch cmos 7070

2. Resolution (horizontal center): 1000TVL

3. Pixel: PAL 1020H×596V (61 million pixels), NTSC 1020H×508V (52 million pixels)

4. Electronic shutter: 1/50(1/60)-1/100000 second

5. Lens: 1 million pixel high-definition dedicated lens 3.6mm

6. Video output amplitude: 1.0vp-p/75 ohms

7. Automatic gain control: Automatic/manual

8. Signal-to-noise ratio: above 54dB

9. Electronic zoom: 0-255

10. Synchronization method: Internal synchronization

11. Image adjustment: Mirror image/contrast/sharpness

12. Power supply: DC 5-12V

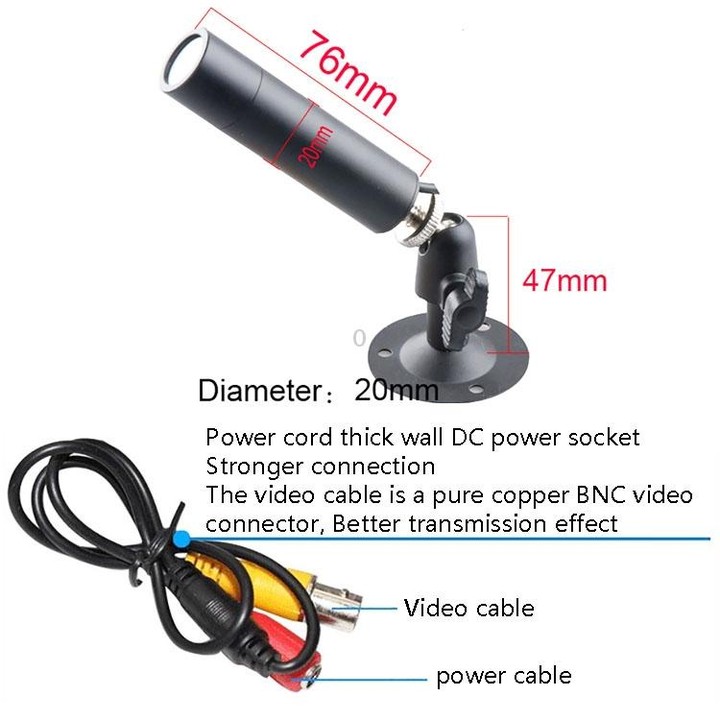

13. Size: About 7.6x2 cm, bracket about 4.7x2 cm

14. Weight: About 40g

Features:

1. High resolution, clear and fine image, high color saturation

2. Support automatic color-to-black function, realizing day and night monitoring

3. Comply with IP66 waterproof design, high reliability

4. Support automatic electronic gain function, automatically adjust the brightness

5. Small size, suitable for more occasions

6. All-metal thickened shell, dustproof, waterproof, sturdy and durable

7. The power cord is thick-walled DC power socket, the connection is firmer, the video cable is pure copper BNC video connector, the transmission effect is better

Specification:
