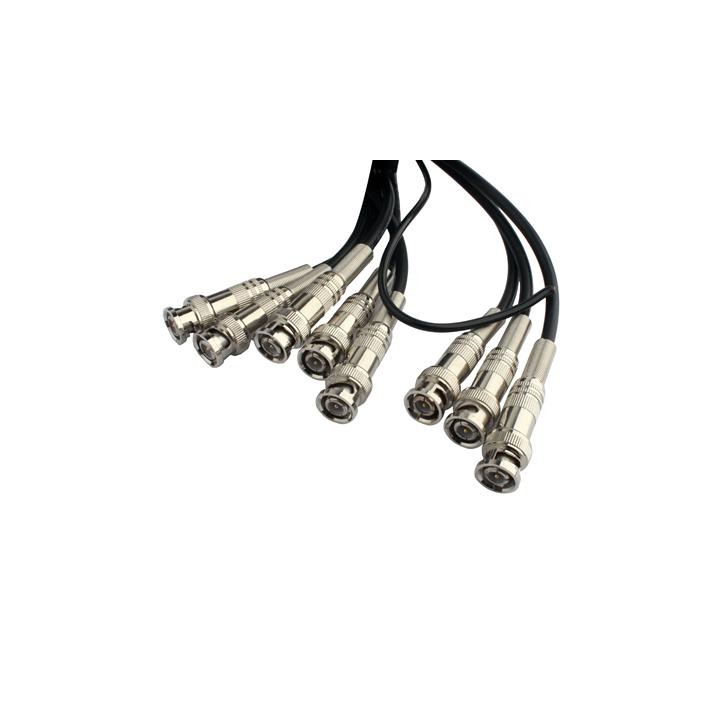

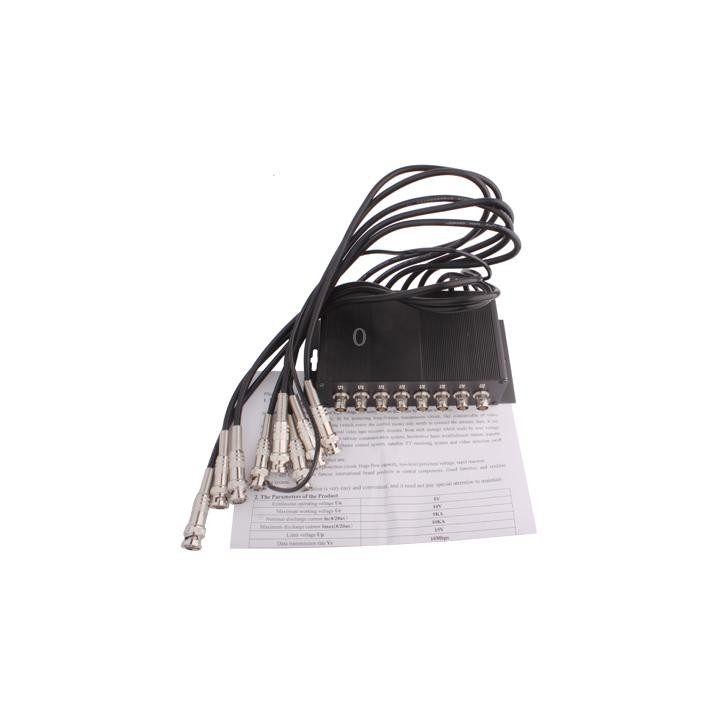

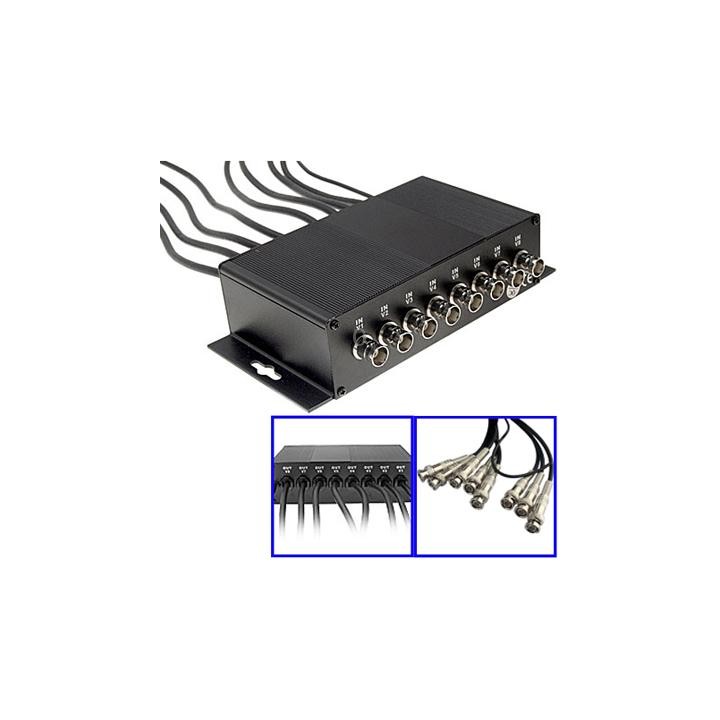

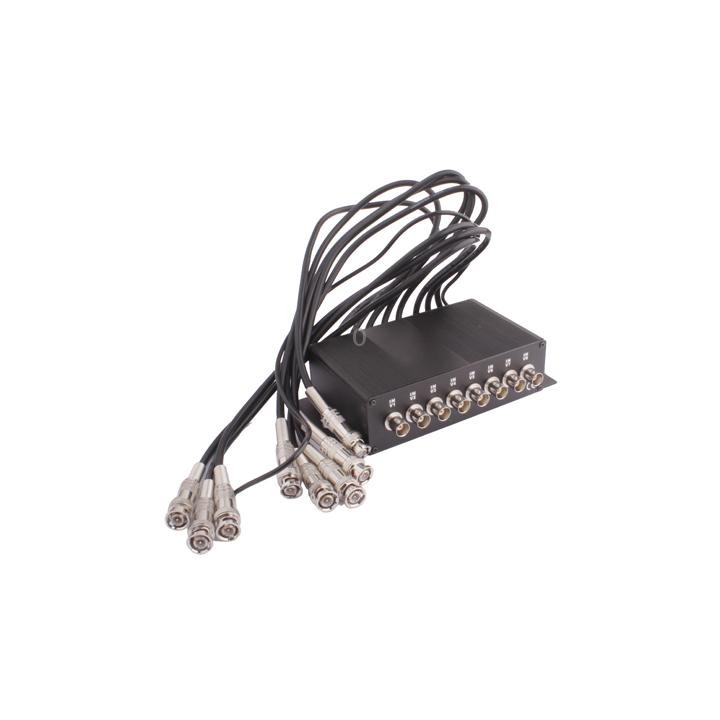

8 Channel CCTV BNC Surge Arrester Surge Protector Device (CoaxJK/ V8)(Black)

1. 8 Channel CCTV BNC Lightning Arrester Surge Protector Device.

2. CCTV Lightning Arrester adopt internal standard BNC interface(male to female).

3. Suitable for coaxial communication equipment surge protection, such as cable TV, aatellite TV receive, minitor system, etc.

4. This 8CH Surge Protector can protect the lighting response of coaxial cable or equipment damage caused by other high surge voltage.

5. CCTV Surge Protector is used to protect the indirect thunder influence or other instantaneous over voltage surge.

Specifications:

1. Working Voltage: 5V

2. Max Working Voltage: 10V

3. Nominal Discharge Current(8/20us): 5KA

4. Discharge Current(8/20us): 10KA

5. Voltage Limit: 15V

6. Data Transfer Rate: 100Mbps

7. Insertion Loss: 0.2db

8. Response Time: 1nS

9. Interface Type: BNC

10. Protection Method: Line to line, line to ground

11. Working Temperature: -25-/+65 degree C

12. Humidity: ~95% 25-30 degree C

13. Test Standard: IEC61643-21: 2000

14. Cable length: Approx. 400mm

15. Size: Approx.168x80x40mm

Specification:

Package Weight

One Package Weight

0.64kgs / 1.40lb

Qty per Carton

16

Carton Weight

11.30kgs / 24.91lb

Carton Size

46cm * 30cm * 30cm / 18.11inch * 11.81inch * 11.81inch

Loading Container

20GP: 644 cartons * 16 pcs = 10304 pcs

40HQ: 1495 cartons * 16 pcs = 23920 pcs
