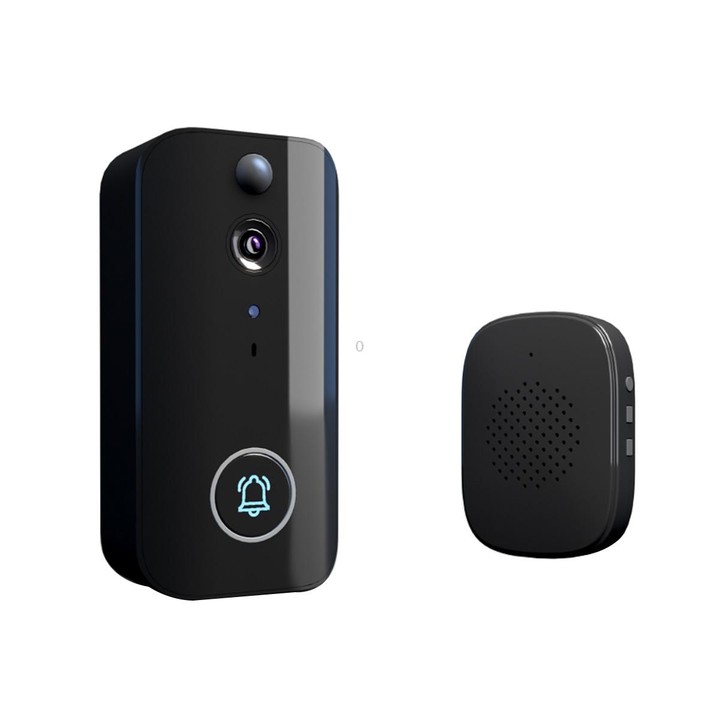

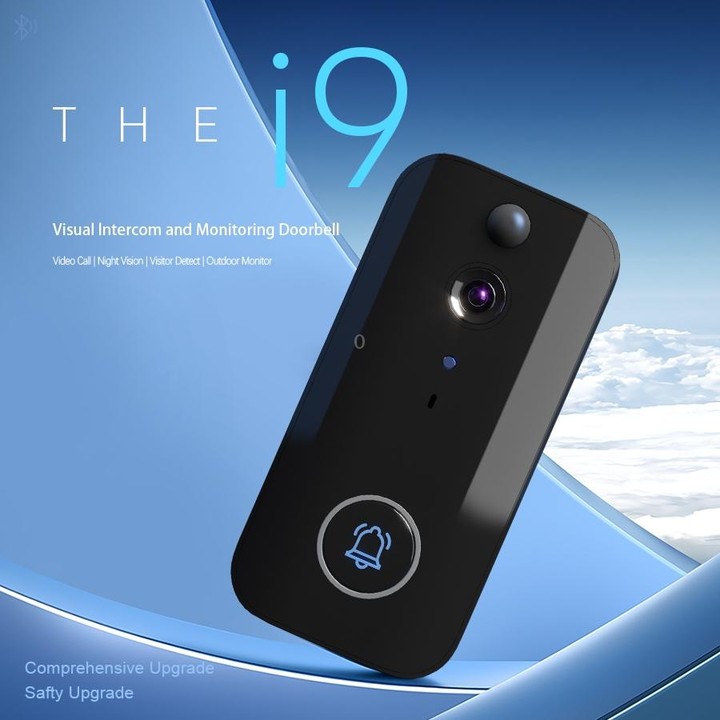

DoorBell i9 Wireless Doorbell Camera, Night vision, Motion Detection, Two-way Intercom (Black)

About The Protuct

DoorBell i9 is a remotely operated 1-megapixel sensor and low-power VGA network visualization smart doorbell product. It uses a highly integrated WiFi+Bluetooth SOC processor, which is smaller in size and more cost-effective. Through the APP, users can realize a variety of smart doorbell application scenarios such as ringing visit records, remote wake-up, real-time monitoring of the door situation, door stay records, real-time live broadcast and visualized two-way intercom.

Features:

1. Quick start and quick connection: The processor supports quick start and quick connection, and the fastest time from triggering to receiving APP push on the mobile phone is 3S.

2. Low-power long connection mode: The device supports free switching between low-power long connection mode and power saving mode. In low-power long connection mode, customers can remotely check the door situation anytime and anywhere. It is both a doorbell and a monitor, meeting more application scenarios for customers.

3. Motion detection: Multi-level sensitivity can be freely set to meet the needs of customers in different scenarios; Motion detection alarm (snapshot picture upload)

Specifications

System:

1. Product category: low-power VGA smart doorbell

2. Product model: DoorBell_i9

3. Main control: WiFi+BLE SOC single chip

4. Number of online users: Support sharing up to 9 people, and 1 person can watch online at the same time

Collection:

1. Sensor: UXGA CMOS Image Sensor GC2145 megapixel sensor

2. Viewing angle: 90 degrees

3. Night vision function: 850nm infrared fill light, effective distance 3m (laboratory environment)

4. PIR sensor: passive infrared motion detection probe

Video:

1. Video encoding standard: MJEPG

2. Imaging color: color

3. Video frame rate: VGA 20fps

4. Video transmission: AES encryption

Audio:

1. Input: high-sensitivity microphone

2. Output: built-in speaker

3. Intercom: two-way voice intercom, built-in echo cancellation

4. Voice change intercom: support

5. Audio encoding standard/bit rate: G711.A/64Kbps

Network:

1. Network protocol: TCP/IP, HTTP, TCP, UDP, DHCP, DNS, P2P, etc.

2. Wireless network: WiFi802.11b/g/n wireless network

3. WiFi: Wi-Fi6, 2.4G Frequency band

Video connection method:

1. Passive viewing: Image: triggered by ringing; triggered by motion detection;

2. Remote real-time: Support remote wake-up and real-time viewing in low-power long connection mode

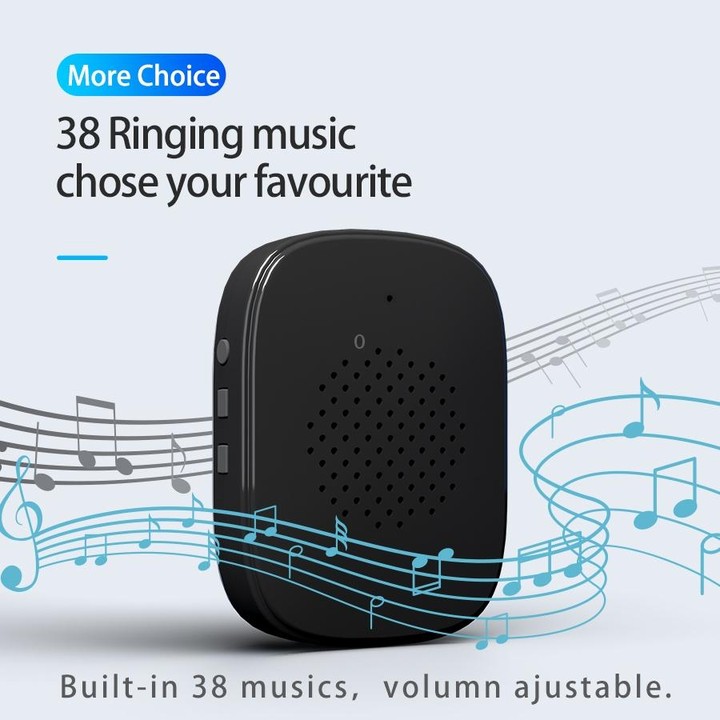

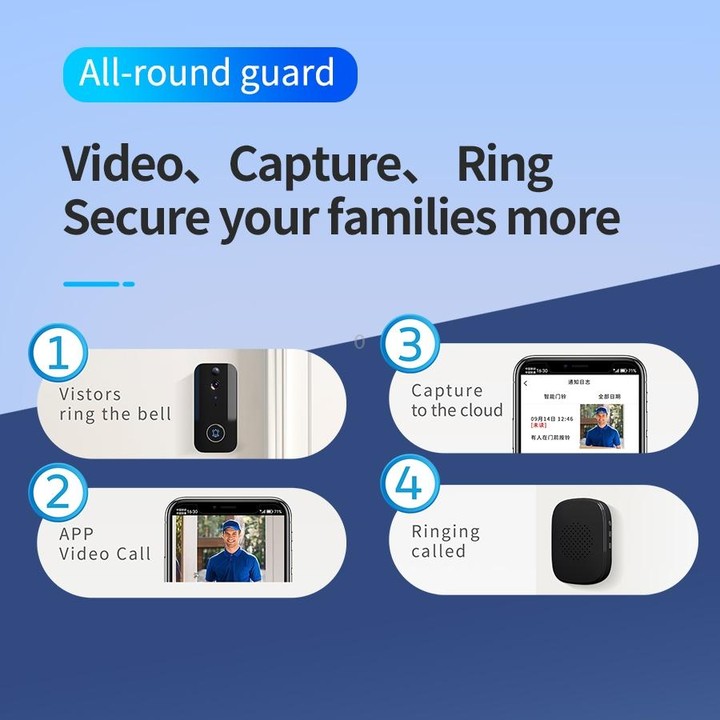

Indoor receiver: 433 Dingdong machine: Doorbell linked to Dingdong machine, ring the bell outside the door, and the indoor stand will ring

Storage: Cloud storage: Three days of rolling storage is given by default

Others:

1. APP: X SmartHome

2. Network configuration: Bluetooth network configuration

3. MicroSD card holder: Not supported

4. Buttons: 2: doorbell button, reset button

5. Indicator light: 2: charging indicator light, button indicator light

6. Dingdong code: private code

7. Power supply: Standard two 18650 lithium batteries, 4000mAh

8. Charging power supply: DC 5V1A

9. Type-C interface

10. Call push notification: Support (about 3s)

11. Sleep in power saving mode: enter sleep mode after 30S of no operation in power saving mode

12. Battery level detection: supported, 3.4V-4.2V

13. Firmware upgrade: remote OTA

14. Infrared light control: automatic, adjustable sensitivity level

15. Working temperature: -20???45 degrees Celsius

16. Working humidity: less than or equal to 95%

17. Standby time: (only calculate standby power consumption) 4000mAh: Power saving mode: about 6-12 months (depending on the frequency of use); real-time viewing mode: 1-3 months (depending on the frequency of use)

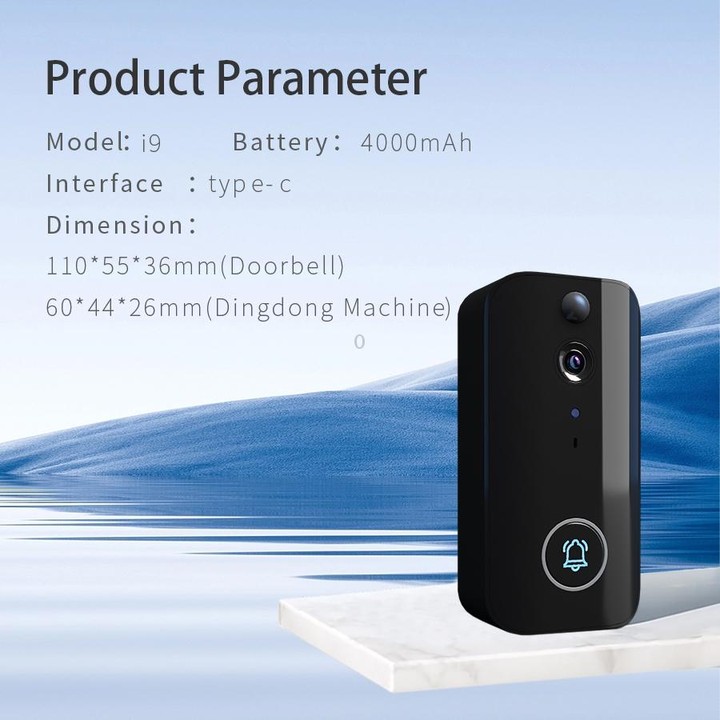

18. Doorbell machine size: 110 x 55x 36mm

19. Dingdong machine size: 60x 44x 26mm

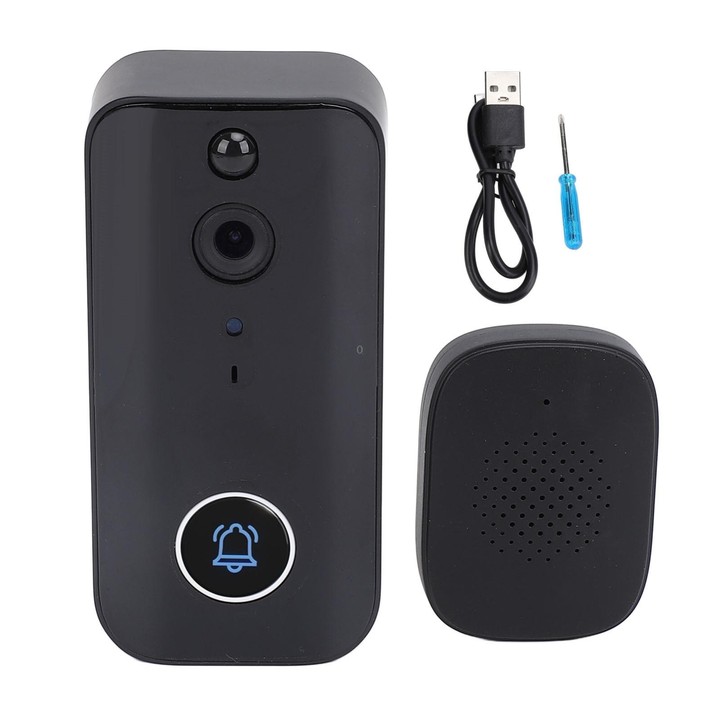

Package List

1. WiFi doorbell x 1

2. USB plug Ding Dong x 1

3. Type-C charging cable x 1

4. Installation sticker x 1

5. English manual x 1

6. Screwdriver x 1
