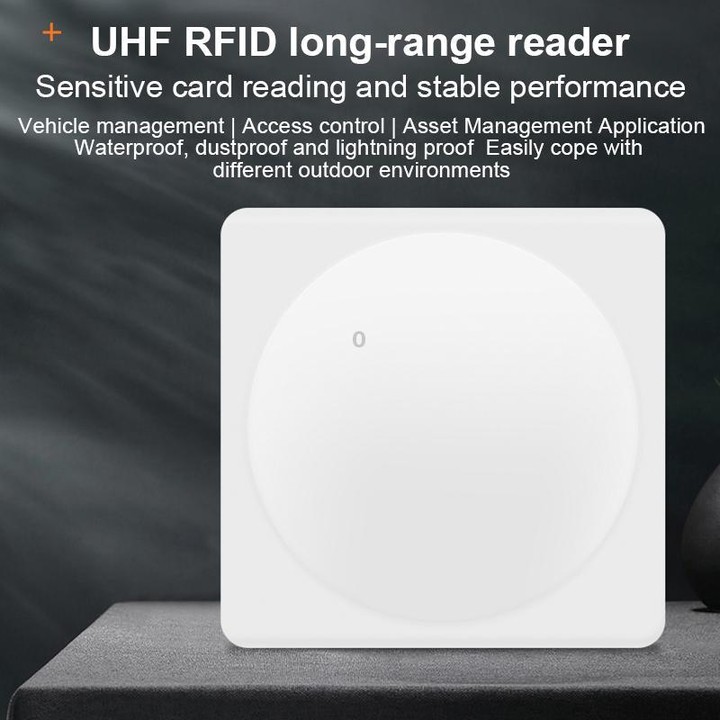

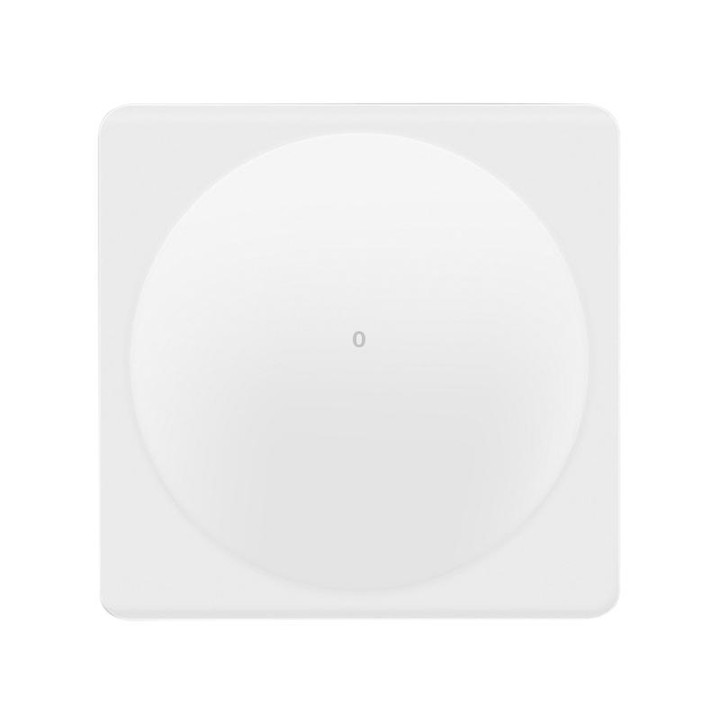

Industrial UHF RFID Long Range Integrated Reader Built-in 9dBi Antenna, Style: with WiFi Communication (US Plug)

1. Equipped with the Impinj E710 chip, it boasts a peak read rate exceeding 700 tags per second and a long read distance.

2. Built-in high-gain 9dBi antenna provides wide coverage, sensitive card reading, and stable performance.

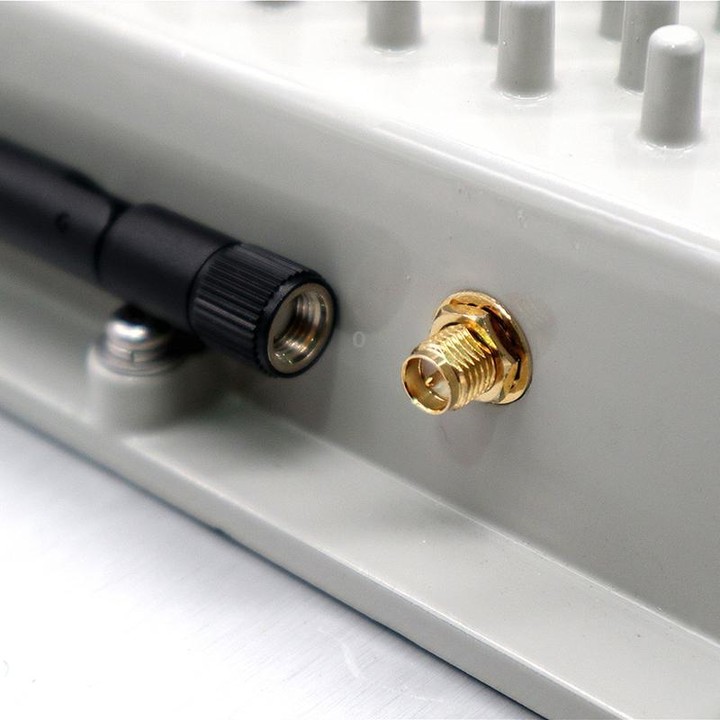

3. Multiple communication interfaces and a separate cable design for ease of use.

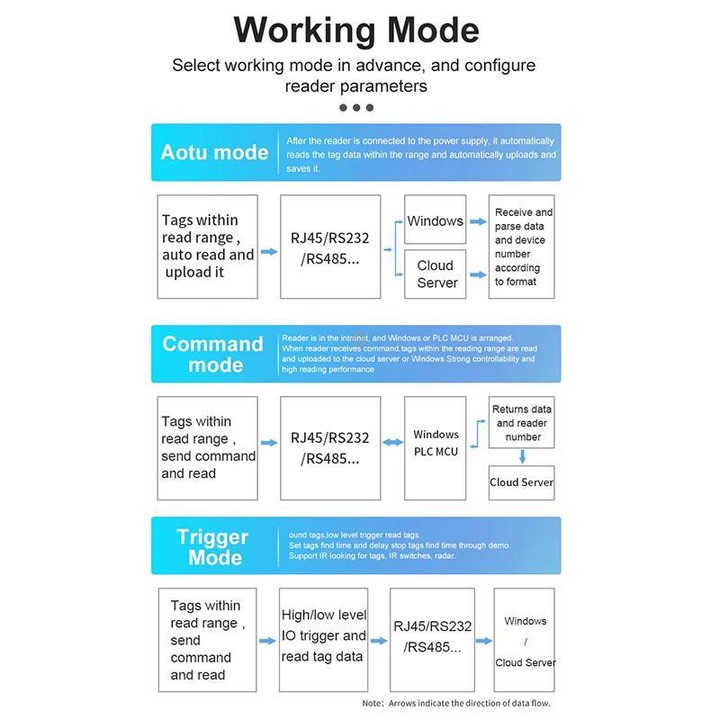

4. Flexible operating mode selection: Active, Passive, and Trigger.

5. Integrated structure with IP67-rated waterproof, dustproof, and lightning protection, making it easily adaptable to diverse outdoor environments.

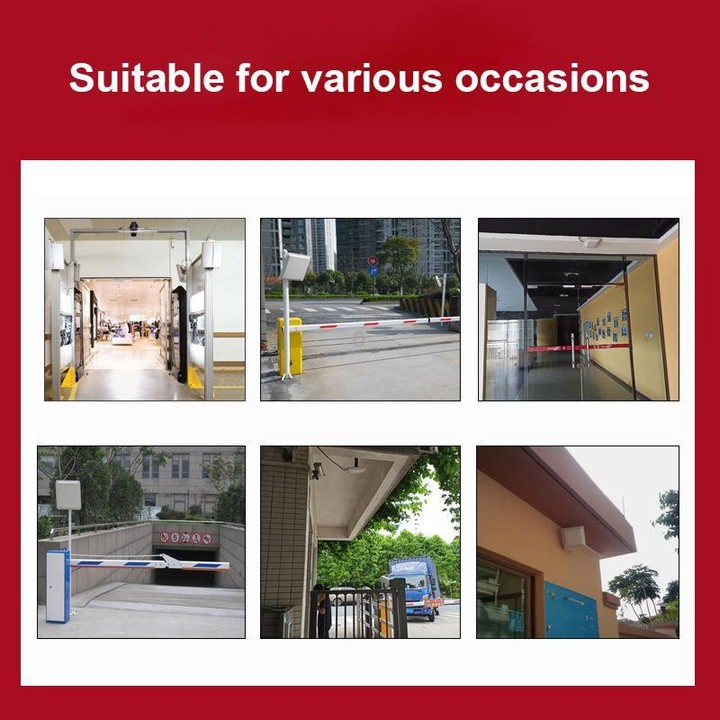

6. Wide range of applications: Suitable for warehousing and logistics, production line tracking, intelligent asset management, and access control systems.

Product Specifications:

1. Model: FI-807B

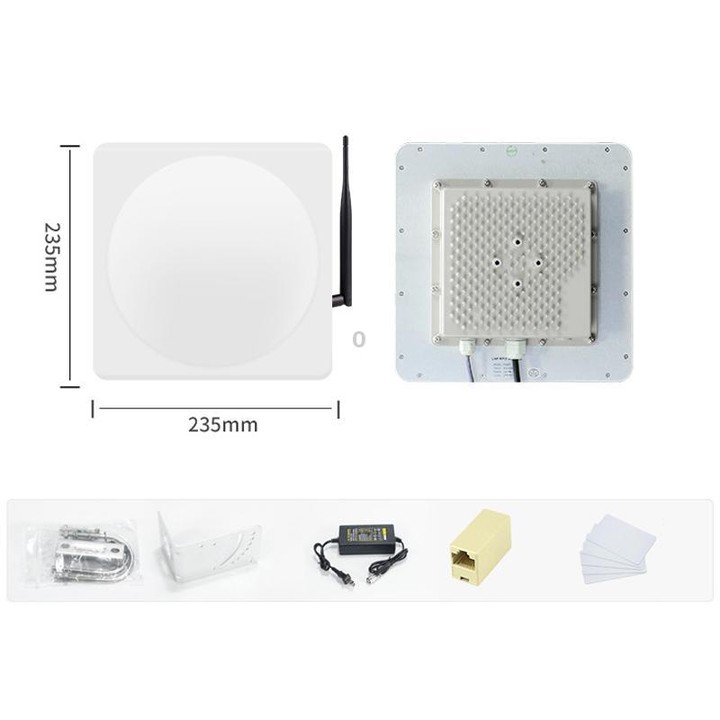

2. Dimensions: 305mm x 305mm x 75mm

3. Operating Frequency: Standard: ISM 902-928MHz and ISM 865-868MHz, optional.

4. Operating Protocols: ISO18000-6C (EPC GEN2), ISO18000-6B

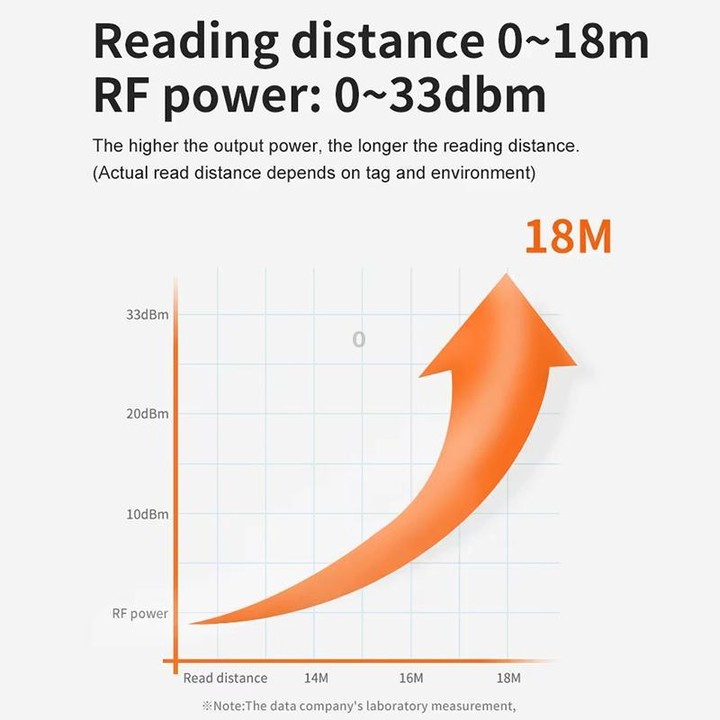

5. Reading distance: 0-10m

6. Output power: 0-33dBm, software-adjustable

7. Operating mode: Wide-spectrum frequency hopping (FHSS)

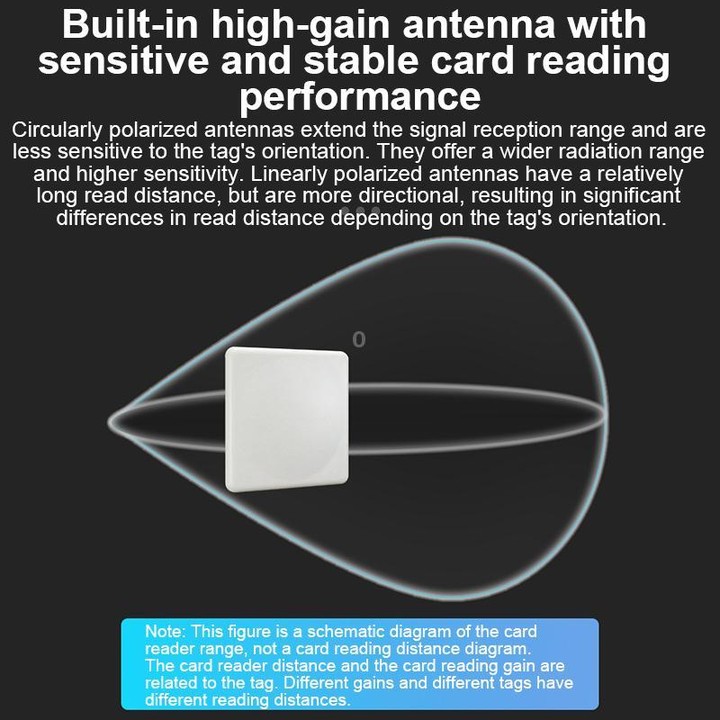

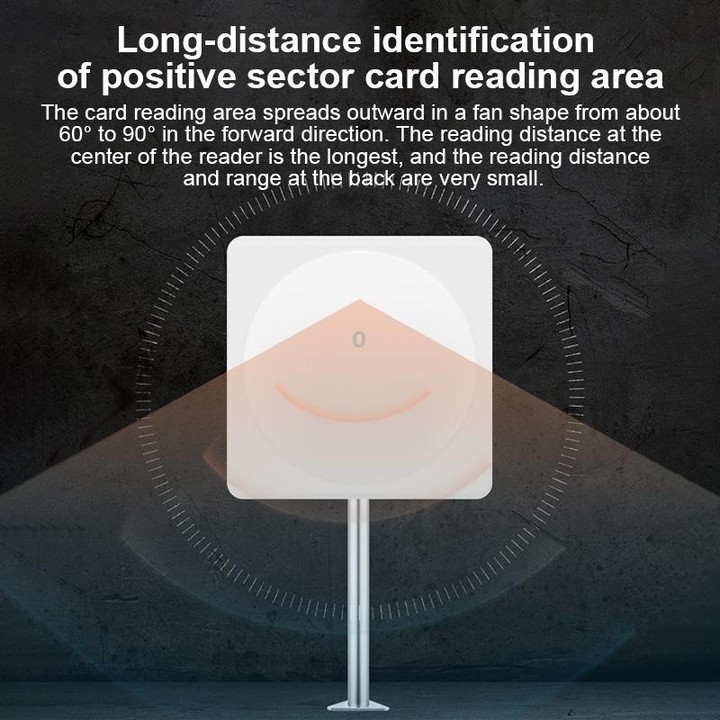

8. Antenna gain: Built-in linearly polarized antenna, 9dBi gain

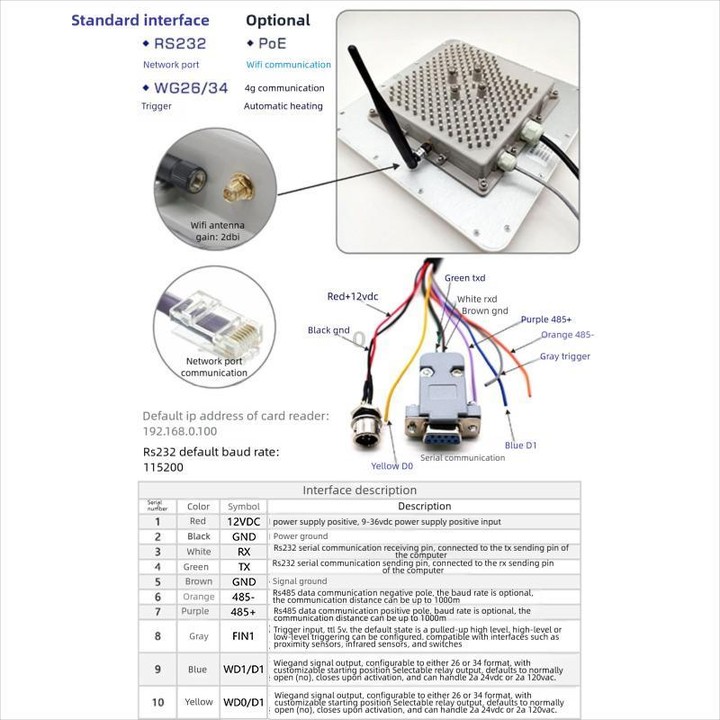

9. Communication interfaces: RS232, RS485, RJ45, Wiegand 26/34, one trigger output, one relay output

10. Operating indicator: Buzzer

11. Power supply: DC+12V (with power adapter), voltage range: 9-16V

12. Operating temperature: -20 degrees Celsius to +80 degrees Celsius
