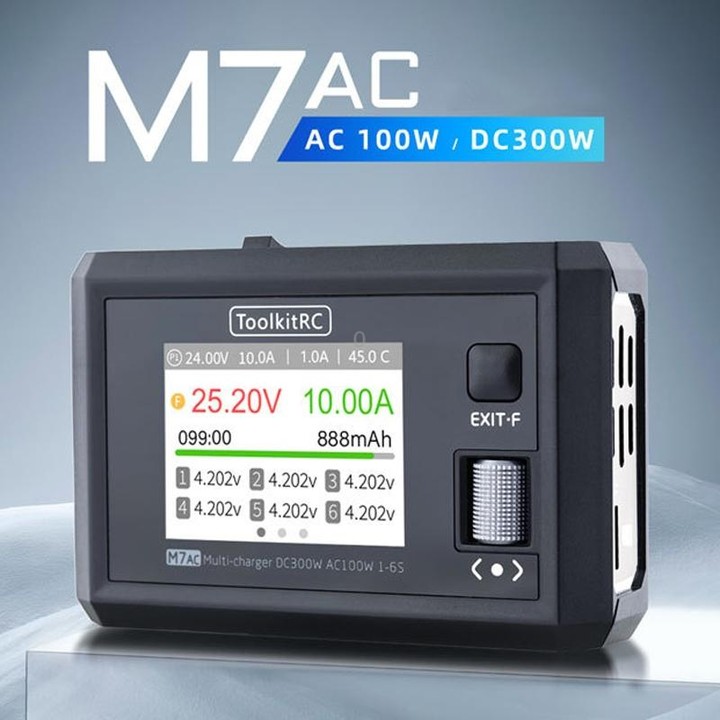

ToolkitRC M7AC Airplane And Car Model Li-Po Battery Balance Charger(US Plug)

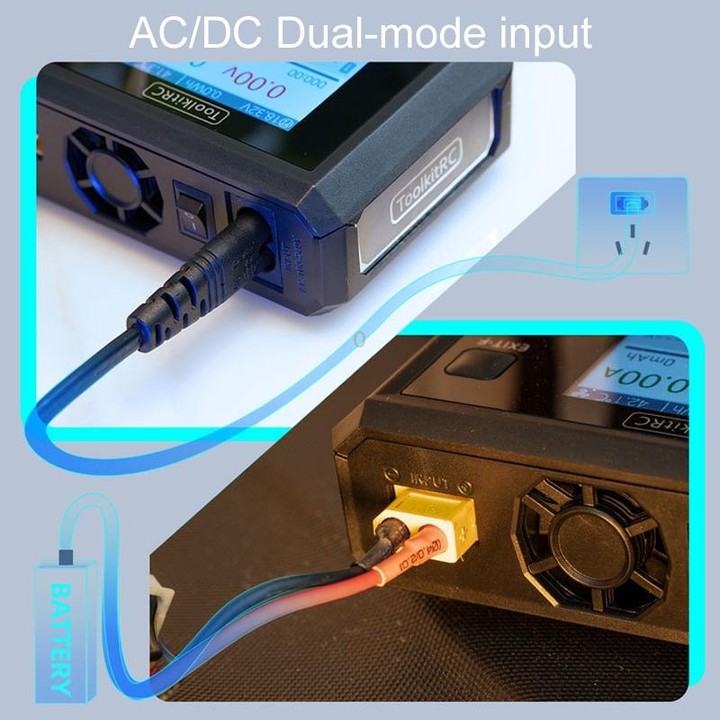

1. Dual-mode input, AC/DC two input power supply mode

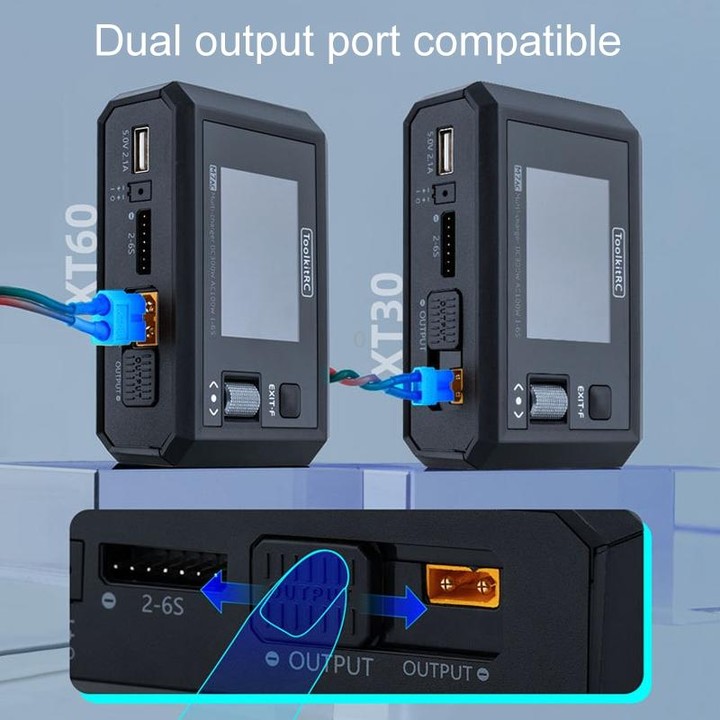

2. Dual output port compatible, XT30/XT60 integrated design

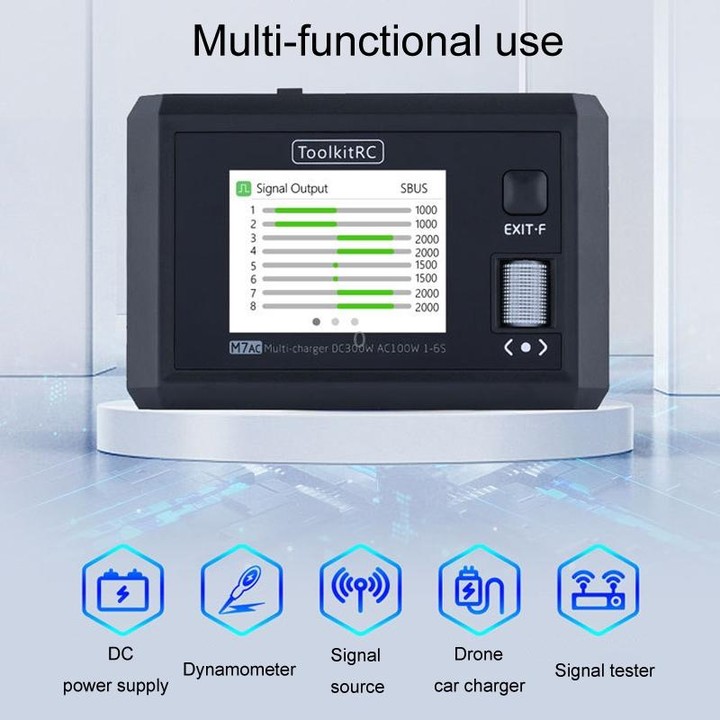

3. Mini size, multi-function integration, to cope with a variety of testing needs

4. Customizable voice announcement, practical and convenient

Parameters:

1. Input voltage: AC100-240V MAX1.5A; DC7-28V MAX 20A

2. Battery type: LiPo/ LiHV/ LiFe/ Lion/ LTO 1-6S; NiMh 1-16S Pb 1-10S

3. Charging power: 0.1-15A 300W

4. Discharge power: 0.1-15A 300W; 0.1-3A 15W

5. USB: 2.1A 5.0V

6. PWM measurement: 500us-500us 20-1000Hz

7. PPM measurement: 880us-2200us x 8CH 20-50Hz

8. SBUS measurement: 880us-2200us x 16CH 20-100Hz

9. Voltage measurement: 1.0-5.0V 6S

10. Internal resistance measurement: 1-100mR 6S

11. ESC measurement: 0.1A -15A MAX 300W

12. PWM output: 880us-2200us 20-400Hz

13. PPM output: 880us-2200us x 8CH 50Hz

14. SBUS output: 880us-2200us x 16CH 74Hz

15. Power supply: 0.11-25A 1.30V mode: CC+CV

16. Display: IPS 2.4 inches, pixels 320 x 240

17. Size: 112 x 73 x 38mm

18. Weight: 245g

Specification:
