SriHome NVS008-AHD006 2MP HD 8-CH XVR NVR Camera Network Video Recorder Kit(AU Plug)

Features:

1. Support TVI/AHD/DVR/NVR/CVI five-in-one function, multi-mode input

2. Support 2MN FHD analog video input

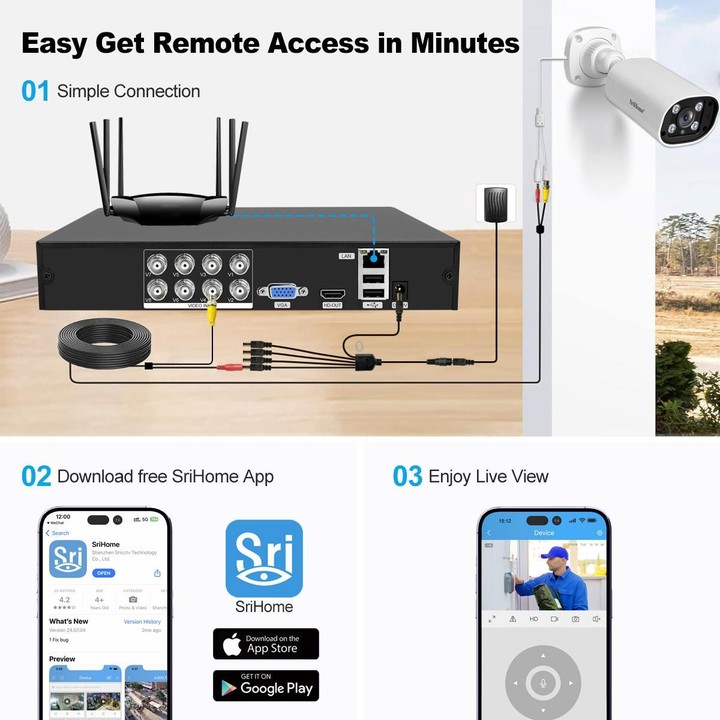

3. Support SriHome cloud platform, support remote monitoring&playback

4. Support coaxial audio monitoring, APP supports two-way voice intercom

5. Support infrared dual light, full-color night vision (alarm trigger)

6. Support 16TB hard disk, 8Ch synchronous playback and multiple playback

7. Support H.264/H.265 encoding front-end adaptive access

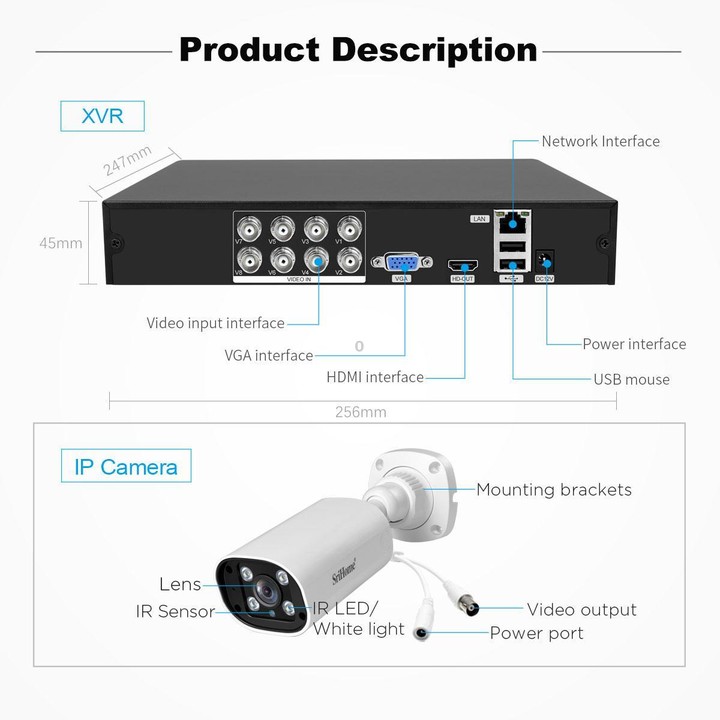

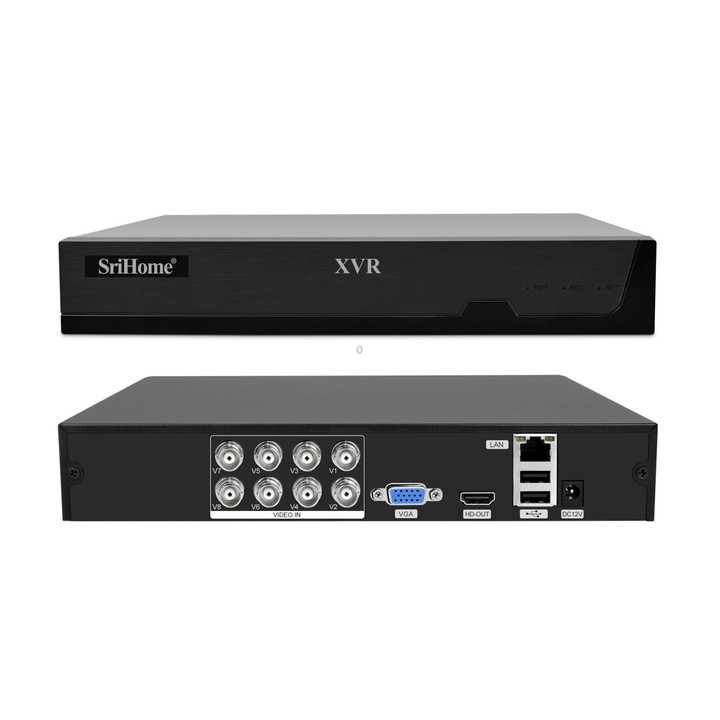

XVR

1. Model: NVS008 (8 channels 5MN)

2. Operating System: Embedded Linux

3. Main control chip: MC6630

4. Language: Japanese, French, Russian, Portuguese, Italian, Spanish, German, Polish, English, Simplified Chinese, Traditional Chinese

5. Video Input: 8CH

6. Resolution: Support 1280 x 720, 1920 x 1080, 1280 x 1440, 1280 x 1920

7. Audio output: 1ch HDMI, 1ch VGA

8. Decoding format: H265+/H264

9. Input Channels: Maximum support 5MN

10. Coaxial bidirectional: Support two-way Audio

11. Decoding format: Support G.711/ADPCM

12. HDMI interface: Support HDMI audio output

13. Coaxial Audio: 8ch

14. Hard disk interface: 1 SATA interface(donot support e-sata)

15. Hard drive capacity: Maximum support 16TB (not included)

16. Video recording: Manual recording, timed recording, motion detection

17. Playback Mode: Support 8CH simultaneous playback

18. Backup Mode: Support USB mobile hard disk, U disk

19. Network port: 10/100 Mbps Ethernet (RJ-45)

20. Network Protocol: TCP/IP, HDCP, DDNS, NTP, UDP, SMTP

21. Alarm mode: Motion detection alarm, human detection alarm

22. Alarm reminder: Humanoid mark, screen prompt, APP push

23. Network Interface: 1x RJ45 Network Interface

24. USB Interface: 2xUSB2.0

25. HD-MI Interface: 1

26. VGA Interface: 1

27. Power Interface: 1 x DC 12V 2A (5.5 x 2.1 x 10 )

28. Working temperature: -10 degree C ~ 50degree C

29. Working humidity: 10%~90% RH

30. APP: Support SriHome APP, iOS and Android remote access

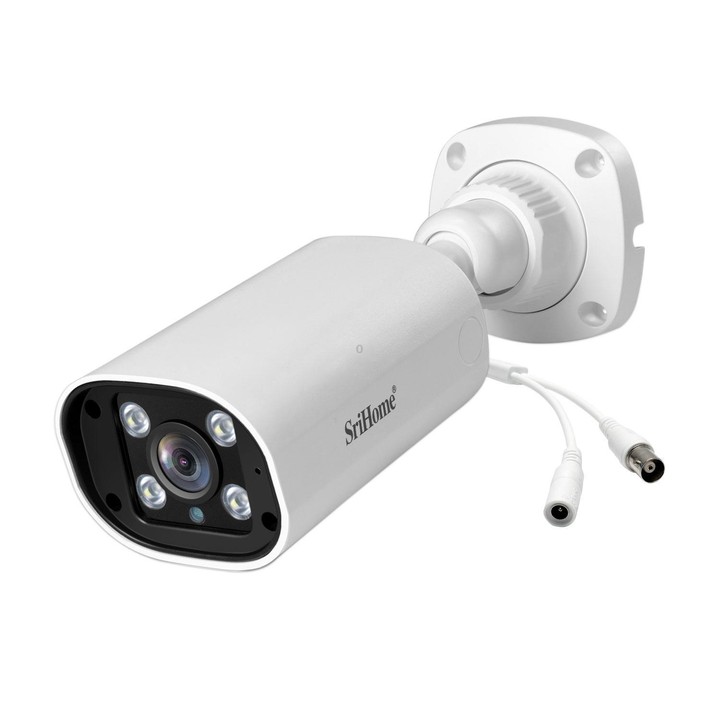

XVR Camera

1. Model: AHD006 (1080P)

2. Main processor: ARM11

3. Sensor: 1/4 inch, 2MP high definition color CMOS sensor

4. Signal output: Support AHD 1080p25 / cvi 1080p30

5. Parameter: Focal Length: 4mm, 2MP

6. Field of view: Horizontal: 350 degrees, Vertical: 90 degrees, Diagonal: 98 degrees

7. Output: Support AHD 1080P 25fps / cvi 1080P 30fps

8. Automatic exposure: Automatic exposure and white balance

9. Night Vision: High power infrared light, high definition night vision

10. Minimum illumination: 0.01 Lux / F2.0

11. IR-Cut: Built-in IR-Cut, no color cast indoors and outdoors, good night vision

12. Electronic Amplification: 3x Electronic magnification

13. Night Vision: Alarm mode: The default is black and white night vision. When an alarm is detected, the white light is turned on.

14. Audio: Support two-way audio, built-in microphone and speaker

15. Product Type: Metal plastic bullet camera, for indoor and outdoor use

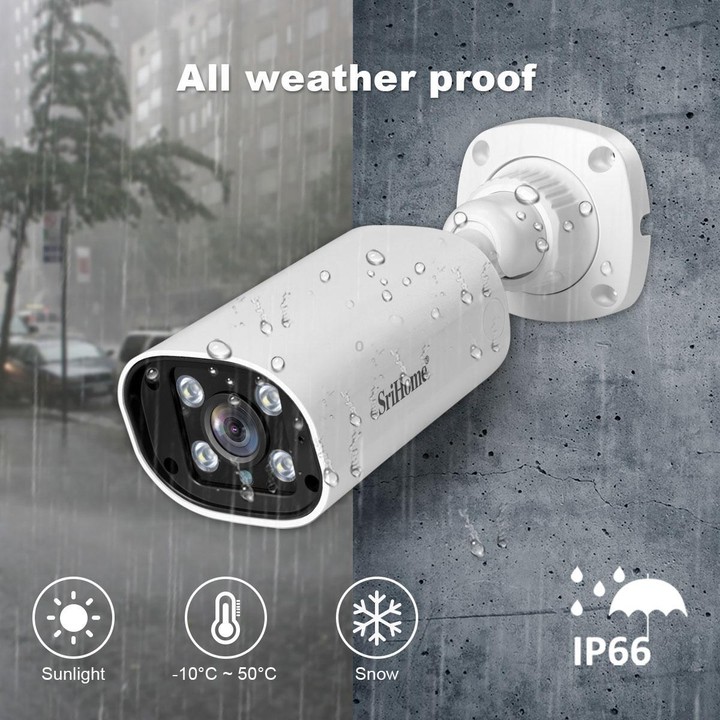

16. Waterproof grade: IP66

17. Power adapter: Input AC: 100~240V

18. Working temperature: -10 Degree C ~50 Degree C

19. Working humidity: 10%~90% RH

20. Product weight: Net weight: 0.36kg

21. Product size: 100x65x65 mmmm（length x width x height)

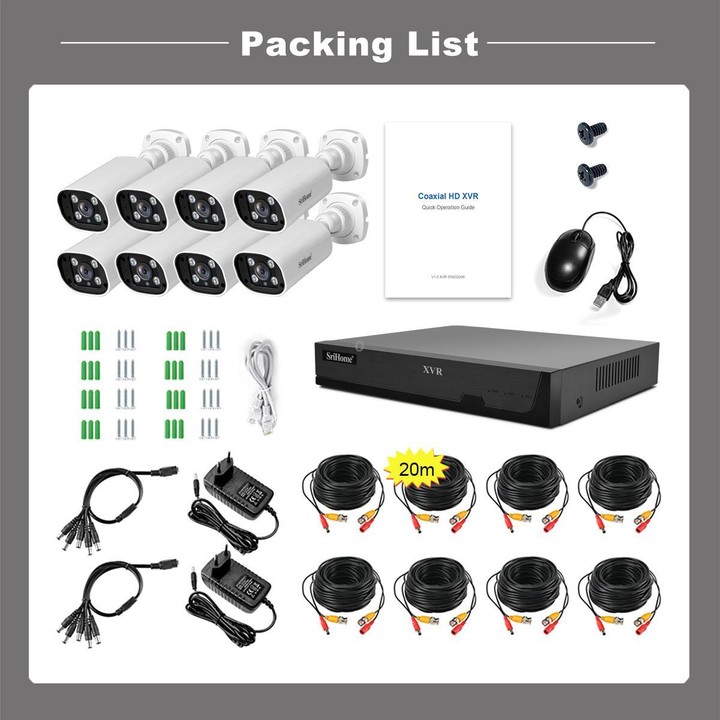

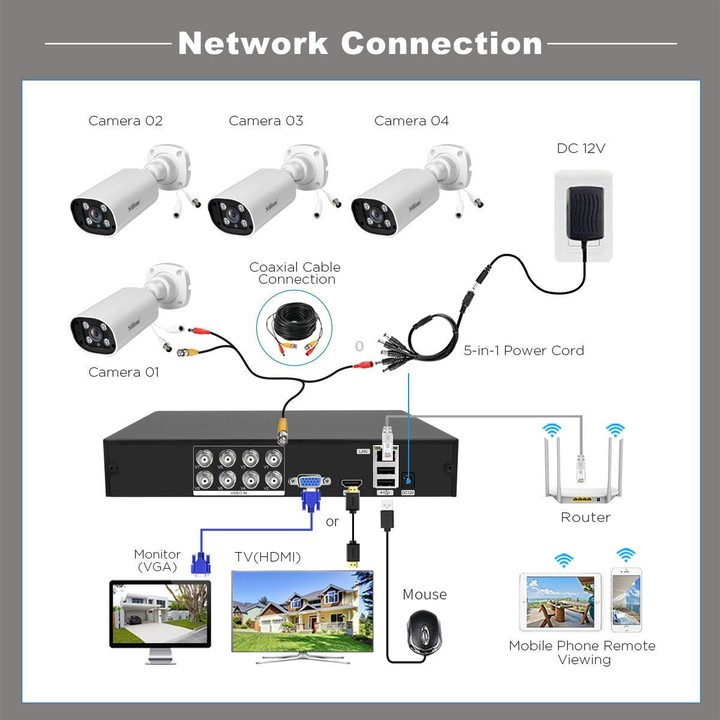

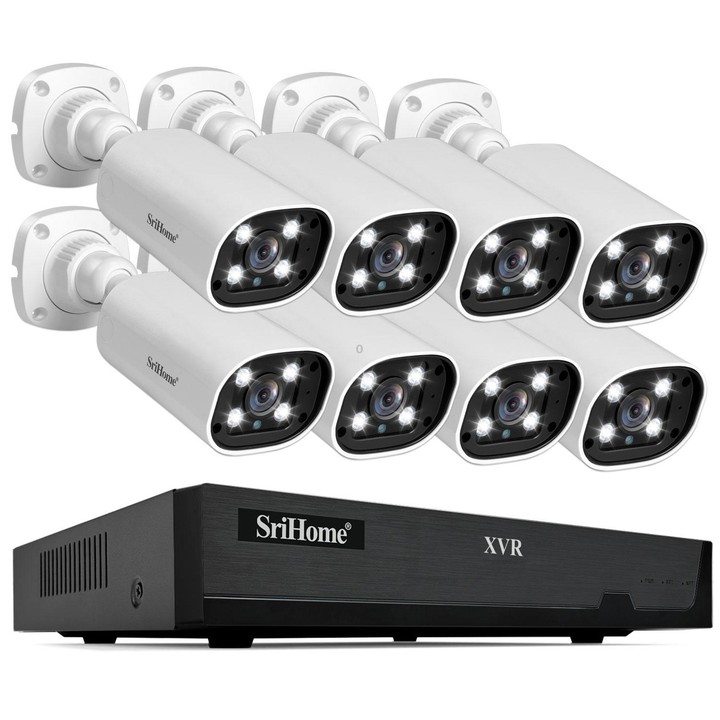

Package List

1. XVR: 1 x XVR NVS008

2. Camera: 8 x AHD006

3. Power Adapter: 2 x 12V 2A

4. Screw Pack: 10 Packs

5. Manual: 1

6. 1 to 5 power cord: 2

7. Net Cable: 1

8. Coaxial Cable: 8 x 20m
