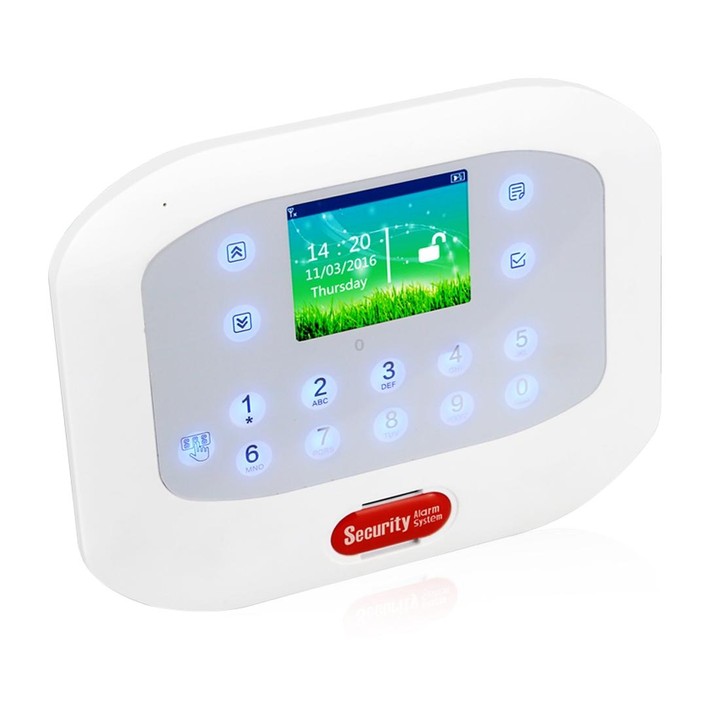

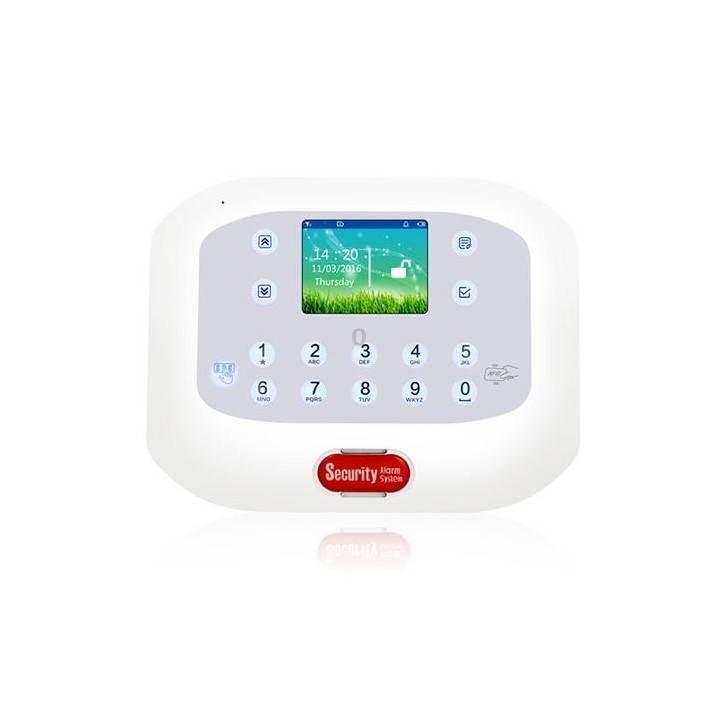

DY-GSM50A 8 in 1 Kit 315MHz / 433MHz Wireless GSM/PSTN Intelligent Anti-Burglar Alarm System, Touch Panel LCD Screen(White)

Features

1. Dual network PSTN/GSM home alarm system.

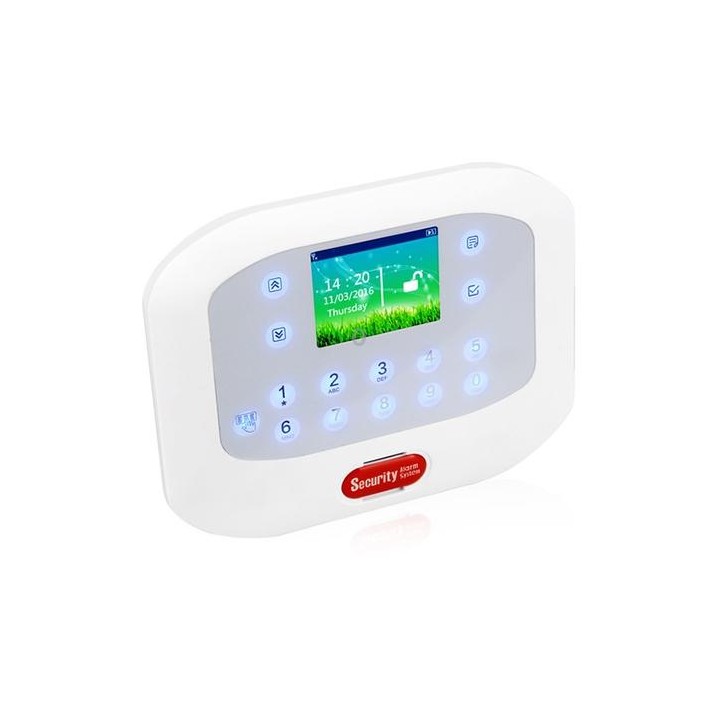

2. Built-in clock and color TFT LCD screen, high-sensitive touch panel keypad.

3. 10 seconds voice message recording.

4. RFID function(work with electromagnetic lock).

5. 3 groups of timely alarm and disalarm.

6. Support 6 wired, 50 wireless defense zones and 8 wireless remote controls

7. Set 6 alarm phone numbers. and 3 alarm SMS numbers.

8. Support wireless siren( Default frequency 315Mhz). Also support the wired siren.

9. Unique function of low voltage alert by sending notifying message.

10. Built-in 4.2V 350mAh lithium battery, when power is off, the host will alarm.

11. Be compatible with the international CID center protocol: Ademco contact ID protocol.

12. Siren volume: 120dB (The default beep time is 180s when it alarms).

13. Full charged time: 10 hours, standby time: 4.5 hours.

14. Factory default password: 1234.

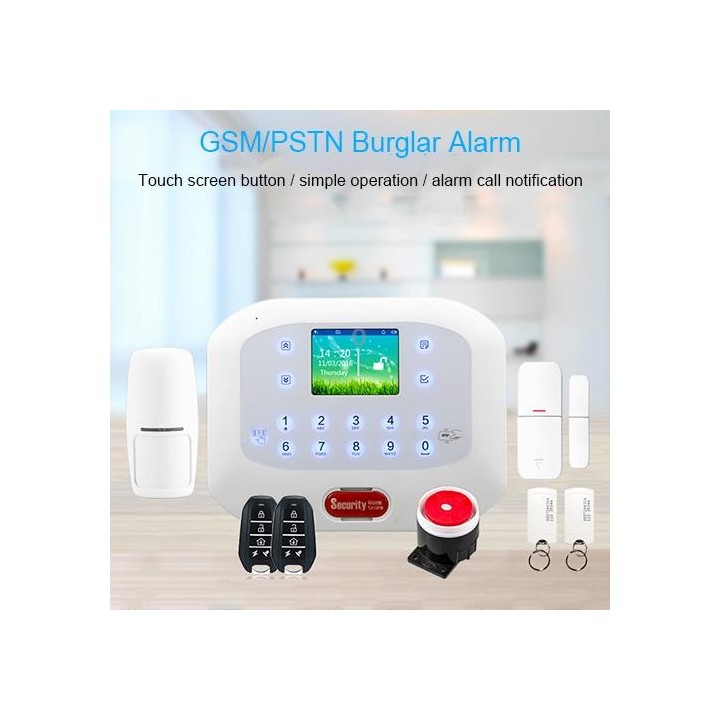

Package List

1. Control Panel x 1

2. Wireless Door/Window Contact x 1

3. Wireless PIR Motion Detector x 1

4. Wireless Remote Control x 2

5. Wired Siren x 1

6. (US, EU, AU, UK plug optional) Power Adapter x 1

7. RFID Tag x 2

Specification:

General

Model

DY-GSM50A

Material

Plastic, Electronic Components

Power Supply

DC 5.0V 2.0A (Input)

Alarming Current

Less than 300mA

Static Current

Less than 65mA

Working Temperature

-10 to +50 Degree Celsius

Host Size

18.9*13.2*1.1cm

Host Weight

243g

Technical Parameters

Remote Control Distance

Less than 40meters (Open Area)

Wireless Detector Distance

Less than 80meters (Open Area)

Frequency

315MHz, 433MHz, PT2262/4.7MΩ

Network Band

GSM 850/900/1800/1900MHz
