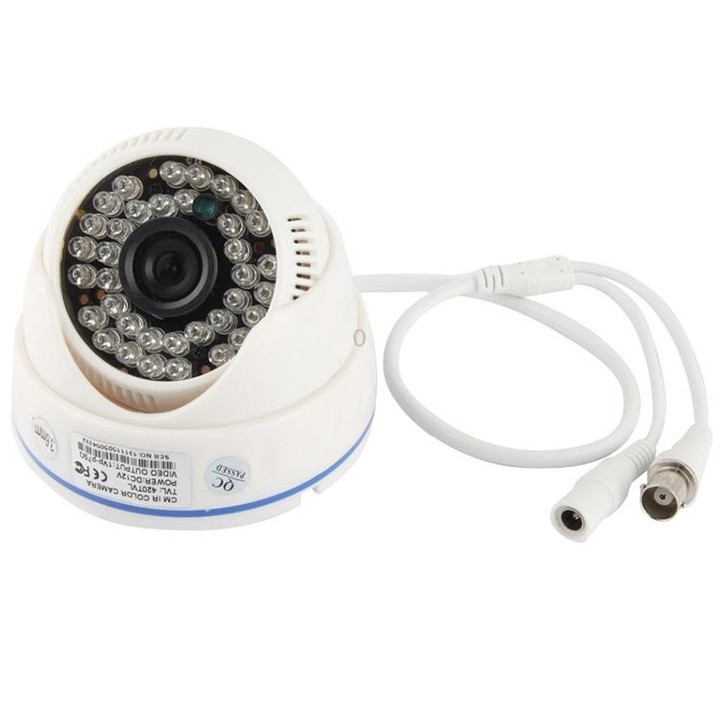

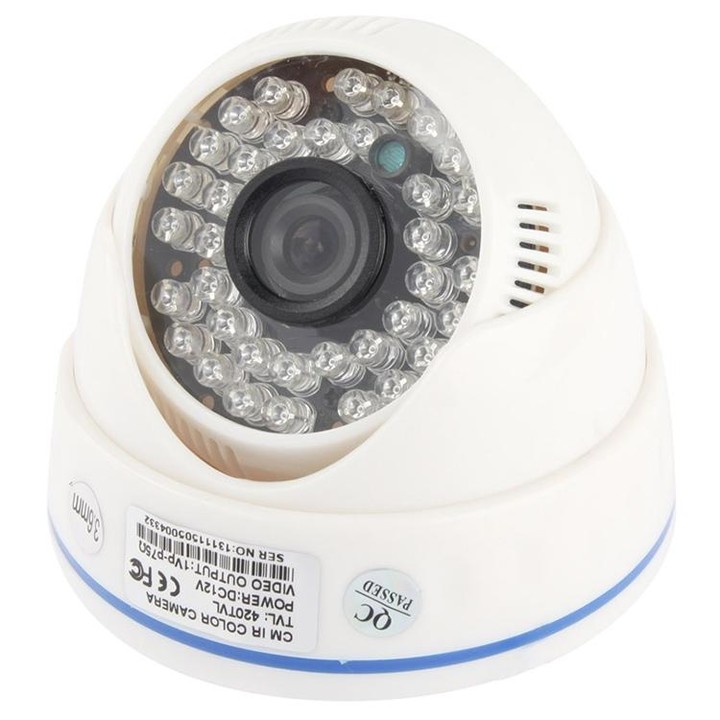

CMOS 420TVL 3.6mm Lens ABS Material Color Infrared Camera with 36 LED, IR Distance: 20m

Video:

1. Imaging Sensor: CMOS

2. Scanning System: 2:1 Interlace

3. Total Pixel: PAL: 752H x 582V, NTSC: 768H x 492V

4. Horizontal Resolution: 420TVL

5. Illumination: 0lux with IR ON

6. S/N Ration: Above and equal 52dB

7. Video Output: 1.0Vp-p/75 ohm

8. Correction: 0.45

9. Frequency: H: 15.736KHz, V: 15.625KHz, V: HZ

10. Sync. System: Internal Synchronization

11. Day & Night: Auto Color to B/W

12. Electronic Shutter Speed: 1/50-1/10,000s

13. Cable Length: 40cm

Operational:

1. White Balance: ATW

2. BLC: AUTO

3. AGC: Auto/Manual

Lens:

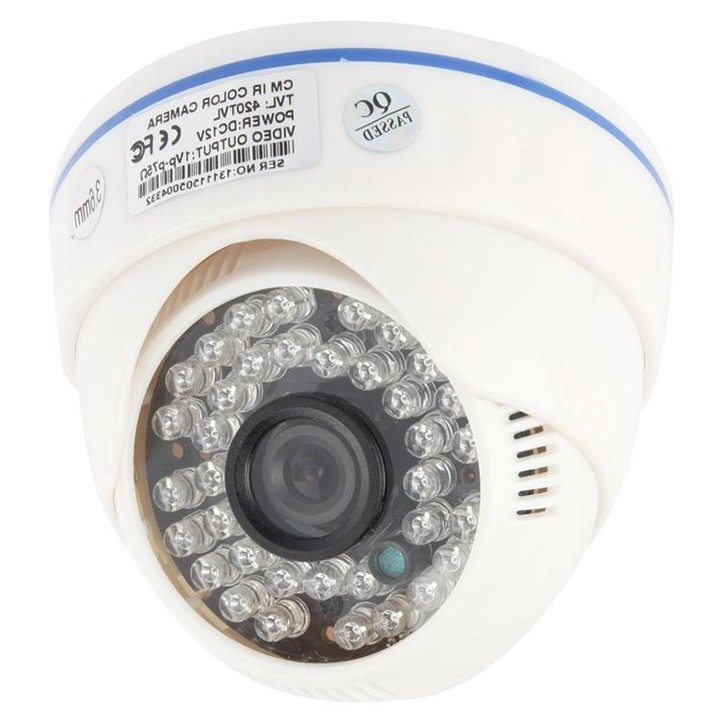

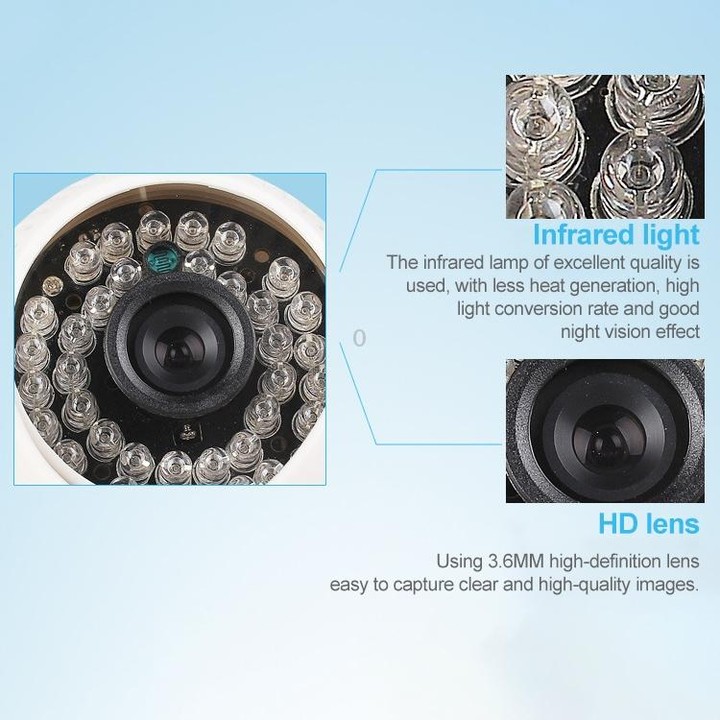

1. 36 IR LED

2. IR Distance: 20m

3. Lens Type: 3.6mm Fixed Lens (Standard)

4. Mount Type: CS

Electrical:

1. Power Supply: DC12V+/-5%

2. Power Consumption: Less and equal 6W

Environmental:

1. Work Consumption: Less and equal 85%RH

2. Operation Temperature: -15-80 degree

Physical:

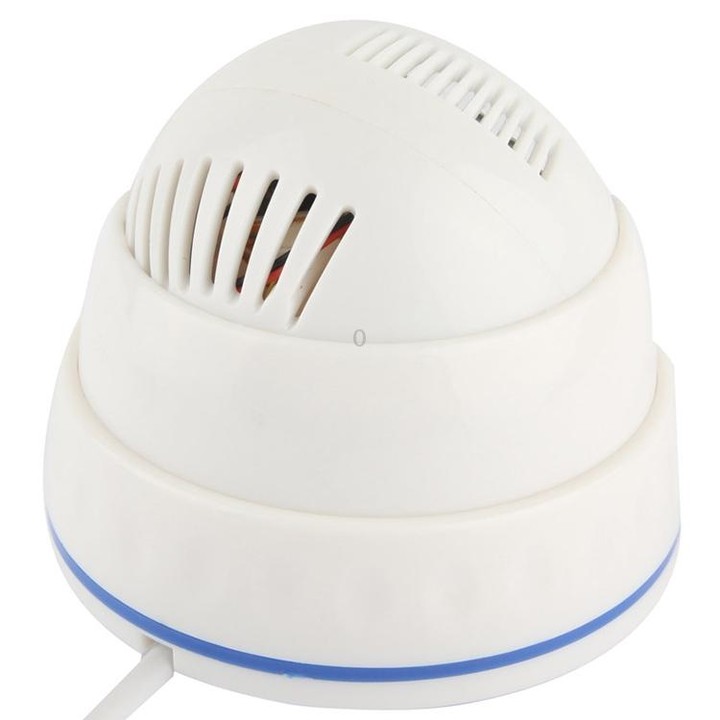

1. Case Material: ABS

2. Size: 92mm x 72mm

3. Net Weight: 151g

Specification:

General

Power Depletion

<6W(Camera)

Power Supply

DC 12V

System / Hardware

Image Sensor

CMOS

Lens

3.6mm

Electronic Shutter

1 / 50-1 / 10,000s

SNR

>=52dB

Day/Night

Auto Color to B/W

Minimum Illumination

0LUX

White Balance

Auto

Gain Control

Manual, Automatic

Backlight Balance

Auto

Media Format

Horizontal Resolution

420TVL

Video Output

1.0Vp-p/75 ohm

Night Vision

Infrared Distance

20m

Configuration

36 infrared LEDs

Physical Environment

Environment

Outdoor, Indoor

Dimensions

Size

92mm x 72mm

Weight

151g

Package Include

Package Contents

1 x Camera

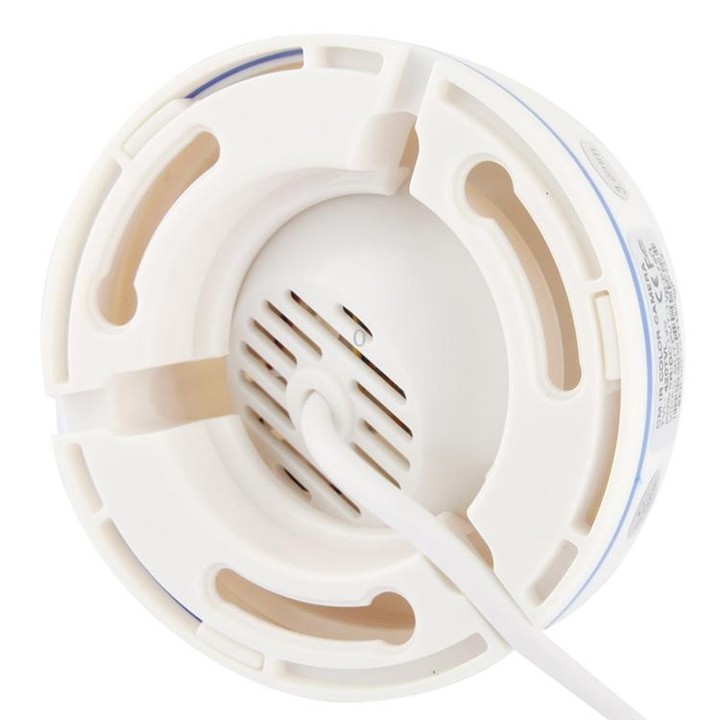

1 x Mounting Accessories

1 x User Manual
