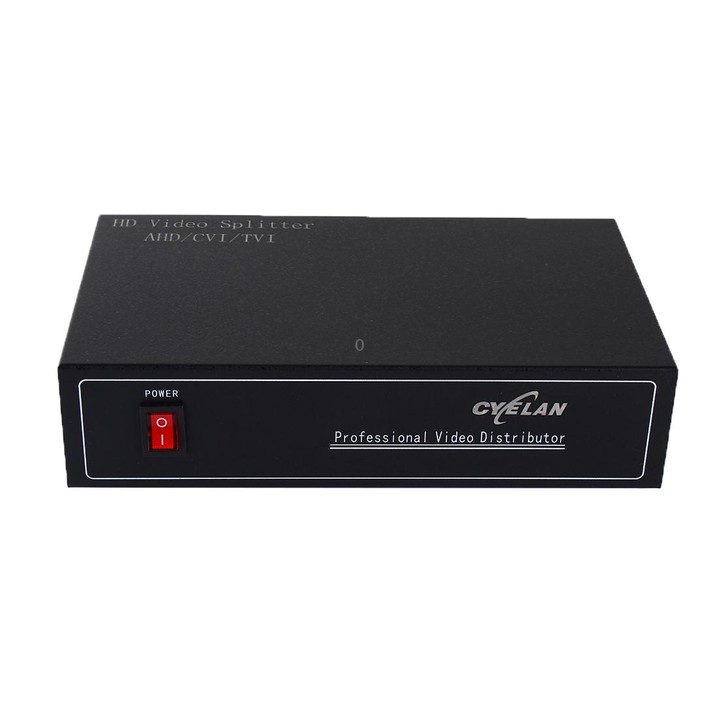

Coaxial AHD / CVI / TVI 1 into 8 Video Signal Splitter

1. No compression, no delay time distribution of output HD

2. The famous SGM semiconductor professional video amplifier IC chip design

3. Compatible with PAL, NTSC or SECAM

4. The analog bandwidth up to 300MHz

5. Professional broadcast class standards

6. DC 12V power supply, high stability

7. Support any HD video signal distribution

8. Processing technique of video signal, the image signal stable picture

9. Without the software settings, support plug and play function

10. The built-in surge and electrostatic protection

11. Type design, convenient for users to install and use

12. The output range of up to 300-400 meters, no signal attenuation

13. Input the 1 video signal, the allocation of 8 Road (a total of 8 video signal output)

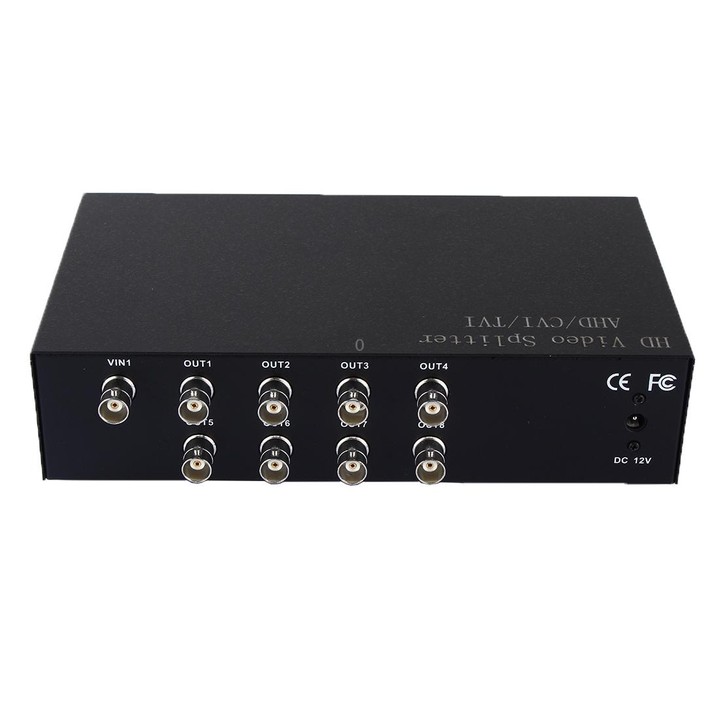

14. The input and output BNC standard socket

15. The structure of iron and steel, gray and black spray

Specification:

General

Material

Metal

Video Input

1.0Vp-p/75 maximum 2.0Vp-p/75 Output

Input Voltage

DC 12V

Size

20.8*13*5cm

Weight

530g
