5800ACT-VH 5 Inch Large Screen Engineering Treasure Coaxial AHD / TVI / CVI 8MP Analog Video Surveillance Tester, US Plug

1. Video signal test function: built-in high-definition 5.0-inch 800 (RGB) x 480 wide viewing angle display, supporting PAL/NTSC image signals

2. PTZ control function: Built-in Pelco-D/P PTZ control protocol, through RS485 interface, you can control the up, down, left, right, zoom, focus, aperture size of the PTZ

3. DC12V 1A power output function: provide temporary power supply for the camera

4. Audio test function: you can test the audio equipment such as pickups on the front-end of video surveillance

5. Enhanced network cable test function: through the UTP CABLE TEST test port on the instrument

6. Support VGA video input, when accessing VGA video cable, enter the menu and select VGA mode, resolution support 1024 x 768, 1280 x 1024

7. Support HDMI video input, when accessing HDMI video cable, it will automatically switch to HDMI mode, the resolution supports 480i/P, 576i/P, 720i/P, 1080i/P

8. TVI camera test, support 720p 25/30/50/60fps/1080p 25/30fps, 5MP.8MP resolution camera image test

9. AHD camera test, support 720p 25/30fps/ 1080p25/30fps, 5MP.8MP resolution camera image test

10. CVI camera test, support 720p 25/30fps/ 1080p25/30fps, 5MP.8MP resolution camera image test

11. Built-in 3.7V 3000mAh Li-polymer battery

12. Charging time: about 2-3h

13. Use time: about 6h (without CCD power output)

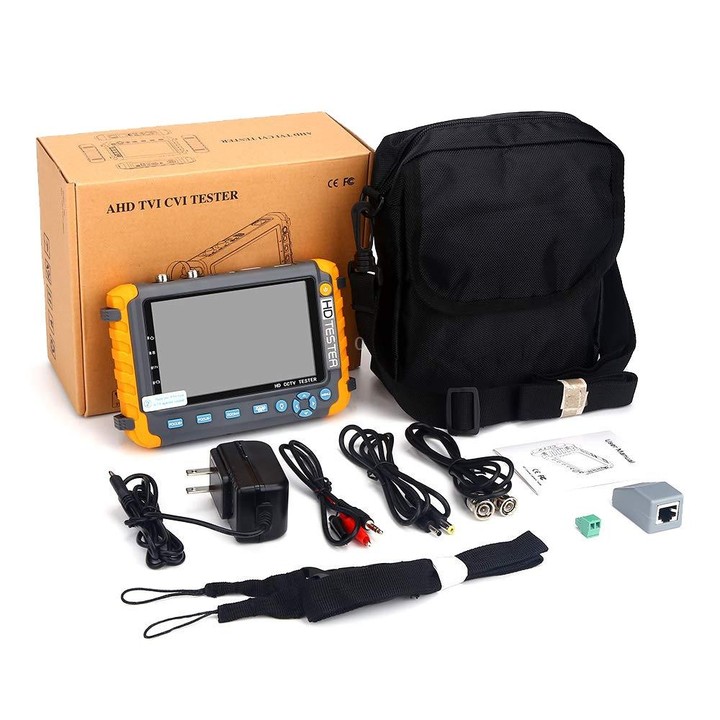

Packing list:

- Frequency monitoring tester x 1

- US plug adapter x 1

- BNC cable x 1

- RS485 connector x 1

- Power output conversion cable x 1

- Audio cable x 1

- Lanyard x 1

- Storage bag x 1

- Instruction manual x 1

Specification:
