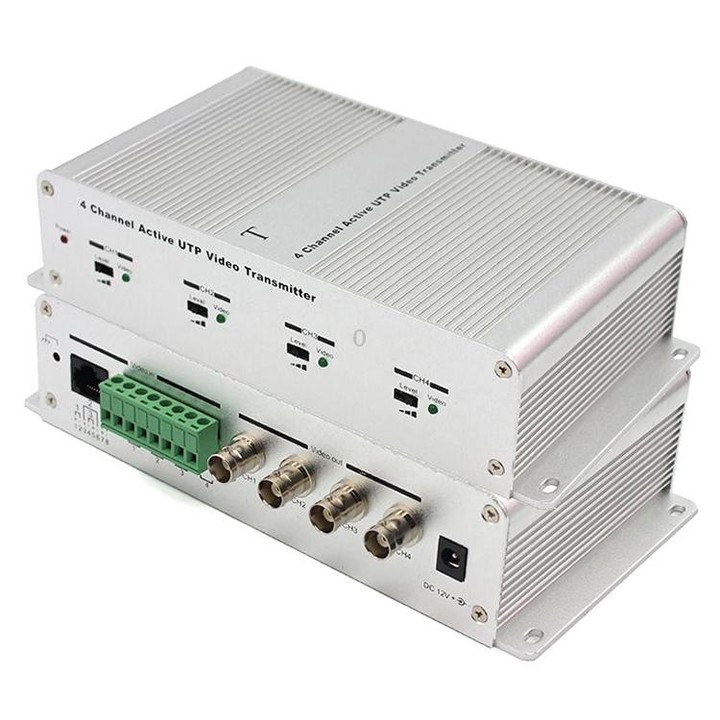

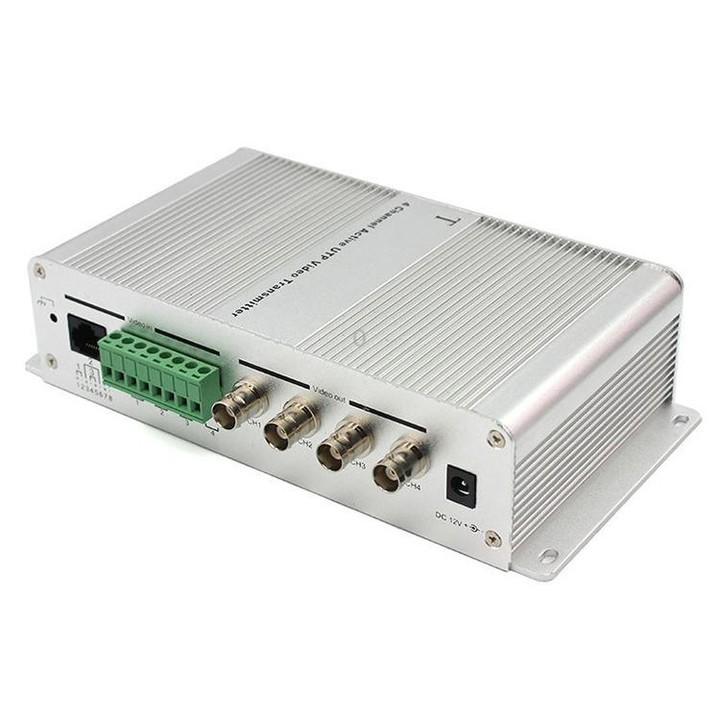

4 Channel Active UTP Video Transmitter(Silver)

1. Applicable to NTSC, PAL, SECAM and CCIR system.

2. Full motion CCTV video at distance up to 7200ft(2400m).

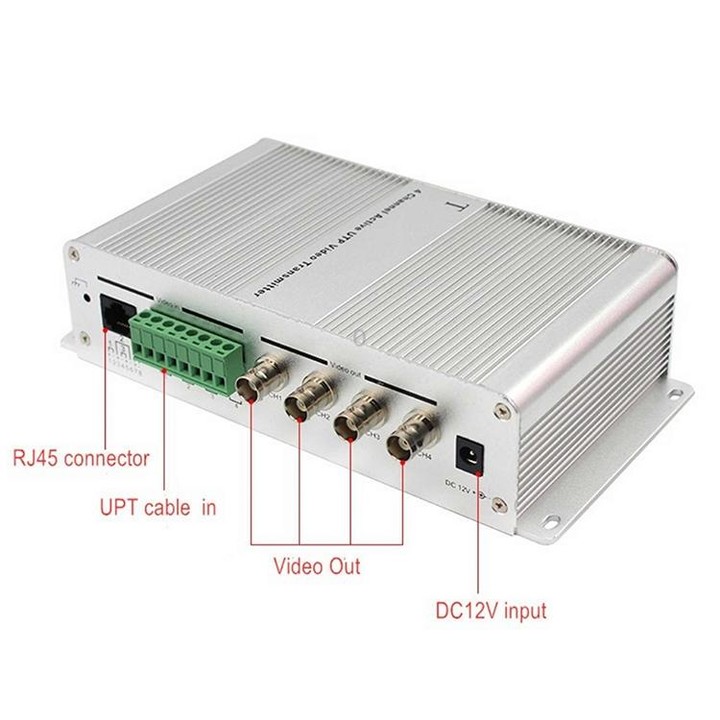

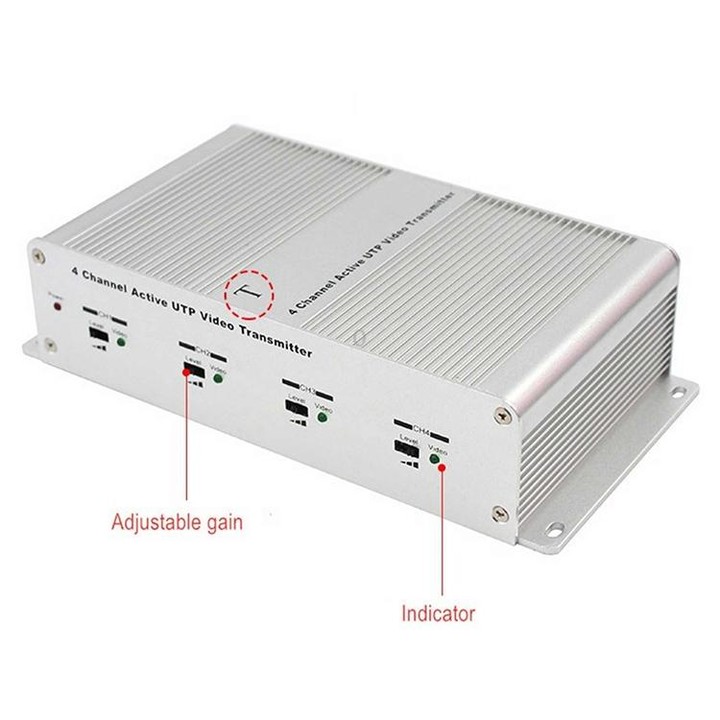

3. 18 pin RJ 45 socket, 8 position green terminal block, 4 BNC port, 4 "brightness"adjustable knob, 4 "sharpness" adjustable knob.

4. Applied for the occasions such as video monitoring and video meeting, can transmit four channels of video signal via 8 core cat-5 unshielded twisted pair wire.

5. Can receive balanced signal to convert it into unbalanced signal, and raise the receive signal with receiving effect well.

Specifications:

1. Product Name: 4 Channel UTP Video Transmitter

2. Channel: 4

3. Material: Metal

4. Frequency Response: DC-8MHz

5. CMRR: 60db

6. Impendance: BNC Terminal: 75Ohm; Connection Terminal: 100Ohm

7. Working Temperature: -10-70 degree C

8. Voltage: DC 12V

9. Current: Max.200mA

10. Characteristic Impendance: 100+/-20 Ohm

11. DC Loop Resistance: 18Ohm/100m

12. Size: 20 x 7 x 4.3cm

13. Color: Silver Tone

14. Weight: 579g

Specification:

Package Weight

One Package Weight

0.01kgs / 0.02lb

Qty per Carton

20

Carton Weight

16.40kgs / 36.16lb

Carton Size

60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch

Loading Container

20GP: 277 cartons * 20 pcs = 5540 pcs

40HQ: 644 cartons * 20 pcs = 12880 pcs
