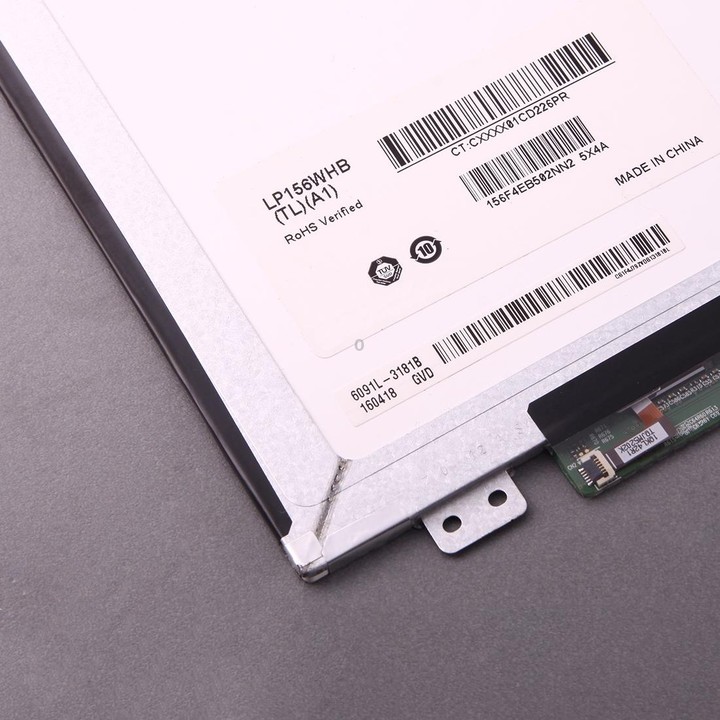

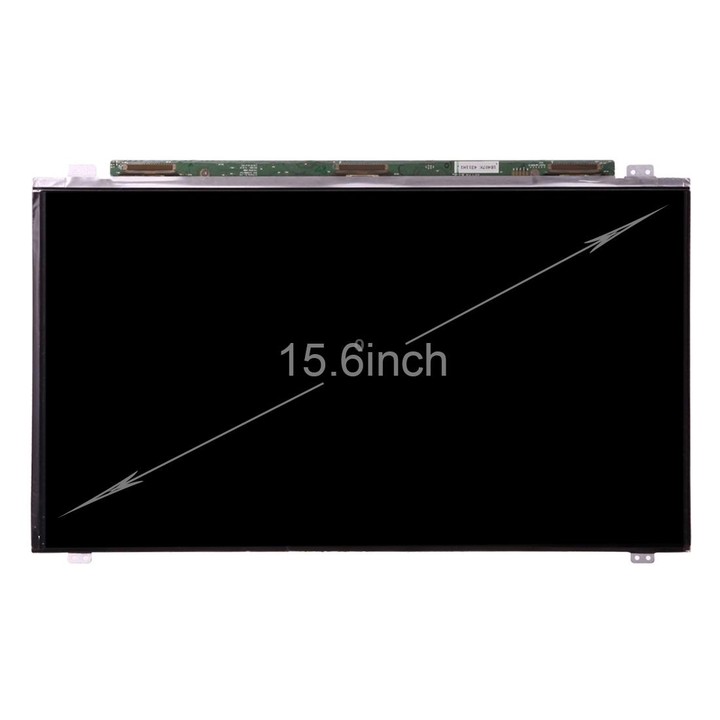

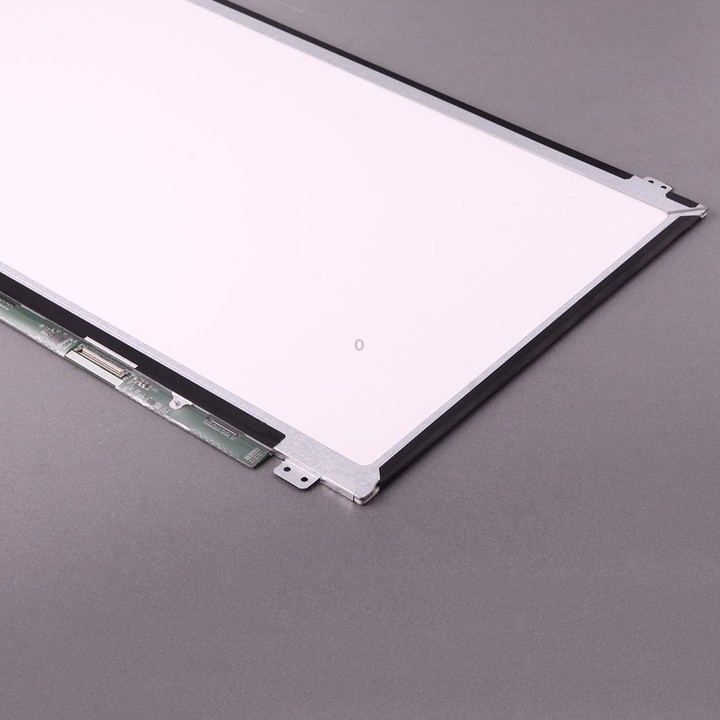

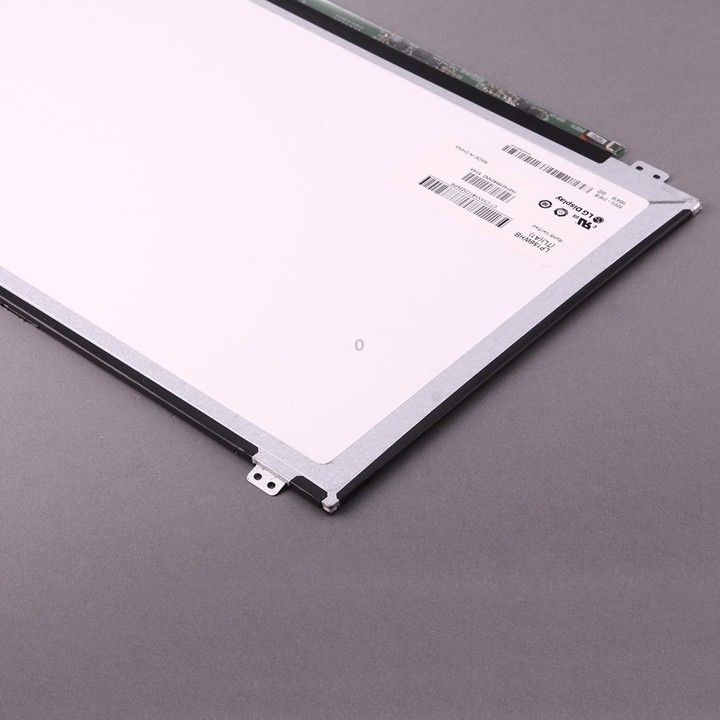

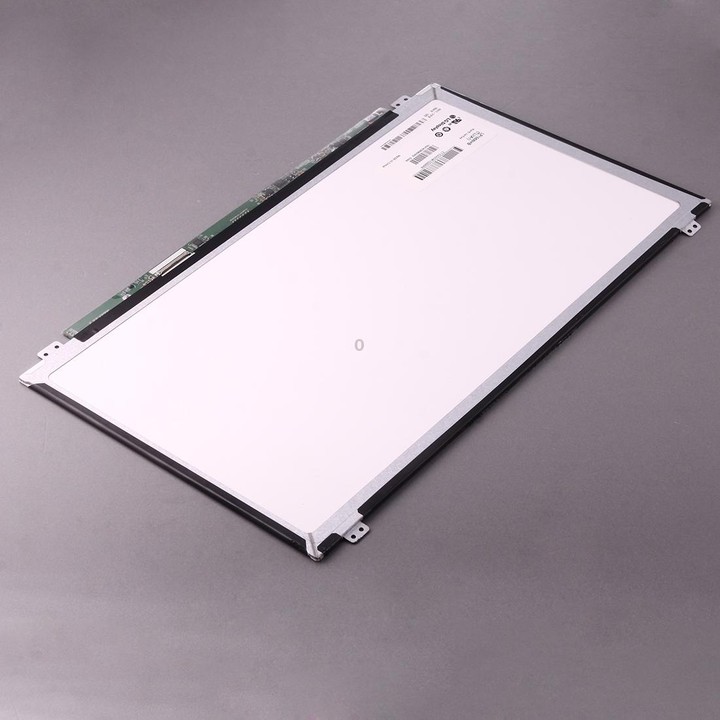

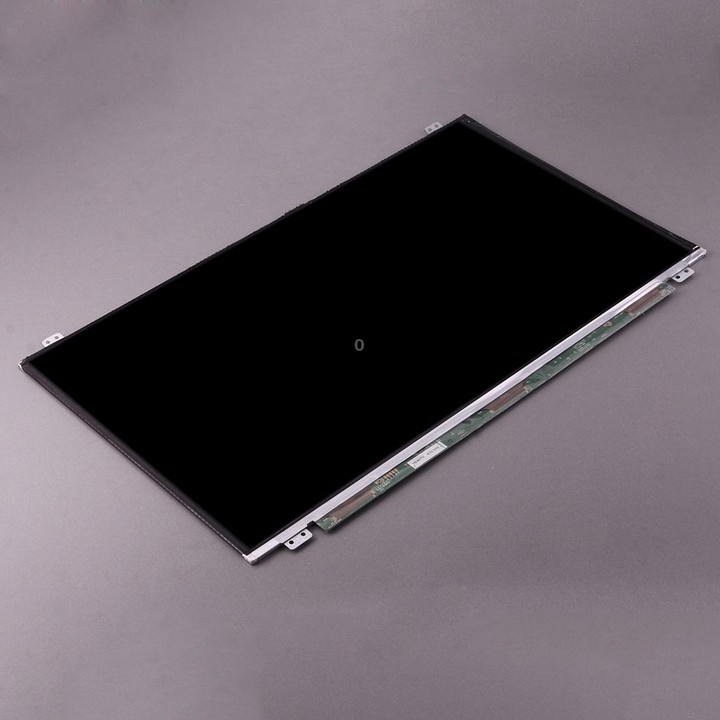

LP156WHBTLA1 15.6 inch 40 Pin 16:9 High Resolution 1366 x 768 Laptop Screens LED TFT Panels

1. High quality replacement screen panel.

2. High resolution 1366 x 768 pixel.

3. 16:9 aspect ratio standard screen.

4. 15.6 inch diagonal screen size.

5. Backlight Lamp: LED type.

6. Suitable model: NT156WHM-N10 LP156WHB B156XW04/XTN03 LP156WH3/WHU.

Specification:

General

Model

LP156WHBTLA1

Screen Size

15.6 inch

Screen Type

LCD module, a-Si TFT-LCD

Resolution

1366 (RGB) x 768 (WXGA)

Brightness (cd/m2)

200

Power Supply

3.3V

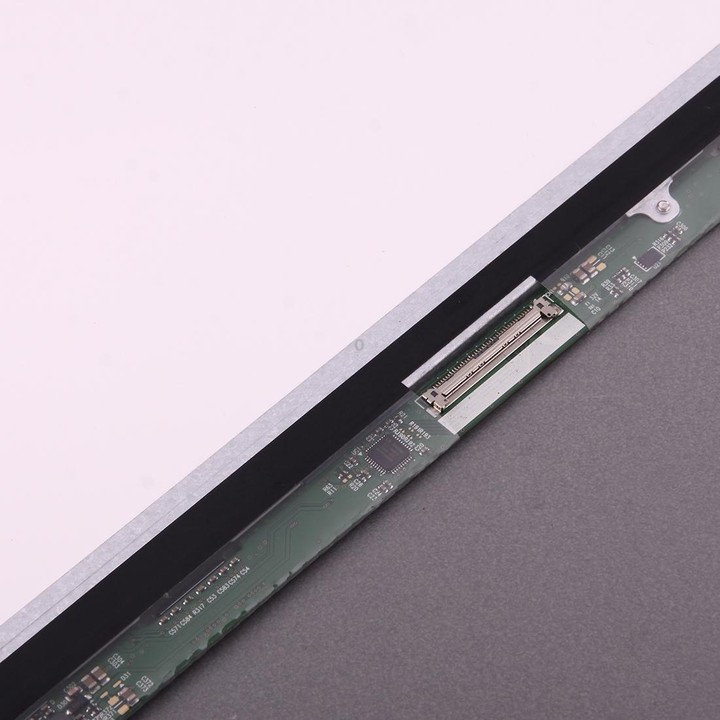

Connector

LVD (1 ch, 6 bit), 40 pin, Terminal

Working Mode

TN, Normal white display, Transmissive

Display Color

262k 45%(CIE1931)

Contrast Ratio

500:1

Viewing Angle

40/40/15/30(CR>=10)

Shape Style

Medium thick screen (PCBA Straight, 3.4~4mm)

Surface

Mirror (Haze 0%), Hard coating (3H)

Backlight Type

WLED, 12K hours, with LED diver

Response Speed

16 (Typ.) (Tr + Td) ms

View Size

347.5 x 196.8mm

Display Size

344.232 x 193.536mm

Size

35.8*21.6*0.4cm

Weight

391g

Environment

Operating Temperature

0~50 Degrees Celsius

Storage Temperature

-20 ~ 60 Degrees Celsius
