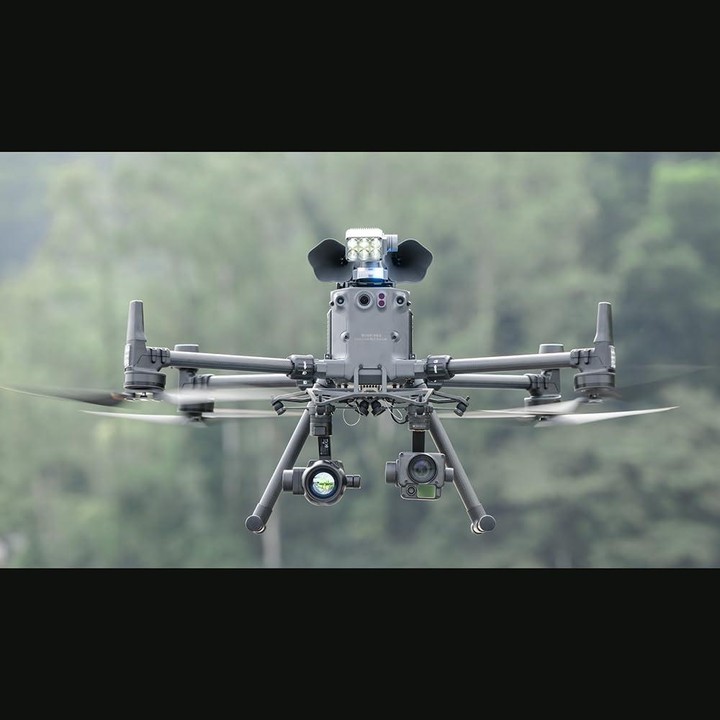

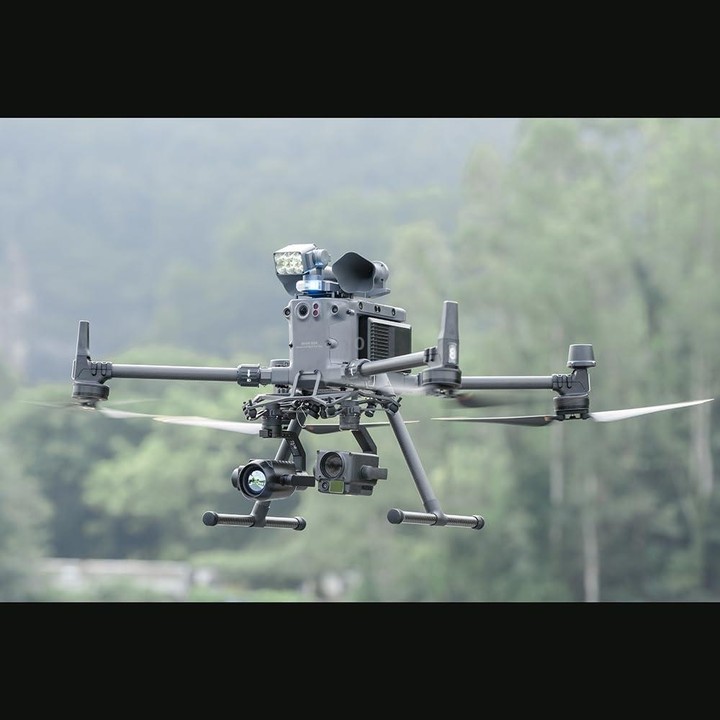

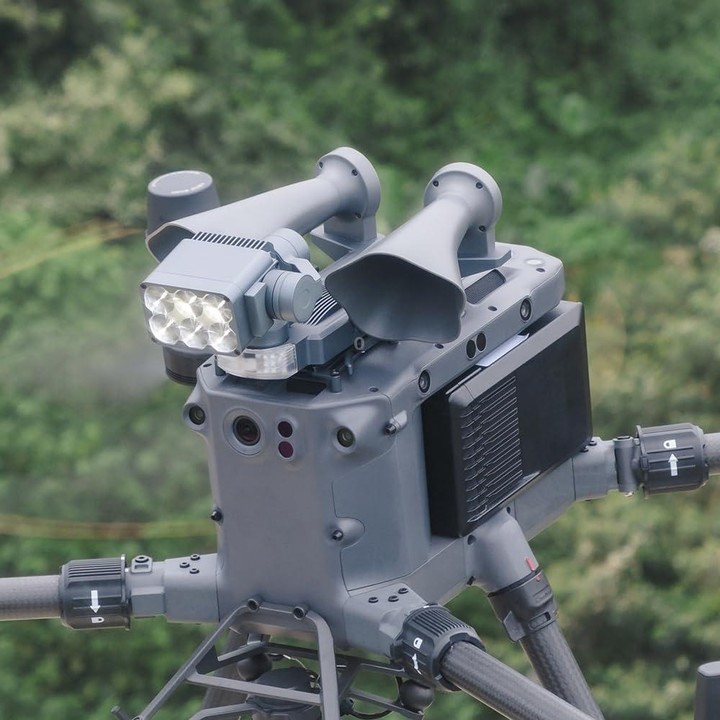

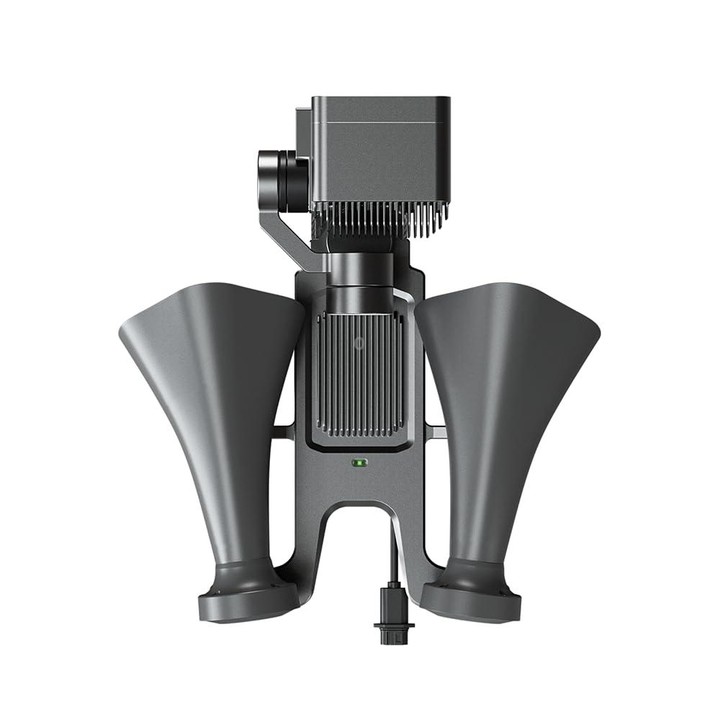

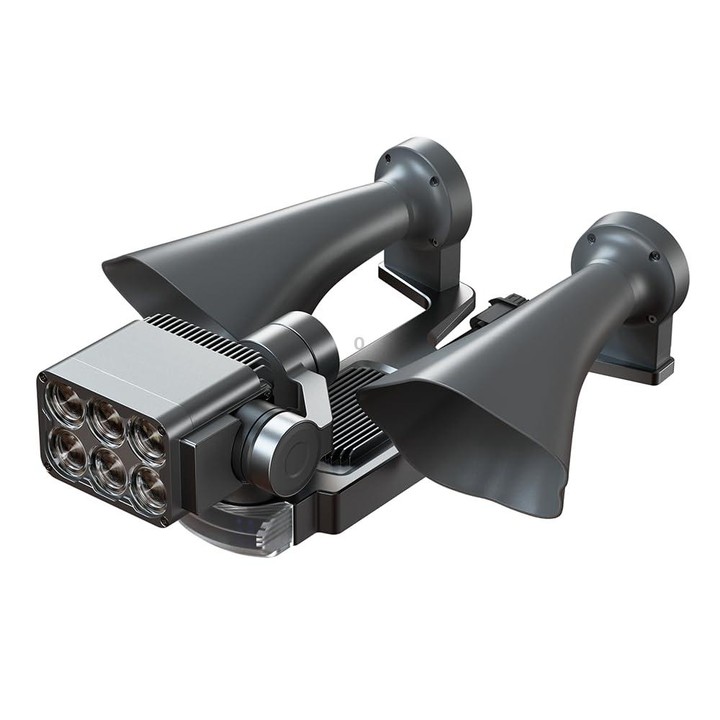

CZI LP35 Searchlight And Broadcasting System For DJI M350RTK Drone

1. LP35 searchlight broadcasting all-in-one machine, rated power up to 90W, compatible with DJI M350RTK drone through OSDK interface.

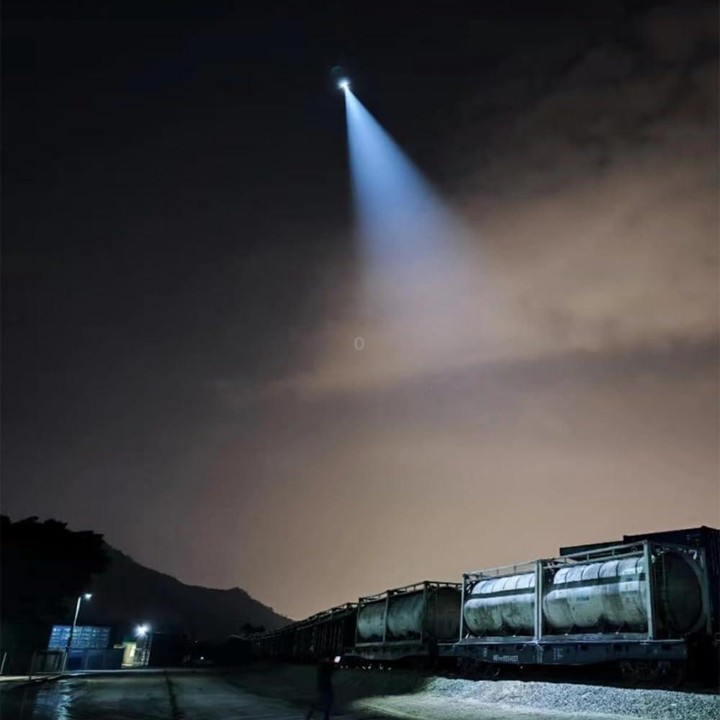

2. LP35 can emit a 13-degree sharp beam with uniform brightness. At an illumination height of 150m, the central illumination reaches 6.3lux, and the effective searchlight area reaches 917 square meters.

3. The loudspeaker has strong sound penetration, the maximum sound pressure can reach 126dB, the effective sound distance is 400 meters, supports real-time shouting, TTS, and other functions, and is easy and fast to operate.

4. Built-in red and blue flashing warning lights effectively improve the recognition of the drone, and can be linked with the gimbal camera to perfectly cooperate with the camera operation.

Parameters:

1. Electrical interface: DJI OSDK

2. Weight: less than or equal to 550g

3. Dimensions: L235mmxW220mmxH85mm

4. Power: 96W (maximum)

5. Bluetooth protocol: Bluetooth v4.2 BR&EDR and Bluetooth Low Energy

6. Bluetooth operating frequency band: 2400?2483.5MHz

7. Warning light mode: red and blue flashing, red flashing, blue flashing

8. Warning light visible distance: 200m

9. Megaphone sound pressure: 126dB at 1m

10. Megaphone maximum power: 30W

11. Effective broadcast distance: 400m

12. Broadcast mode: / real-time shouting/recording upload/audio file playback (audio format MP3) / text-to-speech playback (support text recording)

13. Searchlight light flux: 6000+/-3%lm

14. Searchlight FOV: 13 degrees

15. Center illumination: 6.3Lux/14.4Lux/57Lux

16. Searchlight distance: 150m/100m/50m

17. Spot diameter: 34m/22.8m/11.4m

18. Searchlight area: 917 square meters/407 square meters/102 square meters

19. Searchlight LED power: 60W

20. Gimbal control rotation range: pitch +55~-65 degrees; horizontal +/-35 degrees; roll +/-25 degrees

21. Searchlight function: constant light mode/strobe mode/brightness adjustment/gimbal angle adjustment/

22. Automatically follow the camera/AI spot centering

23. Drone platform support: M350

24. Support APP: CZI Pilot, DJI Pilot, CZI Audio (Android), CZI Assistant (PC)
