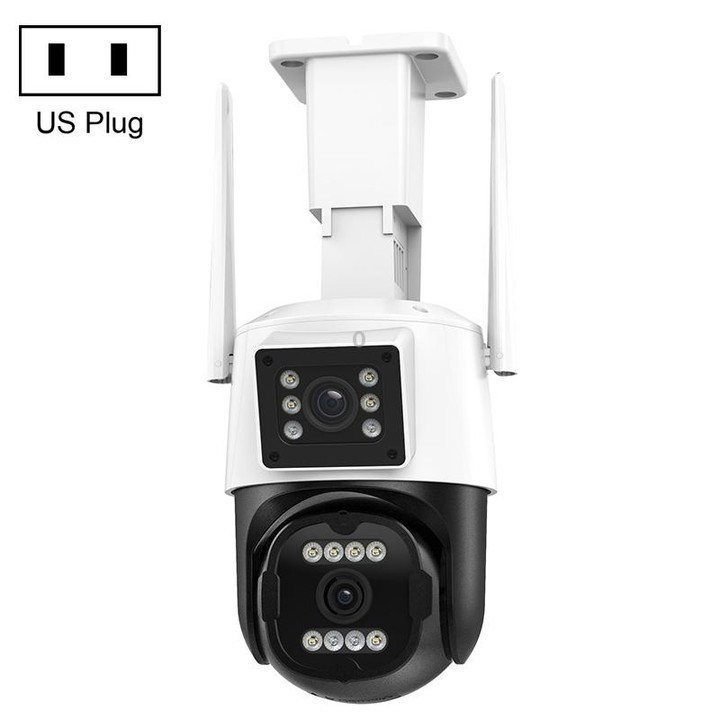

QX103 Humanoid Recognition AI Alarm WiFi Dome Dual IP Camera(US Plug)

Features

1. New generation photosensitive component combination SC300AI+SC300AI+XM650V200 main control

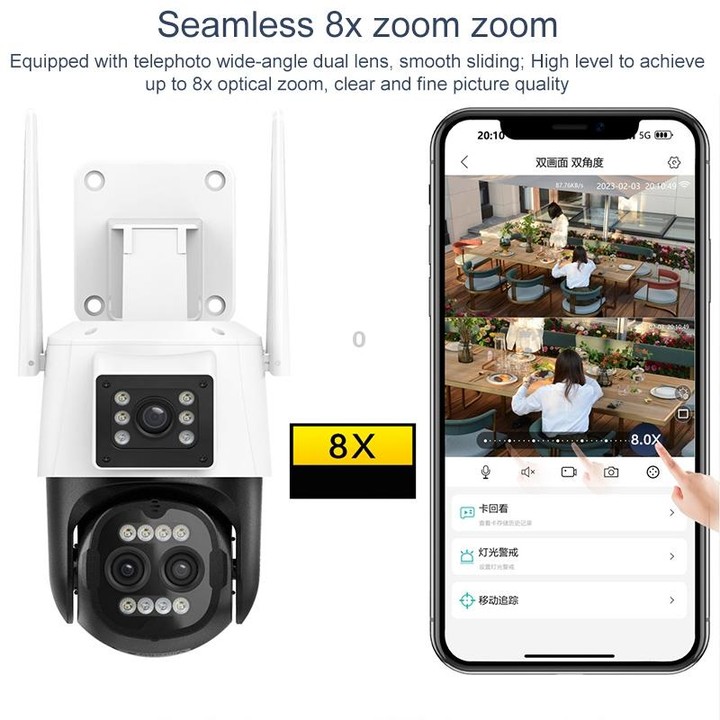

2. The bolt has a starlight level of 3.6MM, and the ball has an F1.4 starlight level of 6MM. One is stationary and the other is moving. They are coordinated and linked. One machine can support two machines.

3. Built-in lightning protection function, in line with national standard GB/T17626.5 and international standard IEC61000-4-5

4. The detachable bracket supports ceiling or wall mounting, and can also be rotated left and right to adjust the monitoring angle.

5. 3500K warm light mixed angle design, long-distance fill light, worry-free night vision

6. Dual-channel stream storage is lower and dual-channel video recording is more accurate.

7. Dual-screen horizontal screen, switching more freely and previewing more comprehensively

8. Support humanoid detection, tracking and capturing

9. Supports ONVIF protocol and can be connected to third-party backend/platform

10. Support mobile phone monitoring (iOS/Android)

11. Supports multiple cloud technologies to achieve network penetration, front-end and back-end docking, and push alarm information to mobile phones, etc.

Parameters

1. Main control: dual-core 32-bit DSP (XM650V200), pure hard compression, monitor

2. Sensor: 2 3 million 1/2.7 300AI high performance CMOS sensors

3. Minimum illumination:

Color: 0.01Lux @(F1.2,AGC ON),0 Lux with IR

Black and white: 0.001 Lux @(F1.2,AGC ON),0 Lux with IR

4. Video format: H.265AI

5. Resolution:

Main resolution: 2304 x 2592

Sub-resolution: 800 x 896

6. Support protocols: support NETIP protocol, support onvif protocol, support Bluetooth distribution network

7. Network interface: 10M/100M adaptive Ethernet port

8. Storage interface: local TF card (maximum support 256G)

9. Wireless standards: IEEE802.11b, 802.11g, 802.11n

10. Frequency range: 2.4 GHz-2.4835 GHz

11. Power consumption: 10W

12. Temperature: minus 10 degrees Celsius - 60 degrees Celsius, humidity less than 90% [no condensation]

13. Power supply: DC 12V+/-10%

14. Product size: 113 x 123 x 243mm

15. Product weight: 0.678kg

Specification:

General

Shape

Dome

Mount Types

Wall bracket, Ceiling Bracket

Power Depletion

15W

Power Supply

DC 12V

Output Voltage

DC 12V

Performance

Motion detection, Night Vision, Dual-stream, Alarm detection

Memory

TF Card

Network

Wireless

IEEE 802.11 a/b/g/n

System / Hardware

Image Sensor

CMOS

Sensor Size

1/2.7 inch Progressive Scan

Minimum Illumination

0.001Lux/F1.2(AGC ON), Night Vision: 0.01Lux/F1.2

Media Format

Video Compression Format

H.265

Frame Rate (FPS)

12fps Night

Physical Environment

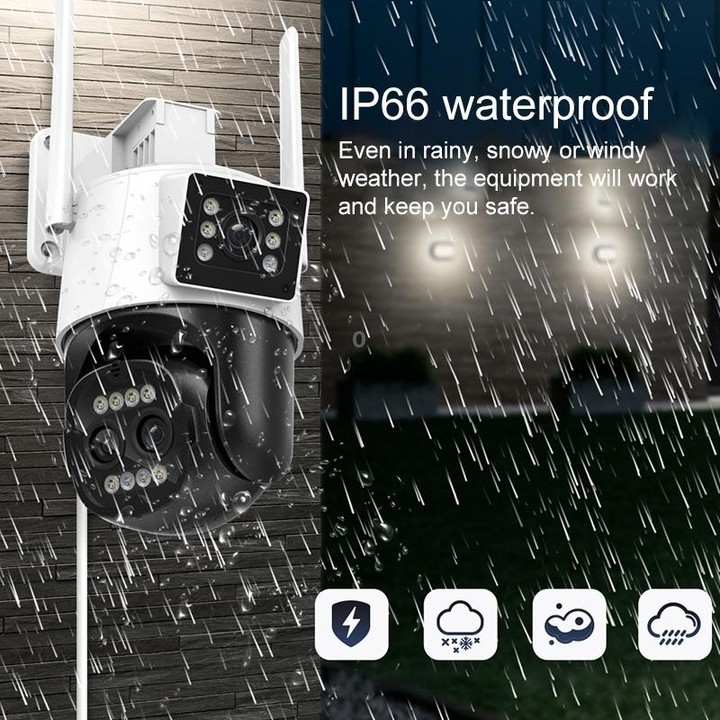

Ingress Protection

IP66

Operate Temperature

-10 to 60 Degree Celsius

Working Humidity

Less than 90 percent
