For DJI FPV Goggles V2 5.8G Analog Receiver Module Adapter Board Video Receiver

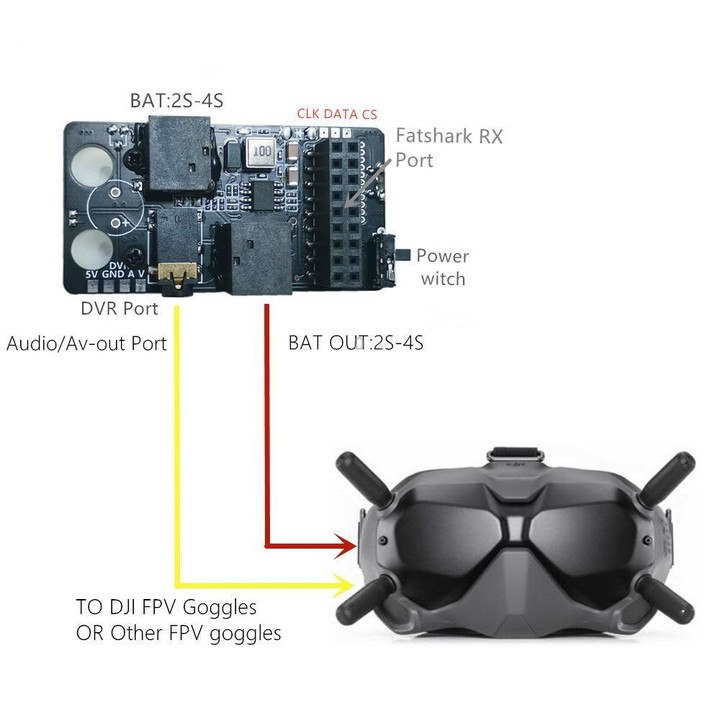

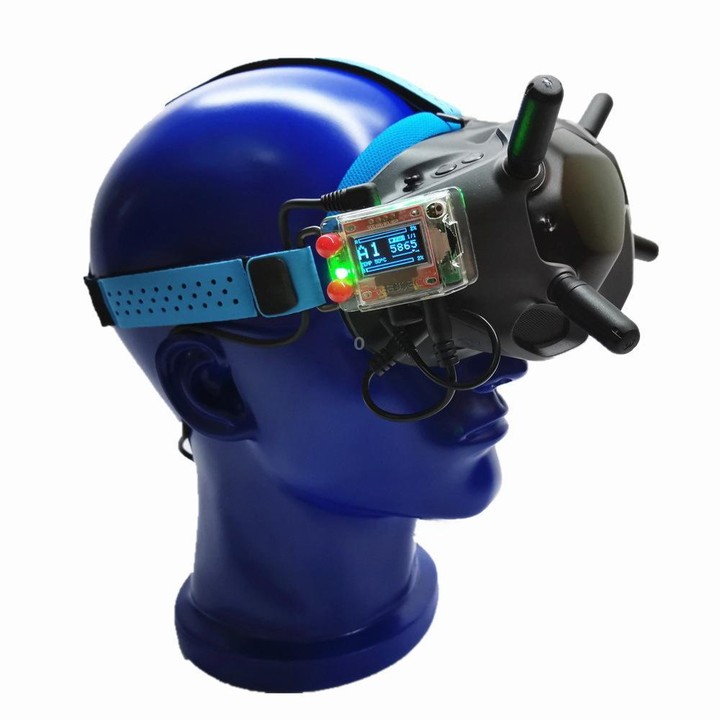

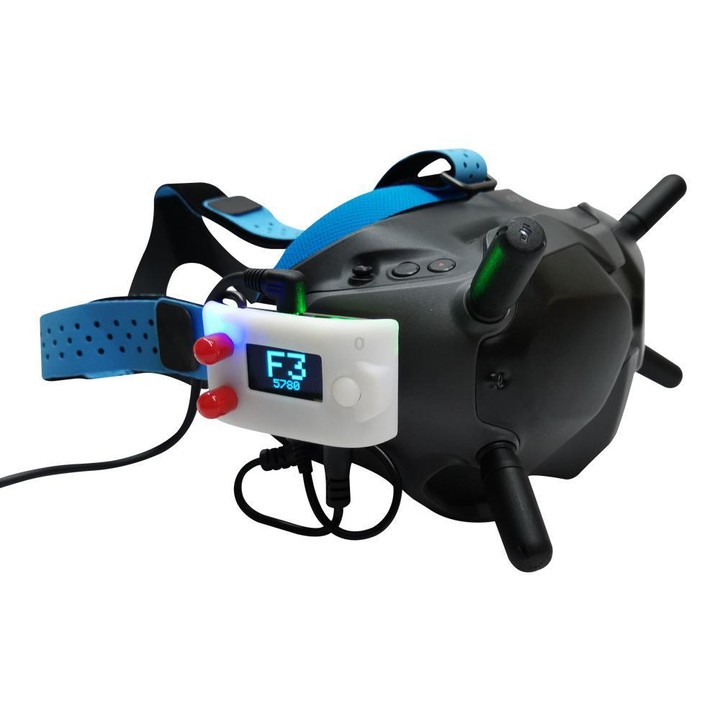

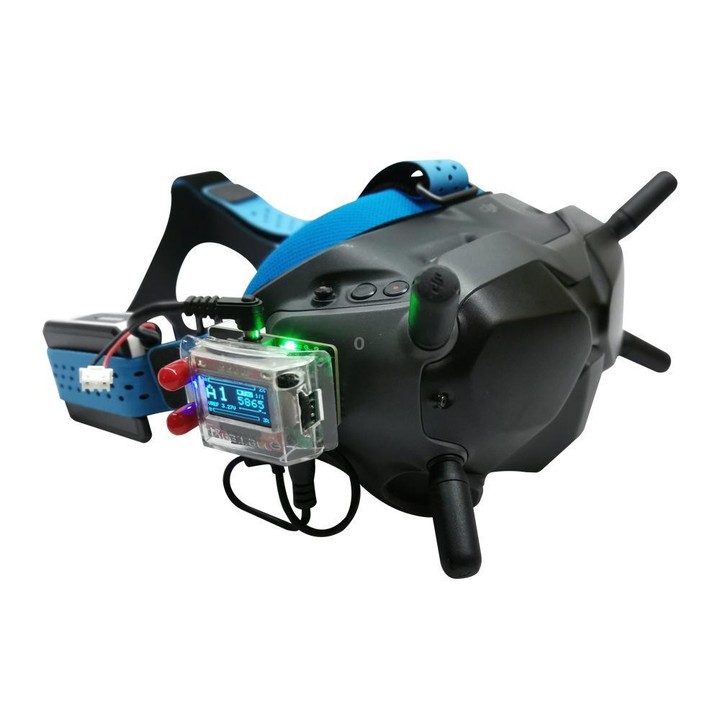

1. The 5.8G RX PORT 2.0 is designed to be fixed with the FPV goggles headband ring screw, and is completely non-destructively installed on the side of the DJI goggles, so that you can use Fat Shark or various third-party Fat Shark interface 5.8G receiver systems, Conveniently transfer video and audio signals to the high-quality screen of FPV flying glasses for viewing or recording

2. Dimensions: 48 x 28 x 12mm

3. Weight: 10g (excluding the adapter cable)

4. Power input: 2S-4S (DC5.5 x 2.1)

5. Internal voltage: 5V 3A (with pad for output)

6. Power output: 2S-4S (DC5.5 x 2.1)

7. Signal input: Standard Fat Shark receiver port

8. Including third-party receivers: Reaxacc Furious, etc.

9. Signal output: standard audio/video

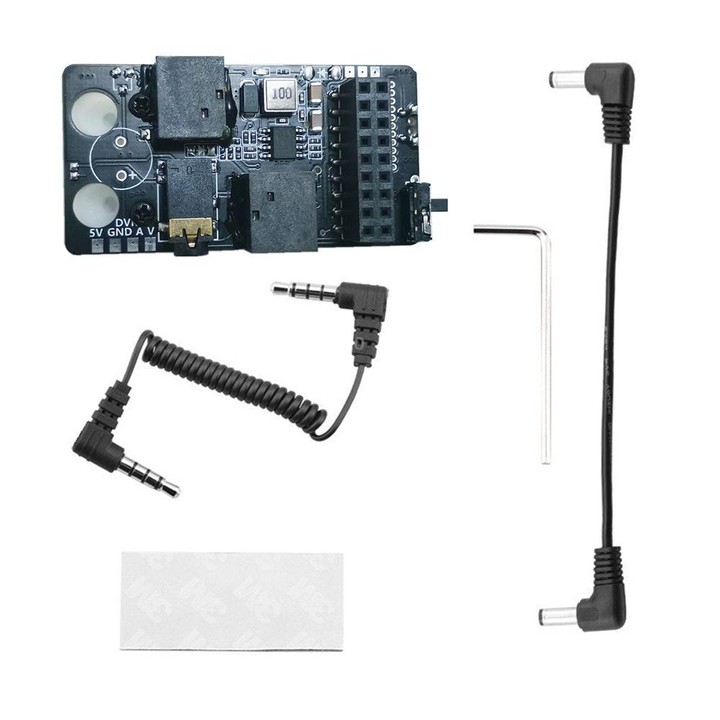

appendix:

Adapter mounting block and screw x 1

Audio and video cable x 1

Power cable x 1

Specification:
