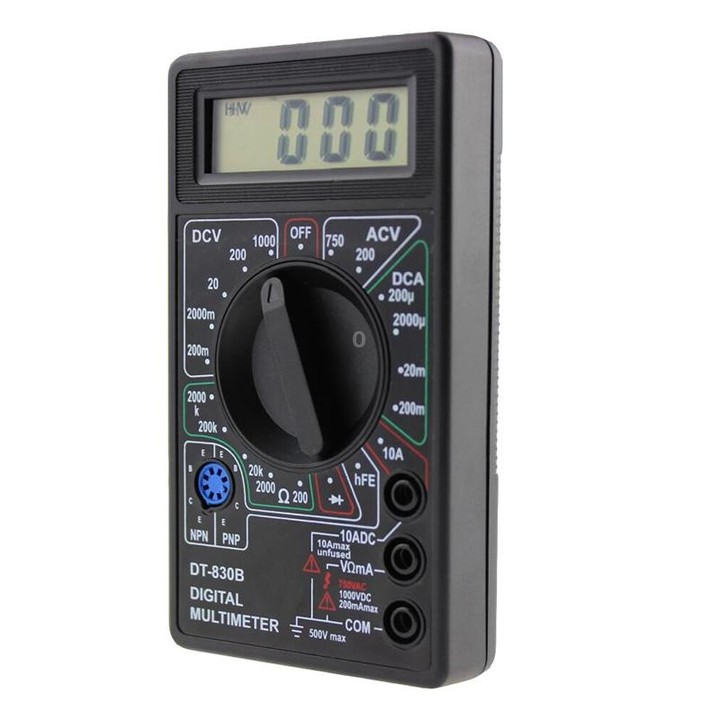

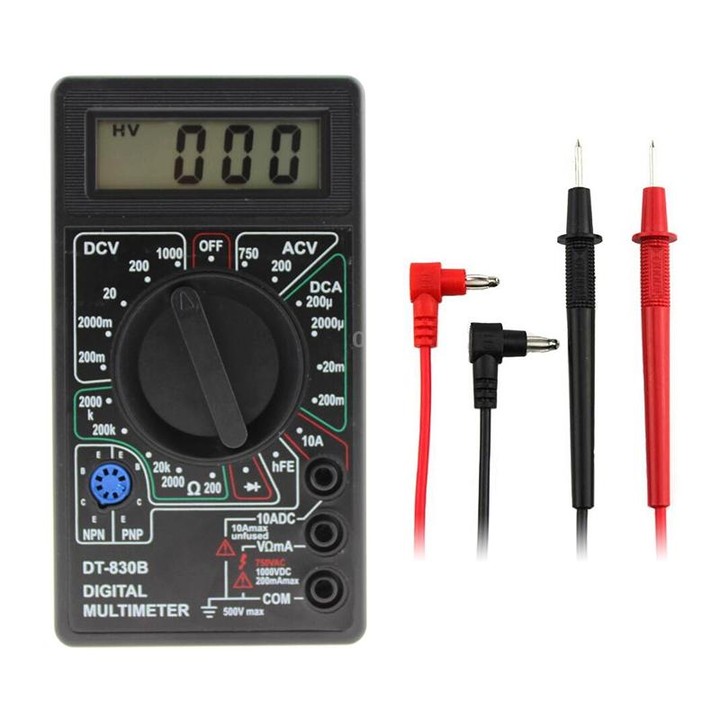

DT-830B Handheld Digital Multimeter Ammeter Voltmeter Digital Display Universal Tester Meter(Black)

Display Type:Digital Display

DC Voltage:200m-2000m-20-200-1000V

Model: DT-830B

Measuring range:

1.Max AC Current: 10A

2.Max AC Voltage range: 1000V

3.Max DC Voltage range: 750V

4.Resistance Measurement: 200 Ohm-2000K Ohm range

5.Temperature Test: -40-1000 ℃

6.Power Supply: 9V Battery (Not Included Here)

7.Color: Black /Yellow

8.Size: Approx. 123 x 67 x 20mm/4.84 x 2.63 x 0.78 (L*W*H)

Scale degree & Accuracy:

1..DC voltage: 200mV 100uv±(0.5% + 2)

2000mv 1mv

20v 10mv

200v 100mv

1000v 1v±(0.8% + 2)

2.AC voltage: 200V 100mv±(1.2% + 10)

750v 1v

DC current: 2000ua 1ua±(1% + 2)

20ma 10ua

200ma 100ua±(1.2% + 2)

10a 10ma±(2% + 2)

3.Resistance: 200Ω0.1Ω±(0.8% + 2)

2000Ω1

20kΩ10

200kΩ100

2000kΩ1000Ω±(1% + 2)

4.Temperature: -40-1000℃ 1℃±3%

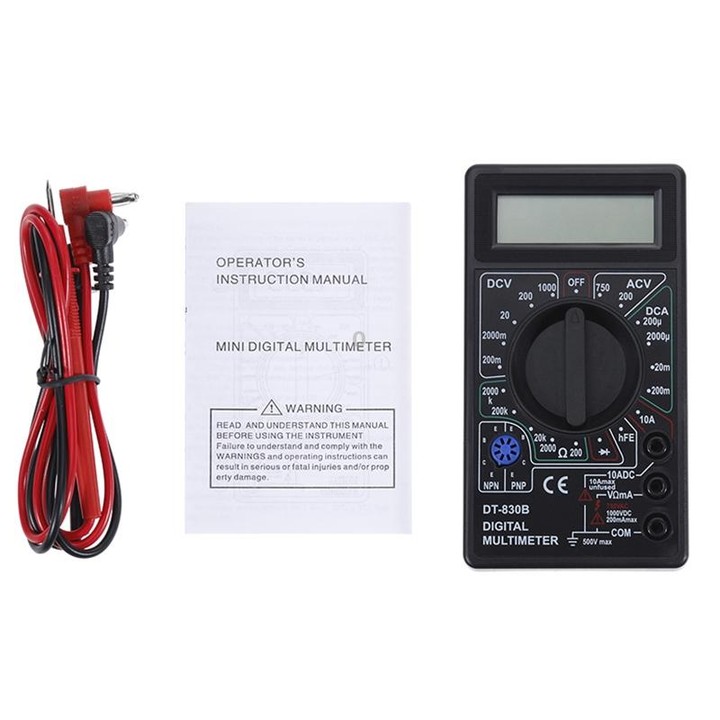

Package Included

1xDigital Multimeter (without battery)

2x Line

1xManual
