IPC-5200CPlus Network Engineering Treasure Simulated Coaxial SDI Integrated Video Surveillance Tester, Plug:AU Plug

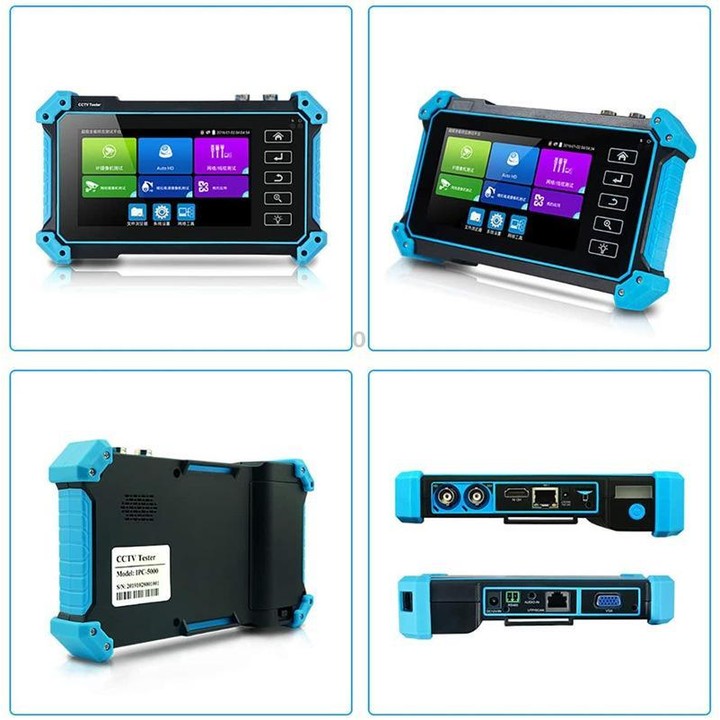

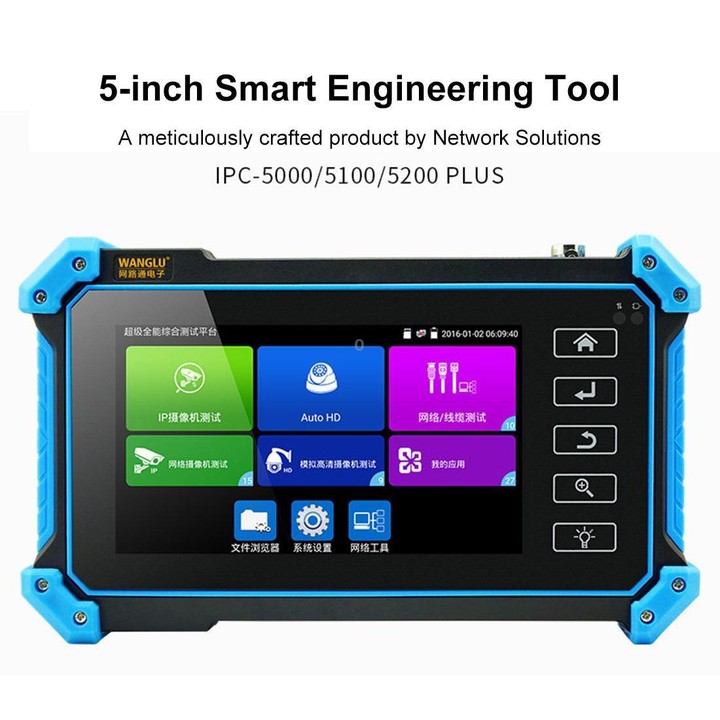

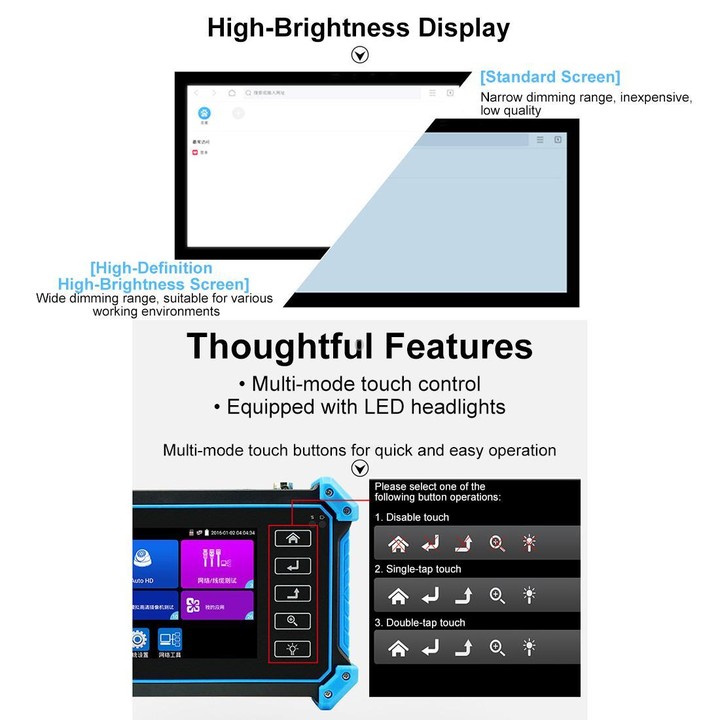

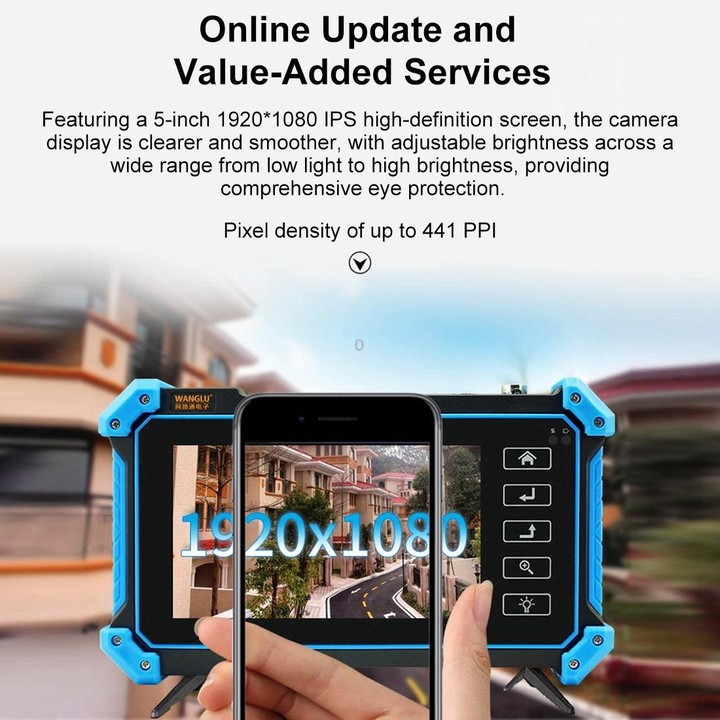

1. Display: 5-inch IPS HD capacitive touchscreen

2. Resolution: 1920x1080

3. Network Port: 10/100/1000M adaptive

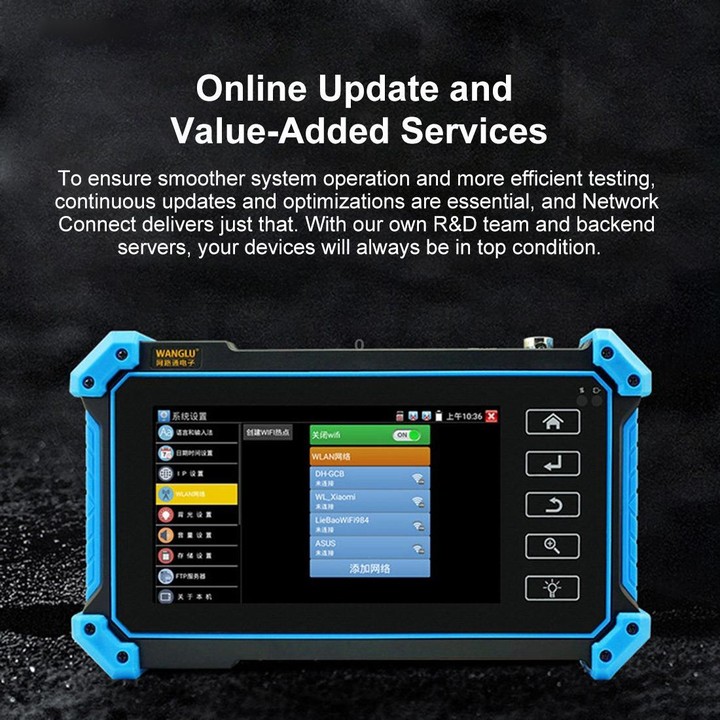

4. WiFi: Built-in wireless WiFi, 150M speed

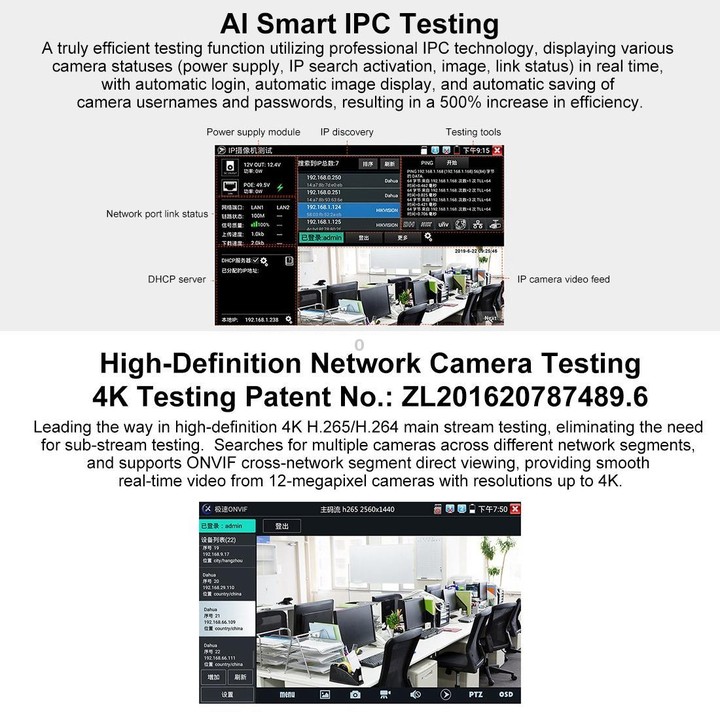

5. IP Discovery: Finds camera IP address across the entire network segment

6. High-Speed: Automatic login and image playback, supports modifying IP address, channel name, and generating test reports, etc.

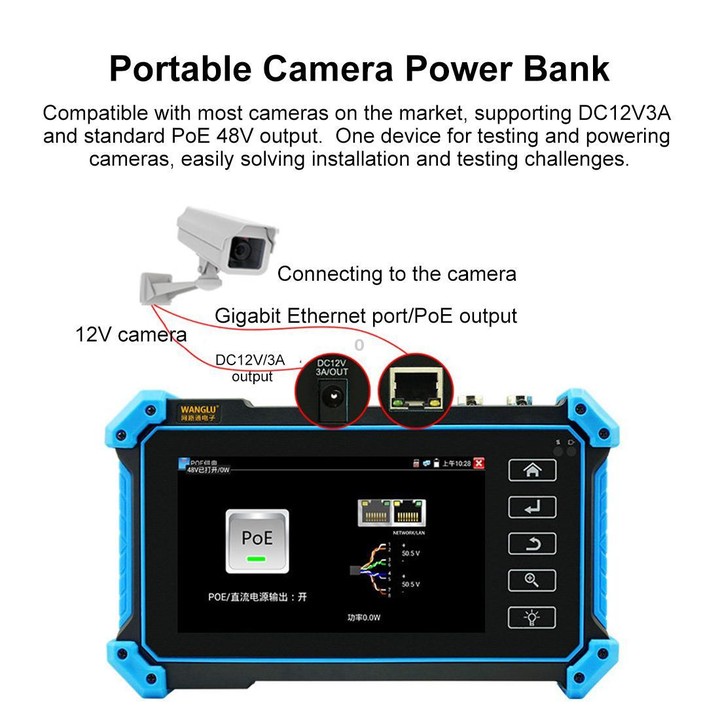

7. External Power Supply: DC12V

8. Battery Power: 3350mAh capacity

9. Charging Time: 3-4 hours

10. Operation Settings: Capacitive touchscreen, Chinese and English OSD menus selectable

11. Operating Temperature: -10?°C to 50?°C

12. Operating Humidity: 30%-90%

13. H.265/H.265+, 4K main stream testing, 1200W network camera testing

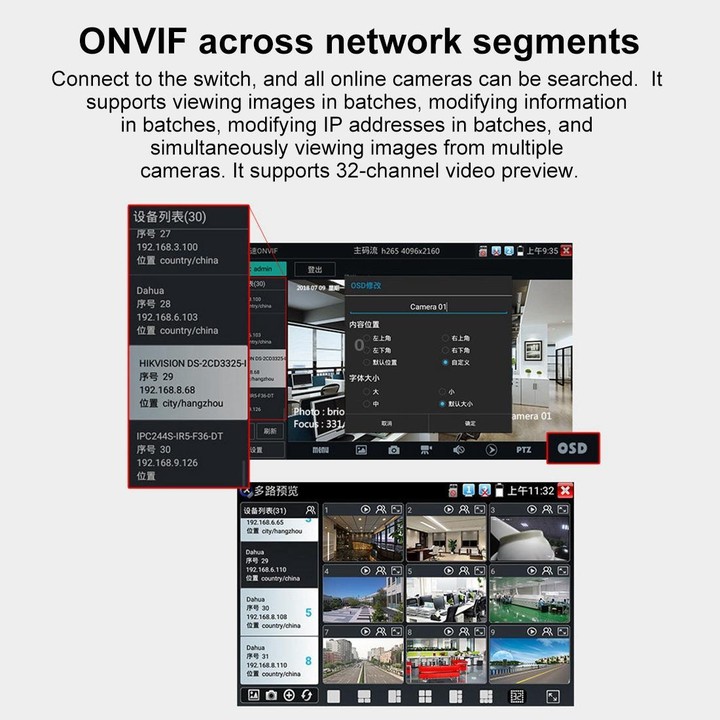

14. High-speed ONVIF, generating test reports, customizing channel names

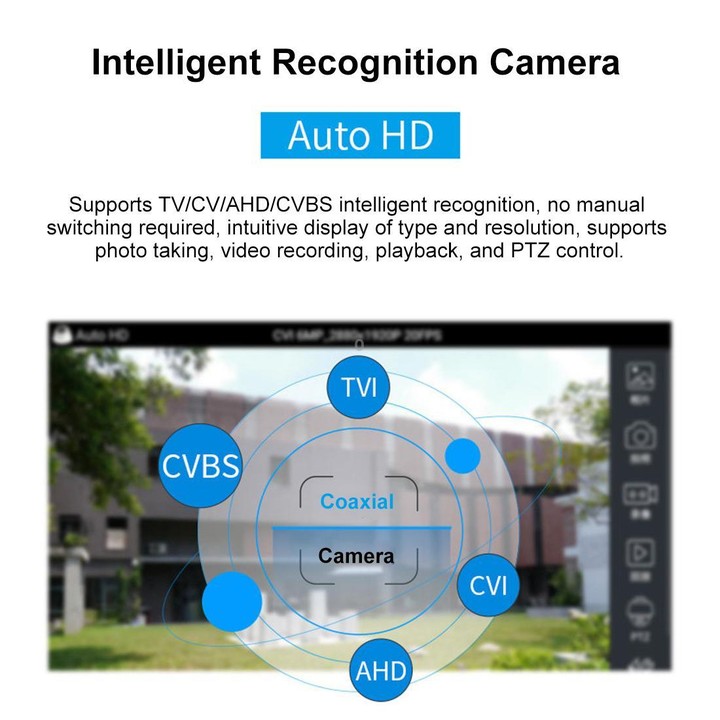

15. AutoHD automatically detects and displays the type and resolution of the connected HD camera.

16. Upgraded coaxial HD 4.0, TVI/CVI/AHD 8MP testing.

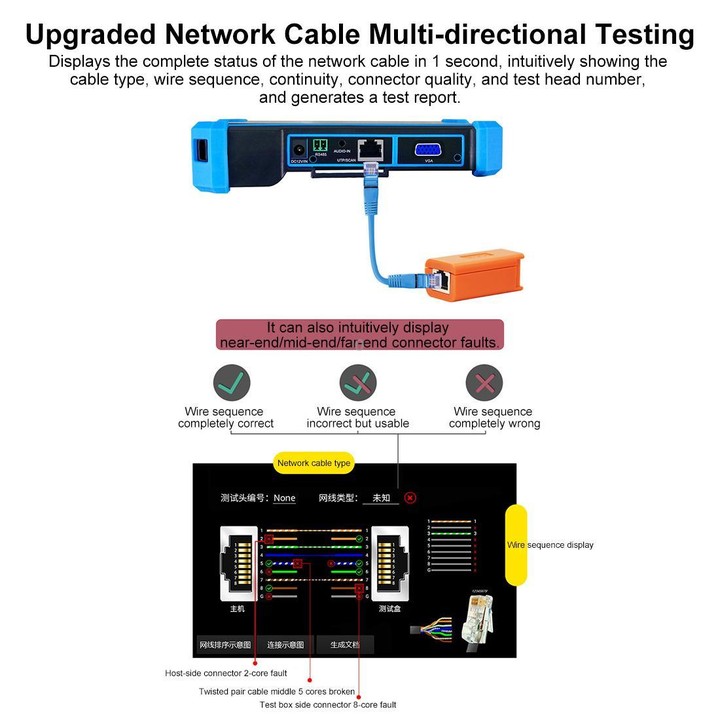

17. Supports network cable sequence detection, far/mid/near end error detection.

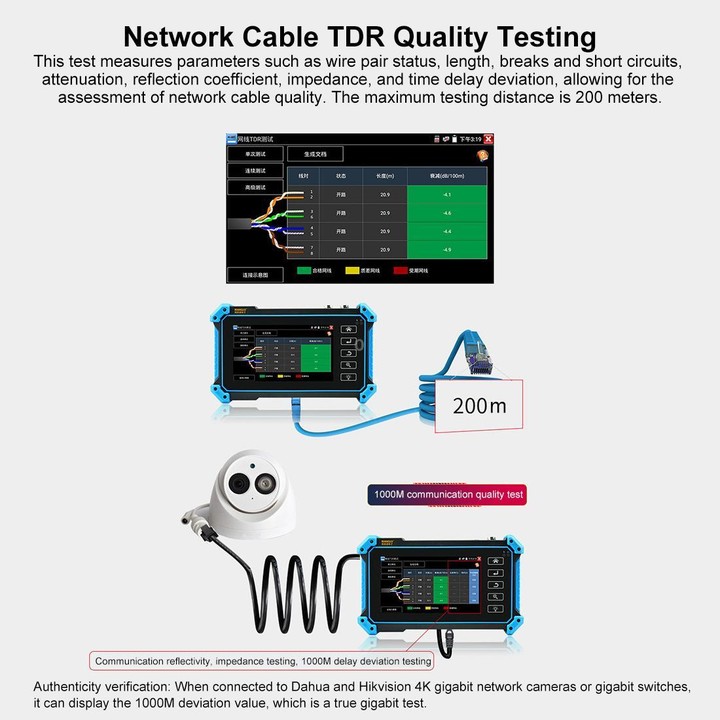

18. Supports network cable TDR testing, network cable open/short circuit testing, and quality testing.

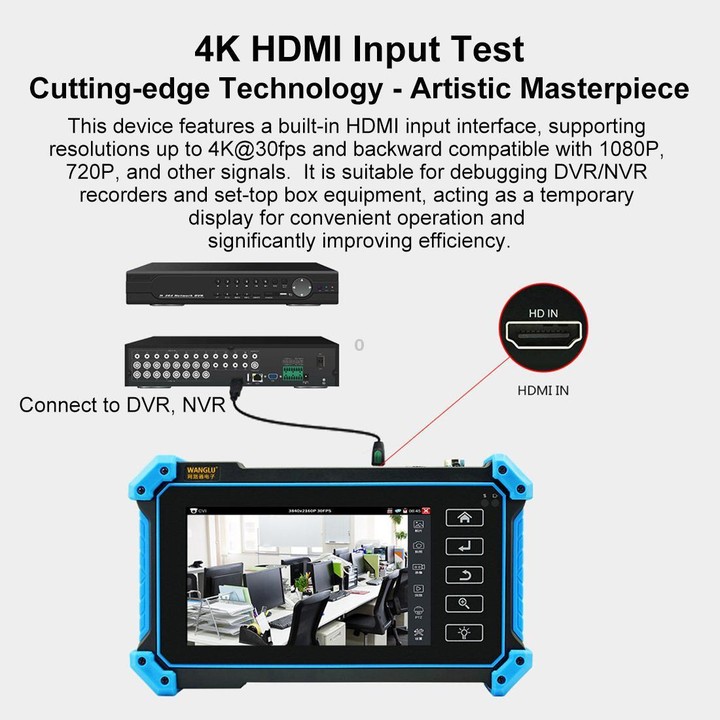

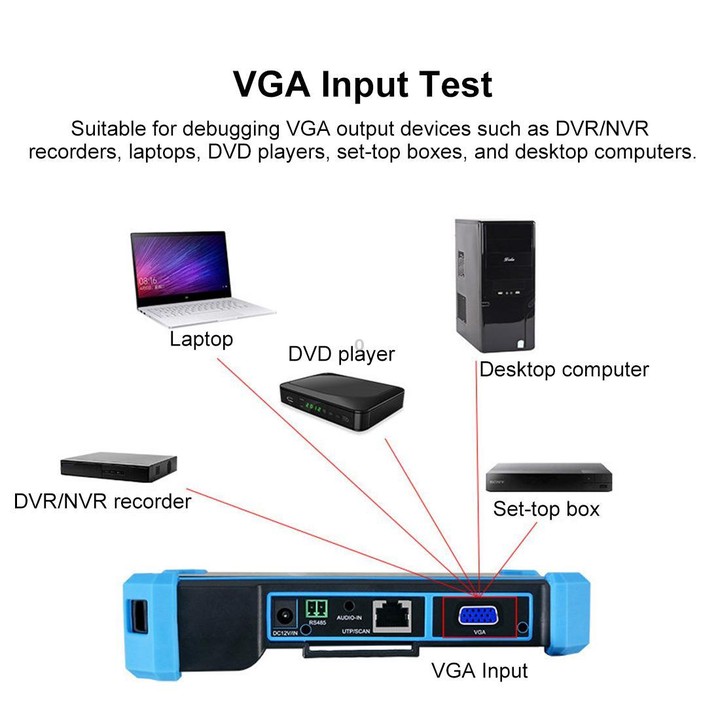

19. 4K/30fps HDMI input, 2K/60fps VGA input.

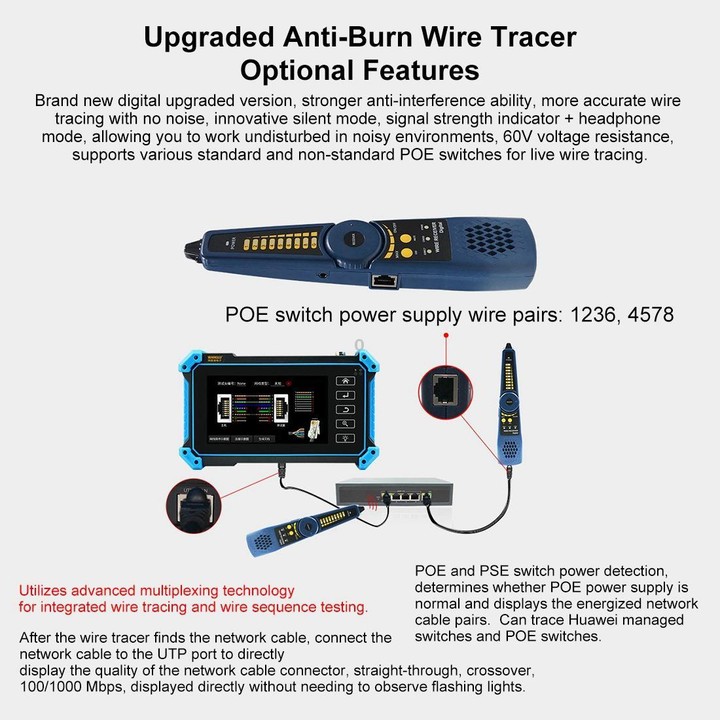

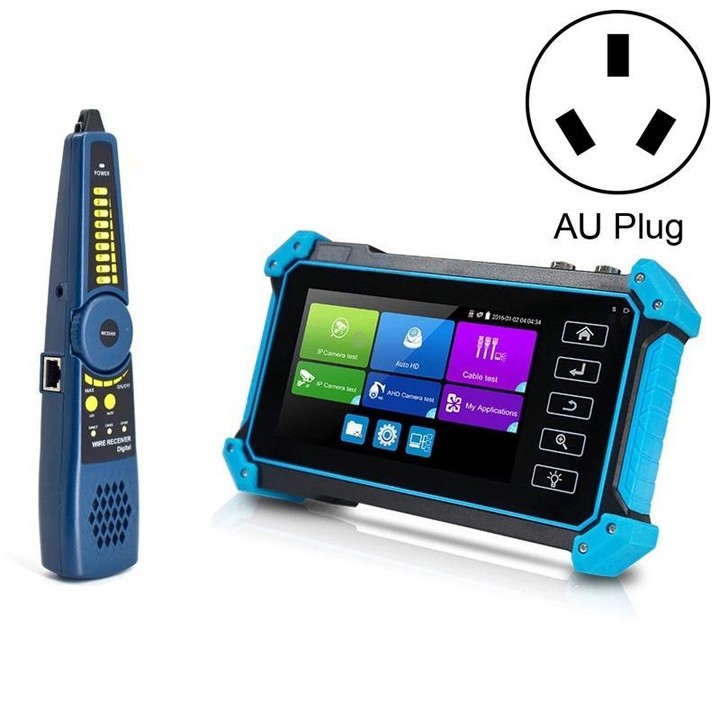

20. Enhanced digital cable finder, simultaneous testing of cable finding and sequencing.

21. Display supports Chinese and English languages.

Specification:
