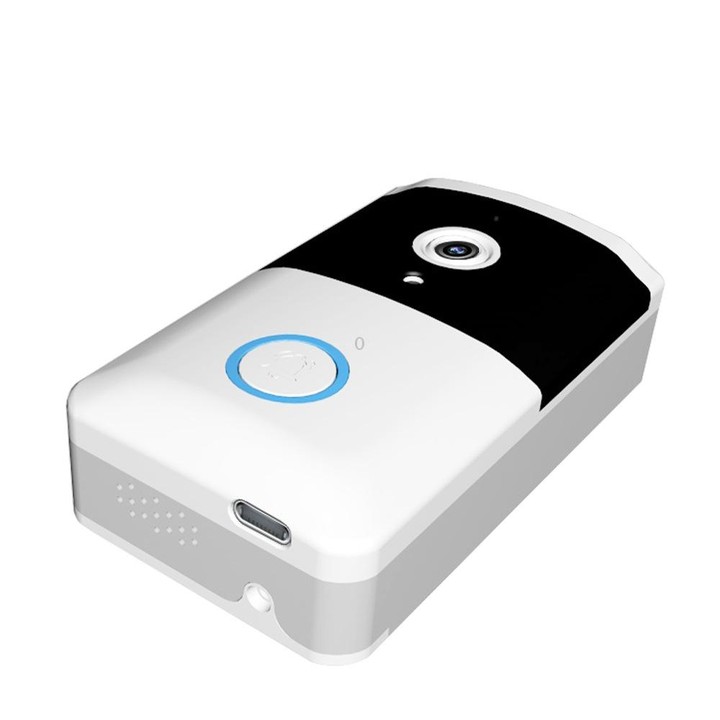

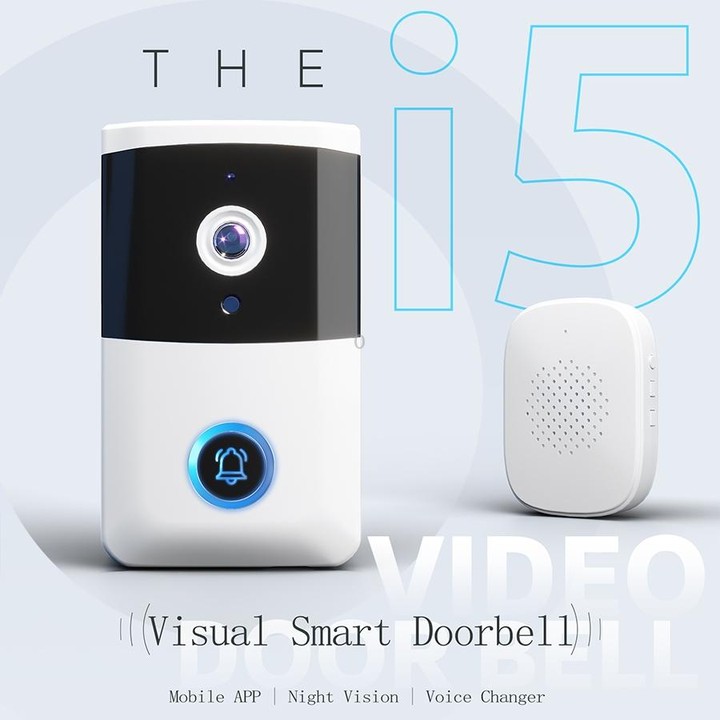

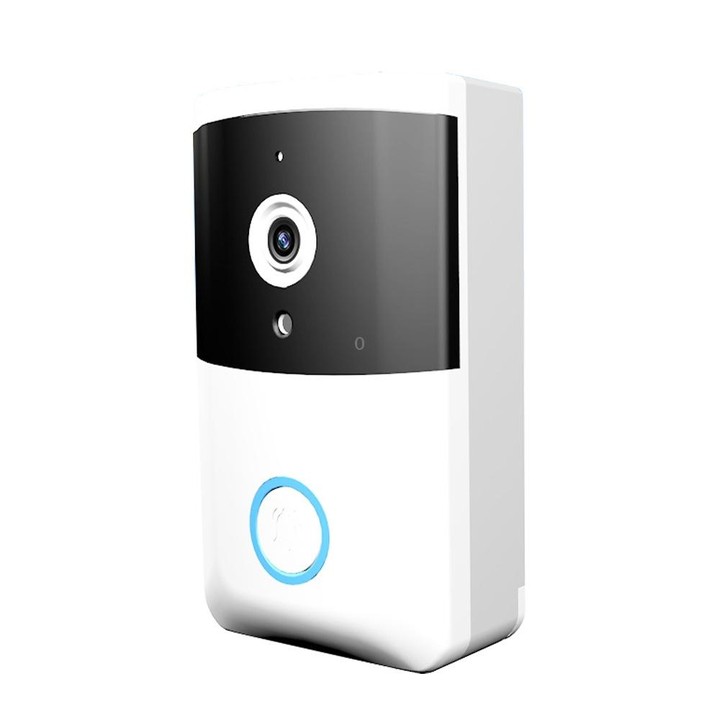

DoorBell i5 Smart Doorbell HD Wireless Bluetooth WiFi Security Camera Visual Doorbells Anti-theft Support Bidirectional Voice In

Features

1. Visual doorbell, infrared night vision

2. One-way wake-up, support real-time viewing on Dingdong mobile APP

3. Standard Dingdong music doorbell

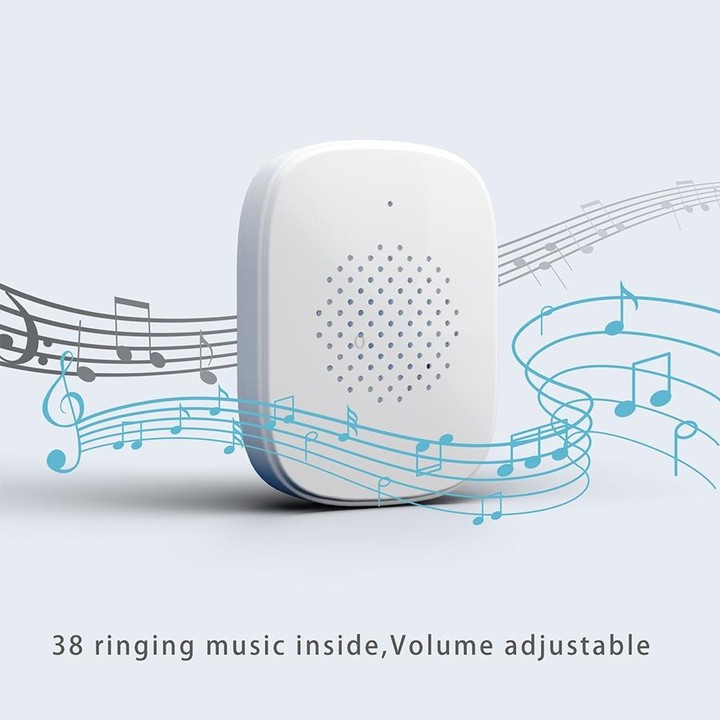

4. Multiple music, adjustable volume

5. 300,000 pixels, 480P, 100-degree viewing angle

6. Video intercom, video call

7. Support multi-device connection

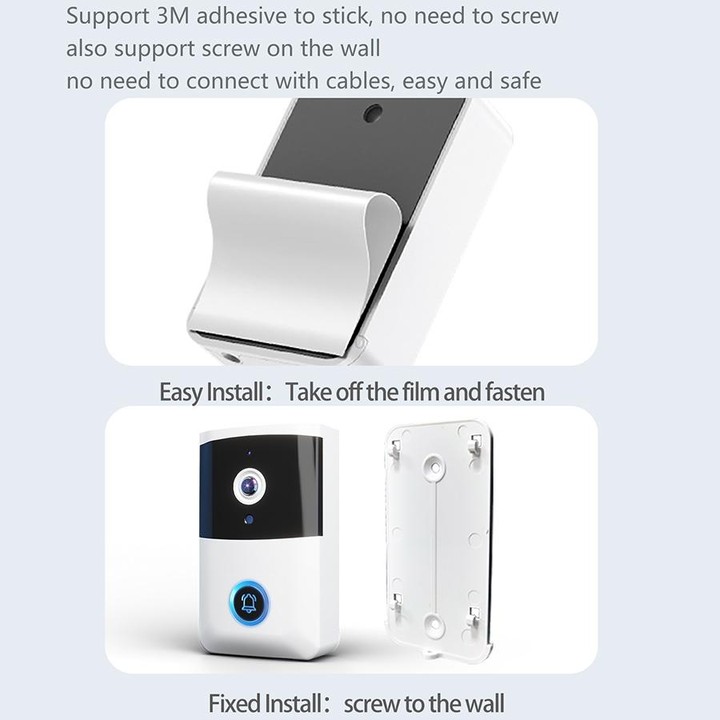

8. No wiring required, simple installation

9. 800mAh lithium battery

10. Type-C charging port

System:

1. Product category: VGA smart doorbell

2. Product model: DoorBell_i5

3. Main control: Broadcom BK7252

4. Number of online users: Support sharing with up to 9 people, and 1 person watching online at the same time

Collection:

1. Sensor: VGA CMOS Image Sensor GC0309

2. Viewing angle: 65 degrees

3. Night vision function: 850nm infrared fill light, effective distance 3m (laboratory environment)

Video:

1. Video encoding standard: MJEPG

2. Imaging color: color

3. Video frame rate: VGA 20fps

4. Video transmission: AES encryption

Audio:

1. Input: high-sensitivity microphone

2. Output: built-in speaker

3. Intercom: two-way voice intercom, built-in echo cancellation

4. Voice changing intercom: support

5. Audio encoding standard/bit rate: G711.A/64Kbps

Network:

1. Network protocols: TCP/IP, HTTP, TCP, UDP, DHCP, DNS, P2P, etc.

2. Wireless network: WiFi 802.11b/g/n wireless network

3. WiFi: 2.4G frequency band

Others:

1. APP: X SmartHome

2. Network configuration: Bluetooth network configuration

3. MicroSD card holder: not supported

4. Buttons: 2: doorbell button, reset button

5. Indicator lights: 2: charging indicator lights, button indicator lights

6. Dingdong code: private code

7. Power supply: 800mAh lithium battery

8. Charging power supply: DC 5V1A

9. Type-C interface

10. Call push notification: supported (about 5s)

11. Power saving mode sleep: 30s

12. Battery charge detection: Support, 3.4V-4.2V

13. Firmware upgrade: Remote OTA

14. Infrared light control: Automatic, adjustable sensitivity level

15. Working temperature: -20???45 degrees Celsius

16. Working humidity: Less than or equal to 95%

17. Standby time: About 1 year

18. Video connection method: Passive viewing: Picture, ring trigger

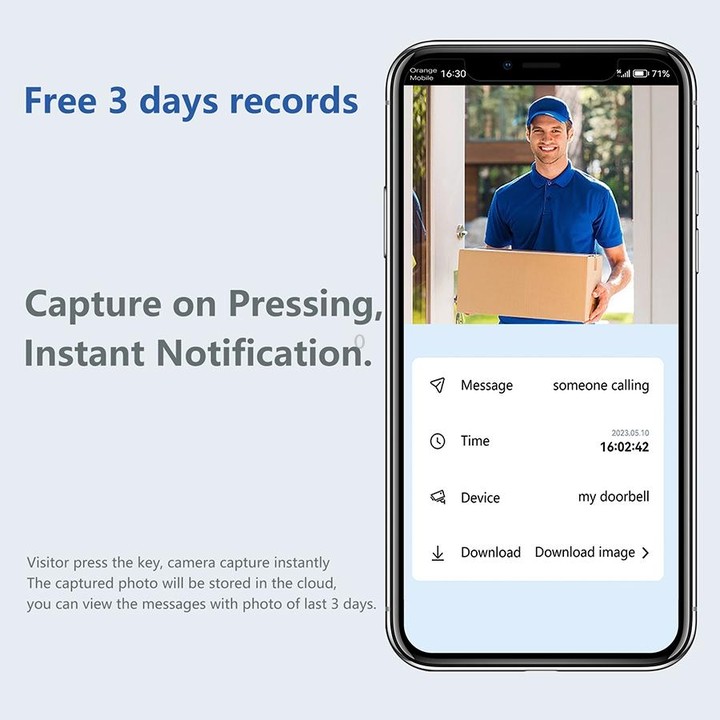

19. Storage: Cloud storage: Default three-day rolling storage

20. Doorbell machine size: 85 x50 x 26mm

21. Dingdong machine size: 60 x 44 x 26mm

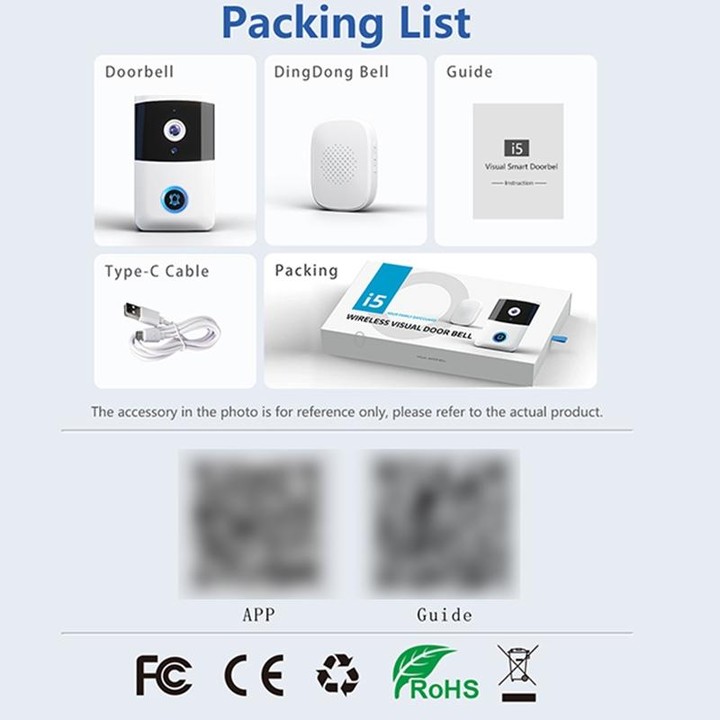

Package List

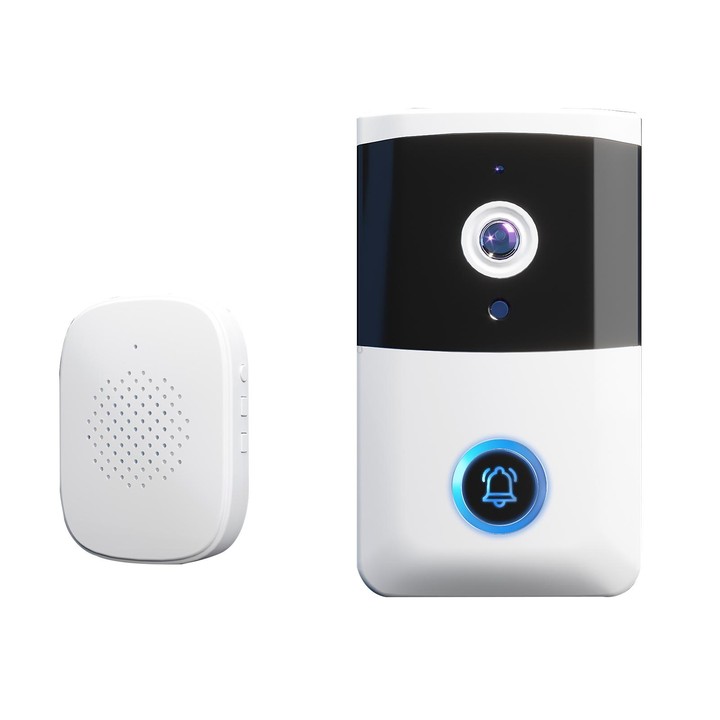

1. WiFi doorbell x 1

2. USB plug Ding Dong x 1

3. Type-C charging cable x 1

4. Installation sticker x 1

5. English manual x 1

Specification:

General

Certificate

CE

, ROHS

, FCC
