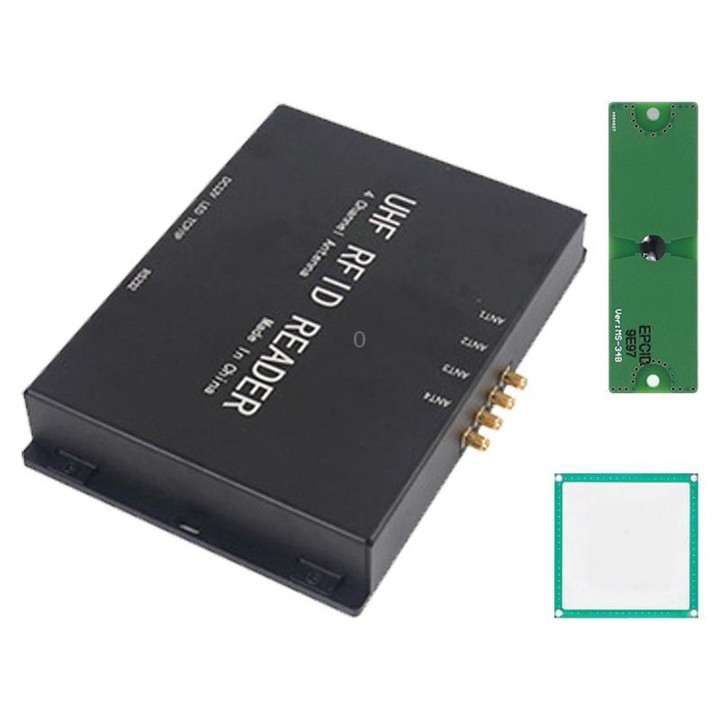

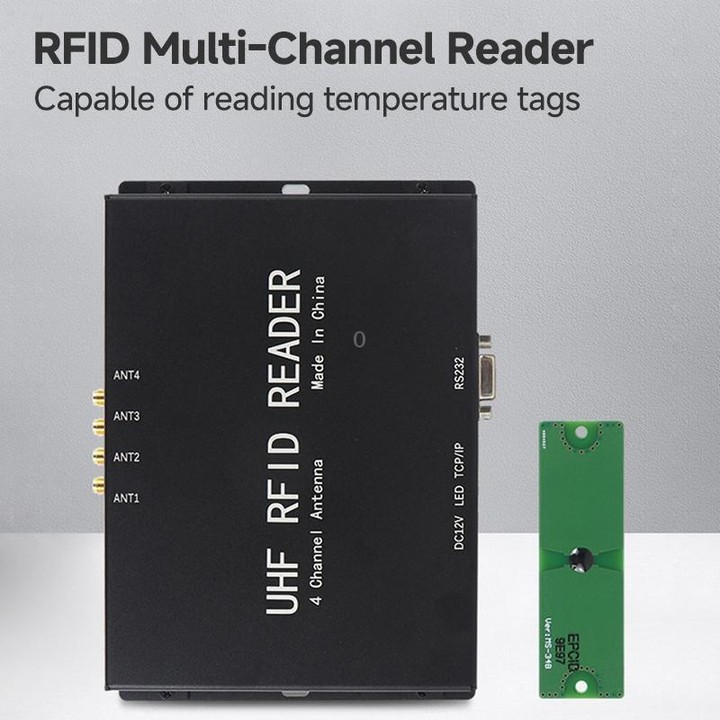

4-Channel UHF RFID Reader Writer with Antenna, MODBUS Passive Temperature Sensor Reader for Electric Power Monitoring (Black)

Features

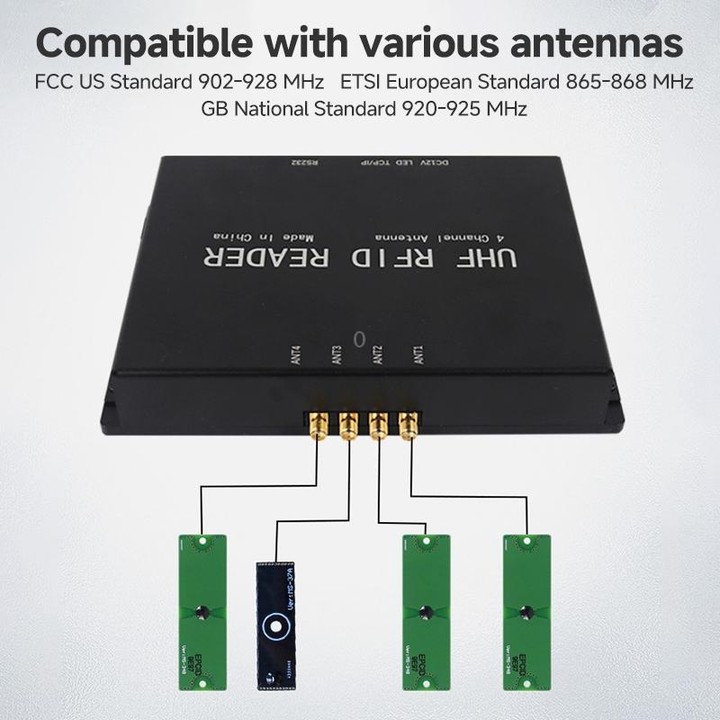

1. 4-Channel UHF RFID Temperature Reader: Simultaneously monitor up to 4 antennas for efficient, wide-area coverage.

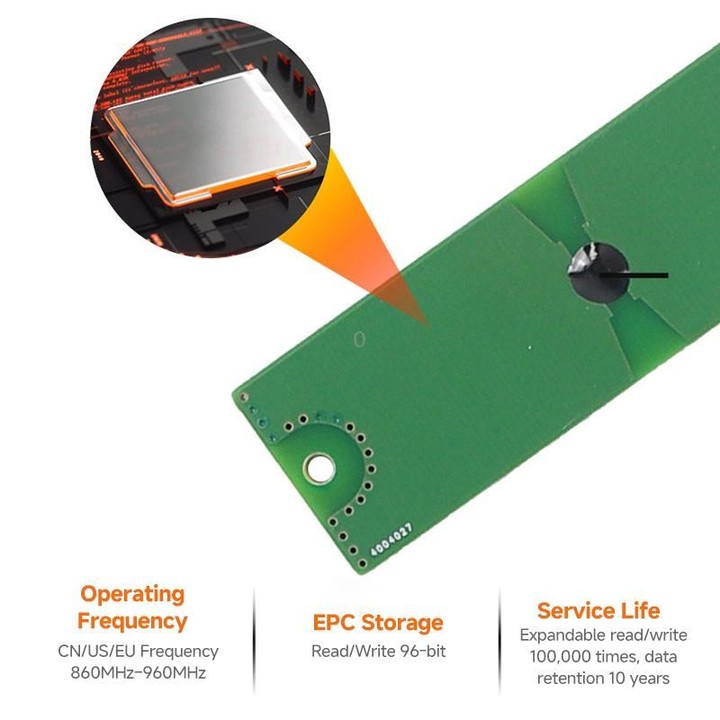

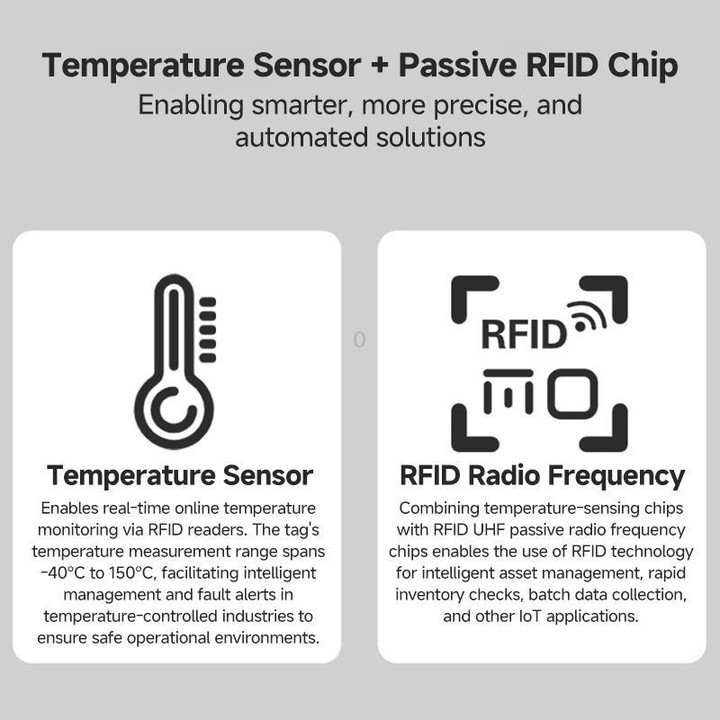

2. Passive Sensor Technology: Reads temperature data from UHF RFID tags without internal batteries, reducing maintenance.

3. MODBUS RTU Protocol: Ensures seamless and reliable integration into industrial automation and power monitoring systems.

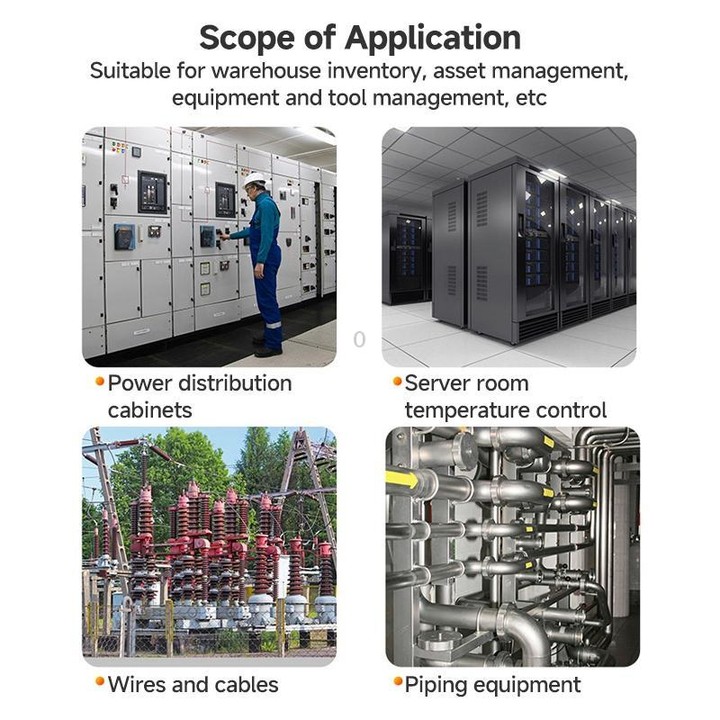

4. Real-Time Temperature Monitoring: Ideal for critical applications in electric power equipment, data centers, and cold chain logistics.

5. Long-Range Reading: UHF technology provides a reliable read range for remote or hard-to-access assets.

Specification

1. Chip: Impinj E710

2. Working voltage: 12V-24V

3. Working frequency: 860-960MHz

4. Working agreement: IOS18000-6C

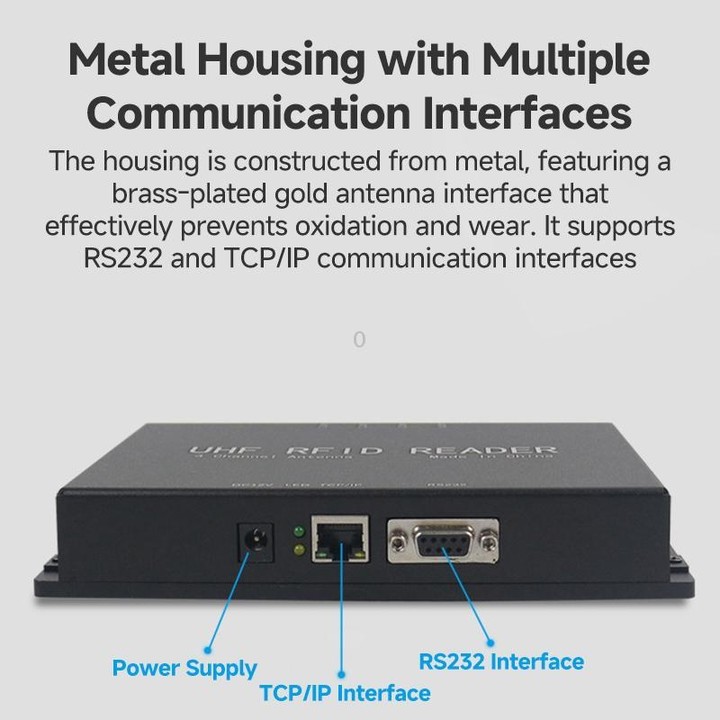

5. Communication interface: RS232, TCP/IP

6. Card reading power: 1~33dBm adjustable

7. Card reading distance: 0-20 meters depending on antenna/tag

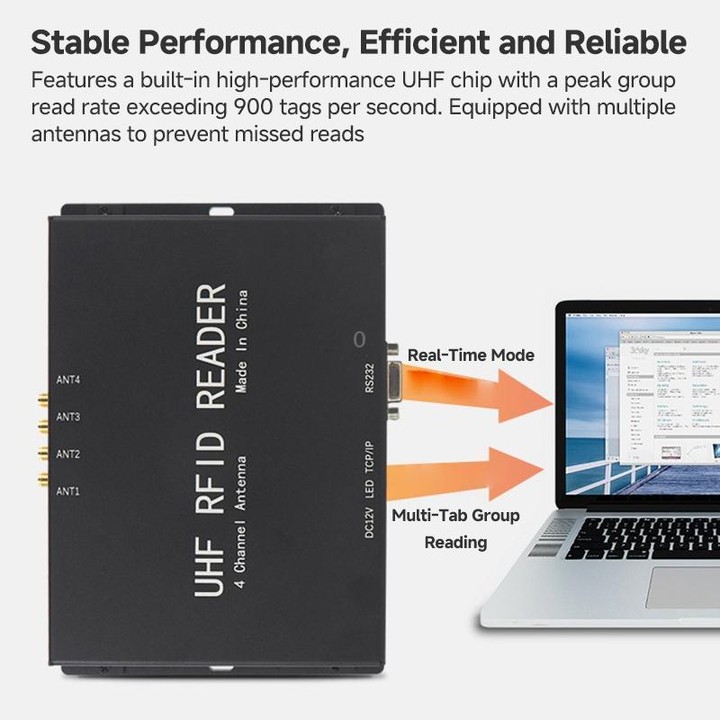

8. Tag group reading: Greater than 900 images/second (top point)

9. Working temperature: -20 degree C~+65 degree C

10. Product size: 185x130x30mm
