ZAS-5G01 1080P Home 5G WiFi Dual-band Panoramic Camera with 64GB TF Card, Support IR Night Vision & AP Hot Spot & Designated Ala

Features:

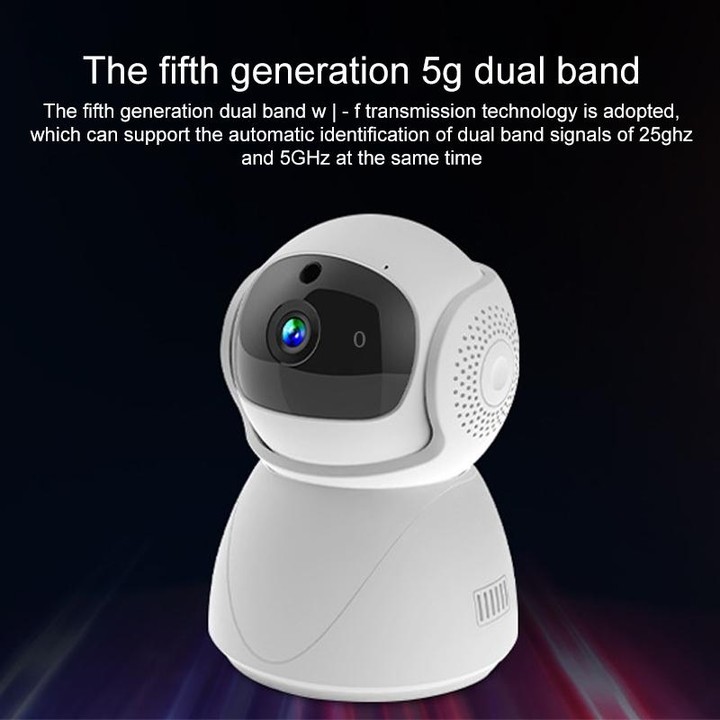

1. Support 2.4GHz and 5GHz dual-frequency signal; 5G WiFi model has faster transmission speed, wider coverage and smoother surveillance video

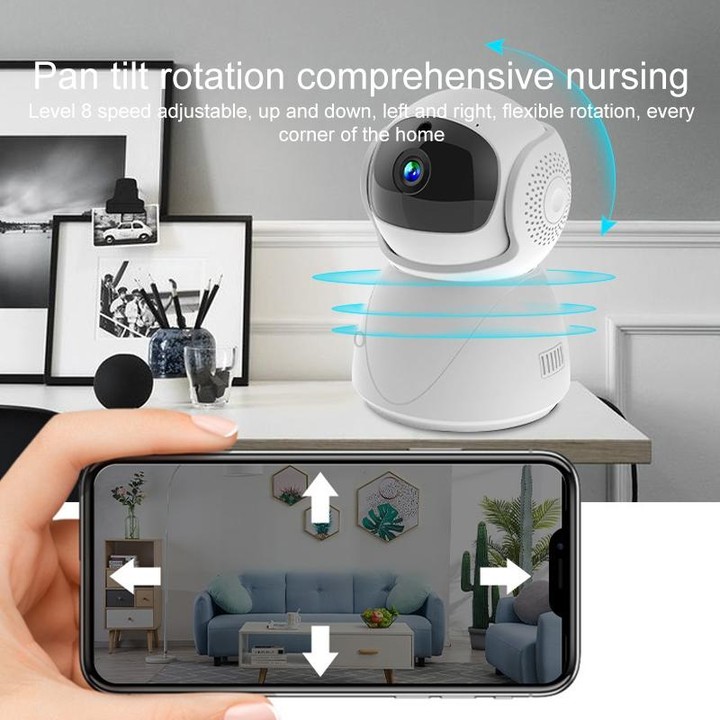

2. The pan/tilt rotates at a horizontal angle of 355 degrees, a vertical angle of 90 degrees, 8 levels of rotation speed can be adjusted

3. Built-in 6 850nm infrared lamp beads, the night monitoring is still clear

4. The alarm range can be delineated on the mobile phone monitoring screen to arm the privacy area

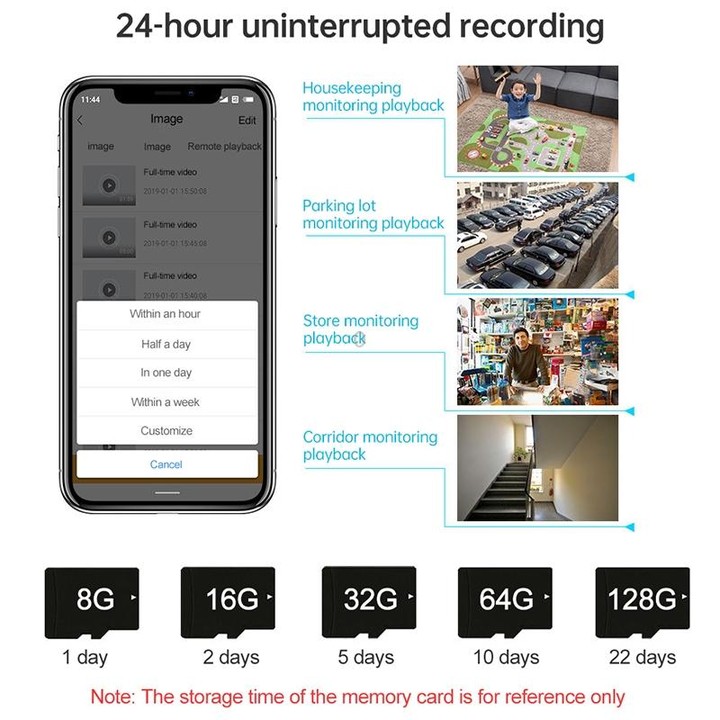

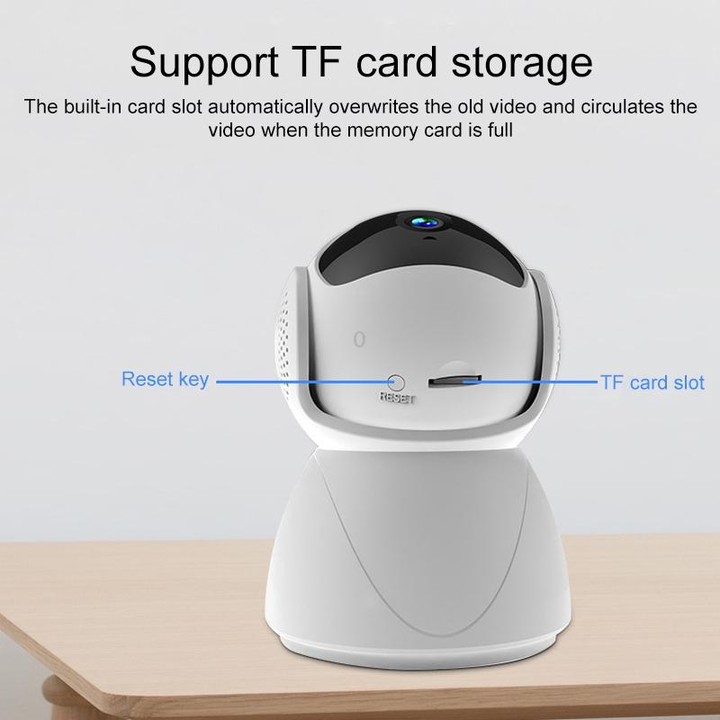

5. Support TF card loop recording and cloud storage; the entire data is encrypted and uploaded to the cloud, and the recording can be retrieved even if the camera is damaged, which is more secure

6. With its own hotspot, the mobile phone can be monitored without internet within 10m

7. Built-in large-capacity battery, can monitor power off

8. Support multiple installation methods of hoisting/wall-mounting/flat

Product specifications:

1. APP name: Yunant Internet of Things (Chinese and English can be switched in the APP)

2. Network protocol: RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP and other network protocols

3. Resolution: 3MP ultra-clear; video output: 1280x720 (1920x1080 displayed on the APP side)

4. Image sensor: 1/3 low illumination CMOS

5. WiFi protocol: 2.4G/5G 802.11 b/g/n

6. Voice intercom: support (built-in microphone)

7. Detection method: humanoid detection + motion tracking

8. Recording method: timing recording, time recording, alarm recording

9. Alarm mode: APP push, machine horn alarm

10. Support operating system: Android/IOS/Windows

11. Processor: AK3918EV200; sensor: 1 million GC1054

12. Illumination: Black and white 0.001 Lux at F1.2

13. Lens: 3.6mm

14. Video format: PAL/NTSC; video processing: H.264 video encoding

15. Audio: input: built-in microphone G.711A; output: built-in 1 8 ohm 1W speaker

16. Visible distance during the day: 0-50m; infrared distance: 5-10m

17. Size: 8.5x11.5cm

18. Power supply: DC 5V/1A Micro USB interface

19. Power consumption: less than 2W (excluding infrared light, pan-tilt and speaker)

20. Temperature: -10-55 degrees Celsius

Packing list:

Camera x 1

Data cable x 1

Adapter x 1

Manual x 1

Bracket x 1

Screw pack x 1

64GB TF card x 1

Specification:

General

Model

ZAS-5G01

Mount Types

Wall bracket, Desk bracket, Ceiling Bracket

Power Supply

DC 5V 1.0A

Performance

Motion detection, Night Vision, Loop recording, Alarm Function

Memory

64GB

Function

PTZ, Cloud storage

Power Plug

US, EU, UK Plug Optional

Network

Wireless

2.4GHz

Protocol

DDNS, NTP, UPNP, DHCP, PPPOE, RTSP

System / Hardware

Mobile Access

Android, iPhone OS

Signal System

PAL, NTSC

Sensor

1 million GC1054

Image Sensor

CMOS

Effective Pixel

1280(H)×720(V)

Pixels

3.0MP

Processor

AK3918EV200

Lens

3.6mm

Pan/Tilt-Horizontal Angle

355 degrees

Pan/Tilt-Vertical Angle

90 degree

Media Format

Video Compression Format

H.264

Night Vision

Infrared Distance

5~10m

Configuration

6 infrared LEDs

Physical Environment

Operate Temperature

-10 to 55 Degree Celsius

Working Humidity

10 to 80 percent

Dimensions

Size

8.5x11.5cm

Package Include

Package Contents

1 x Camera

1 x USB Cable

1 x Power Adapter (US, UK, EU, AU Optional)

1 x Bracket

1 x User Manual

1 x Screws Set
