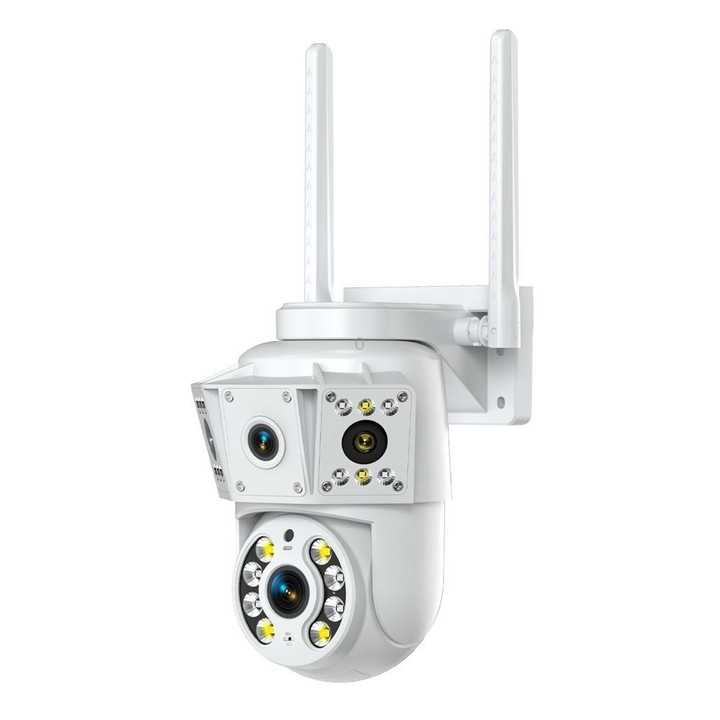

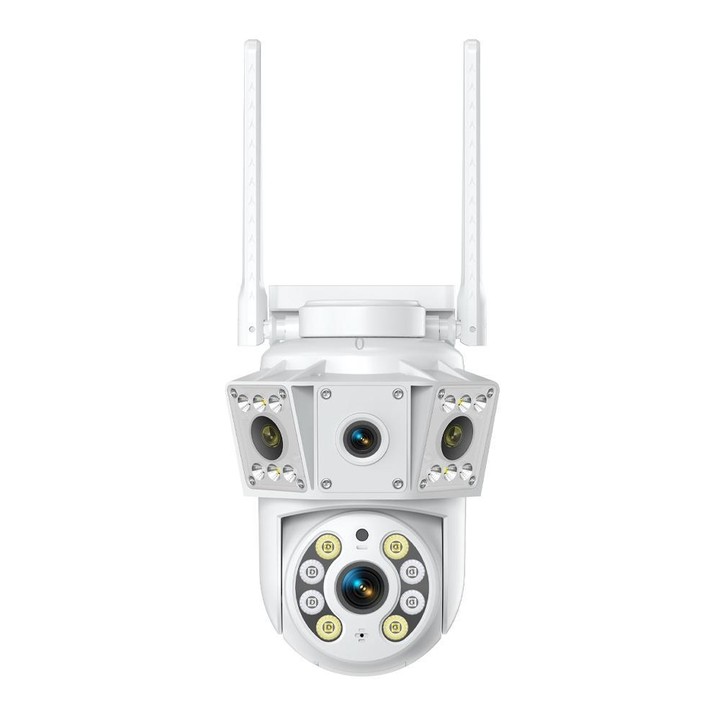

K30 1080P 3-screen Surveillance Camera(White)

System:

1. Main Control Chip Processor: T23 Pure Hardware Compression

2. Image Sensor: High-performance CMOS sensor

3. Operating System: Embedded LINUX operating system

4. Image Encoding Format: Smart H.265X

5. APP: Xiaoying Kankan (supports Android and iOS)

Video:

1. Effective Video Pixels: 2MP

2. Resolution: 1920x1080 12fps

3. Minimum Illumination: 0.01LUX/F1.2

4. Lens: 3.6mm (standard)

5. Viewing Angle: 92 degrees

6. Video Flip: Up/Down Flip / Left/Right Flip

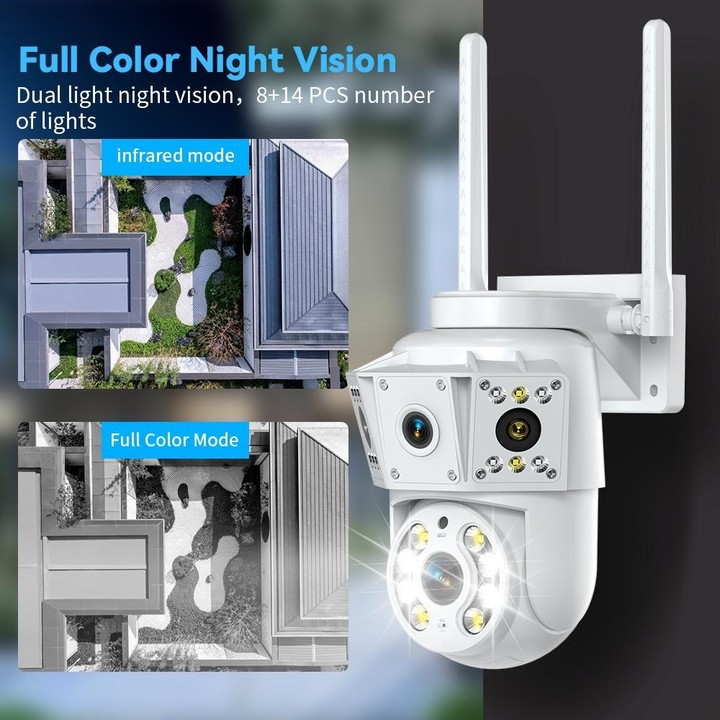

Night Vision:

1. Lighting Control Mode: Dual-light night vision

2. Number of Fill Lights: 10+12

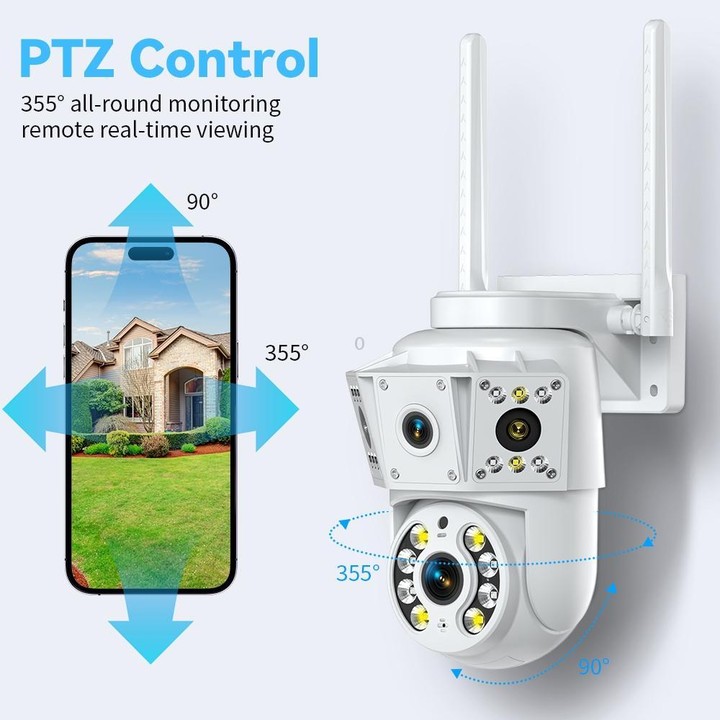

PTZ:

1. PTZ Control: Rotation Angle Horizontal: 355 degrees, Vertical: 90 degrees

2. PTZ Flip: Up/Down Flip / Left/Right Flip

Audio:

1. Encoding Standard: G.711

2. Audio Pickup: Supported

3. Speaker: Supported

Recording Management:

1. Recording File Size: Approximately 6G/day

2. Recording Methods: Manual recording, motion detection recording, scheduled recording, alarm recording

3. Recording Storage: TF card/Cloud

4. Storage: Cloud storage + TF local recording (128GB MAX)

5. Remote Playback: Supported

6. Screenshot Function: Supported

Network Functions:

1. Wireless Network: 2.4G WIFI 802.11b/g/n

2. Network Configuration: WiFi Smartlink network configuration, AP hotspot addition, QR code scanning

3. Network Protocol: TCP/IP, ONVIF, RTSP

Power Supply:

1. Power: DC 5V

2. Power Interface: USB

Environment:

1. Applicable Places: Homes, shops, supermarkets, factories, etc.

2. Installation Method: Wall mounting, ceiling mounting, flat placement

3. Operating temperature: -20~55 degrees Celsius

4. Operating humidity: 10%-90%

Specification:
