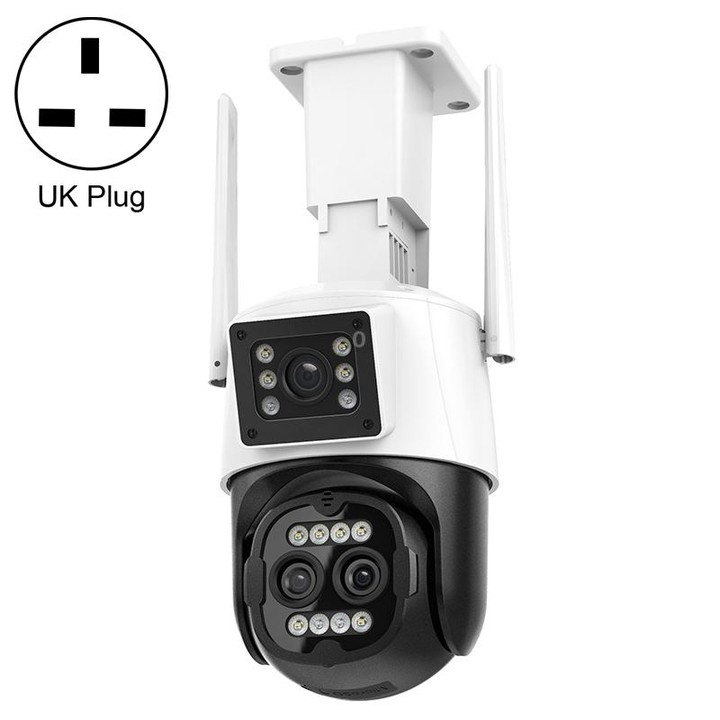

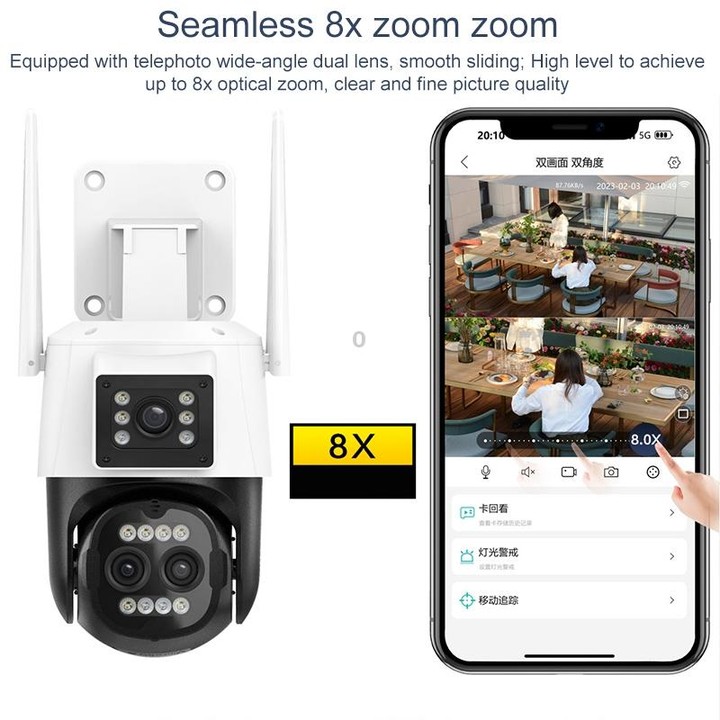

QX103 Humanoid Recognition AI Alarm WiFi Dome Triple IP Camera(UK Plug)

Features

1. New generation photosensitive component combination SC300AI wide angle + SC300AI ultra short focus + SC300AI ultra telephoto + XM650V200 main control

2. The bolt has a starlight grade of 3.6MM, and the ball has a F1.4 starlight grade of 2.8MM-12MM. One is static and the other is moving. They are coordinated and linked. One machine can support three machines.

3. Built-in lightning protection function, in line with national standard GB/T17626.5 and international standard IEC61000-4-5

4. The detachable bracket supports ceiling or wall mounting, and can also be rotated left and right to adjust the monitoring angle.

5. 3500K warm light mixed angle design, long-distance fill light, worry-free night vision

6. Dual-channel stream storage is lower and dual-channel video recording is more accurate.

7. Dual-screen horizontal screen, switching more freely and previewing more comprehensively

8. Support humanoid detection, tracking and capturing

9. Supports multi-person humanoid detection and humanoid zoom tracking.

10. Supports ONVIF protocol and can be connected to third-party backend/platform

11. Support mobile phone monitoring (iOS/Android)

12. Supports multiple cloud technologies to achieve network penetration, front-end and back-end docking, and push alarm information to mobile phones, etc.

Parameters

1. Main control: dual-core 32-bit DSP (XM650V200), pure hard compression, monitor

2. Sensor: 3 3 million 1/2.7 SC300AI high performance CMOS sensors

3. Minimum illumination:

Color: 0.01Lux @(F1.2,AGC ON),0 Lux with IR

Black and white: 0.001 Lux @(F1.2,AGC ON),0 Lux with IR

4. Video format: H.265AI

5. Resolution:

Main resolution: 2304 x 2592

Sub-resolution: 800 x 896

6. Support protocols: support NETIP protocol, support onvif protocol, support Bluetooth distribution network

7. Network interface: 10M/100M adaptive Ethernet port

8. Storage interface: local TF card (maximum support 256G)

9. Wireless standards: IEEE802.11b, 802.11g, 802.11n

10. Frequency range: 2.4 GHz-2.4835 GHz

11. Power consumption: 15W

12. Temperature: minus 10 degrees Celsius - 60 degrees Celsius, humidity less than 90% [no condensation]

13. Power supply: DC 12V+/-10%

14. Product size: 113 x 123 x 243mm

15. Product weight: 0.678kg

Specification:

General

Shape

Dome

Mount Types

Wall bracket, Ceiling Bracket

Power Depletion

15W

Power Supply

DC 12V

Output Voltage

DC 12V

Performance

Motion detection, Night Vision, Dual-stream, Alarm detection

Memory

TF Card

Network

Wireless

IEEE 802.11 a/b/g/n

System / Hardware

Image Sensor

CMOS

Sensor Size

1/2.7 inch Progressive Scan

Minimum Illumination

0.001Lux/F1.2(AGC ON), Night Vision: 0.01Lux/F1.2

Media Format

Video Compression Format

H.265

Frame Rate (FPS)

12fps Night

Physical Environment

Ingress Protection

IP66

Operate Temperature

-10 to 60 Degree Celsius

Working Humidity

Less than 90 percent
