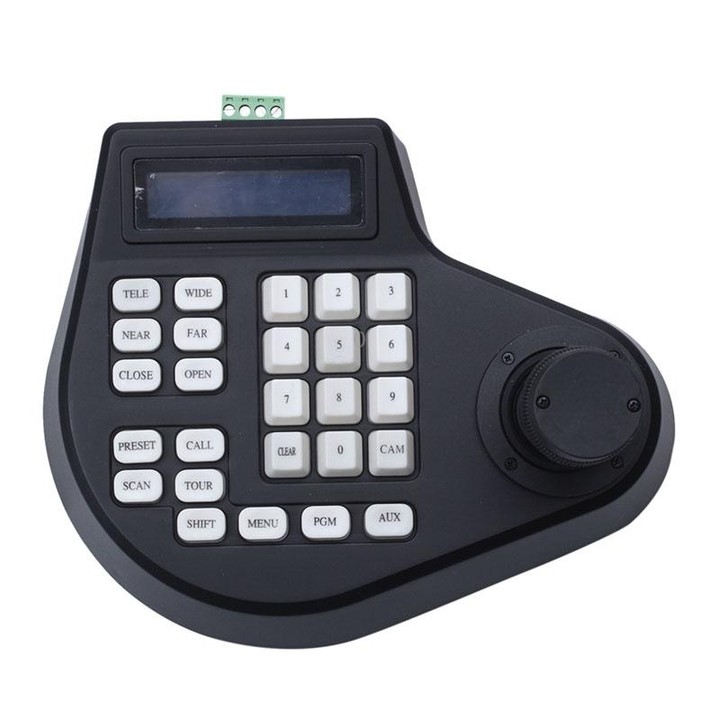

8003H Analog Coaxial Dome Control Keyboard RS485 PTZ, Specification:2 Axis(UK Plug)

1. Multi-functional design, can realize the setting and calling of camera head, high-speed dome, constant speed dome, low-speed dome, lens control and preset point

2. Input voltage: DC12V/500mA

3. Power consumption: less than 5W

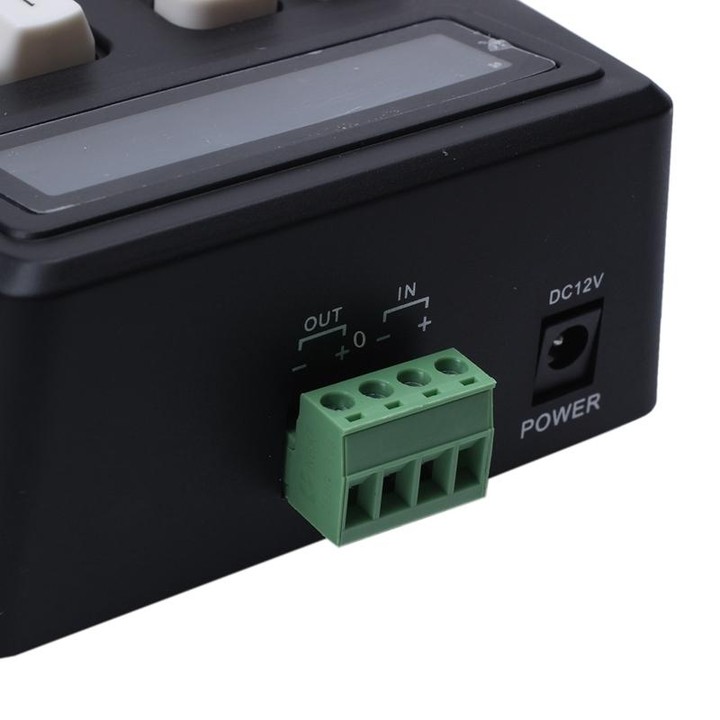

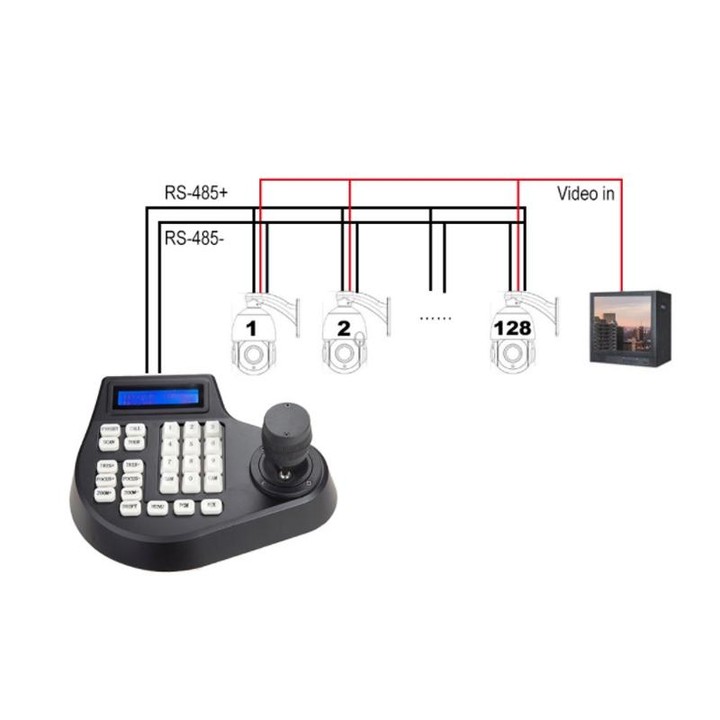

4. Communication interface: RS485 bus

5. Communication distance: 1500m (0.5mm twisted pair)

6. Communication protocol: PELCO-D, PELCO-P, SAMSUNG, AD, PANASONIC

7. Baud rate: 9600

8. Communication parameters: 8 data bits, 1 stop bit, no parity

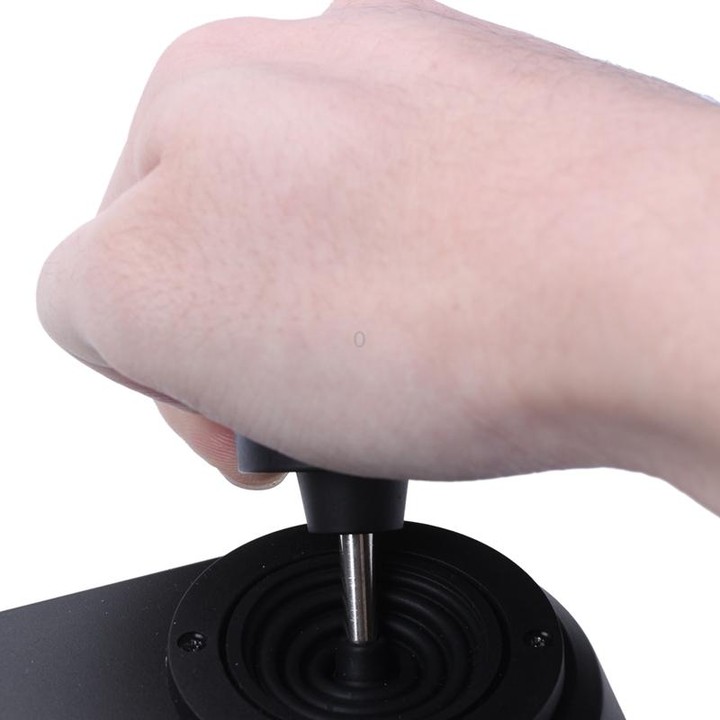

9. Joystick:

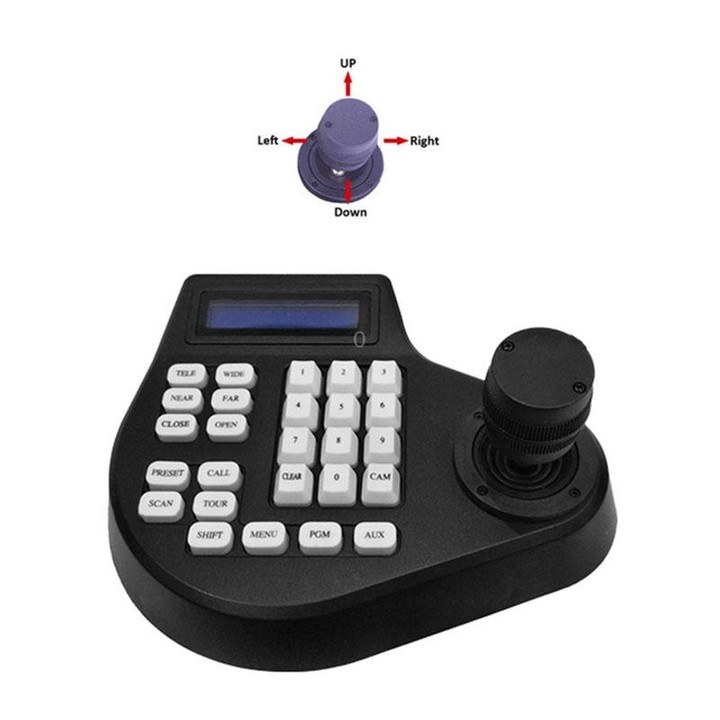

- 2 axis: joystick to control the ball machine up and down, left and right

- 3 axis: joystick control ball machine up and down, twist the joystick ball machine can be zoomed

- 4 axis: joystick control the ball machine up and down, twist the joystick ball machine can be zoomed, joystick more OK button

10. Display: LCD

11. Weight: about 890g

Specification:
