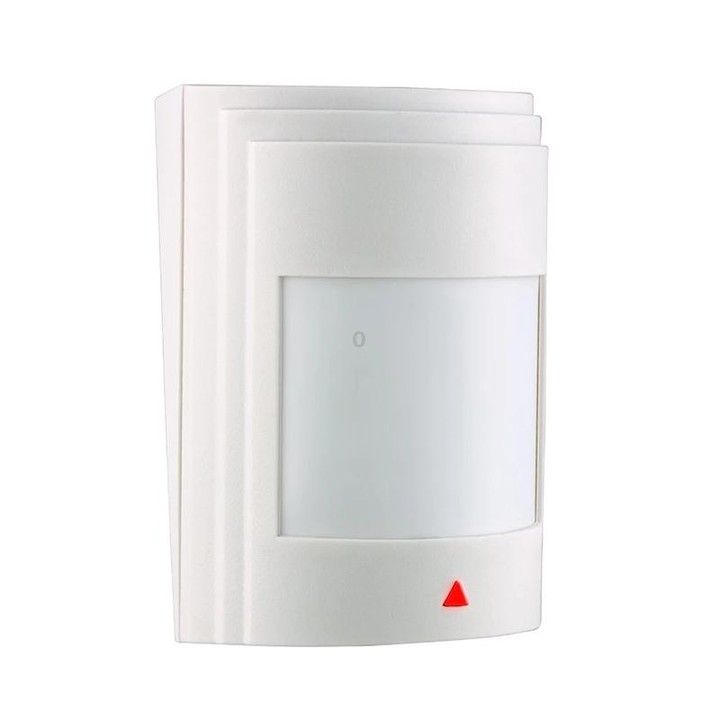

PA-476 Wired Passive Infrared Wide Angle PIR Motion Sensor Infrared Detector Alarm(White)

1. Auto pulse signal processing, 2 levels adjustable

2. Auto temperature compensation

3. 2nd generation Fresnel lens

4. Optional other lenses

5. High density SMD design

6. Additional Connector for EOL resistor

7. Fire resistant case

8. Sensor: Low noise, high sensitivity, dual element, PIR Sensor

9. Pulse Count (Sensitivity): Two levels auto pulse signal processing, 1~3 pulses or 2~6 pulse selectable

10. Temperature Compensation: Auto

11. Startup Time: 60 seconds after power up

12. Detection Speed: 0.2~7m/sec

13. Lens: Second generation Fresnel lens

14. White Light Immunity: Yes

15. Coverage: 12m x 110 degree

16. Zones: 9+5+5+3=22

17. Installation Height: 1.1~3.1m adjustable

18. Alarm Indication: Green LED constant light 3 seconds (can be disabled)

19. Alarm Output: N.C., rating DC 28V, 0.15A

20. Anti-Tamper Switch: N.C., opens when cover removed, rating 0.15A, 28Vdc

21. Power Input: DC 9~16V, 18mA

22. Operating Temperature: -10C~50C

23. Operating Humidity: 95%

24. Size: 90 x 65 x 50mm / 3.5 x 2.6 x 2.0in (L x W x H)

Package Included:

1 x Wireless PIR IR Motion Sensor for Alarm Home Security System

Specification:
