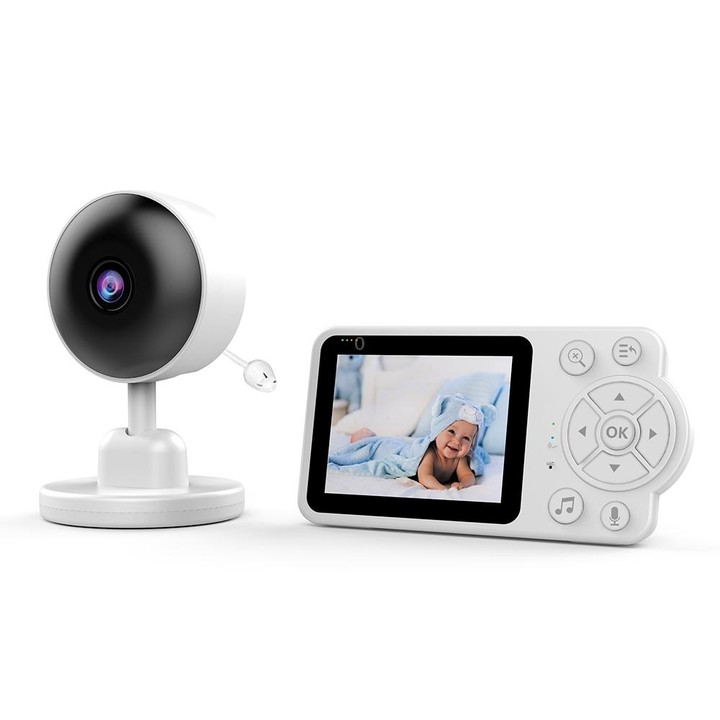

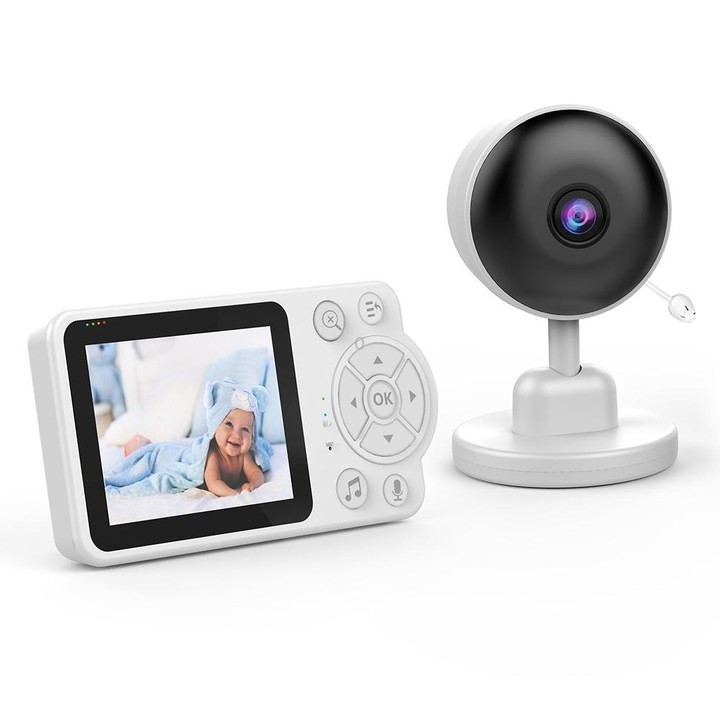

YE10-C3 2.8 inch 2.4G Wireless Video Night Vision Baby Monitor Security Camera(US Plug)

Features:

1. Intelligent baby caregivers are more targeted at infants and young children, are more targeted and caring, and can implement more functions to help parents take better care of their children.

2. You can view your baby’s real-time video remotely

3. The caregiver uses a 100W high-definition camera, which can clearly observe the childs every move (the display supports up to 1280*720P display)

4. The host uses a 2.8-inch TFT high-definition display screen with a screen resolution of 240*320.

5. High-definition infrared night vision, night vision supports an effective distance of 0-5 meters, and you can clearly see your babys every move at night.

6. The host uses DSP video recognition, and the lightless night vision mode is activated when the ambient light is lower than 0.2LUX.

7. Feeding alarm clock reminder: You can set it according to the babys habits in the "feeding alarm clock" of the machine settings menu.

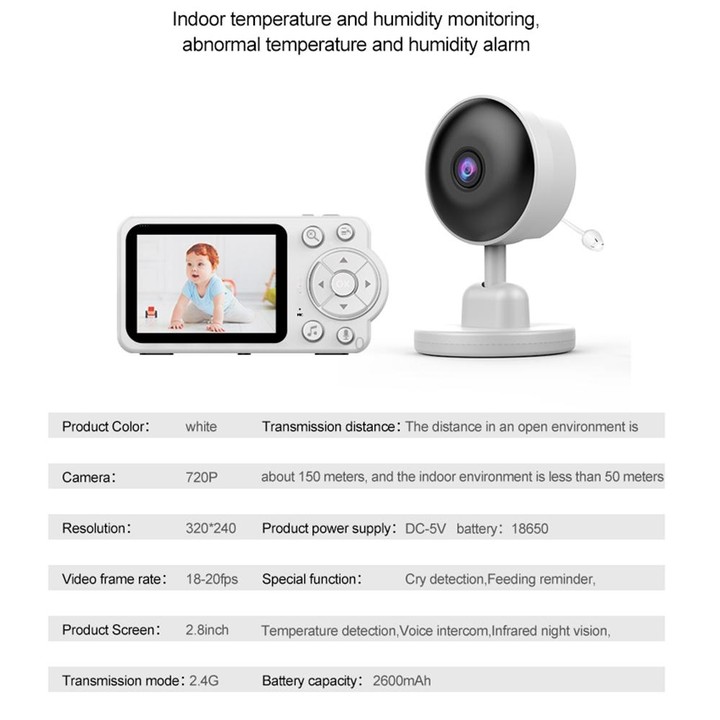

8. Temperature detection alarm: You can observe whether the temperature of the babys room is comfortable on the LCD side

9. Lullaby function: You can select music in the machine settings menu, and press the host function button to play music

IPC parameters:

1. Main chip: AX3292

2. Main frequency: 144M main frequency 8M memory

3. Memory: 8M

4. Image sensor: VGA: GC0308

5. Effective pixels: 1280x720P

6. Illuminance min: 0.5Lux/F2.0 color), 0.02Lux/F2.0 (black and white)

7. White balance: automatically track white balance

8. Microphone: Anti-interference sensitivity -30db+/-3db

9. Distance: 5 meters

10. Speaker: 8 ohms 1 watt

11. Electronic shutter: 1/4-1/10,000s

12. Night vision distance: 5m

13. Sensing method: photodiode

14. LED infrared light: 940nm (no red exposure)

15. Transmission mode: 2.4G

16. Wireless module: 2.4G Zhongkexin 24R01 with PA

17. 2.4g transmission distance: image transmission up to 300 meters in open areas and low interference scenarios

18. Night vision mode: The light sensor automatically detects light and automatically turns on the night vision mode.

19. Focal length: 3.7mm

20. Horizontal viewing angle: 92 degrees

21. Aperture number: F2.15

22. Infrared night vision lights: 8 pcs, angle 90 degrees, 940 degrees without red light

23. Material: ABS engineering plastic

24. Video resolution: 1280x720

25. Frame rate: 10fps

26. Video compression: H.265

27. Current: shutdown: 100ua, startup: 150ma, pairing: 250ma

28. Working temperature: -30~65 degrees Celsius

29. Power supply: DC-5V, lithium battery 18650 3.7V, capacity 2000mAh

30. Power supply port: TYpe-C port

31. Alarm sensitivity: low/medium/high

32. Supports formatted TF card, status indicator light, device sound adjustment, alarm function timing, temperature, and intercom

33. Infrared night vision function: automatic, off, on

34. Alarm interval temperature 1 minute 3 minutes 5 minutes

35. Lullaby temperature supports on, off, and loop playback

LCD parameters:

1. Main chip: Jianrong AX3292

2. Main frequency: 144M main frequency 8M memory

3. Memory: 8M

4. Microphone: -38db+/-3db

5. Screen resolution: 320x240

6. Speaker: 8 ohms 1 watt

7. Pickup distance: 5 meters

8. Transmission mode: 2.4G

9. Wireless module: 2.4G Zhongkexin 24R01 with PA

10. 2.4g transmission distance: image transmission up to 300 meters in open areas and low interference scenarios

11. Body material: ABS engineering plastic

12. Size: 2.8-inch TFT screen

13. Resolution: 320x240

14. Working temperature: -30-65 degrees Celsius

15. Battery capacity: 2000mAh

16. Menu language: supports English

LCD functions:

1. Supports temperature detection alarm, cry detection alarm, lullaby playback, intercom, language setting, factory reset, and version information viewing

2. Menu keys: up, down, left, right, ok key; music play key; intercom key; power key; magnification key

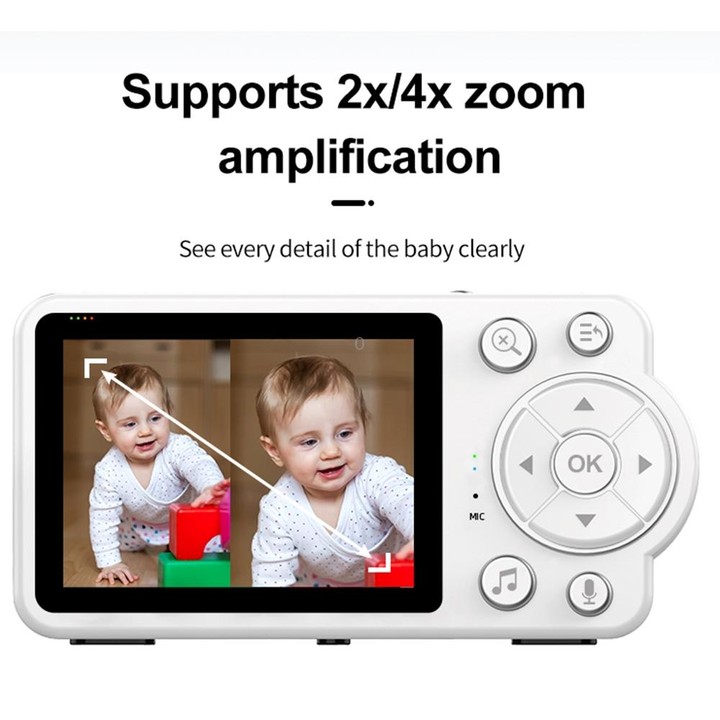

3. Electronic amplification: 4 times

4. Feeding alarm clock: customizable time and set time

5. Display settings: sleep and screen brightness

6. Time and date: date time time zone setting

Specification:

General

Certificate

CE

, ROHS
