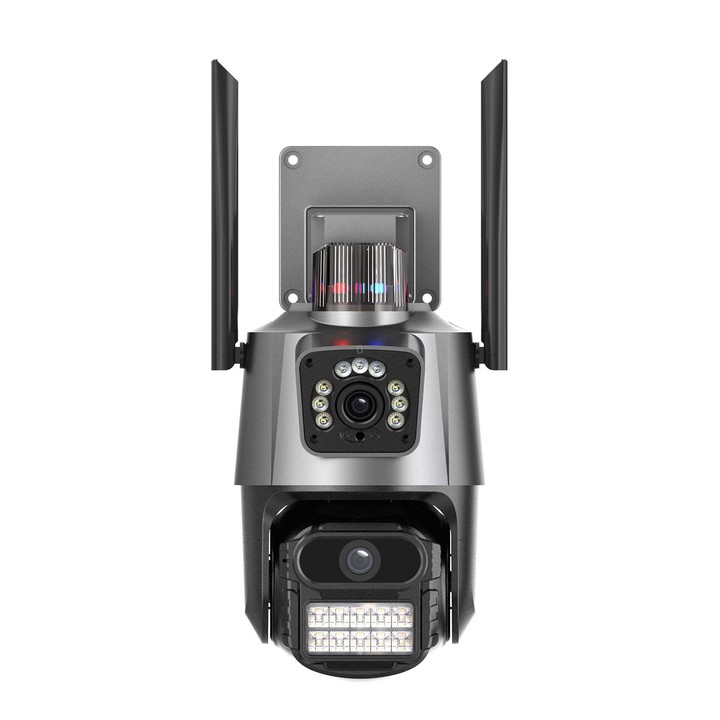

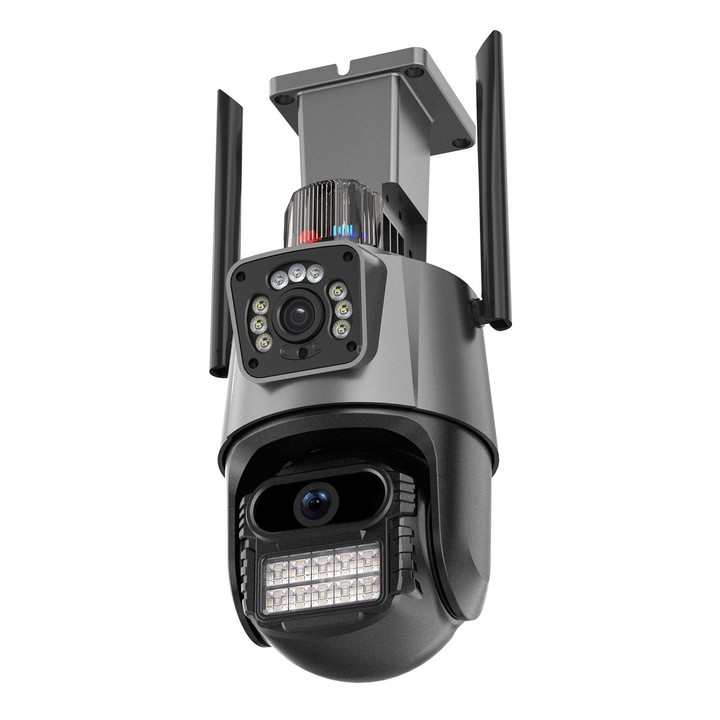

QX81 Humanoid Recognition AI Alarm WIFI Spherical Dual 2MP IP Camera, Plug:AU Plug

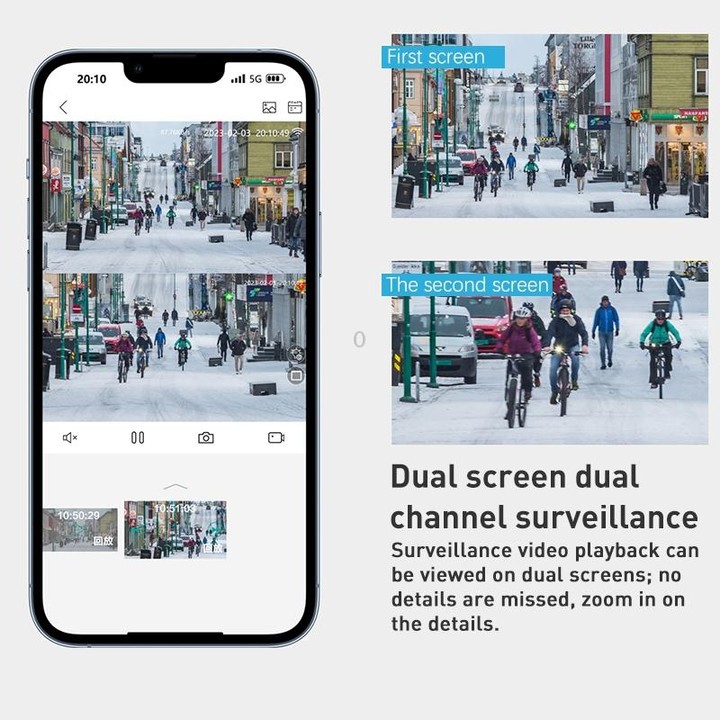

1. 2MP bullet type + 2MP spherical machines, the image is spliced up and down into 4 million, and the image is clear and exquisite;

2. Support human shape detection, tracking and capturing;

3. Support dual light, human shape and intelligence (line mixing, area care, etc.);

4. Support wired and wireless network connection;

5. Support 2D/3D noise reduction and digital wide dynamic;

6. Advanced H.265 AI video compression technology, ultra-low bit rate, high-definition image quality;

7. Lightning protection, in accordance with international standard IEC61000-4-5;

8. Support ONVIF protocol and access to third-party backend/platform;

9. Support mobile phone monitoring (iOS, Android);

10. Support a variety of cloud technologies to achieve network penetration, front-end and back-end docking, and push alarm information to mobile phones and other functions

Parameter

1. CPU: Dual core 32-bit DSP XM650V200

2. Sensors: 2pcs 2MP 1/2.8" SC233A CMOS

3. Minimum illumination: Color: 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR; Black and white: 0.001 Lux @ (F1.2, AGC ON), 0 Lux with IR

4. Shutter: 1/50 (1/60) seconds to 1/10000 seconds

5. Focal length: F1.4 x 3.6mm + F1.4 x 6mm

6. Video format: H.265AI

7. Resolution: Main resolution: 1920x2160; Sub resolution: 800x896

8. Frame rate: 12 fps

9. Light source: 11 infrared+12 white light

10. Lighting mode: Starlight full color/infrared night vision/dual light alert

11. Support for human shape detection, tracking, bidirectional voice, cloud storage, and one click recovery

12. Support protocol: NETIP protocol, support onvif protocol

13. Network interface: 10M/100M adaptive Ethernet port

14. Local storage interface: TF card maximum 256GB (not included)

15. Wireless standard: IEEE802.11b/g/n

16. Frequency range: 2.4GHz -2.4835GHz

17. Power supply: DC 12V, power consumption: 10W

18. Product size: 120x148x217mm

19. Net weight of product: 0.58kg

Specification:

General

Model

QX81

Power Depletion

10W

Power Supply

DC 12V 2.0A

Memory

TF Card, up to 256GB (not included)

View Angle

70 degree / 92 degree

Network

Network Interface

RJ45 10/100MB Ethernet interface

Wireless

WiFi 802.11 b/g/n

Online Visitor (Max.)

5

System / Hardware

Sensor

SC233A

Image Sensor

CMOS

Sensor Size

1/2.8 inch Progressive Scan

Processor

XM650V200

Lens

3.6mm, 6.0mm

Pan/Tilt-Horizontal Angle

270 degree

Pan/Tilt-Vertical Angle

90 degree

Physical Environment

Ingress Protection

IP65

Dimensions

Size

120x148x217mm

Weight

0.58kg

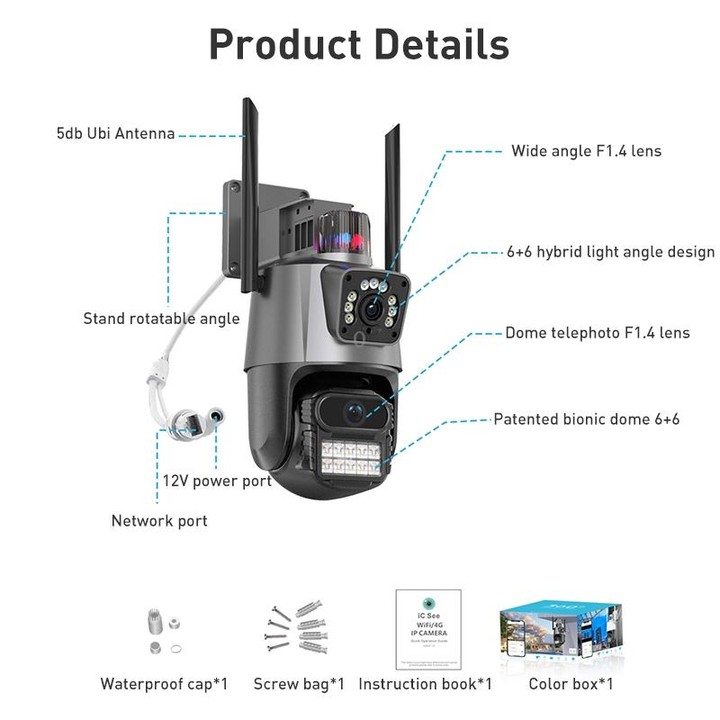

Package Include

Package Contents

1 x Camera

1 x Power Adapter (US, UK, EU, AU Optional)

1 x User Manual

1 x Screws Set

1 x Waterproof Ring
