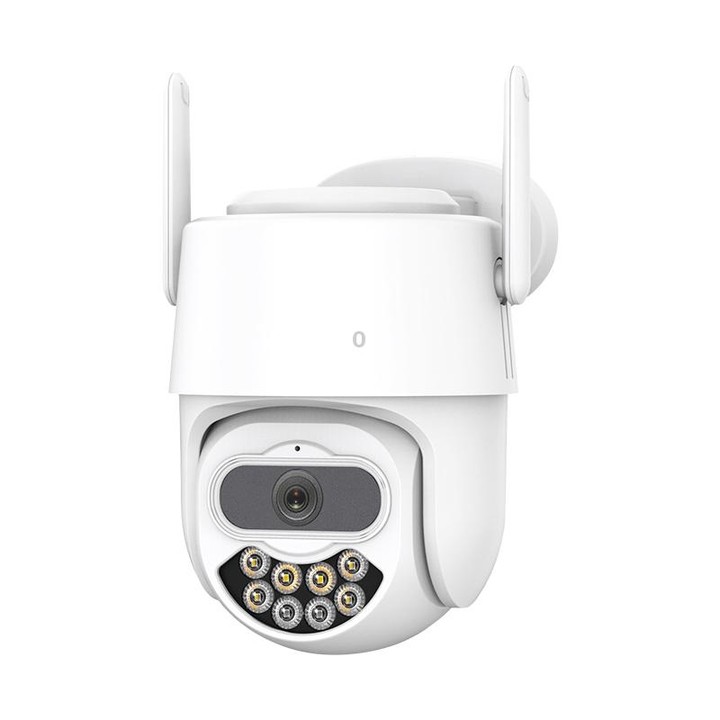

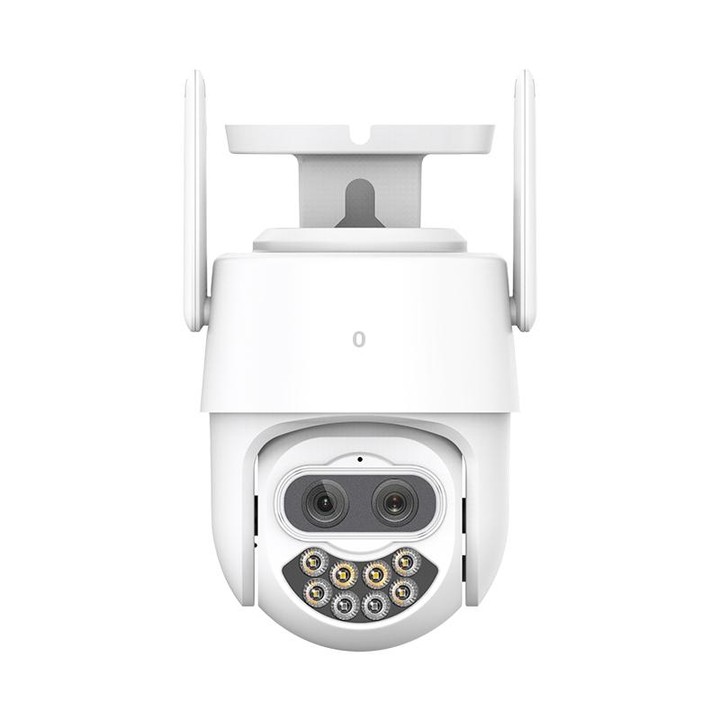

QX82 400W Dual Screen Dual Channel Synchronous Monitoring IP Camera, Plug:AU Plug

1. 2pcs 4.0MP chips overlapping design makes image clear and delicate;

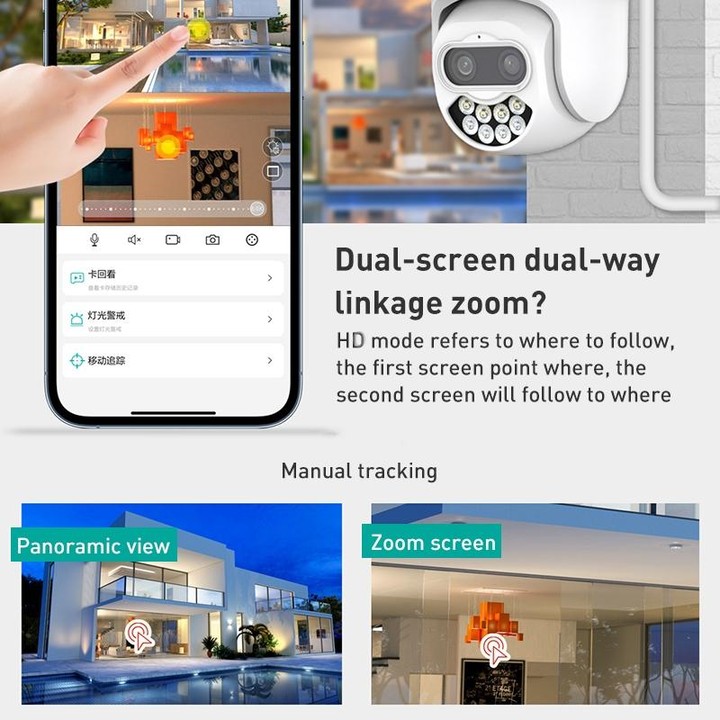

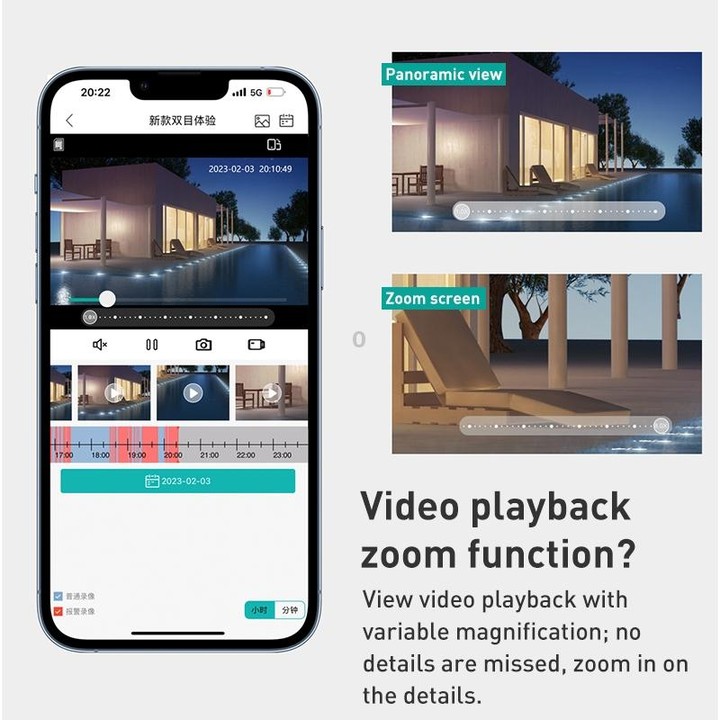

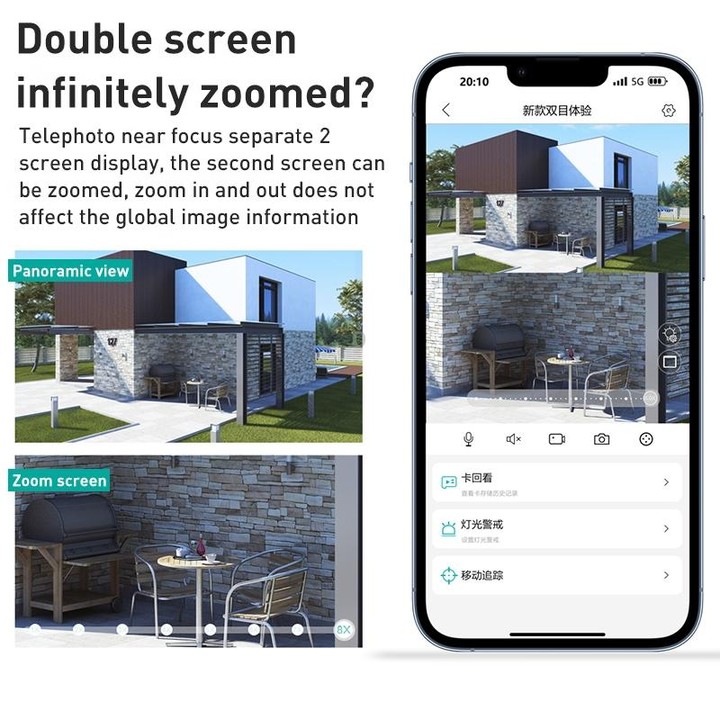

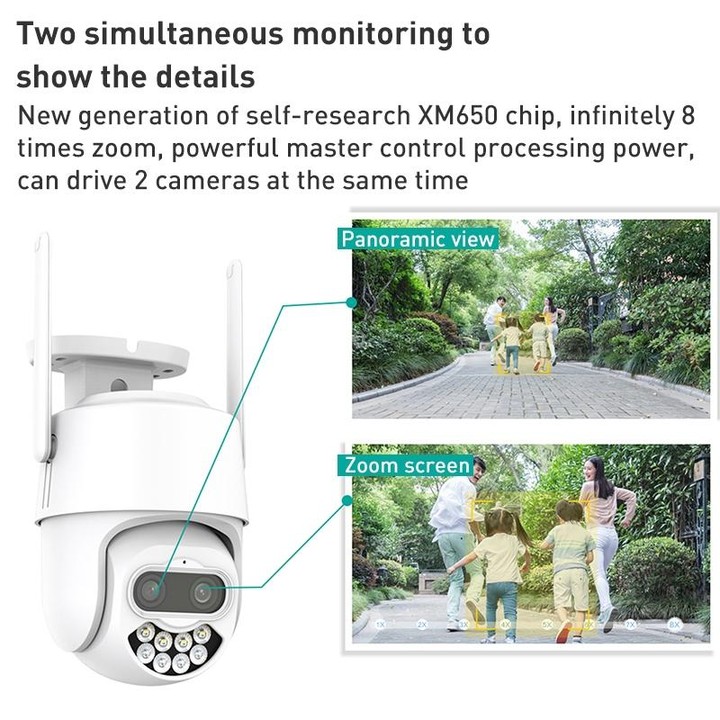

2. Support dual-picture preview, picture-in-picture preview, physical pixel 8.0MP;

3. The long-focus imaging module matches the short-focus imaging module 2.8mm-12mm realizes 8x hybrid zoom;

4. Built-in speaker, microphone, support two-way voice intercom;

5. Support automatic cruise, detailed scanning；support full-coloralert, push accurate human alarm ;

6. Yutong F1.4 starlight lens

Technical Parameters

1. Sensor: 4MPx2=8MP SC5239

2. System Structure: Dual-core 32-bit DSP (NT98566), pure hard compression,watchdog

3. Minimum illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR; Black and white: 0.001 Lux @ (F1.2, AGC ON), 0 Lux with IR

4. Video Processing: H.265AI encoding, dual stream, AVI format; stream 0.1M~10Mpbs adjustable; frame rate 1~30 frames/sec adjustable

5. Image Output: Main stream: 2560*1440@12fps, Sub-stream: 800*448@12fps

6. Shutter: 1/50 (1/60) second to 1/10000 second

7. Lens: 2.8mm+12mm, combination of long focal length len + short focal length len

8. Day&Night Switching Mod: Support IR-CUT

9. Noise Reduction: Support 2D/3D noise reduction

10. Wide Dynamic: Support wide dynamic

11.Audio Processing: G.711A codec standard, support two-way voice intercom function, support audio and video synchronization

12. Audio Port: 1 input, level 2Vp-p, impedance 1kΩ; 1 output, impedance 16Ω, 30mw output power

13. Network Interface: 1 x RJ45 Ethernet interface, 10/100M adaptive

14. Signal Interface: 1 x photoresistor interface, 1 x IR-CUT driver interface, support the linkage of photoresistor input signal with IR-CUT, infrared light

15. PTZ Interface: 1 x horizontal motor interface, 1 x vertical motor interface

16. Reset.Key.Interface: Support one-key reset function

17. Storage Method: Local TF card, maximum 128G(not uncluded) ; cloud storage

18. Reliability: Comprehensive lightning protection, in line with national and international standards; 7*24 hours 65 ℃high temperature test is stable and reliable (including the whole machine test)

19. Intelligent Analysis: Support humanoid detection, support customization of other intelligent function

20. Business Functions: Support mobile client remote monitoring; support message push after humanoid detection and alarm; support MJPEG snapshot

21. ONVIF: Support

22. Phone Monitoring: Support mobile phone monitoring (iOS, Android) ICSEE APP

23. Power: DC12/2A, 5W

24. Light source: 6 infrared+6 white light

25. Lighting mode: Starlight full color/infrared night vision/dual light alert

Specification:

General

Model

QX82

Shape

Dome

Power Depletion

5W

Power Supply

DC 12V 2.0A

Memory

TF Card, up to 128GB (not included)

Network

Network Interface

RJ45 10/100MB Ethernet interface

Wireless

WiFi 802.11 b/g/n

Protocol

NTP, UDP, SMTP, UPNP, DHCP, FTP, HTTP, DNS

Online Visitor (Max.)

5

System / Hardware

Pan/Tilt-Horizontal Angle

270 degree

Pan/Tilt-Vertical Angle

90 degree

Physical Environment

Ingress Protection

IP66

Dimensions

Size

95x100x130mm

Weight

0.34kg

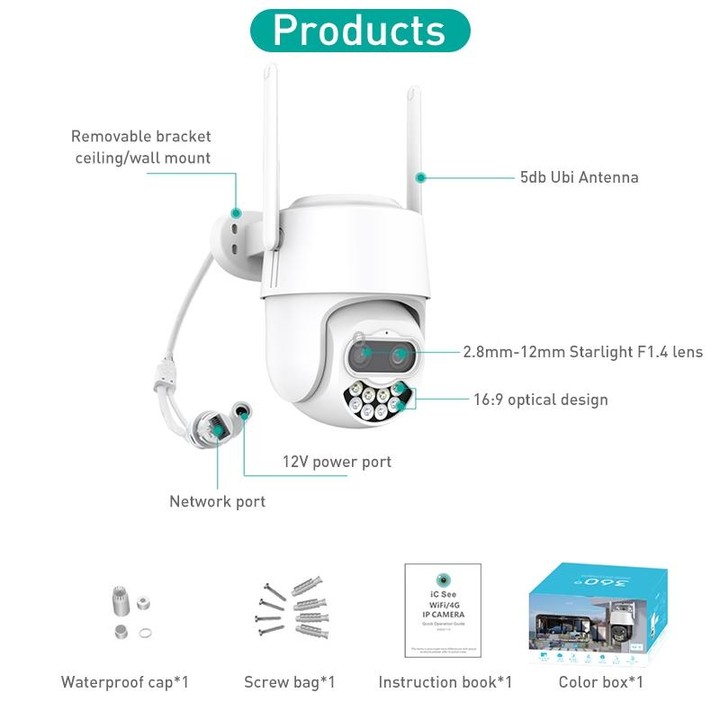

Package Include

Package Contents

1 x Camera

1 x Power Adapter (US, UK, EU, AU Optional)

1 x User Manual

1 x Screws Set

1 x Waterproof Hat
