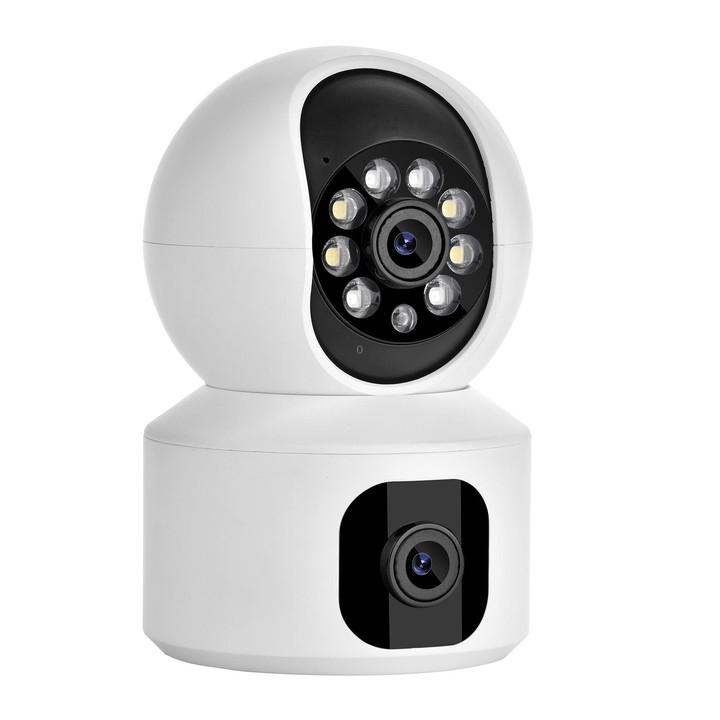

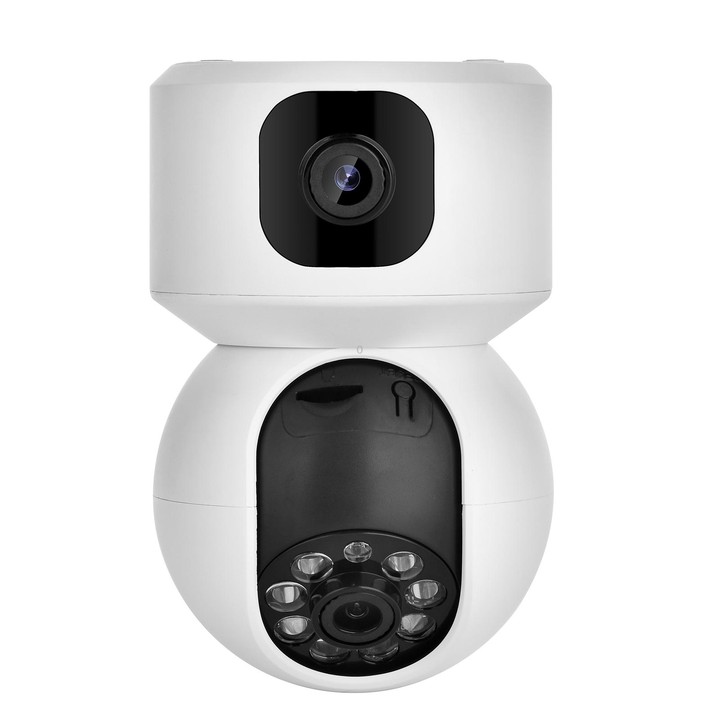

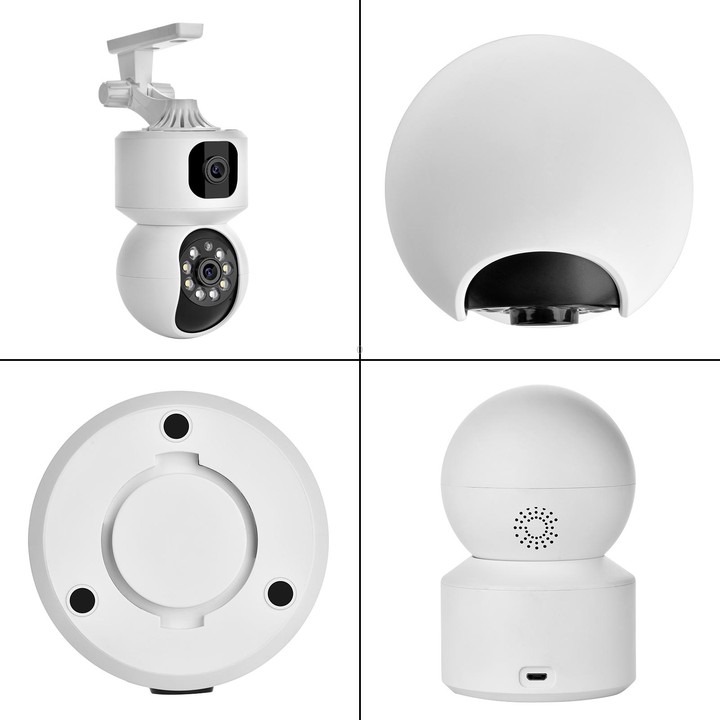

YT66 Dual 2MP Wireless Smart PTZ Camera, Plug:UK Plug

1. Main Processor: Dual-core 32-bit DSP (XM650V200), pure hard compression, watchdog

2. Image sensor: 2pcs 2MP 1/2.8" SC233A High performance CMOS sensors

3. Operation System: Embedded LINUX operating system

4. Video Compression: Smart H.265X

5. APP: Super Look (Android and IOS support)

6. High Definition: 2*2MP

7. Image resolution: Main code stream: 1920*2160@12fps; Substream: 800*896@12fps

8. Minimum illumination: 0.01 LUX/pro series

9. Lens: 3.6mm(standard)

10. Perspective: 92 degree

11. Turn video: Flip up and down/flip side to side

12. Light control mode: Starlight full color/intelligent warning/infrared night vision

13. Number of lights: 8 red lights +4 white lights

14. PTZ control: (rotation angle) horizontal 355 degree, Vertical 90 degree

15. Turn PTZ: Flip up and down/flip side to side

16. Coding standard: G.711

17. Microphone: support

18. Speaker: support

19. Video file size: about 6G/ day

20. Record Mode: Manual video recording, dynamic detection video recording, timing video recording, alarm video

21. Video storage: TF card/cloud

22. Storage: Cloud Storage + TF Local Video recording (128GB Max)

23. Remote playback: support

24. Image capture: support

25. WIFI: 2.4G WIFI 802.11b/g/n

26. Pairing WiFi: Smartlink distribution network addition, AP hotspot addition, QR code scanning

27. Network Protocol: TCP/IP, ONVIF, RTSP

28. Reset key: support

29. Human tracking: support

30. 360degree coordinate positioning: support

31. Power: DC 5V 1.6A

32. power interfac: Micro Type-A

33. Product size: 78x78x120mm

34. Net weight: 205g

Packaging list:

- 2MP smart cloud camera (excluding TF Card) x 1

- User manual x 1

- Screw pack x 1

- Stents x 1

- Power adapter x 1

- Power cord x 1

Specification:

General

Model

YT66

Power Supply

DC 5V 1.6A

Memory

TF Card, up to 128GB (not included)

View Angle

92 degree

Network

Wireless

WiFi 802.11 b/g/n

Protocol

RTSP, TCP/IP, ONVIF

Online Visitor (Max.)

6

System / Hardware

Sensor

SC233A

Image Sensor

CMOS

Sensor Size

1/2.8 inch Progressive Scan

Pixels

2.0MP

Lens

3.6mm

Pan/Tilt-Horizontal Angle

355 degrees

Pan/Tilt-Vertical Angle

90 degree

Minimum Illumination

0.01Lux

Night Vision

Configuration

8 infrared LEDs

Dimensions

Size

78x78x120mm

Weight

205g

Package Include

Package Contents

1 x Camera

1 x Power Adapter (US, UK, EU, AU Optional)

1 x Bracket

1 x User Manual

1 x Power Cable

1 x Screws Set
