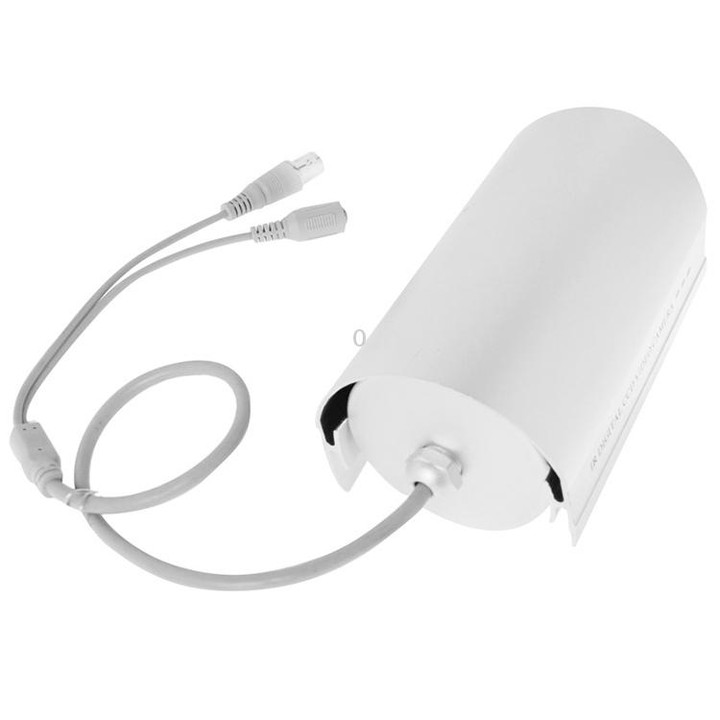

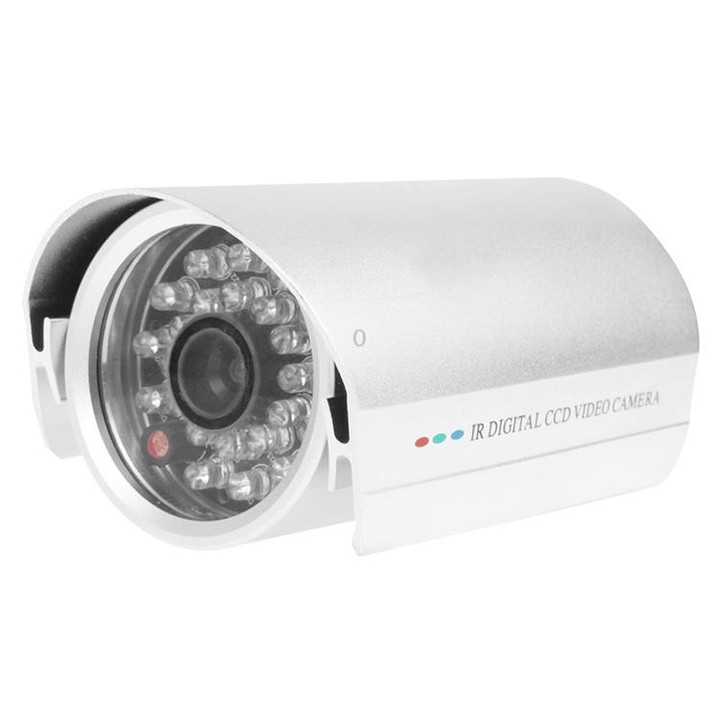

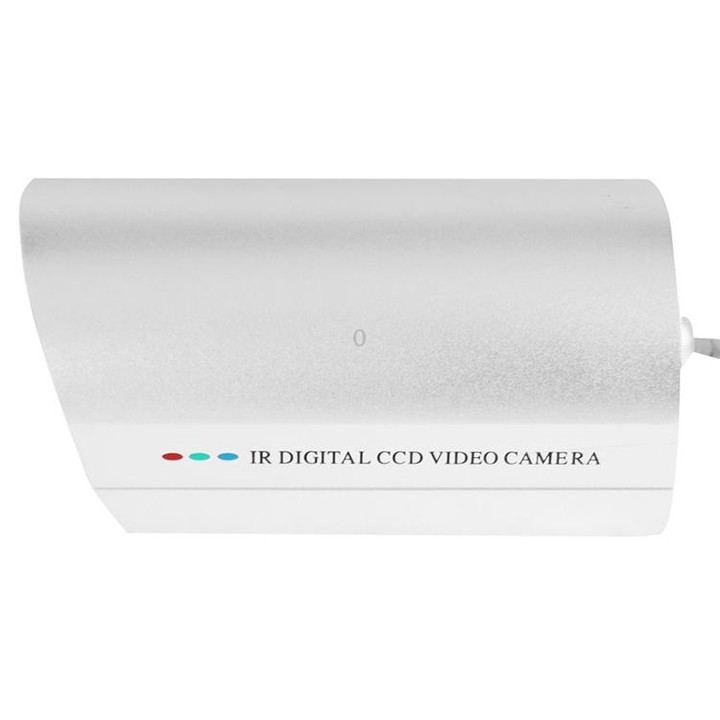

1 / 3 inch Sony 420TVL 6mm Fixed Lens Array LED & Waterproof Color CCD Video Camera without Bracket, IR Distance: 25m

Features:

1. Adapts high performance CCD or CMOS image sensor

2. High resolution and clear image

3. Low illumination, 0-lux with IR day and night, full day surveillance

4. Supports backlight compensation supports auto white, balance

5. High SNR, image clean, slightly supports auto digital shutter

6. Supports auto digital gain

Specifications:

1. Sensor: 1/3 inch color CCD

2. Image device: SN CCD

3. TV system: PAL/NTSC

4. Scanning system: 2:1 interlace

5. Synchronize system: internal

6. Illumination: 0 lux (IR on)

7. S/N ratio: Above or equal 48dB

8. Video output: 1.0Vp-p, 75II composite, BNC x 1

9. Gamma ratio: Above or equal 0.45

10. Focal length: 6mm fixed lens

11. Viewing angle: Vertical: 92 degree /53 degree

12. Zoom ratio: Fixed

13. Control mode: Fixed

14. Day/night: Auto

15. Backlight compensation: auto

16. White balance: Fixed

17. Gamma characteristic: Above or equal 0.15

18. Electronic shutter: PAL: 1/50 to 1/100,000 seconds, NTSC: 1/60 to 1/100,000 seconds

19. Infrared LED: Diameter 5mm, 36pcs IR LED

20. IR distance: 25 meters

21. Infrared spectrum: 850nm

22. Operating temperature: -10 to +50 degree C

23. Storage temperature: -40 to +60 degree C

24. Input voltage/current: DC 12V/500mA

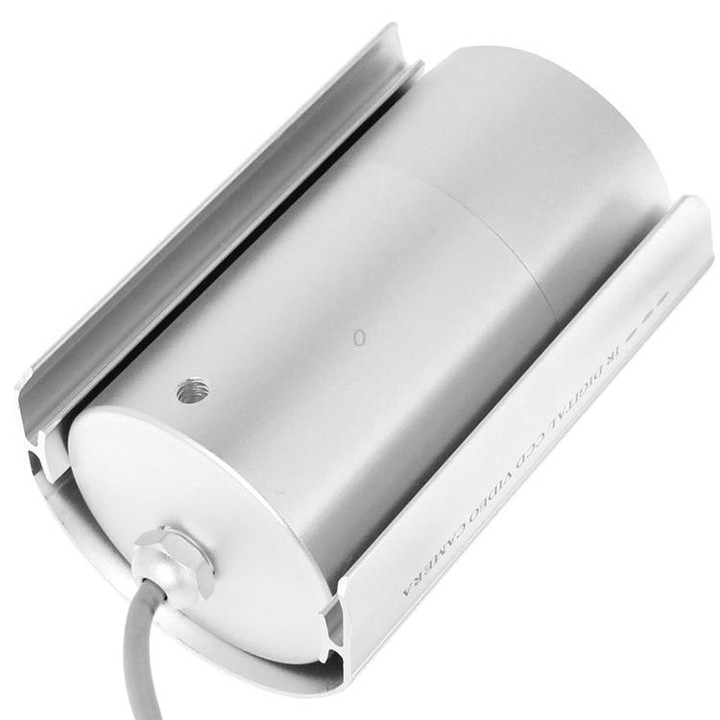

25. Case Material: Aluminum Alloy

26. Camera Dimensions (without bracket): 125(L) x 75(W) x 65(H) mm

27. Net Weight: 360g

Specification:

General

Model

VW-8426

Shape

Bullet

Power Supply

DC 12V

Working Current

500mAh

Performance

Night Vision

System / Hardware

Signal System

PAL, NTSC

Image Sensor

SONY CCD

Sensor Size

1/3 inch Progressive Scan

Lens

Fixed lens, 6.0mm

Electronic Shutter

PAL: 1/50 to 1/100,000 seconds, NTSC: 1/60 to 1/100,000 seconds

SNR

>=48dB

Day/Night

Yes

Minimum Illumination

0LUX

White Balance

Auto

Backlight Balance

Auto

Media Format

Horizontal Resolution

420TVL

Night Vision

Infrared Distance

25m

Configuration

36 infrared LEDs

IR LED

Diameter 5mm

Physical Environment

Environment

Outdoor, Indoor

Dimensions

Size

125(L) x 75(W) x 65(H) mm

Weight

360g

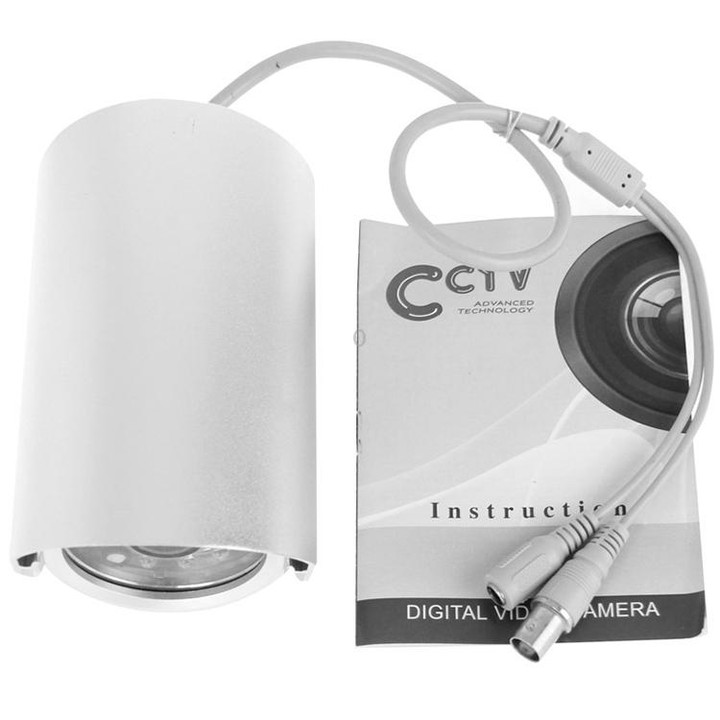

Package Include

Package Contents

1 x Camera

1 x User Manual
