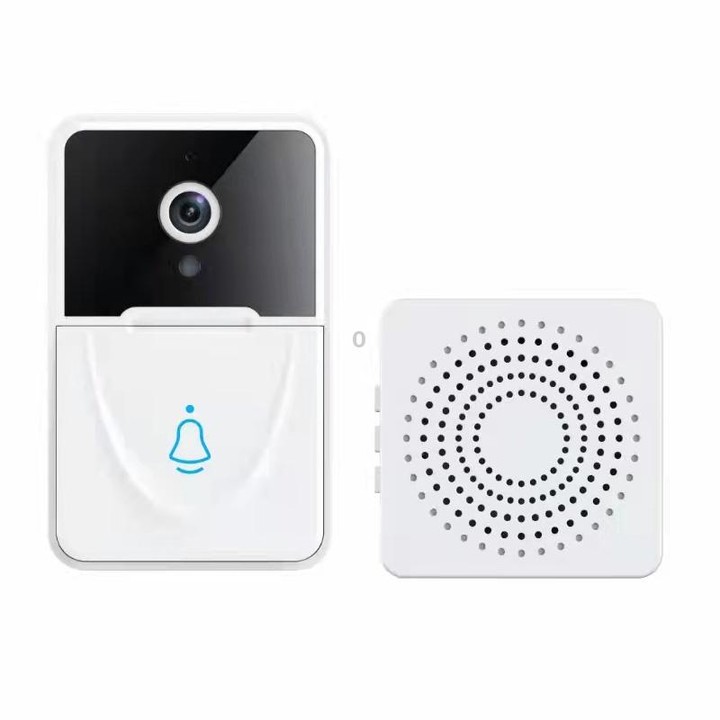

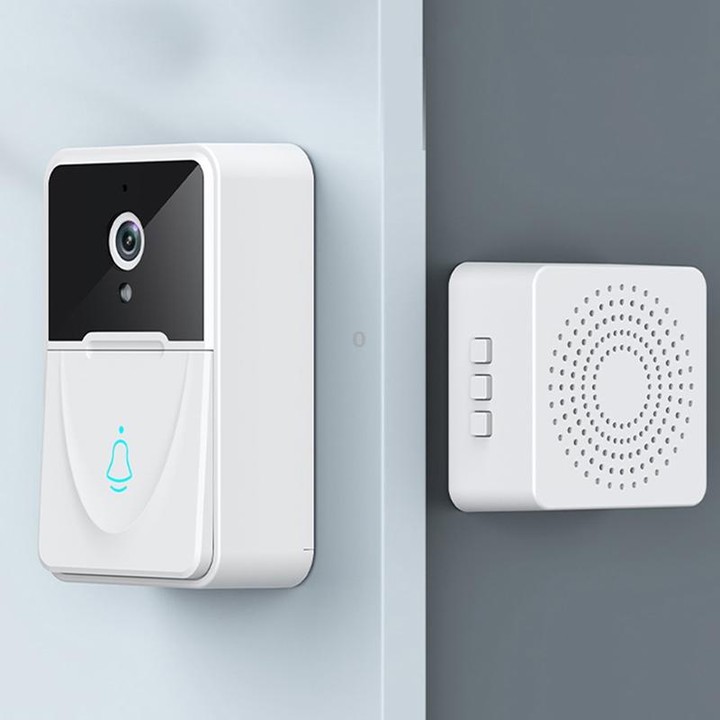

DoorBell X3 VGA WiFi Smart Video Doorbell with Chime, Support Night Vision(White)

Features

1. Lower power and ultra-long standby time

2. Wide Angle Lens: See clearly on every face at your door, never to be afraid to open the door.

3. IR Night Vision: Day or night, it allows you to take photography and record videos at any time.

4. With Ding Dong/Chime: To notify the smartphone of the home owner when a guest arrives to the entrance of the door.

5. It is a VGA network visualization smart doorbell product. It uses a highly integrated BK7252 SOC processor (built-in flash, WiFi, Bluetooth), smaller size and better cost. Through the Innosilica APP, users can realize various smart doorbell application scenarios such as visiting bell records, door stay records, connecting to real-time live broadcasts to achieve visual two-way intercom.

Hardware Specifications

1. Product category: VGA smart doorbell

2. Product model: DoorBell_X3

3. Main control model: BK7252

4. Sensor model: GC0328

5. Photosensitive: Support

6. Audio input: 1 channel

7. Audio output: 1 channel

8. Infrared drive: 50mA

9. MicroSD card holder: Not supported

10. 2 buttons: Doorbell button, reset button

11. 2 indicators: Device status indicator, charging indicator

12. Battery interface: 1 way

13. Charging power supply: DC 5V

Function Specifications

1. System structure: Embedded FreeRTOS

2. Resolution: VGA, 640 x 480

3. Video coding standard: MJEPG

4. Audio coding standard: G711.A

5. Video frame rate: VGA 20fps

6. Day and night switching mode: Automatic

7. Video preview: Support 1 channel P2P audio capture support

8. Video transmission encryption: Support AES

9. Dingdong RF code: EV1527

10. Infrared light control: Automatic, sensitivity level adjustable

11. Infrared light wavelength: 850nm

12. Network distribution method: Bluetooth distribution network

13. Cloud storage: Support, three days of rolling storage are given by default

14. Motion detection: Support, the sensitivity level is adjustable

15. Connection method: 2.4GHz WiFi

16. Power supply mode: Battery powered

17. Battery level detection: Support, the voltage is lower than 3.4V, cannot wake up

18. Firmware upgrade: Support remote upgrade

19. Working temperature: -10 to 45 degrees Celsius

20. Working humidity: Less than or equal to 95%
