HC101D 2D Bluetooth Barcode Scanner Wireless Back Clip Phone Barcode Reader, Spec: Side

1. Back clip-on scanner, can replace PDA, code scanning gun, mobile phone scanning

2. Compatible with mainstream mobile phones and various APPs

3. You can scan in information wherever you can input text. Click on the input box to see the cursor and you can easily scan in information. It replaces manual input of barcodes and QR codes, and replaces scanning with mobile phone cameras. It is fast and saves power.

4. Can be connected to computer office software documents (.docx / .xlsx /.txt) and can be connected to mobile WPS App and Notepad App

5. Ergonomic design, comfortable grip, no fatigue when working for a long time

6. Equipped with large-capacity lithium battery to provide long and reliable battery life

Parameter:

1. Material: ABS plastic

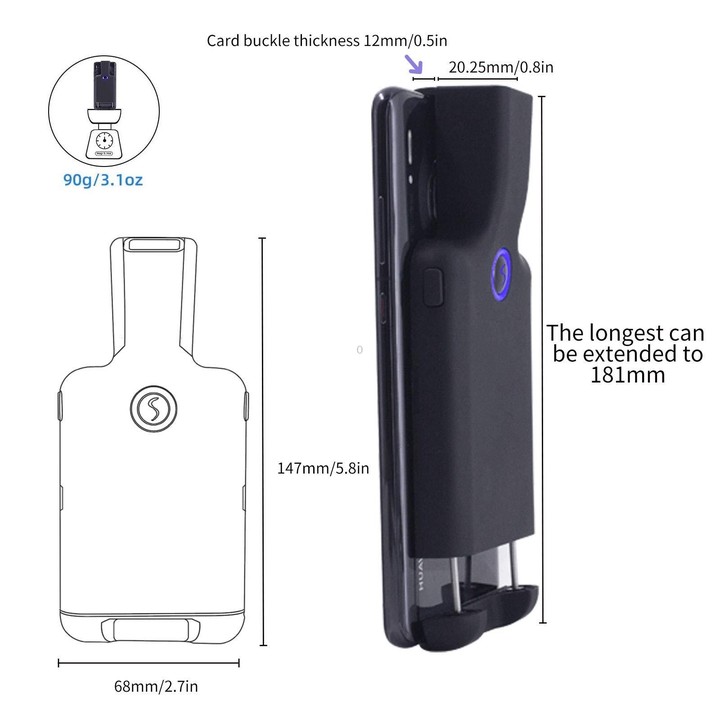

2. Dimensions: length 147 x width 68 x thickness 32.25mm

3. Interface: USB+Bluetooth+2.4G

4. Prompt mode: indicator light, buzzer

5. Weight: 106g

6. Power supply voltage: 5V/1A

7. Battery capacity: 2500mAh

8. Light source: LED indicator light

9. Image sensor: 1024X600 pixels

10. Support barcode:

-1D: Codabar, Code 11, Code93, MSI, Code 128, UCC/EAN-128, Code 39, EAN-8, EAN-13, UPC-A, SBN, Industrial 25, Interleaved 25, Standard 25, 2/5 Matrix

-2D: QR, DataMatrix, PDF417, Aztec, Hanxin, Micro PDF417

11. Resolution: greater than or equal to 4mil

12. Decoding speed: 100/second

13. Scanning mode: manual, induction, continuous

14. Bluetooth protocol: HID, SPP, BLE

15. Scanning depth of field: 40mm~300mm

16. Contrast: greater than or equal to 10%

17. Reading angle: rotation 360 degrees, tilt +/-65 degrees, deflection +/-60 degrees

18. Working temperature: -20-50 degrees Celsius

19. Relative humidity: 5% to 95% (non-condensing)

20. Drop: can withstand a 1.2-meter drop to the concrete floor

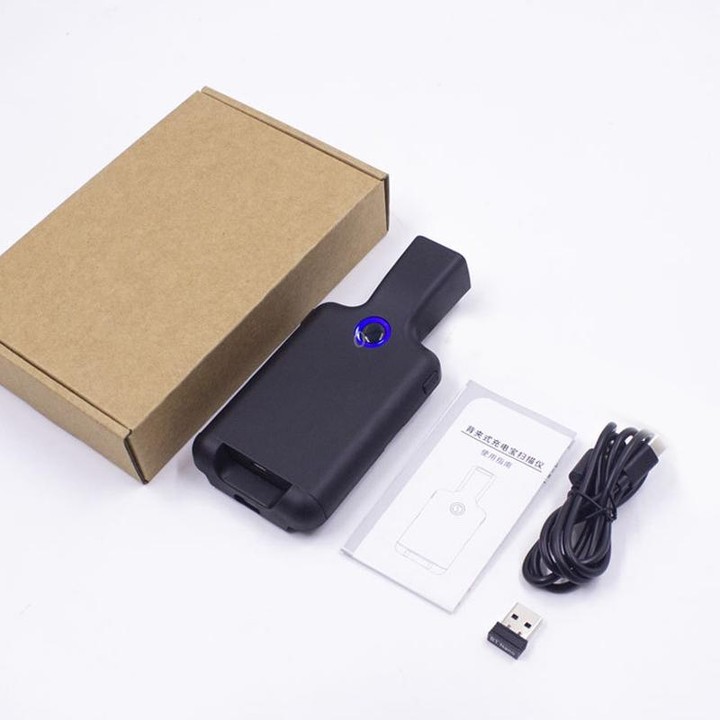

Accessories: Type-c data cable, USB charging cable, wireless receiver, manual
