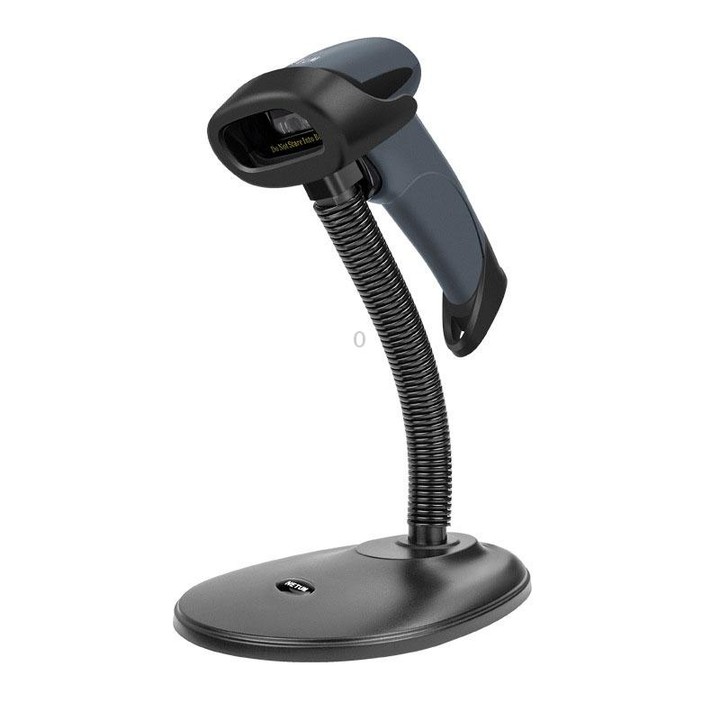

NETUM One-Dimensional Self-Sensing Code Sweeper Handheld Mobile Red Light Scanning Machine, Model: Wireless With Bracket

1. Shell material: ABS + TPR

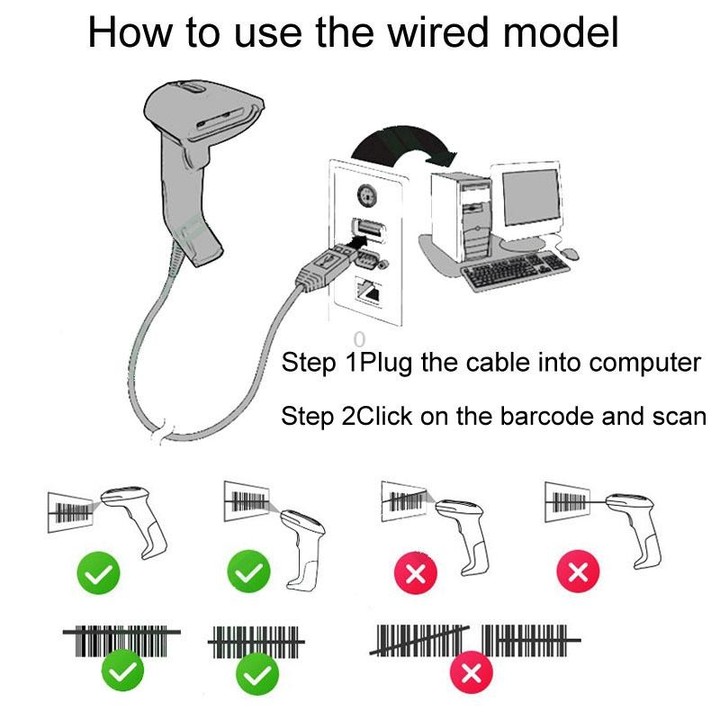

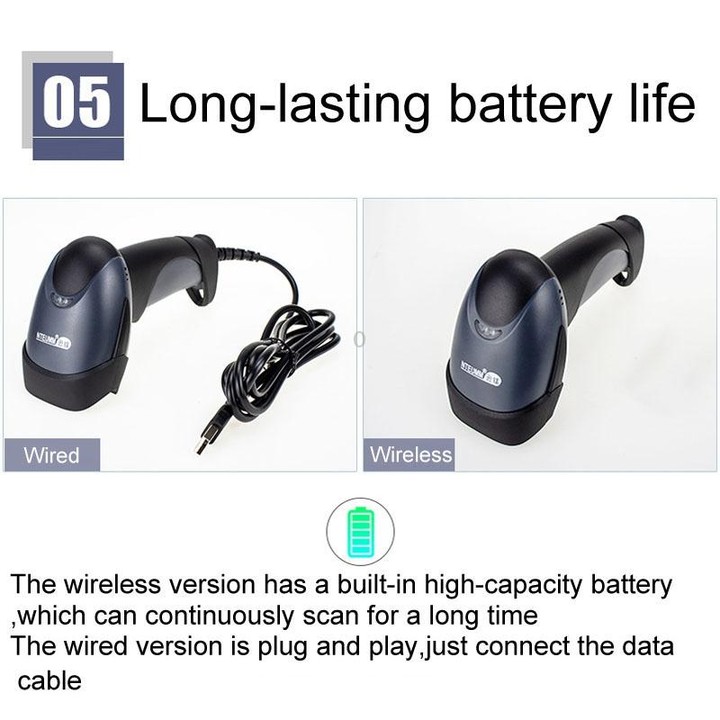

2. Durable, wireless version of the built-in high-capacity battery, can be a long time continuous scanning without power; wired version of the plug-and-play, connect the data line can be

3. Strong decoding ability, the use of photoelectric coupling (CCD) principle, the bar code printing pattern imaging, and then decoding, can easily scan the common one-dimensional bar code and the screen bar code

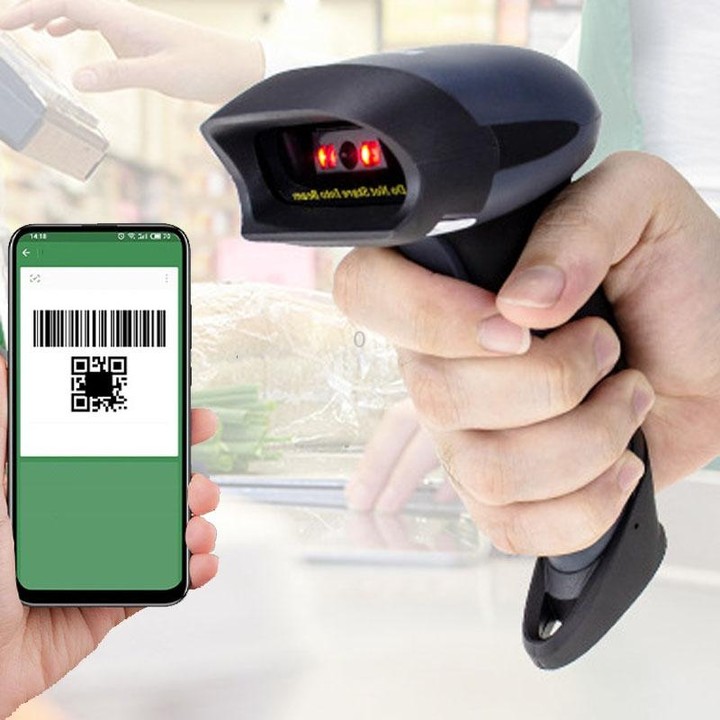

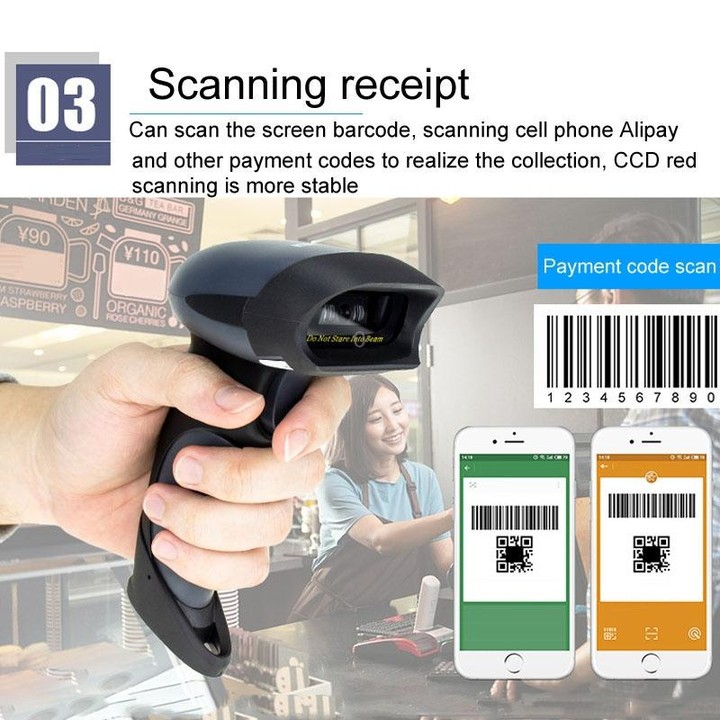

4. Scanning code collection, can scan the screen barcode, scanning cell phone Alipay and other payment codes to realize the collection, CCD red scanning is more stable

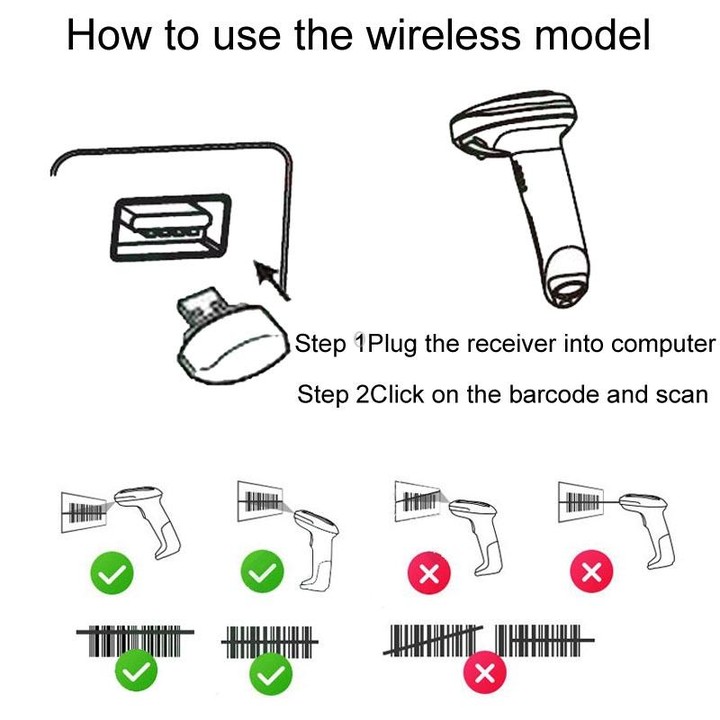

5. Wireless models can be long-distance transmission to receive information, get rid of the wired scanning constraints

Parameters:

1. Code reading mode: CCD red light

2. Light source type: LED (630NM)

3. Light source: 265 LUX (130nm)

4. Scanning mode: bidirectional scanning

5. Scanning speed: 200 times / sec

6. Resolution: 2500

7. Precision: more than 5 mil

8. Printing contrast: more than 30 percent

9. Use of the environment: -10-60 degrees celsius

10. Storage temperature: -20-60 degrees celsius

11. Storage humidity: 5-90 percent

12. Peripheral lighting: 0-100000Ix

13. Power: 0.494W

14. Operating voltage: 3.3V-4.2V (error not more than 5 percent)

15. Current: 130mA

16. Wireless battery capacity: 2000mAh

17. Scanning angle: 65/60 degrees

18. Scanning performance: 5mil: 40-105mm; 10mil: 10-250mm; 15mil: 23-380mm; 20mil: 35-490mm; 30mil: 30-650mm

19. Decoding Capability: EAN-13, EAN-8, UPC A, UPC E, CODABAR (NW-7), Code 39, Code 93, Interleaved 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 128, EAN/UCC 128, Code 11, CHINA POST

20. Prompting mode: LED indicator, buzzer

21. Scanning mode: hand-held key-triggered scanning

22. Interface support: RS-232, USB, PS / 2

23. Cable length: 1.8m

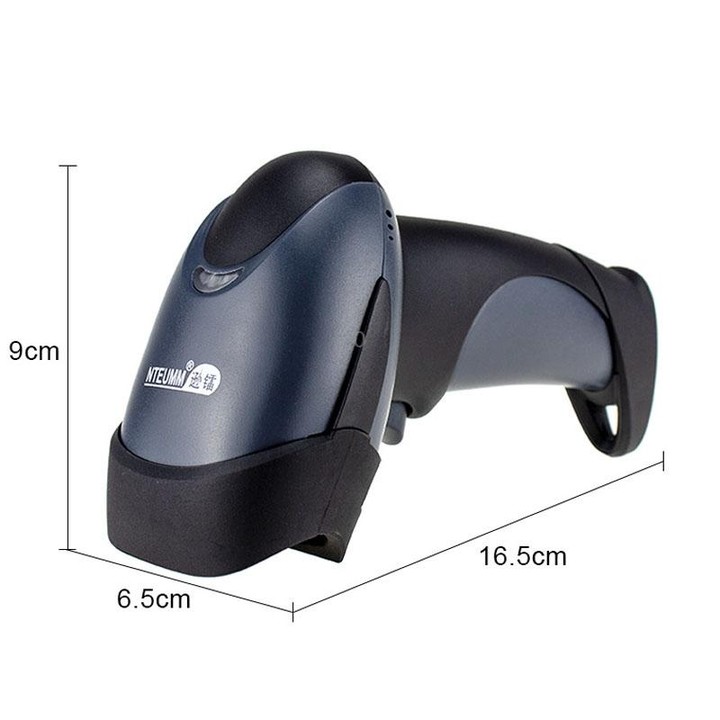

24. Size: 165 x 65 x 90mm

25. Weight: 220g
