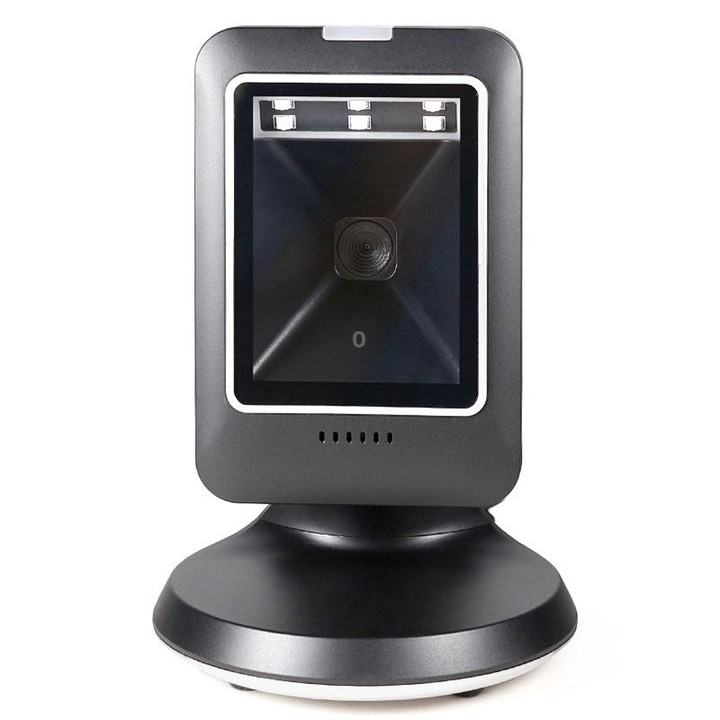

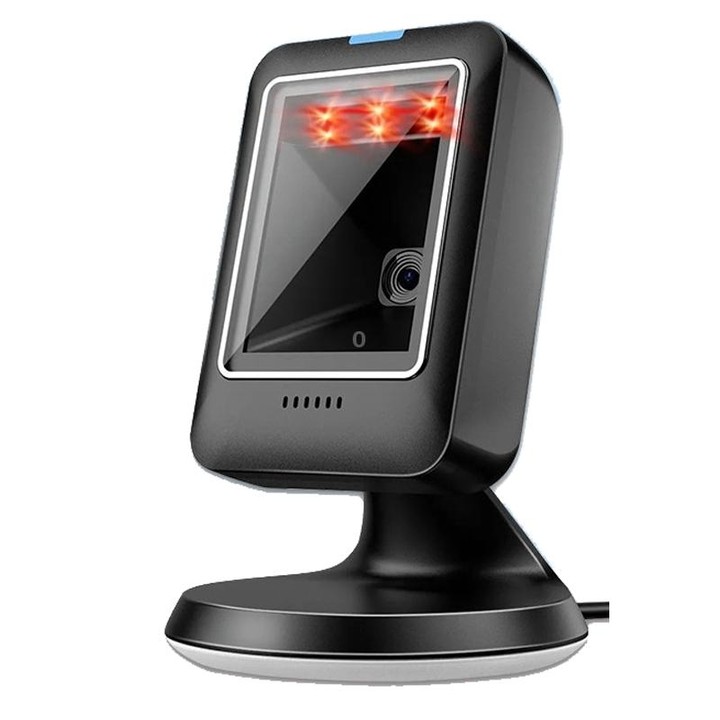

Supermarket Cashier Scanning Platform QR Code Payment Wired Handheld Barcode Scanner(DW158)

1. Image sensor: 640*480 CMOS

2. Decodable system:

1D: EAN-8, EAN-13, EAN-13 2 add-on, EAN-13 5 add-on, ISBNs UPC-A,

UPC-E, Code 39, Code 39 FullASCIk Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, GS1-128, GS1 DataBar (RSS14) (Stacked), GS1 Data Bar Limited , Standard 25, GS1 DataBar Expanded

2D: PDF417, MicroPDF417, MicroQR, Data Matrix, QR Code

3. System compatibility: Linux, Android, Windows XP, 7, 8, 10, MACOS

4. Minimum recognition accuracy: Code 39 4mil

5. Scannable barcode types: one-dimensional and two-dimensional barcodes on paper and film; one-dimensional and two-dimensional barcodes on screens such as mobile phones and tablets.

6. Movement tolerance: 3.2 meters/second

7. Scanning mode: self-sensing continuous code reading mode

8. Supported keyboards: US-English, French, Italian, German, Spanish, Turkish Q, Belgian (French), Portuguese-Portuguese, Portuguese-Brazilian

9. Support barcode language: Simplified Chinese characters (under win system)

10. Invoice function: supported (only for the Chinese market) (under win system)

11. Secondary development: Secondary development is not supported

12. Barcode output editing: supports adding suffixes/hidden characters

13. Printing contrast: 20%

14. Recognition angle range: rotation angle ±360°, elevation angle ±60°, declination angle ±70

15. Indicator light: red and purple two-color indicator light

16. Buzzer: startup prompt, code reading prompt

17. Fall resistance: can withstand 3 times of free fall from 1.5 meters

18. Waterproof and dustproof: IP54

19. Operating temperature range: -20 to 55℃

20. Storage temperature range: -20 to 60℃

21. Working humidity range: 5-95% non-condensing state

22. Storage humidity range: 5-95% non-condensing state

23. Ambient light intensity: 0-70000LUX

24. Data cable length: 177-183CM

25. Working voltage: 5V

26. Communication interface: USB (driver-free), serial port

27. USB standby power: 193mA/0.965W

28. USB working power: 183mA/0.915w

29. USB maximum power: 195mA/0.975W

30. Serial port standby power: 193mA/0.965W

31. Serial port working power: 183mA/0.915w

32. Maximum power of serial port operation: 195mA/0.975W

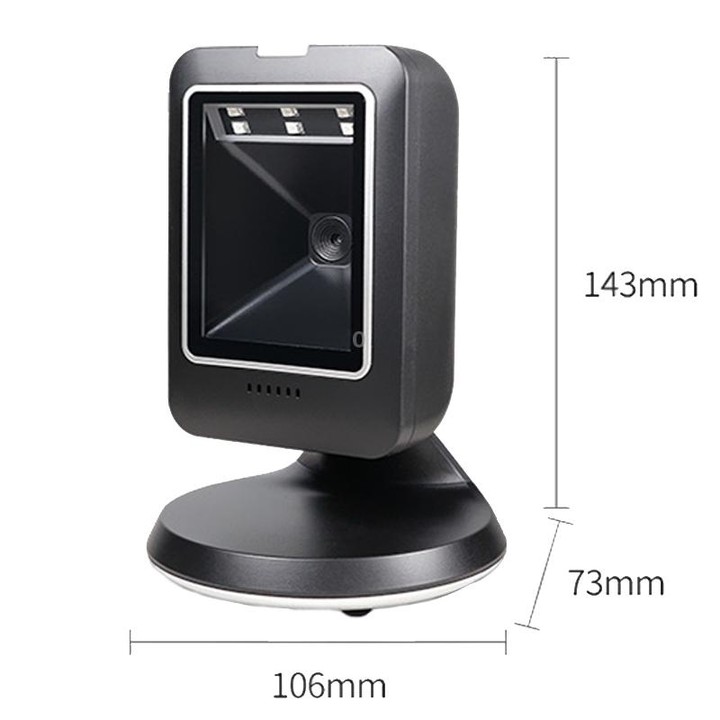

33. Product size: 106 x 73 x 143mm

34. Product net weight: 370g

Features:

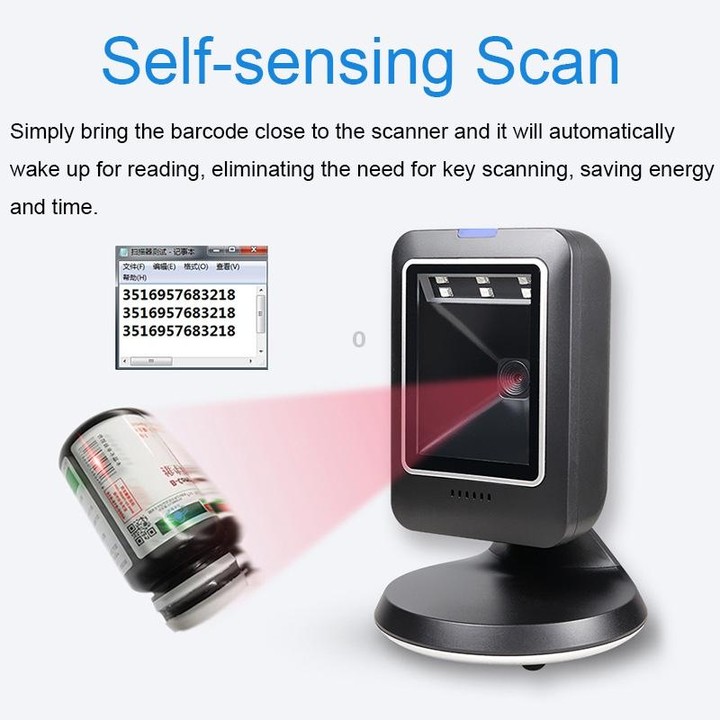

1. Self-sensing scanning, bring the barcode close to the scanner, and it will automatically wake up for reading. No key scanning is required, saving energy and time.

2. Suitable for various scenarios

3. Plug and play, compatible with all major systems

4. Image scanning, wide-angle camera

5. Wide recognition range and fast speed

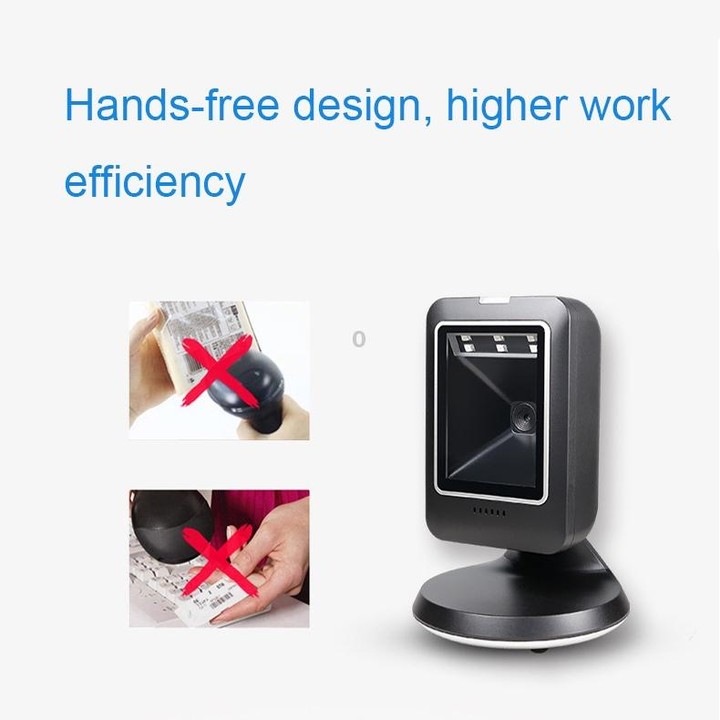

6. Hands-free design, higher work efficiency

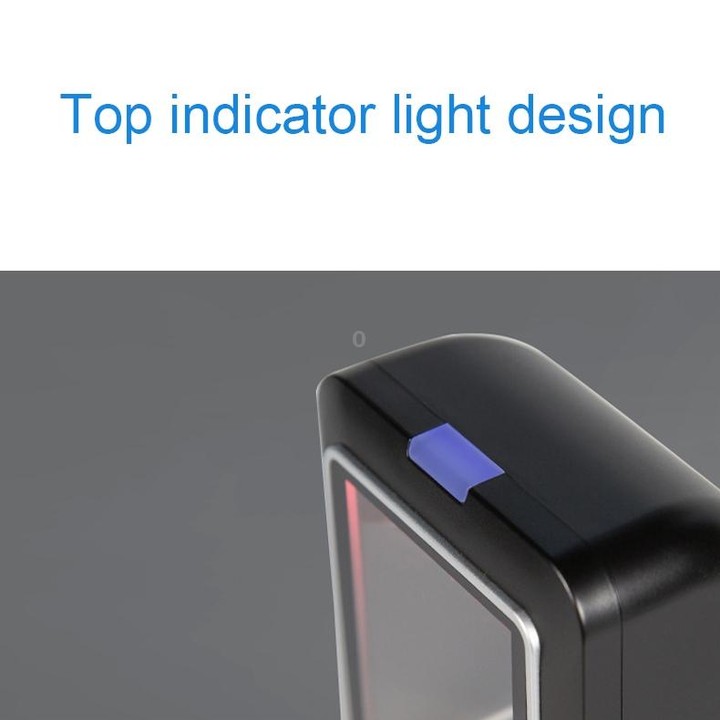

7. Top indicator light design

8. Wide voltage and low power consumption, no lag in data transmission

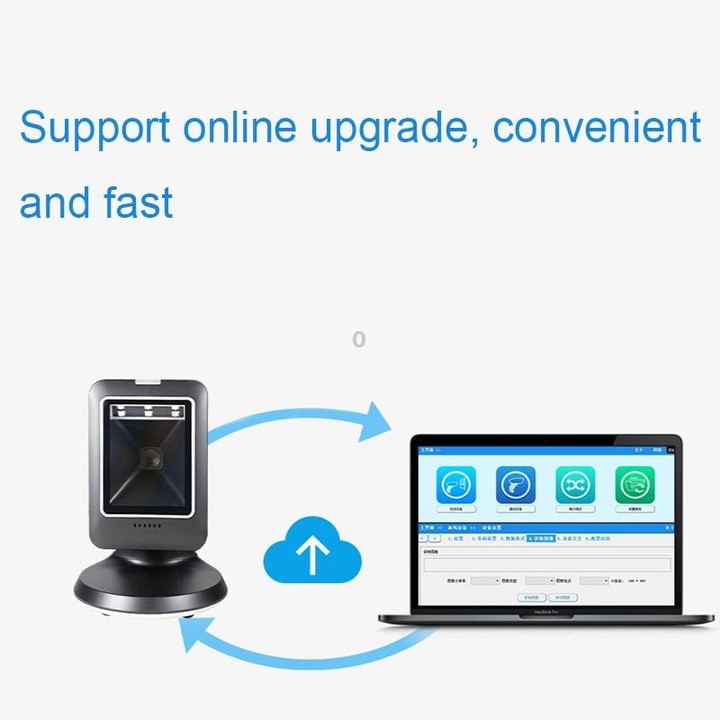

9. Support online upgrade, convenient and fast

10. Can scan in strong light/dark environments, adopts independent image algorithm, and is compatible with various environments
