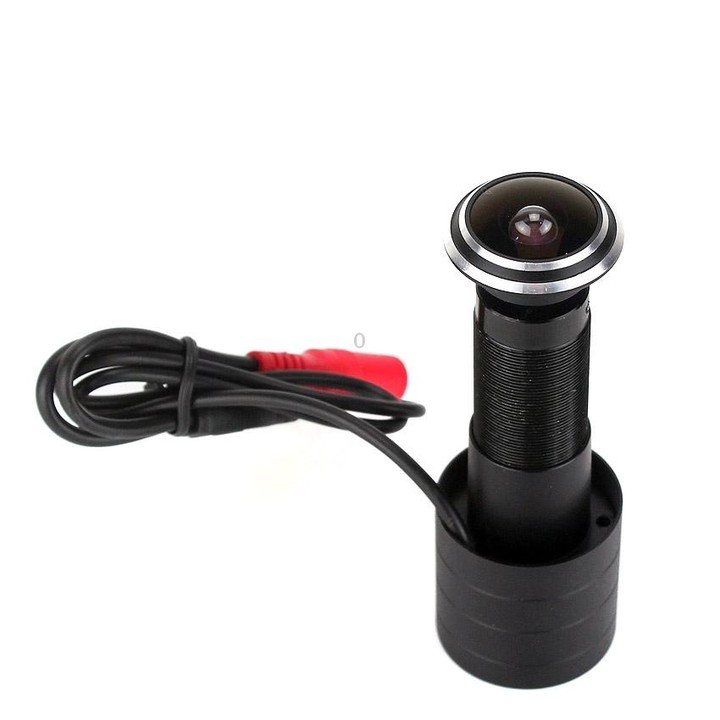

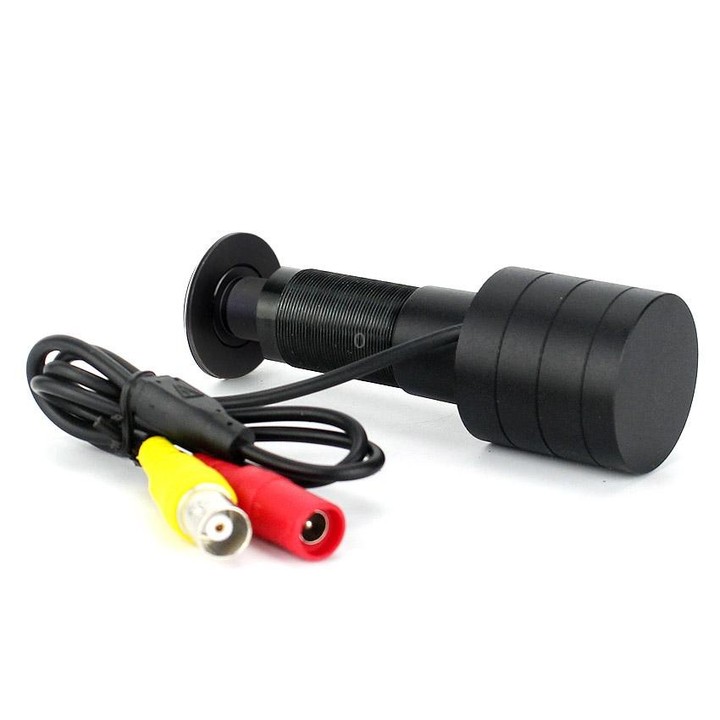

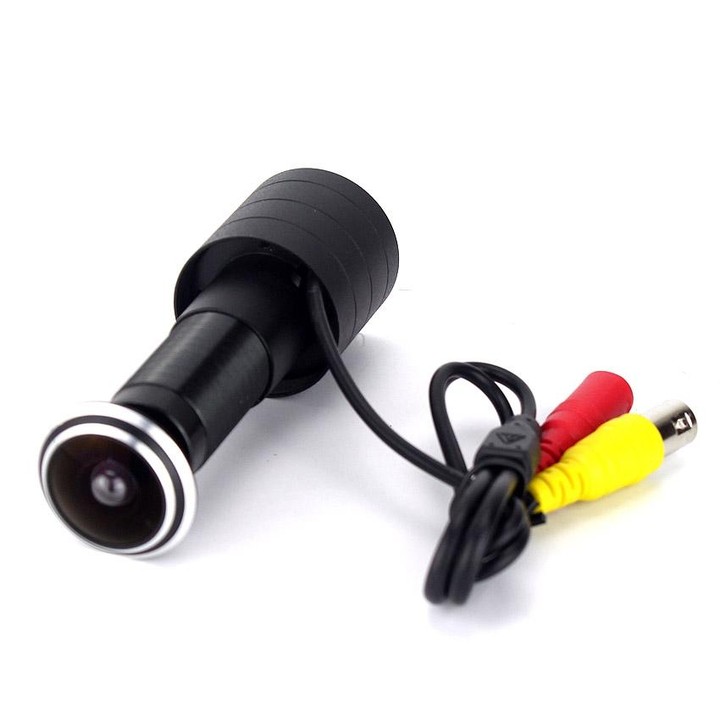

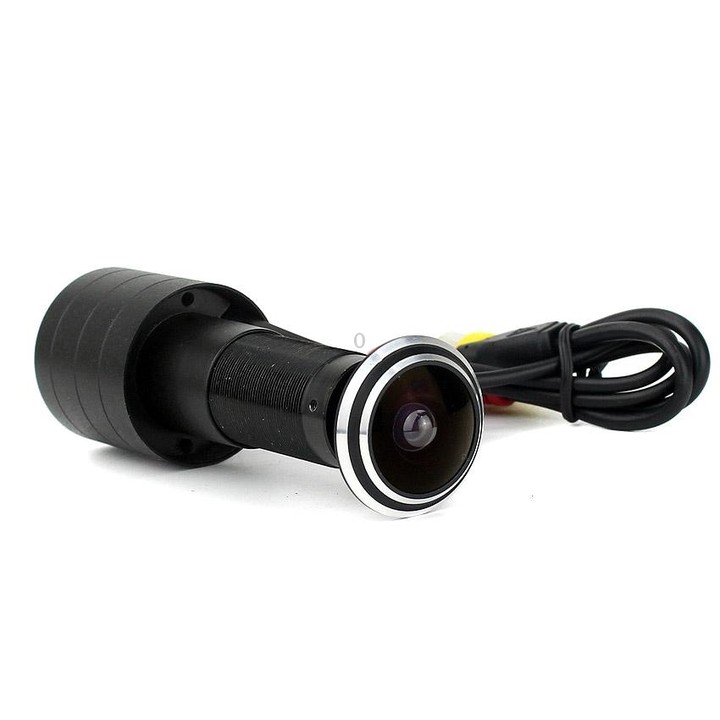

800TVL CVBS Analog Door Cat Eye Color Wide View Door Viewer Camera Adjustable Home Security Camera

Alarm:No

Resolution :800TVL

signal:CVBS, (support to monitor Ditectly)

Power Supply:DC 12V

Video Output:BNC

Model:SMT-DVC800

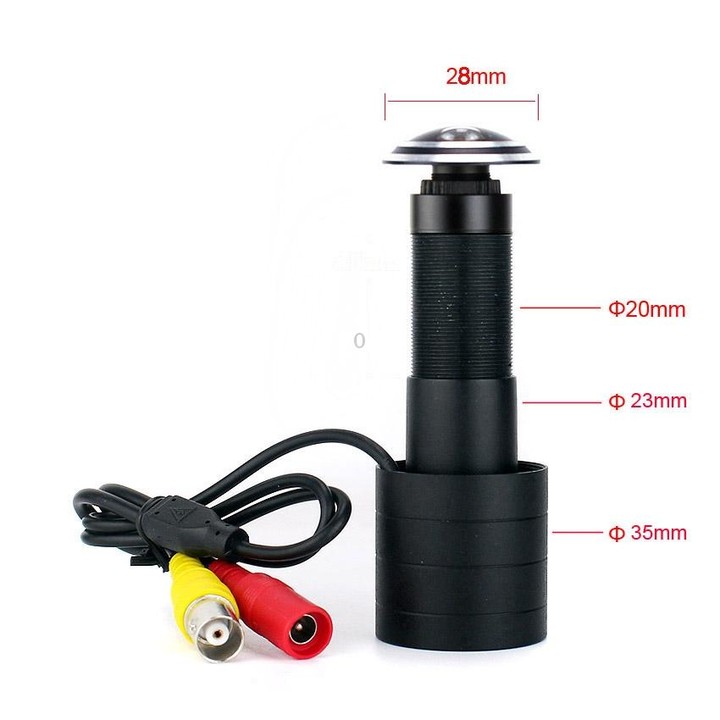

The total length 30mm-85mm adjustable

At the bottom of the thickest part of the 35mm

Horizontal resolution 800 TV Lines,

No amount of infrared light (without IR)

Scanning frequency PAL: 15.625 kHz / 50 KHz

Scanning System 2: 1lnterlace, 2: 1 interlace

Minimum illumination 0.5 Lux

Internal Synchronization Internal / DC12V

Signal / noise ratio greater than 48dB Better than

Auto Auto Electronic Shutter 1/50 ~ 1 / 100,000 sec.

Video Output 1 Vp-p, 75 composite signal

Power supply 12V DC ( 10%)

2.1mm lens configuration

View Angle About 120degree

Power Consumption 800mA / DC12V

Specification:
