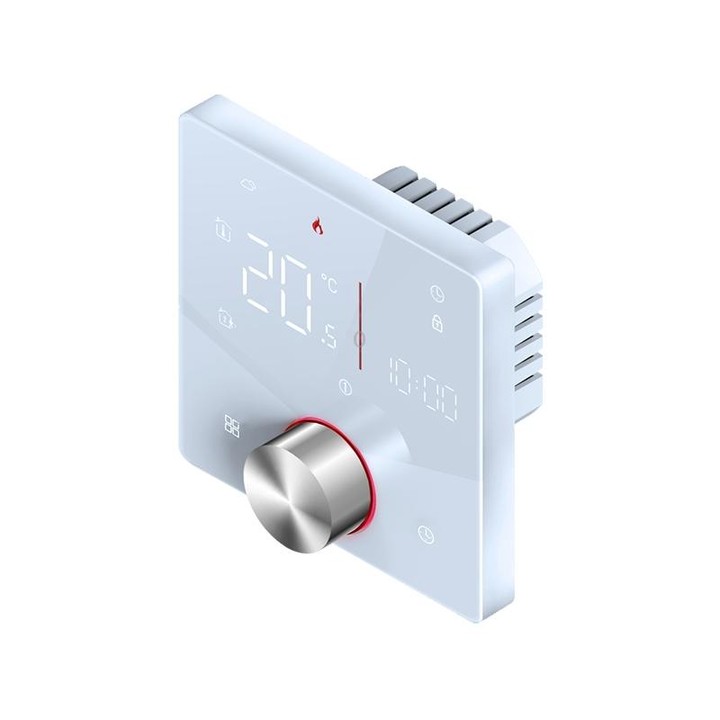

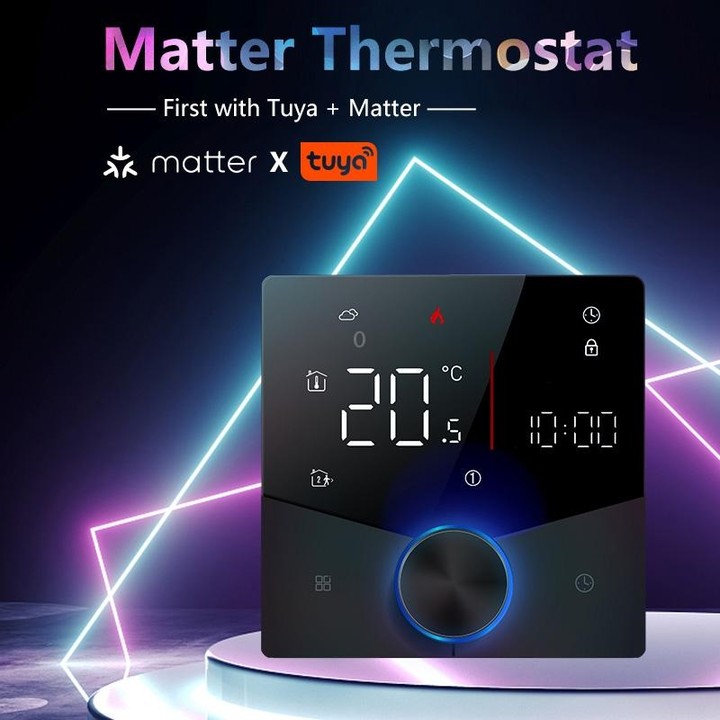

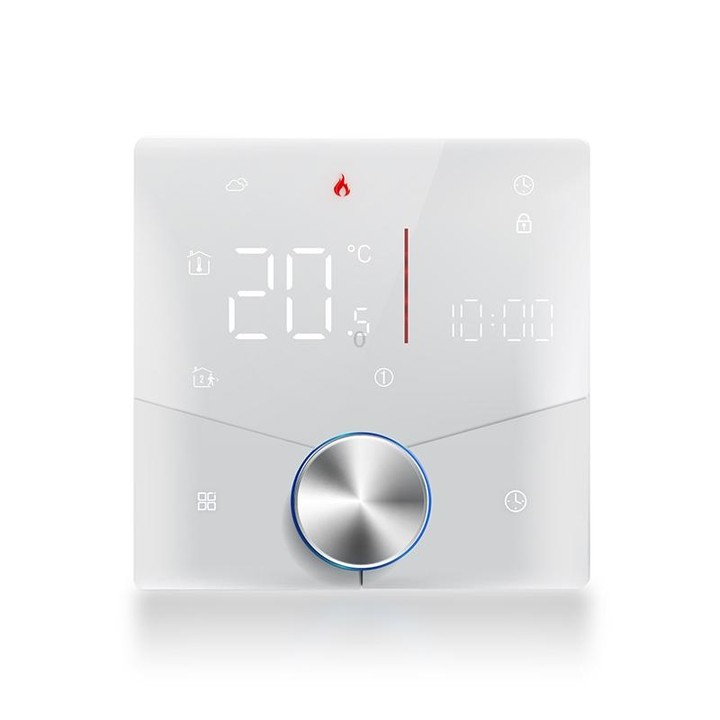

BHT-009GCLW-MT Boiler Heating WiFi Smart Home LED Thermostat with Matter(White)

Features:

On Appearance

1. LED display, more friendly interface;. LED matrix light, simple display, energy saving, protect your eyes.

2. Touch buttons to make simple operation.

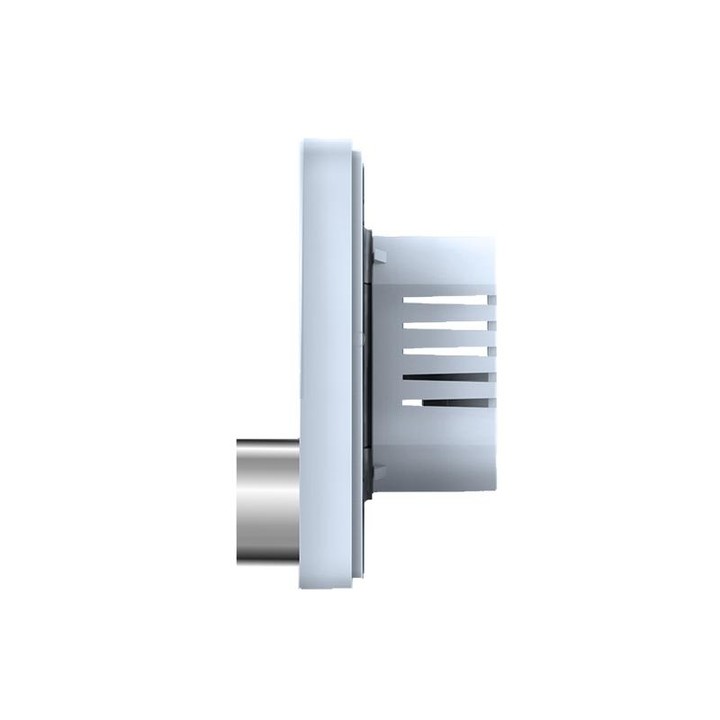

3. The ultra-thin embedded panel perfectly fits all kinds of walls; The visiable thickenss above the wall is only 12.4mm.

4. Frameless acrylic panel design, simple and elegant;

5. Classic black/white color scheme, seamlessly integrated.

6. Compatible with standard 86mm square cassettes and 60mm European cassettes to meet all installation environments;

7. Interlock to connect gives you easy installation.

On Functionality

1. Strict temperature control accuracy (+/1 degree C) to provide the warmth you want;

2. Power off protection, save all your settings safely;

3. Preset adjustment of 7days mode in a week, programmable setting of 6 time periods a day, green energy saving, Less cost, more intelligent and environmental protection;

4. Support the creation of product local groups/shares to achieve unlimited centralized control of the number of products/ multi-terminal control;

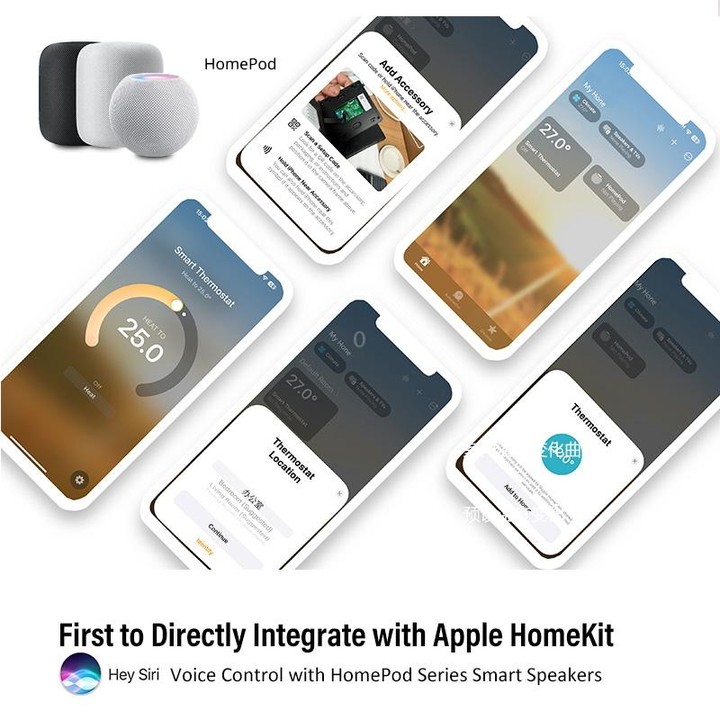

5. Good access: Suitable for ALEXA/GOOGLE HOME /HOMEKIT /APPLE HOME, full

experience new voice control method;

Specification:

1. Power Supply: 95~240 VAC, 50/60Hz or 24V DC/AC, 50/60Hz (Please check the information laser printed on the back of the thermostat for the actual voltage.)

2. Current Load: 3A (water heating, water gas boiler), 16A (electric heating)

3. Sensor: NTC3950, 10K

4. Accuracy: +/-1 degree C

5. Set Temp. Range: 5-35 degree C

6. Room Temp. Range: 5~70 degree C

7. Display Temp. Range: 5 ~70 degree C

8. Ambient Temp.: 0~ 45 degree C

9. Ambient Humidity: 5 ~ 95% RH (Non Condensing)

10. Storage Temp.: -5~ 45 degree C

11. Power Consumption: Less than 1. 5W

12. Timing Error: Less than 1%

13. Shell Material: PC +ABS ( Fireproof)

14. Installation Box: 86 x 86mm Square or European 60mm Round Box

15. Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2

16. Protection Class: IP20

17. Buttons: Knob + Capacitive Touch Buttons

18. 2.4G WiFi
